ICCT INTELLIGENT
L/CT/T

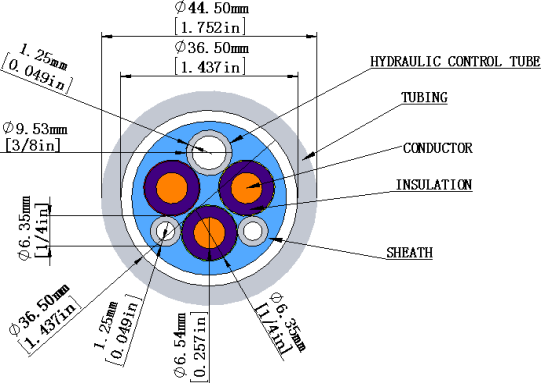

Intelligent Coiled Cable and Tubing
ICCT-2205-44.5mm×4.0mm-825-3/8in-2×1/4in-2AWG
TECHNICAL SPECIFICATIONS | |||
Type | ICCT-2205-44.5mm×4.0mm-825-3/8in-2×1/4in-2AWG | ||
Outer Tubing | Material | 2205 | |
Size | 44.50mm X 4.0mm (1.752in x 0.156in) | ||
Inner Tubing | Material | 825 | |
Size | 2 X 6.35mm X 1.25mm (1/4in x 0.049in) | ||
9.53mm X 1.25mm (3/8in x 0.049in) | |||
Conductor | Material | Copper | |
Size | 3 x φ 6.54mm (0.257in) | ||
Insulation | Material | Ethylene propylene rubber | |
Size | 3 x φ 6.35mm (1/4in) | ||
Filler | Material | Ethylene propylene rubber | |
Size | φ 32mm (1.260in) | ||
Sheath | Material | 316L | |
Size | φ 36.5mm (1.437in) | ||
Mechanical Properties | |
Yield Force | 280.93 kN |
Unit Mass | 7.06kg/m |
Electrical Properties | 2AWG |
Max Electrical Resistance, 20 ℃ | 0.53Ω/km |
Min Insulation Resistance, 20 ℃ | 4233MΩ* km |
Voltage Test | DC 35 kV, @ 5 minutes, No Breakdown |
Other Properties | |
Temperature Range | -30℃-120℃ |

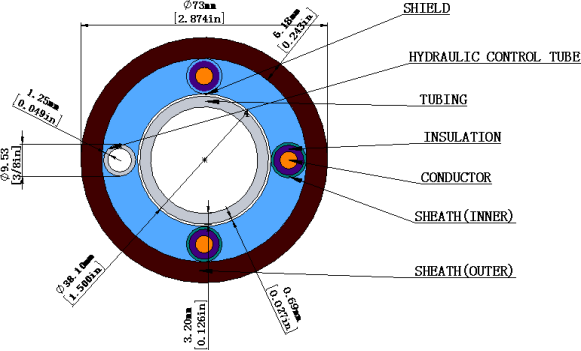

Intelligent Coiled Cable and Tubing
ICCT-HDPE-73mm-ST70-38.1mm×3.2mm-3/8in×0.049in-4AWG
TECHNICAL SPECIFICATIONS | |||
Type | ICCT-HDPE-73mm-ST70-38.1mm×3.2mm-3/8in×0.049in-4AWG | ||
Outer Sheath | Material | HDPE | |
Size | 73mm x 6.18mm（2.874in x 0.243in） | ||
Inner Tubing | Material | ST70 | |
Size | 38.1mm x 3.2mm（1.500in x 0.126in） | ||
Shield | Material | EPDN | |
Size | t = 0.69mm（0.027in） | ||
Conductor | Material | Copper | |
Size | 3 x φ 5.2mm（0.204in） | ||
Insulation | Material | EPDM | |
Size | 3 xφ9.0mm (0.354in) | ||
Inner Sheath | Material | HDPE | |
Size | 3 xφ10.6mm (0.417in) | ||
Hydraulic Control Line | Material | 316L | |
Size | 9.53mm x 1.25mm（3/8in x 0.049in） | ||
Filler | Material | HDPE | |
Size | φ 61mm（2.387in） | ||
Mechanical Properties | |
Yield Force | 169.46 kN |
Unit Mass | 6.10kg/m |
Electrical Properties | 4AWG |
Max Electrical Resistance, 20 ℃ | 0.84Ω/km |
Min Insulation Resistance, 20 ℃ | 1100MΩ* km |
Voltage Test | DC 35 kV, @ 5 minutes, No Breakdown |
Other Properties | |
Temperature Range | -30℃-100℃ |

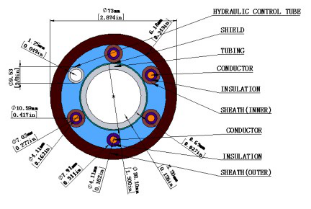

Intelligent Coiled Cable and Tubing
ICCT-HDPE-73mm-ST70-38.1mm×3.2mm-4AWG-Ground wire-6AWG
TECHNICAL SPECIFICATIONS | |||
Type | ICCT-HDPE-73mm-ST70-38.1mm×3.2mm-4AWG-Ground wire-6AWG | ||
Outer Sheath | Material | HDPE | |
Size | 73mm×6.18mm（2.874in×0.243in） | ||
Inner Tubing | Material | ST70 | |
Size | 38.1mm X 3.2mm (1.5in x 0.126in) | ||
Shield | Material | EPDN | |
Size | T = 0.69mm (0.027in) | ||
Conductor | Material | Copper | |
Size | 4xφ5.19mm（0.204in） | ||
Insulation | Material | EPDM | |
Size | 4xφ9mm（0.354in） | ||
Inner Sheath | Material | HDPE | |
Size | 4xφ10.6mm（0.417in） | ||
Conductor (Ground wire) | Material | Copper | |
Size | φ4.12mm（0.162in） | ||
Insulation (Ground wire) | Material | EPDM | |
Size | φ7.9mm（0.311in） | ||
Hydraulic Control Line | Material | 316L | |
Size | 9.53mm×1.25mm(3/8in×0.049in) | ||
Filler | Material | HDPE | |
Size | Φ60.6mm（2.387in） | ||
Mechanical Properties | |
Yield Force | 169.46 kN |
Unit Mass | 6.8kg/m |
Electrical Properties | Power cable-4AWG/Ground wire-6AWG |
Max Electrical Resistance, 20 ℃ | 0.84Ω/km（Power cable） |
1.33Ω/km（Ground wire） | |
Min Insulation Resistance, 20 ℃ | 1000MΩ* km（Power cable） |
1000MΩ* km（Ground wire） | |
Voltage Test | DC 35 kV, @ 5 minutes, No Breakdown（Power cable） |
DC 2.5 kV, @ 5 minutes, No Breakdown（Ground wire） |
Other Properties | |
Temperature Range | -30℃-100℃ |
