Aluminium Conductor Steel Wire Reniforced ACSR Conductor

ID:2005264691

Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 0.100 / Meter(s)

MOQ:1000.00 Meter(s)

Product Keywords:

Round Wire

Payment Method:

L/CT/TD/PWesstern UnionPaypalMoney Gram

Product Category

Electrical & Power Energy > Wires,Cables & Accessories

Trademark

Product Package

Specification

Place of Origin

Port

Qingdao

Aluminium conductor steel wire reniforced ACSR Conductor

1.Application:
Conductor have been widely used in power transmission lines with various voltage levels, and also used in power lines across great Rivers, plain,highland etc. The cables have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient and low cost installation and maintenance, large transmission capacity.

2.Standard:
Aluminum stranded conductor BS215, ASTMB232,DIN48204,JIS3109,AND CAA. The special requirements of the clients will also be meet.
Aluminium Conductor Steel Wire Reniforced ACSR Conductor

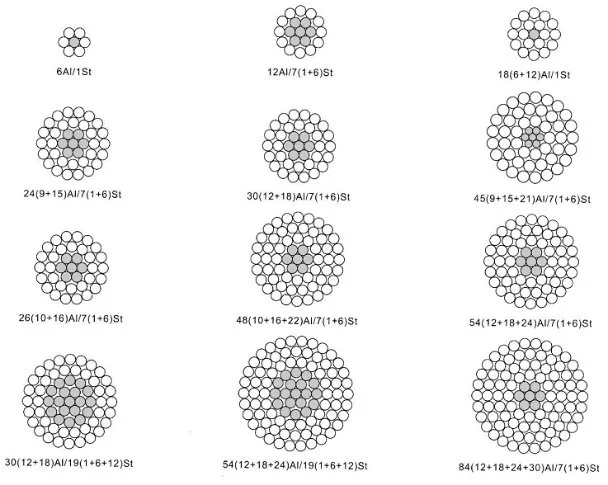

3.Specification:
BS 215 Part2

Code name	Nominal aluminium area	Stranding and wire diameter		Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	Nominal aluminium area	Al	Steel	Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	mm2	No./mm		mm2	mm2	mm	kg/km	Ω/km	kN
RABBIT	50	6/3.35	1/3.35	52.88	61.7	10.05	214	0.5426	18.35
DOG	100	6/4.72	7/1.57	105	118.5	14.15	394	0.2733	32.7
WOLF	150	30/2.59	7/2.59	158.1	194.9	18.13	726	0.1828	69.2
DINGO	150	18/3.35	1/3.35	158.7	167.5	16.75	506	0.1815	35.7
LYNX	175	30/2.79	7/2.79	183.4	226.2	19.53	842	0.1576	79.8
ZEBRA	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	0.0674	131.9

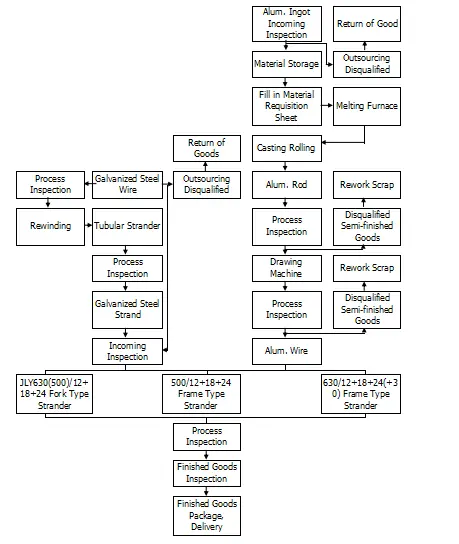

4.Production process:
ACSR conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
Aluminium Conductor Steel Wire Reniforced ACSR Conductor

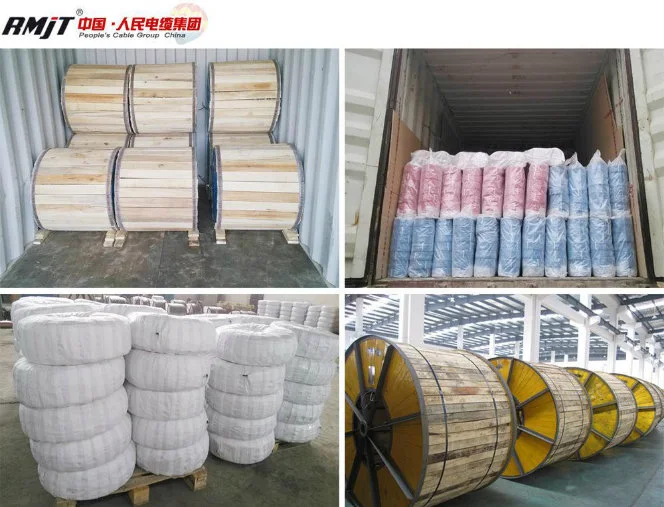

5.Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.

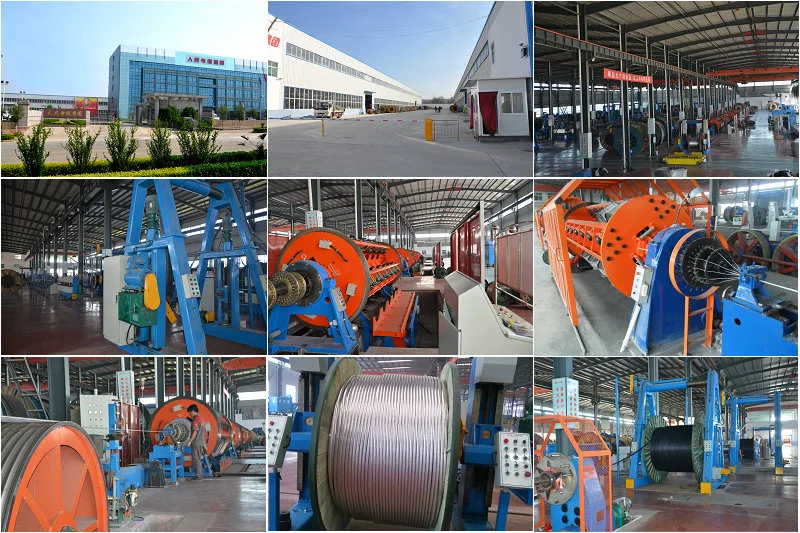

6.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Aluminium Conductor Steel Wire Reniforced ACSR Conductor

7.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

8.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Aluminium Conductor Steel Wire Reniforced ACSR Conductor
9.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
