Chemical fluoroplastic magnetic sul furica acid pump

Chemical fluoroplastic magnetic sul furica acid pump

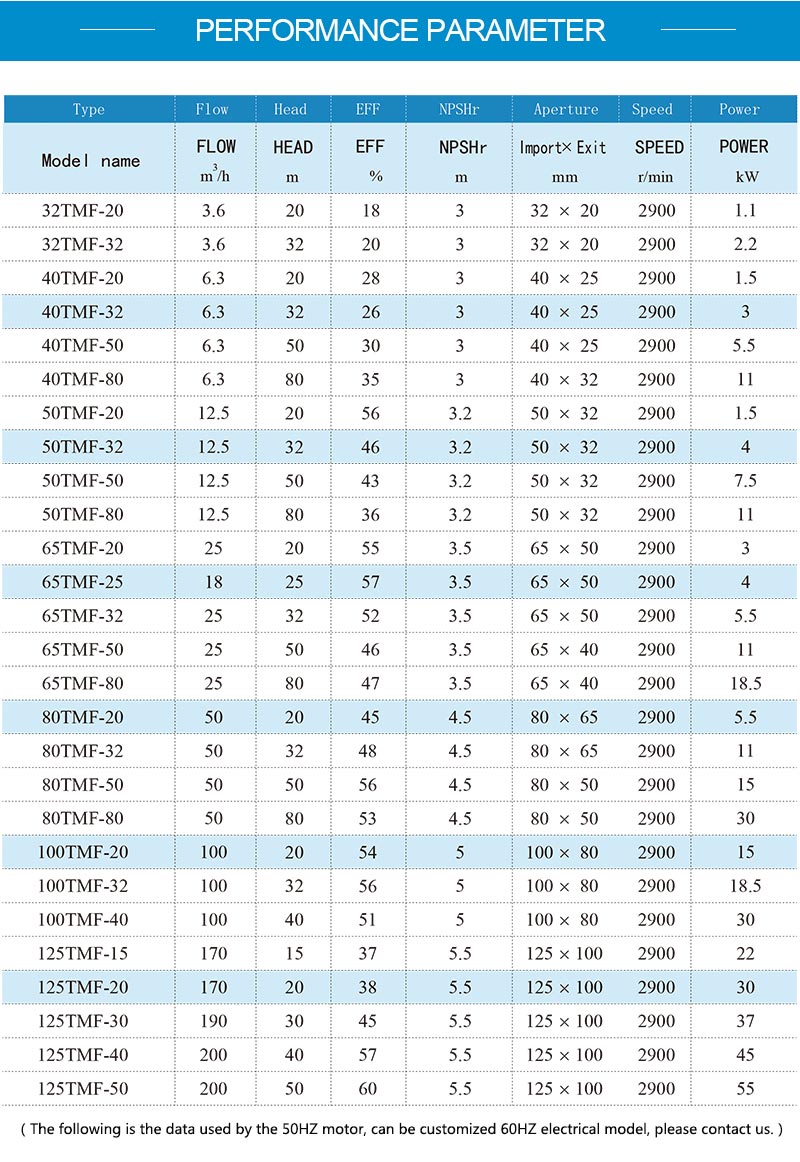

Flow:3.6-200m3/h(60-3333L/min);

Head:20-80m (2Bar-8Bar); Power:1.1-55kw(1.5-75hp);

EFF:18-60%; Aperture:32x20mm-125x100mm;

Temperature range:-30℃ to 100℃

Brand Name:TEFLOW PUMP

-Introduction:TMF series of pumps uses a variety of new materials, can be different according to the transport medium to replace a variety of suitable materials. Can be customized high temperature type, lye type, granular and so on.

-Product uses:Chlorine, fluorine, benzene, alcohol, into foil, pickling, pesticides, medicine and other industries strong acid medium

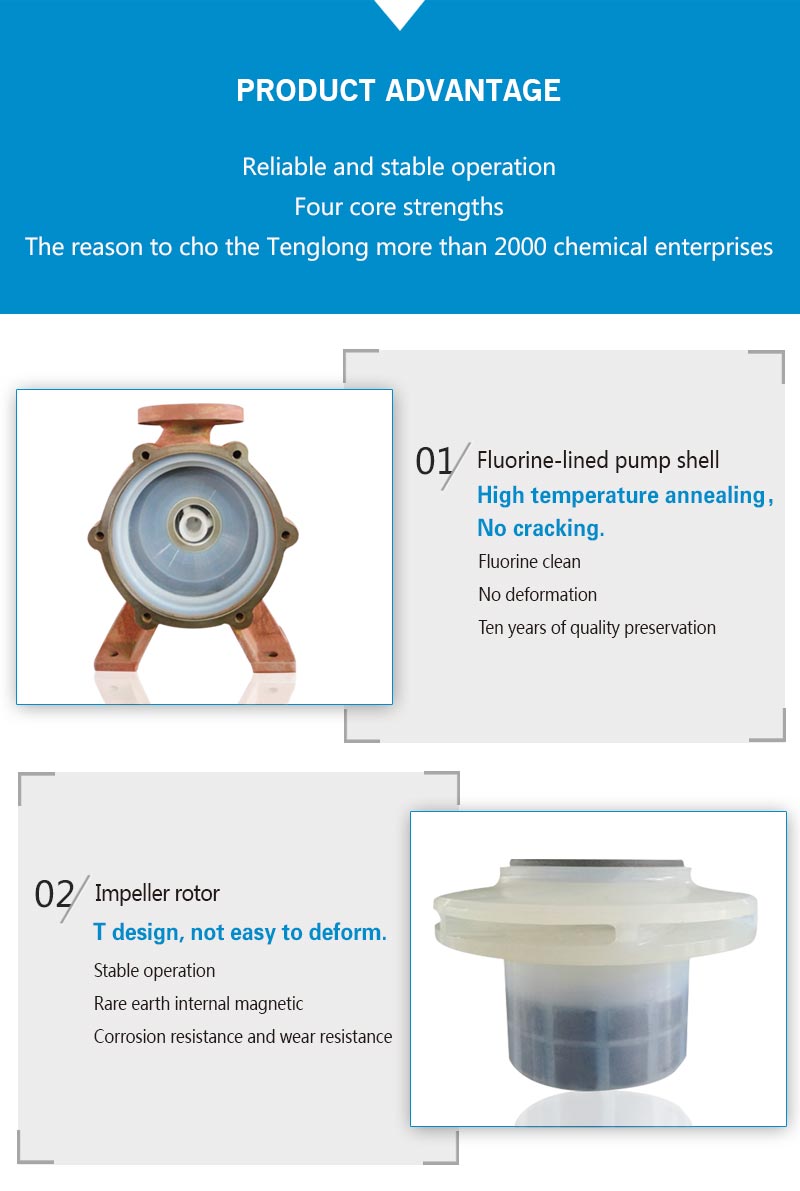

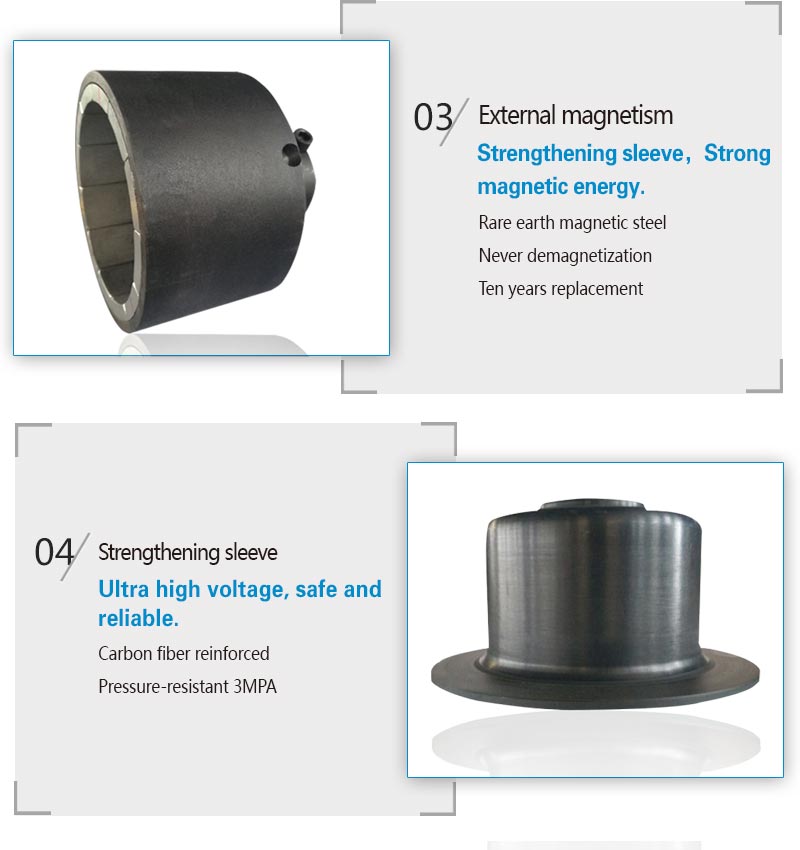

-Material:TMF series of pumps are made of all silicon carbide grinding materials ; The reinforced sleeve is made of nonmetallic material with high resistivity and high rigidity; The impeller is made of fluoroplastics, and the ring is made of filled tetraethylene or silicon carbide;The pump casing is made f46 ht200 liner;Flour Filled sin,sic,ssic Material for Sliding Bearing.

-Medium: sulfuric acid pump, hydrochloric acid pump, hydrofluoric acid pump, nitric acid pump, strong alkali, strong oxidant, organic solvent and other strong corrosive media without damage.
