New Star manufacture has a strong design and sales team , we have more than 20years experience for laminating machine. Our main purpose for machine is simple to use and they can be operated by none technical staff to give a consistently higher performance. Also give good service for spare parts.

·Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically and paper can be added even if the machine is kept running, which improves working efficiency so much．

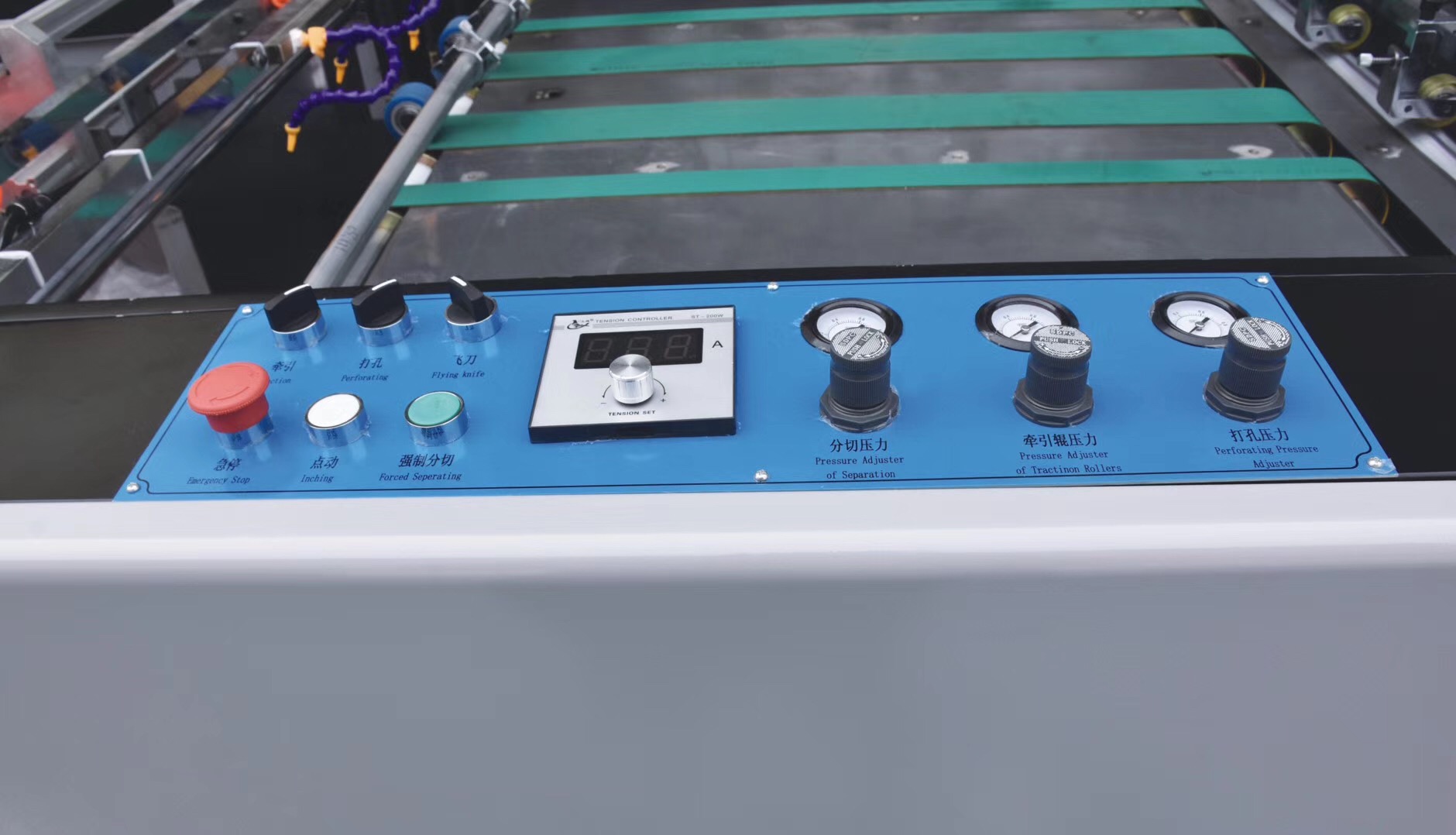

·Man-machine interface system: color touch screen simplifies the machine operation on the touch screen, as long as the operator inputs paper size, overlap length and working speed etc,.the machine can realize completely automated operation. and on touch screen, working status of the machine can be checked at any time．

·Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. when no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection．

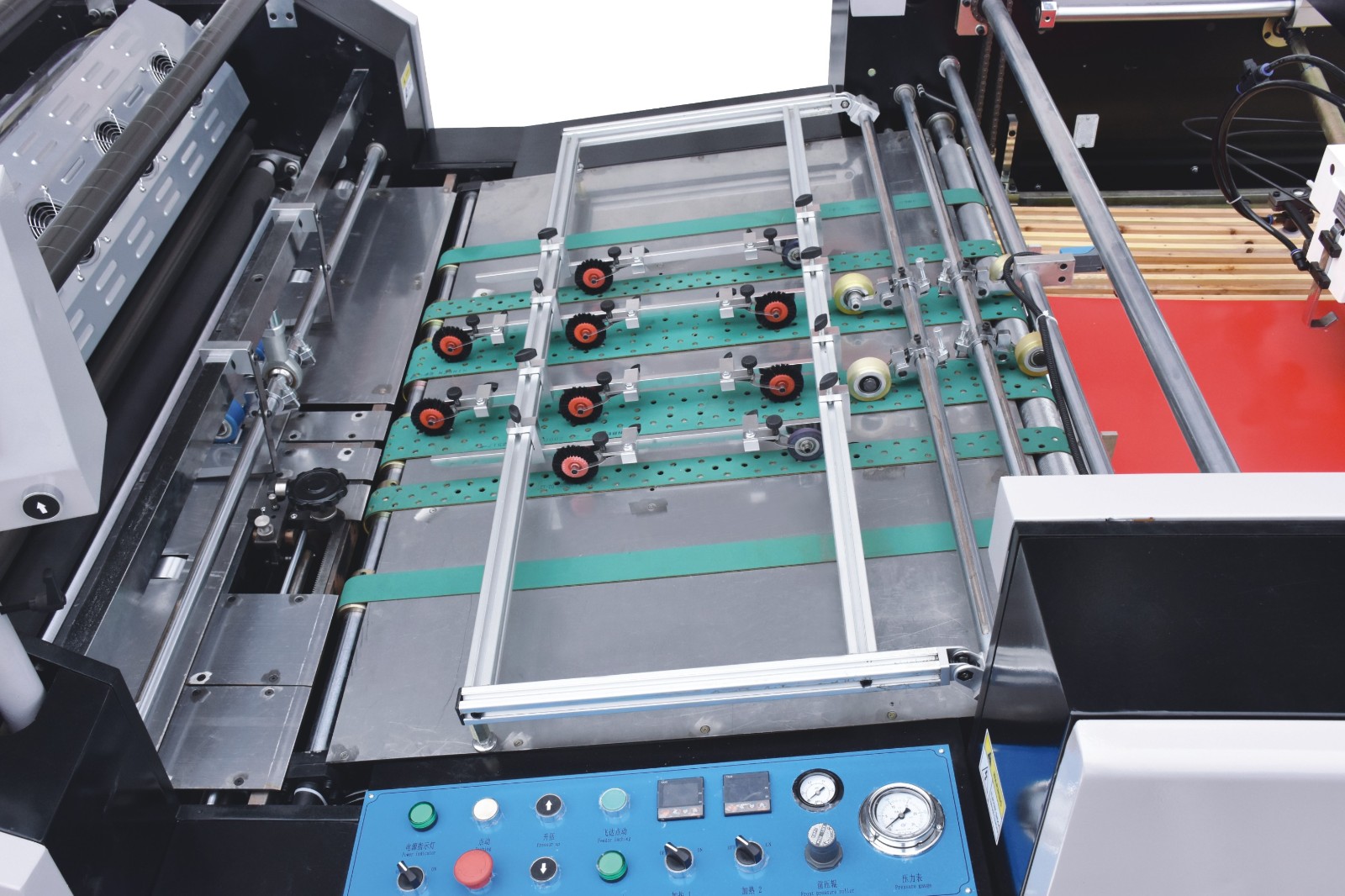

·Conveying table is furnished with air aspirator and front lay etc.to regulate paper conveying and overlap and improve lamination prevision．

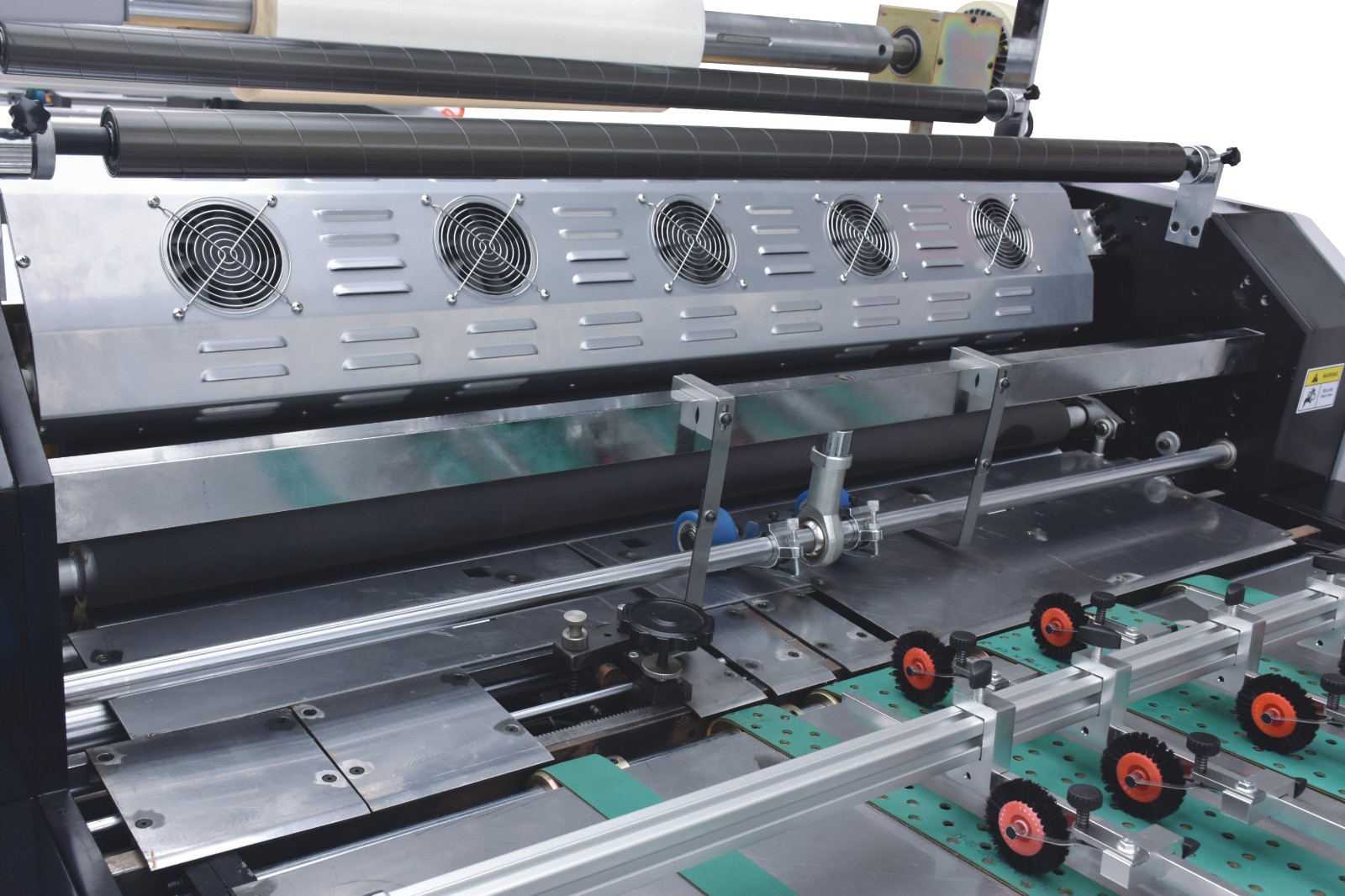

·High precision of big chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications Or electromagnetic heating.．

·Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality．

·Air expansion shaft releases film and perfects the precision of film release and also makes the loading and unloading of film roll much more convenient．

·The combination of air expansion shaft and braking device can adjust film release tension and release speed．

·Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the size of workable paper on the touch screen．

·Collecting unit is furnished with corrugating paper pressing system, which settles completely the crimping trouble of thin and big size of laminated paper．

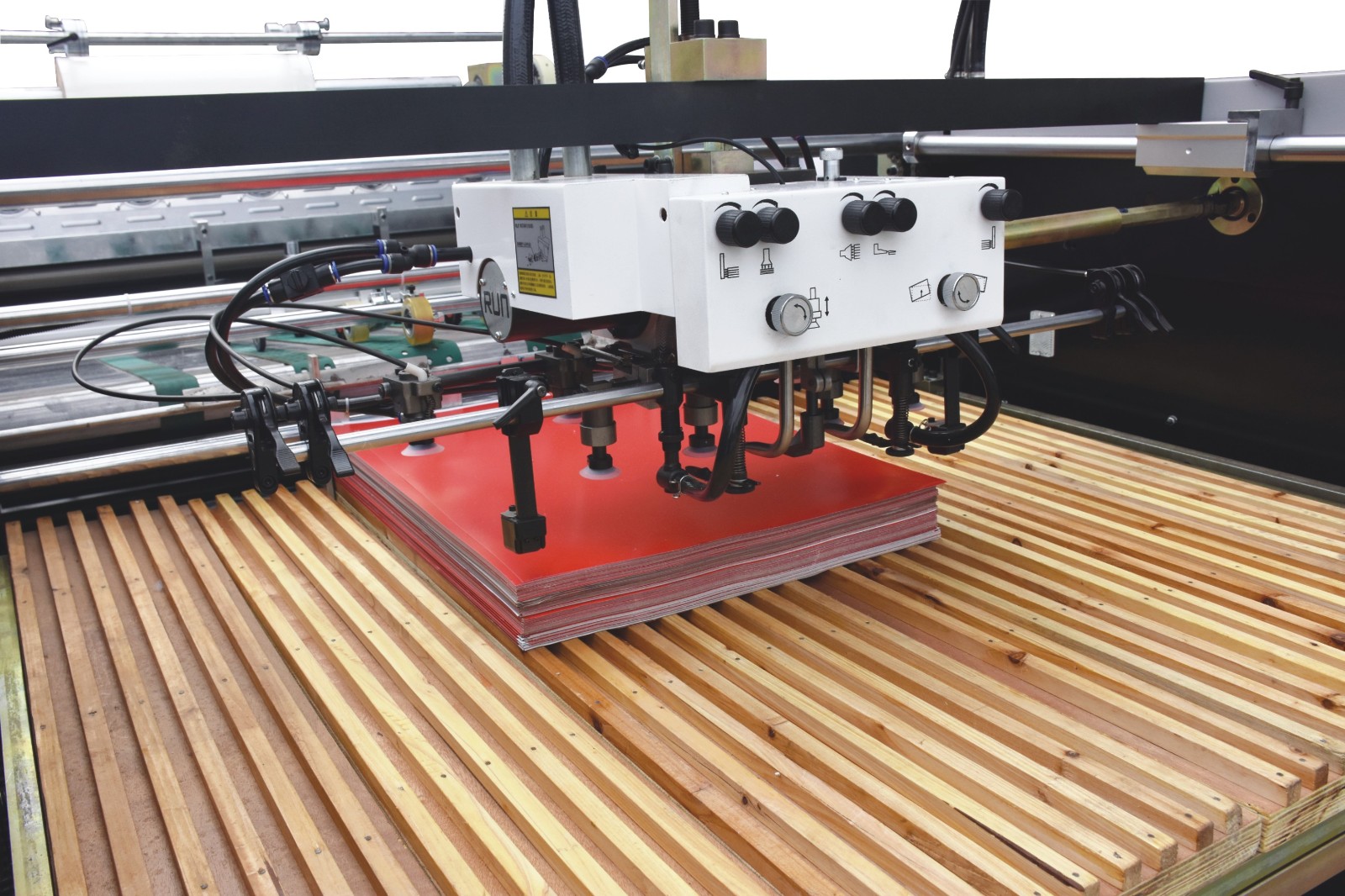

1. Stream feeder, with automatic sheeting and stacker delivery.

2. Oil free vacuum pump on stream feeder with both separating and forwarding suckers.

3. Servo-controlled pump on stream feeder with both separating and forwarding sucker.

4. Oil heated for stable and precise PID electronic control of temperature.

5. Film slitting and perforating system on feed roll.

6. Sheet securing device for production of flat laminated sheets.

7. Strong pneumatic laminating pressure.

8. Pneumatic film tension brake.

9. Swing-away film loading onto air shaft.

10. Whole machine is easily moved by pallet trolley for convenient storage in limited spaces

11. Electrical system: Schneider PLC inverter, Omron and other international brand parts make the machine run smoothly, easy adjust.

12.Electromagnetic heating with stable and precise PID electronic control system raise and constant of temperature more fast.
