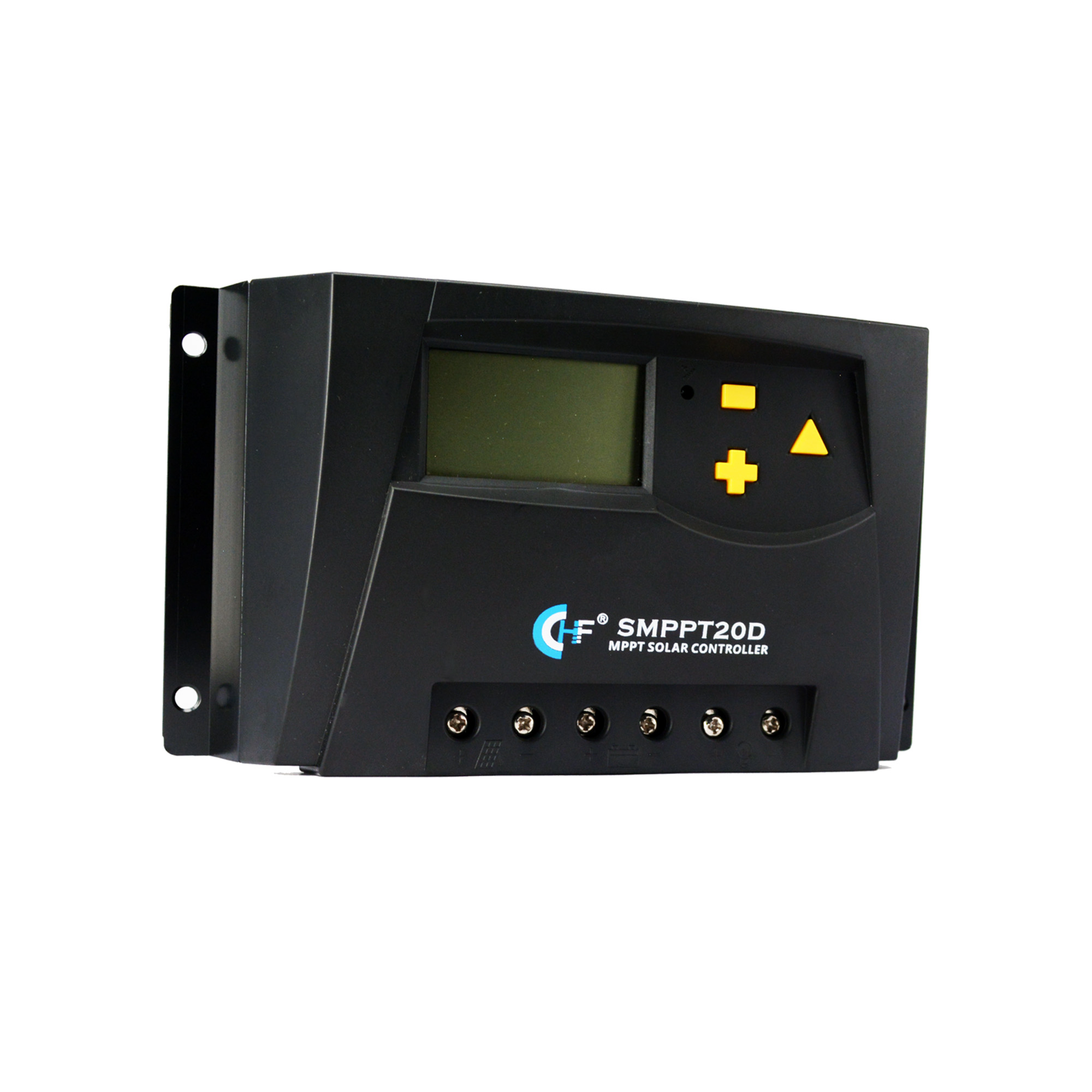

20a 12v 24v mppt solar charge controller with CE certification

ID:2005285047

Electrical & Power Energy Connectors & Terminals

FOB Price:US$ 35.000 / Piece(s)

MOQ:50.00 Piece(s)

Product Keywords:

mppt solar controllersSolar Controllers

Payment Method:

T/TWesstern UnionPaypal

Product Category

Electrical & Power Energy > Connectors & Terminals

Trademark

Product Package

1pc/box,24pcs/ctn

Specification

10A,20A,30A

Place of Origin

Wuhan

Port

Shanghai

Product Description

Functions

(1) Maximum Power Point Tracking technology

(2) Multi-stage Charge Control

(3) Charge Voltage Temperature-compensated

(4) Discharge Control

(5) Protection against Reverse Connected Batter

(6) Protection against Reverse Connected Solar Modules

(7) Reverse Current Protection

(8) Overtemperature Protection

(9) PV Overvoltage Protection

(10) Current-limited for Excessive Charging Current

(11) Load Output Overload Protection

If the permissible load current is exceed, then the load output is switched off. The overload current vs. duration shows as follows:

Rate of Current	Duration (s)
1.1Irate ≤I< 1.2Irate	120
1.2Irate ≤I< 1.5Irate	60
1.5Irate ≤I< 1.8Irate	10
I≥ 1.8Irate	0.2
Note: Irate=10A, nominal load current

The controller restarts the load every 3 minutes automatically, but the user can also restart the load by the Restart key.

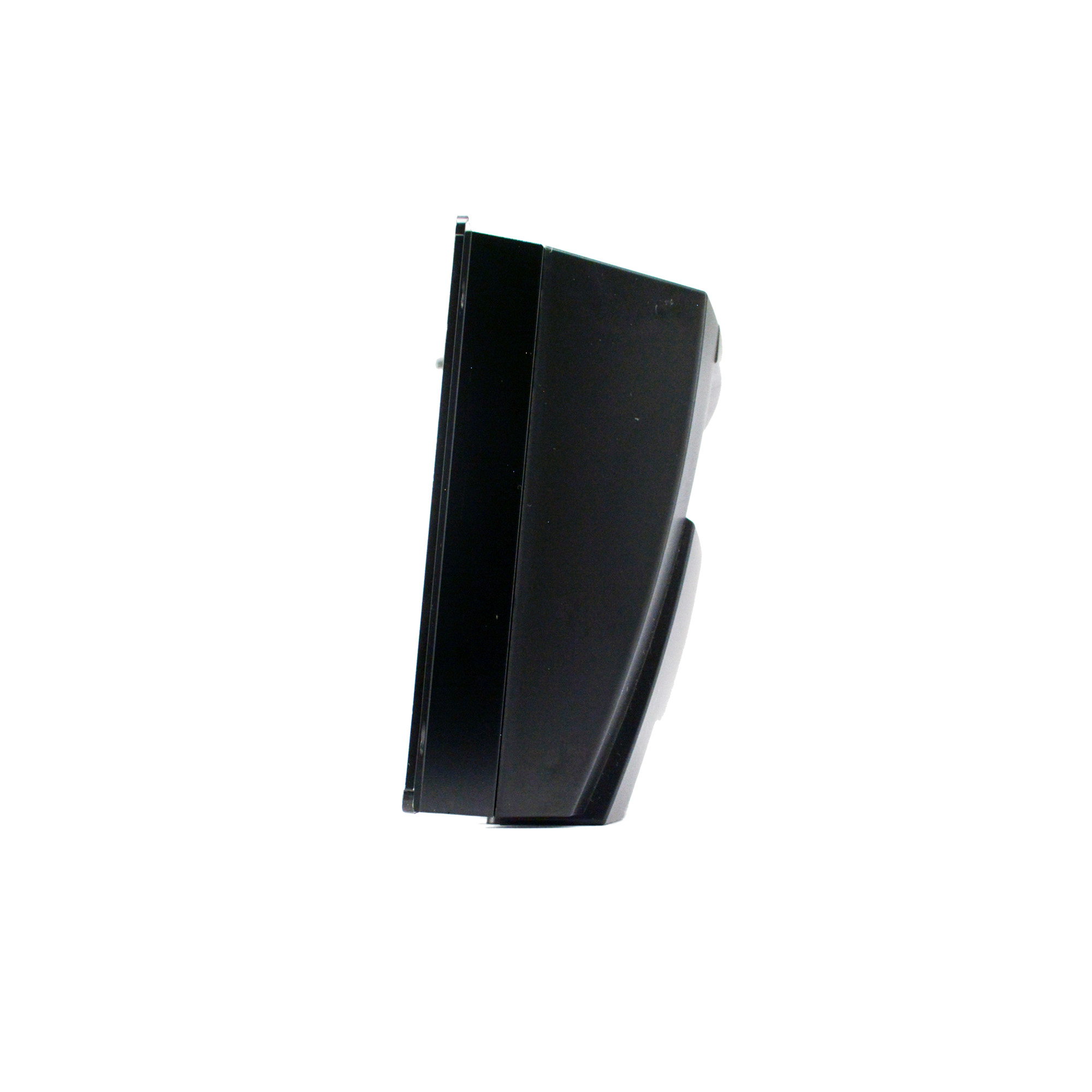

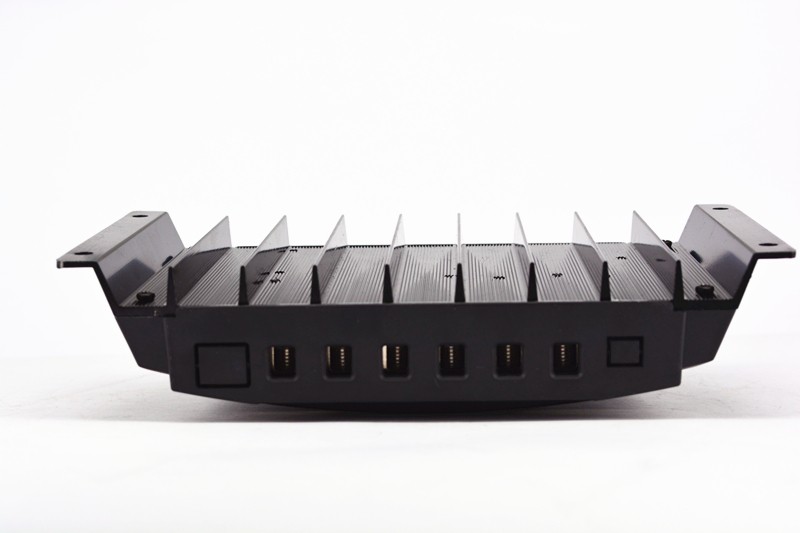

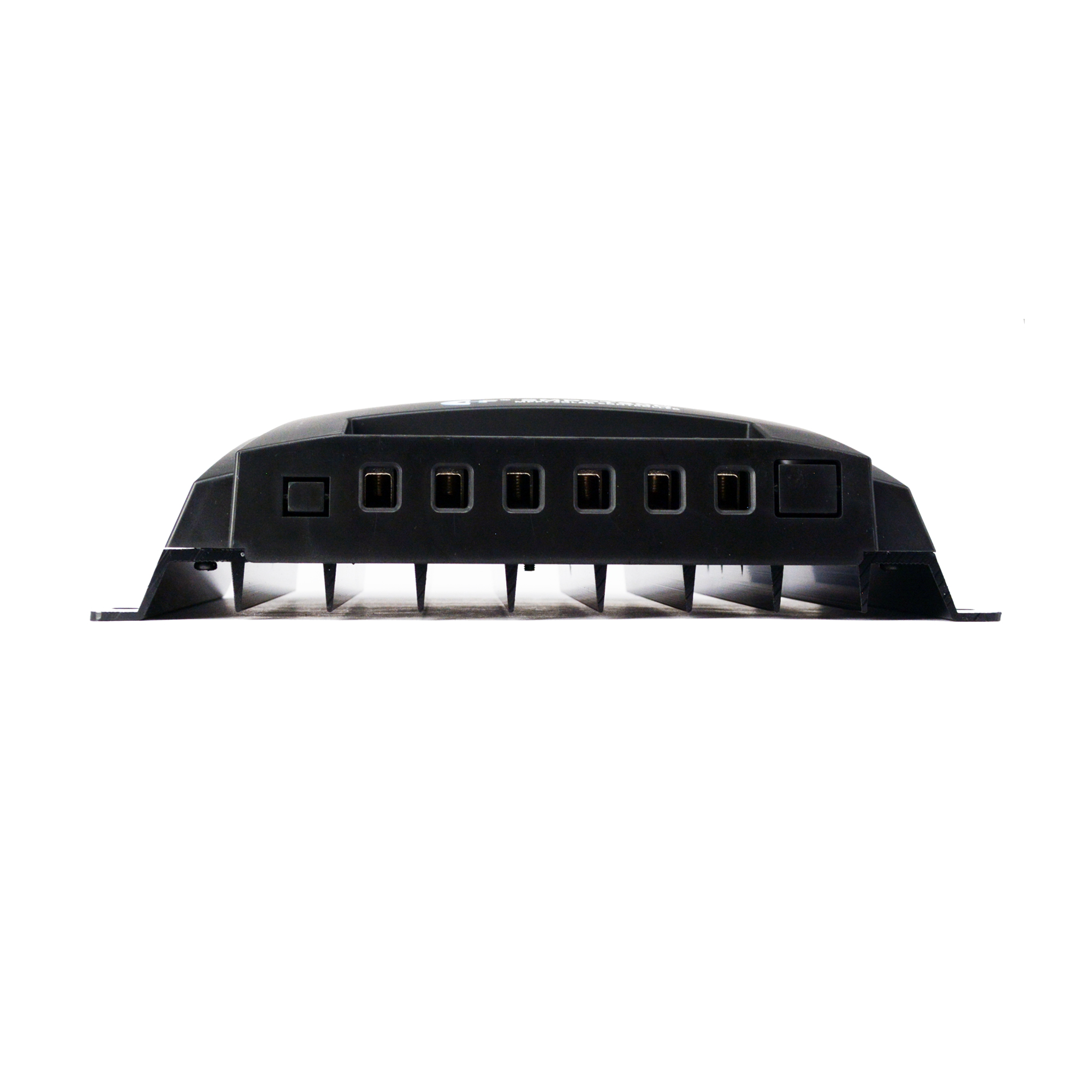

product details

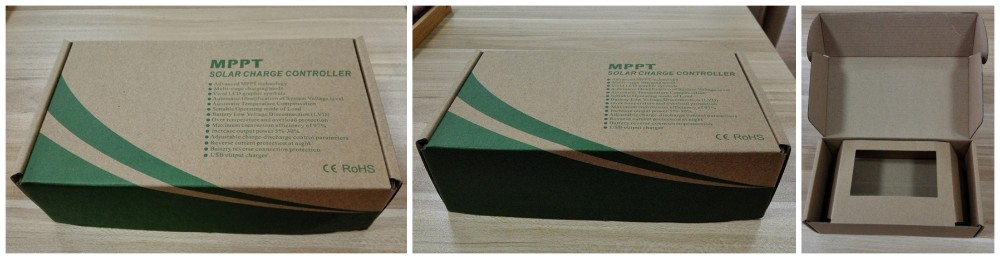

Package Information:

Product size: 196 mm * 111mm * 54mm
1pc/color box,24pcs/ctn
Ctn size:605mm*440mm*200mm
CBM/ctn:0.053m3
G.W:17kg

Technical data :

Model
Input	Maximum PV voltage	75V
Input	Maximum input power	260W (12V), 520W (24V)
Output	System voltage	12V (24V)
	Maximum battery voltage	16V (32V)
	Maximum charging current	20A
	Maximum load current	20A
	Own consumption	≤12mA

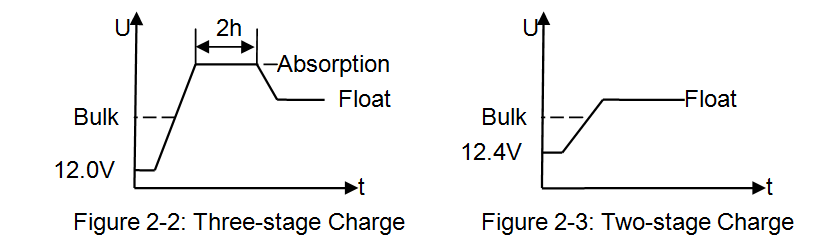

	Charging control mode	4-stage (MPPT, Absorption, Equalization, Float)
	Float charge	13.8V (27.6V)
	Absorption charge	14.4V (28.8V), duration 2 hours
	Equalization charge	14.6V (29.2V), duration 2 hours
	Load disconnection (LVD)	10.8V (21.6V)
	Load reconnection (LVR)	12.6V (25.2V)
	Temperature compensation	-4mV/ cell/ °C
	Battery type	Lead acid (Gel, Sealed, Flooded)
Other	Maximum efficiency	97%
	Human interface	LCD, buttons
	Cooling style	Passive cooling
	Maximum wire size	16 mm²
	Ambient temperature	-10 to +50 °C
	Storage temperature	-20 to +60 °C
	Humidity	0 to 90%, no condensation
	Dimensions	mm
	Weight	Kg
	Grounding	Positive grounding
	Degree of protection	IP32

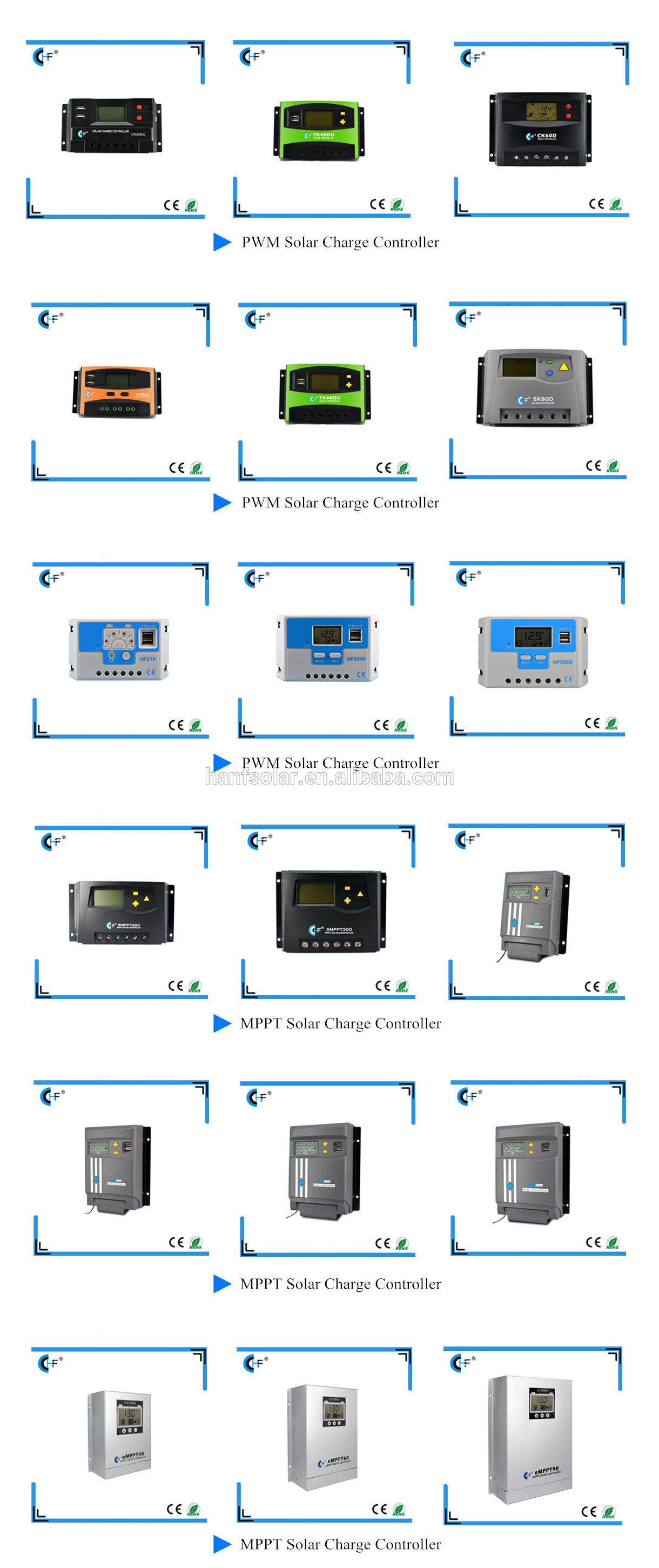

Main products

.jpg

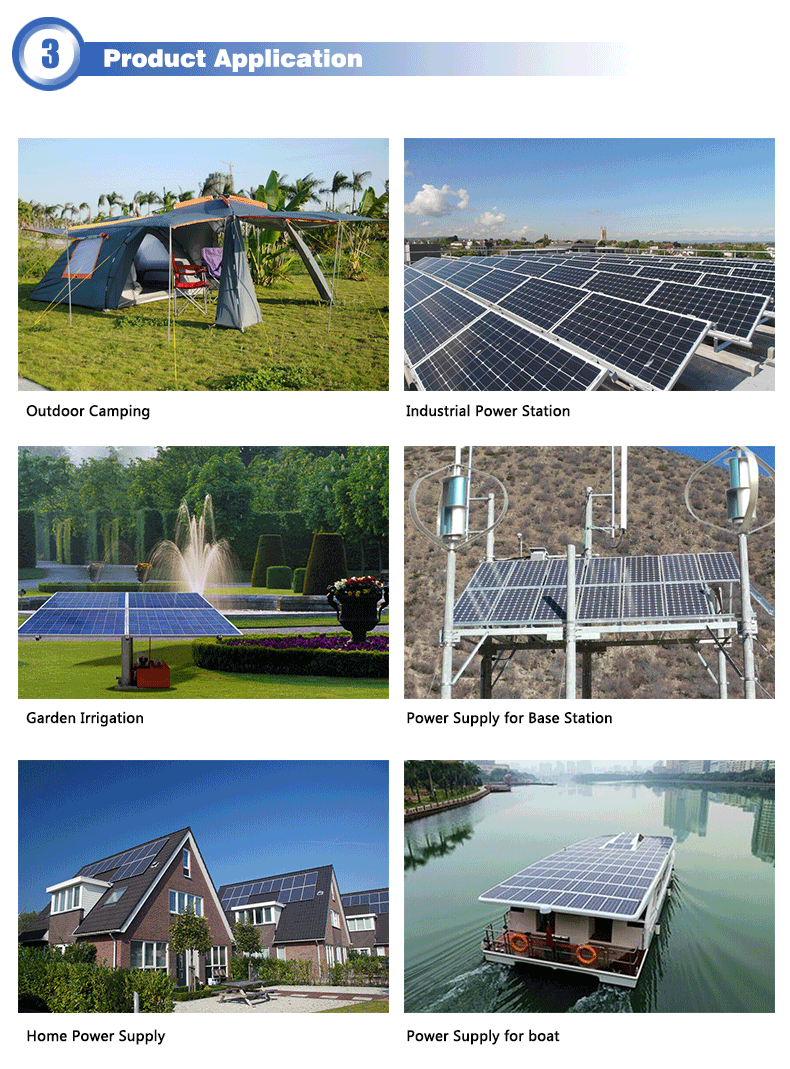

Product application

Company Information

About Us


FAQ

1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.

2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.

3 Q:What certificate do you have?
3 A:We have CE,ROHS.

4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.

5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.

6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.

7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.

8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
