LPG tank LPG Storage Tanks100M3 LPG Tank
L/CT/TPaypalMoney GramOthers
Design Parameters of LPG Tank Price 20M3 lpg tank, lpg tank price,ASME propane tank | ||
LPG Tank Type | III | |
Capacity of LPG Storage Tank | M3 | 50CBM LPG TANK |
Orientation of LPG Storage Tank | Horizontal Single Layer | |
Working Pressure | MPa | 1.63 |
Design Pressure | MPa | 1.77 |
Max.allowance working pressure | MPa | 1.82 |
Working Temperature | ℃ | -19~50 |
Design Temperature | ℃ | -20/54 |
Medium | LPG (Propane) | |
Density of Medium | kg/m3 | 560 |
Main Material for LPG Tank | Q345R | |
Filling Coefficient | 0.9 | |
Setting Pressure of Safety Valve | MPa | 1.82 |
Design Life for Propane Tank | 20 Years | |
Heat Treatment | Post-weld heat treatment for lpg tank | |
Hydrostatic test pressure | MPa | 2.28 |
Air tightness test pressure | MPa | 1.77 |
Design, Manufacturing and Inspection Standard | GB150/ASME | |
LPG TANK SPECIFICATIONS China Factory Bulk LPG Storage Tanks 50M3 LPG Tank with ASME ISO | |||
Model | Specifications (mm) | Weight in theory (KG) | LPG Tank Length (mm) |
WG1.77-1200-5 | DN1200 x 3980 x 8/8 | 1580 | 4676 |
WG1.77-1400-5 | DN1400 x 2750 x 10/10 | 1770 | 3545 |
WG1.77-1400-10 | DN1400 x 5980 x 10/10 | 2910 | 6789 |
WG1.77-1600-10 | DN1600 x 4400 x 10/10 | 2750 | 5303 |
WG1.771800-15 | DN1800 x 5250 x 12/12 | 4215 | 6247 |
WG1.77-2000-20 | DN2000 x 5650 x 12/12 | 4965 | 6747 |
WG1.77-2000-25 | DN2000 x 7250 x 12/12 | 5915 | 8347 |
WG1.77-2000-30 | DN2000 x 8850 x 12/12 | 6870 | 9947 |
WG1.77-2400-40 | DN2400 x 8000 x 14/14 | 9010 | 9334 |
WG1.77-2600-40 | DN2600 x 6600 x 14/16 | 8910 | 8036 |
WG1.77-2600-50 | DN2600 x 8500 x 14/14 | 10525 | 9934 |
WG1.77-2600-60 | DN2600 x 10360 x14/14 | 12335 | 11796 |
WG1.77-3000-80 | DN3000 x 10250 x 16/18 | 16800 | 11888 |
WG1.77-3000-100 | DN3000 x 13200 x16/18 | 19970 | 14838 |
WG1.77-3200-100 | DN3200×11300×18/18 | 21210 | 13038 |
WG1.77-3400-100 | DN3400×9850×20/20(18) | 22620 | 11700 |
WG1.77-3600-100 | DN3600×8550×20/22(20) | 22285 | 10492 |
WG1.77-3600-120 | DN3600×10500×20/22(20) | 25765 | 12442 |
WG1.77-3600-150 | DN3600×13500×20/22(20) | 31140 | 15442 |
WG1.77-3800-200 | DN3800×16300×22/22(20) | 41515 | 18342 |
1) We are the largest lpg tanks production base of China
2) We adopt high quality steel materials for our 20m3 lpg storage tank price
3) We have perfect quality assurance system
4) We have complete welding process
5) We are on the leading manufacturer of lpg tank with more than 30 years experiences
6) We also have advanced technology and equipment to ensure lpg tank station quality

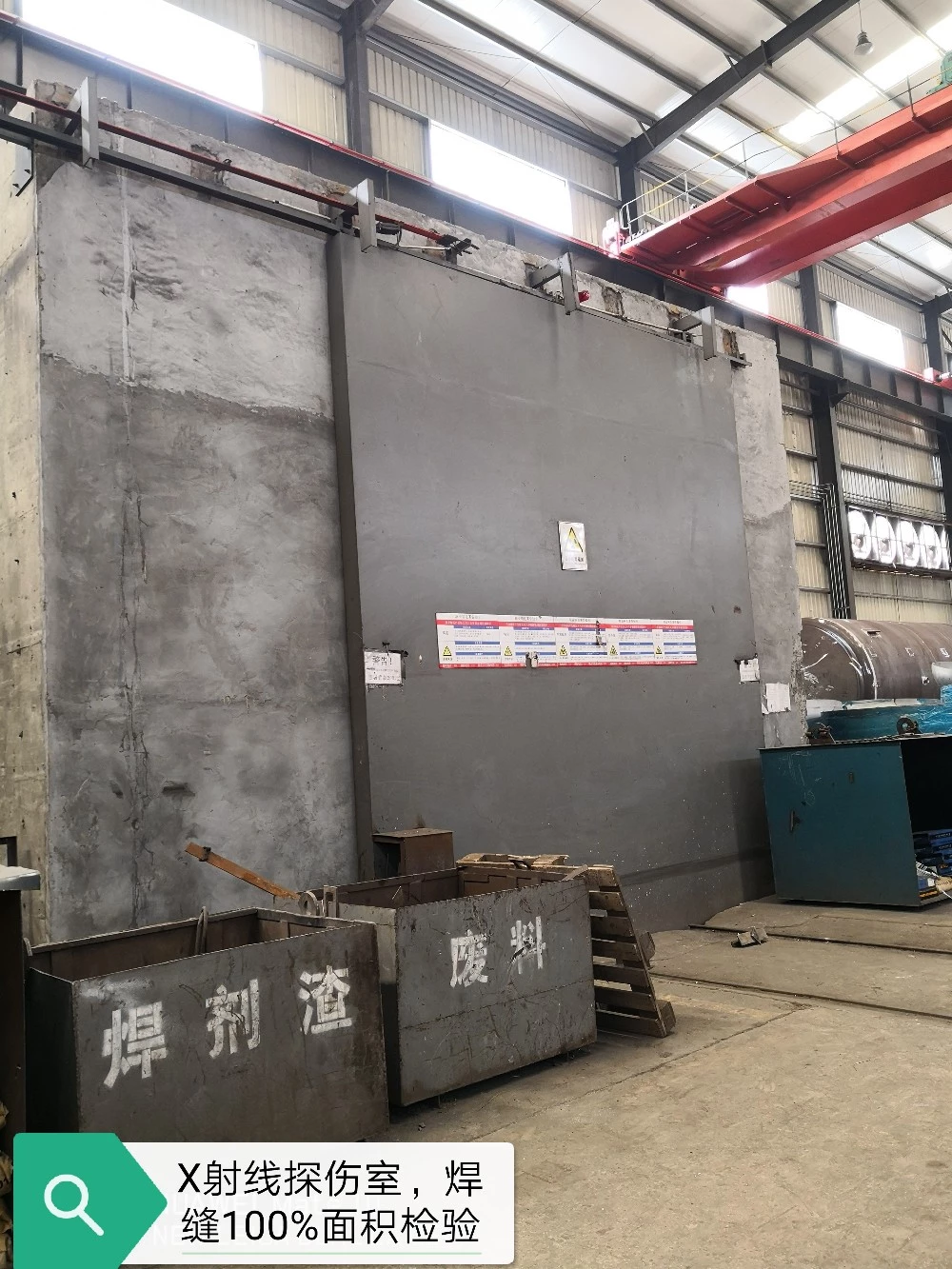

All main welding seam 100% X-ray detection,
Nozzle, flange C.D welding 100% surface flaw detection to ensure welding quality

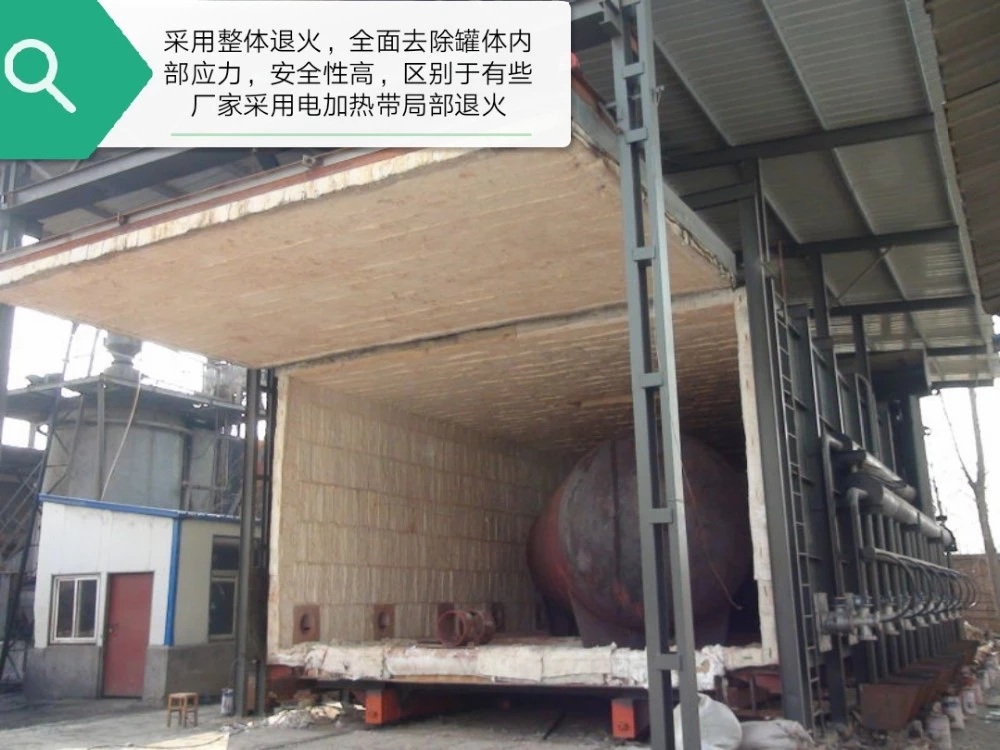

The whole annealing process is adopted to completely remove the internal stress of the tank body, which is of high
safety.Different from local annealing with electric heating belt.

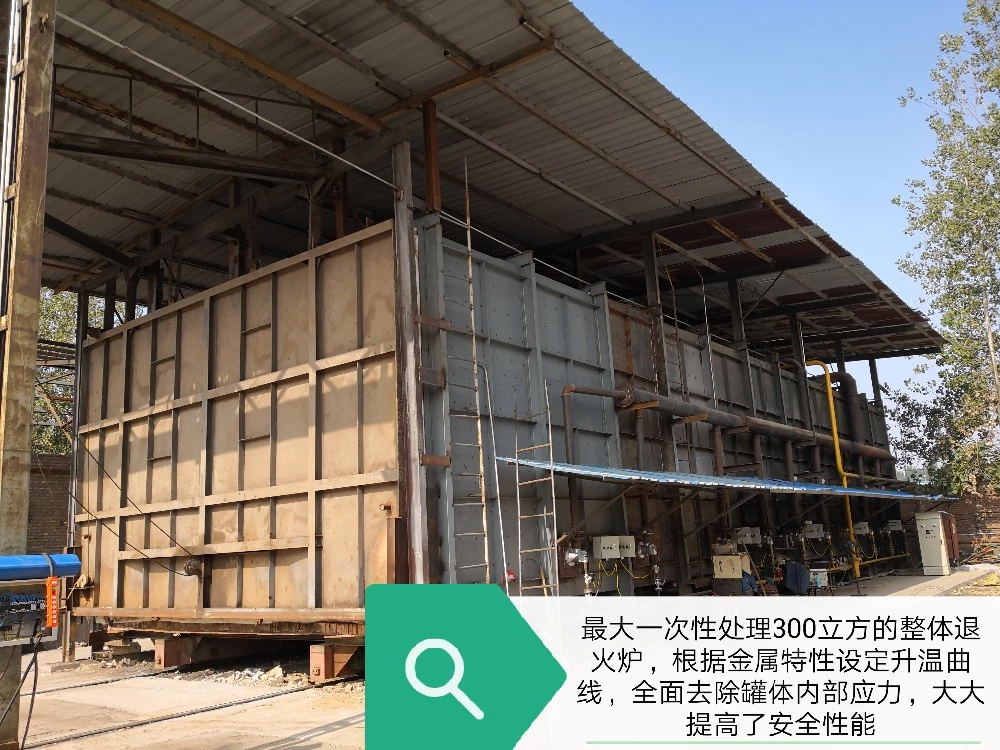

Our company has the largest one-time annealing furnace with 300 cubic meters. According to the characteristics of
metals, the heating curve is set to completely remove the internal stress of the tank, which greatly improves the safety
performance.
Capacity: 5m3 10m3 15m3 20m3 25 m3 30m3 and 50m3
Standard configuration:
LPG Tank x 1pc. Valves x 1 set,
Hydrocarbon Pump x 2 pcs,
Universal crane tube hose x 1 pc
Gas alarm x 1 pc, Anti-static x 1pc,
Skid base x 1 pc, ,Electricity x 1set,
lpg dispensesr and filling scales will be equipped according to user' demands.
Packing of LPG Tank: Nude Packing;
Loading conditions by sea transportation:
China Factory Bulk LPG Storage Tanks 50M3 LPG Tank with ASME ISO
1.one set 5m3 LPG Tank load in one 20GP;
2.one set 10m3 (DN1600) ASME propane tank load in one 20GP;
3.one set 15m3 lpg tank price load in one 40HQ;
4.one set 20m3 lpg tank load in one 40HQ;
5.one set 30m3 lpg gas tank load in one 40HQ;
6.40m3 LPG gas tank,50m3 lpg storage tanks, 60m3 lpg tank price should be load in 40FR;
7.More than 60m3 lpg tank should be load in bulk vessel .also according to customers special request.
Shandong Zhongjie Pressure Equipment Co., Ltd (Formerly Heze Boiler Factory Co., Ltd) was founded in 1984.
After more than 30 years of development, the company has become a professional equipment manufacturer
with four major product segments: pressure vessel, industrial boiler, central air conditioner and engineering
installation with integrated R&D, design, production, installation, commissioning and technical services.
Our company has Class A pressure vessel design certification, Class A pressure vessel manufacturing certification,
Class B boiler manufacturing certification, GC2/GB2 pressure pipe installation and renovation maintenance certification,
boiler level 2 installation and renovation maintenance certification, Class A II refrigeration and air conditioner equipment
maintenance and installation certification and so on.
Shandong Zhongjie Pressure Equipment(CJSE) has been specialized in providing our customer with professional
equipment, integra solutions and other related installation services for over 30 years, accumulated plenty of experience
in boilers, pressure vessels(LNG/LPG/industrial storage tanks) manufacturing, LNG/LPG overall solution developing,
station/factory engineering and customized equipment manufacturing. Now our company processes ASME certification
and our equipment has been exported to over 30 countries.
1.Q: Are you a factory or trading company?
A: We are a leading manufacturer of pressure vessels,including lpg storage tank, LNG storage tank, cryogenic vacuum insulated storage tank, liquid ammonia tank, skid mounted lpg filling stations,and spare parts with more than 30 years experiences. We are the largest production base of lpg storage tank in China now, sincerely welcome to visit our factory.
2. Q: Could you customize exactly according to my requirements ?
A: Yes. OEM is available. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Q:What service can I get from you?
A: We can offer complete solutions integrated with design, manufacturing, installation, inspection and maintenance at competitive prices. And We provide lifelong tracking service and one year free warranty for all of our products. we also provide training and technical support to guide you install and commission your product.
4.Q: What is the MOQ ?
A: One piece is acceptable, the more the quantity, the more favorable the price.
