Ce CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor

ID:2005295244

Auto,Parts & Accessories Automotive & Parts

FOB Price:US$ 50.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Three PhaseAC Electric MotorFan Pump Blower Compressor Crusher Conveyor

Payment Method:

L/CT/TD/PWesstern UnionPaypalMoney Gram

Product Category
Auto,Parts & Accessories > Automotive & Parts
Trademark
Product Package
Specification
Place of Origin
Port
Shanghai

Basic Info.

Model NO.
YE2/YE3/YE4 (IEC60034-30)
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, Ce, RoHS, Reach
Brand
Wannan Motor
Frame
63-355mm
Output
0.12-400kw
Efficiency
Ie1,Ie2,Ie3,Ie4
Poles
2,4,6,8,10
Duty
S1
Insulation
F
Cooling
IC411-Tefc
Protection Degree
IP55/56/65
Voltage
380V, or Customized
Frequency
50Hz, 60Hz
Terminal
Top, Right Side, Left Side
Housing
Cast Iron,Aluminum Shell,Stainless Steel
Service Factor
1.0
Mounting Type
Foot,Flange,Double Shaft Ends
Ambient Temperature
40°c, 1000 M. a.S.L
Trademark
WNM
Transport Package
Carton/Wooden Case/Pallet
Specification
1530*950*710mm
Origin
Jingxian, Anhui, China
HS Code
8501520000
IEC (IE1 IE2 IE3 IE4) CE CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor IC411 TEFC F IP55 63~355mm 0.12~400KW
---------------------------------------------------------------------------------------------
Applications: Can be applied in the machines where continuous duty is required, typical applications like

  • Pumps

  • Fans

  • Compressors

  • Lifting equipment

  • Production industry

IEC (IE1 IE2 IE3 IE4) Ce CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor IC411 Tefc F IP55 63~355mm 0.12~400kw

General Description

  • Frame sizes: 63 to 355M/L

  • Rated output: 0.12 to 400kW

  • Voltage: 380V

  • Frequency: 50Hz or 60Hz

  • Poles: 2, 4, 6, 8,10

  • Efficiency levels: IE1,IE2,IE3,IE4

  • Duty Cycle: S1

  • Enclosure: IC411 - TEFC

  • Insulation class: F

  • Degree of protection: IP55/56/65/66

  • Service Factor: 1.0

  • Regreasing system: Frame 250 and above

Features: Beautiful profile, high efficiency and energy saving (Level 2 of GB18613-2012), low noise, little vibration, reliable running.

Optional Features:
Electrical:
Insulation Class:H
Thermal Protection:frame up to 132(include), with PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Protection Degree:IP56, IP65, IP66
Sealing:Lip seal, Oil seal
Space Heater, Double shaft ends
Drain Hole

Mounting Type:
Conventional mounting type and suitable frame size are given in following table(with "√")
Framebasic typederived type
B3B5B35V1V3V5V6B6B7B8V15V36B14B34V18
63~112√√√√√√√√√√√√√√√
132~160√√√√√√√√√√√√---
180~280√√√√-----------
315~355√-√√-----------
If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.

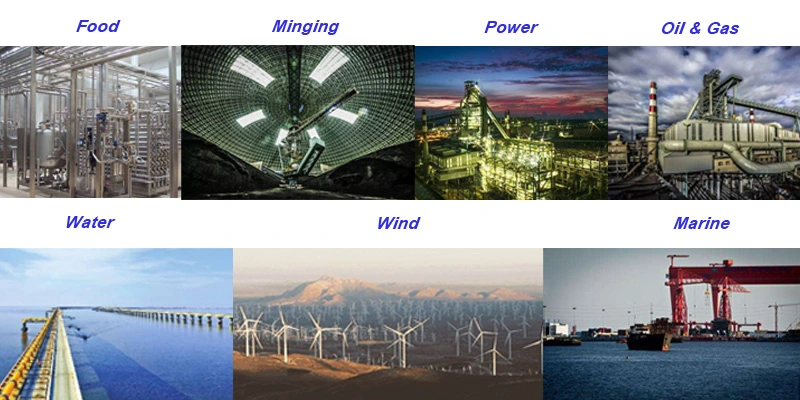

SITE

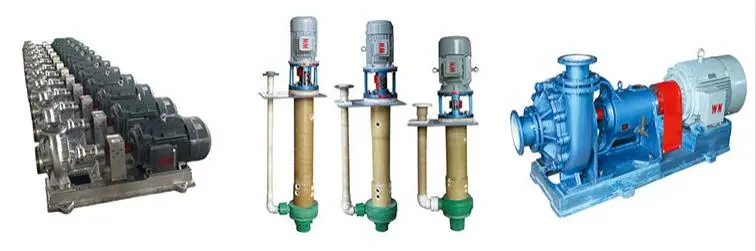

IEC (IE1 IE2 IE3 IE4) Ce CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor IC411 Tefc F IP55 63~355mm 0.12~400kw

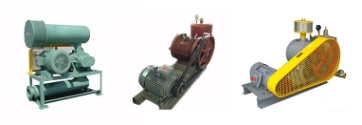

IEC (IE1 IE2 IE3 IE4) Ce CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor IC411 Tefc F IP55 63~355mm 0.12~400kw

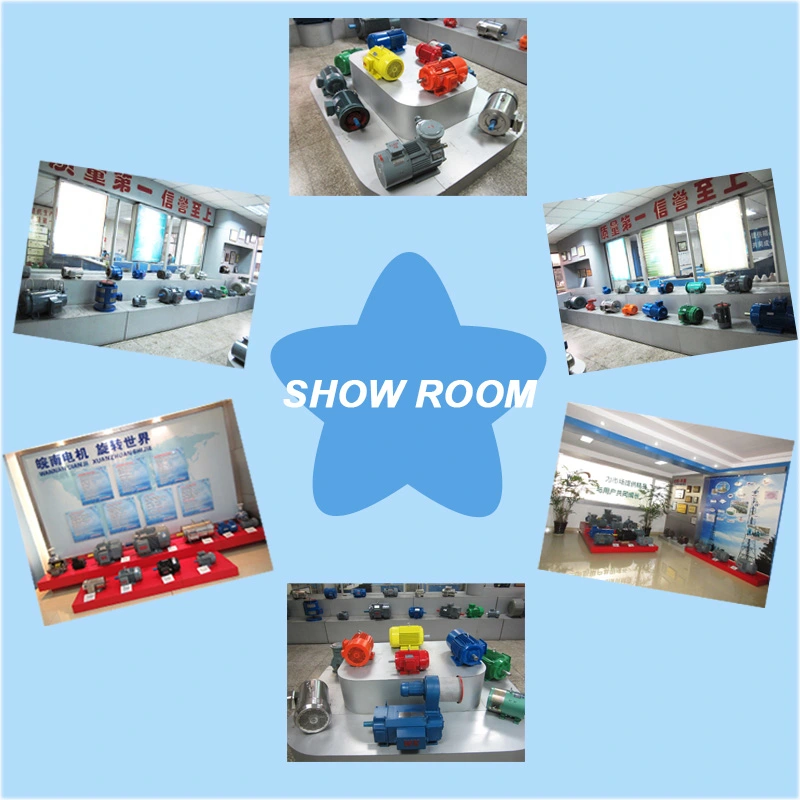

Show Room
IEC (IE1 IE2 IE3 IE4) Ce CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor IC411 Tefc F IP55 63~355mm 0.12~400kw

IEC (IE1 IE2 IE3 IE4) Ce CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor IC411 Tefc F IP55 63~355mm 0.12~400kw
Premium Service
IEC (IE1 IE2 IE3 IE4) Ce CCC Three Phase Induction AC Electric Motor for Fan Pump Blower Compressor Crusher Conveyor IC411 Tefc F IP55 63~355mm 0.12~400kw
