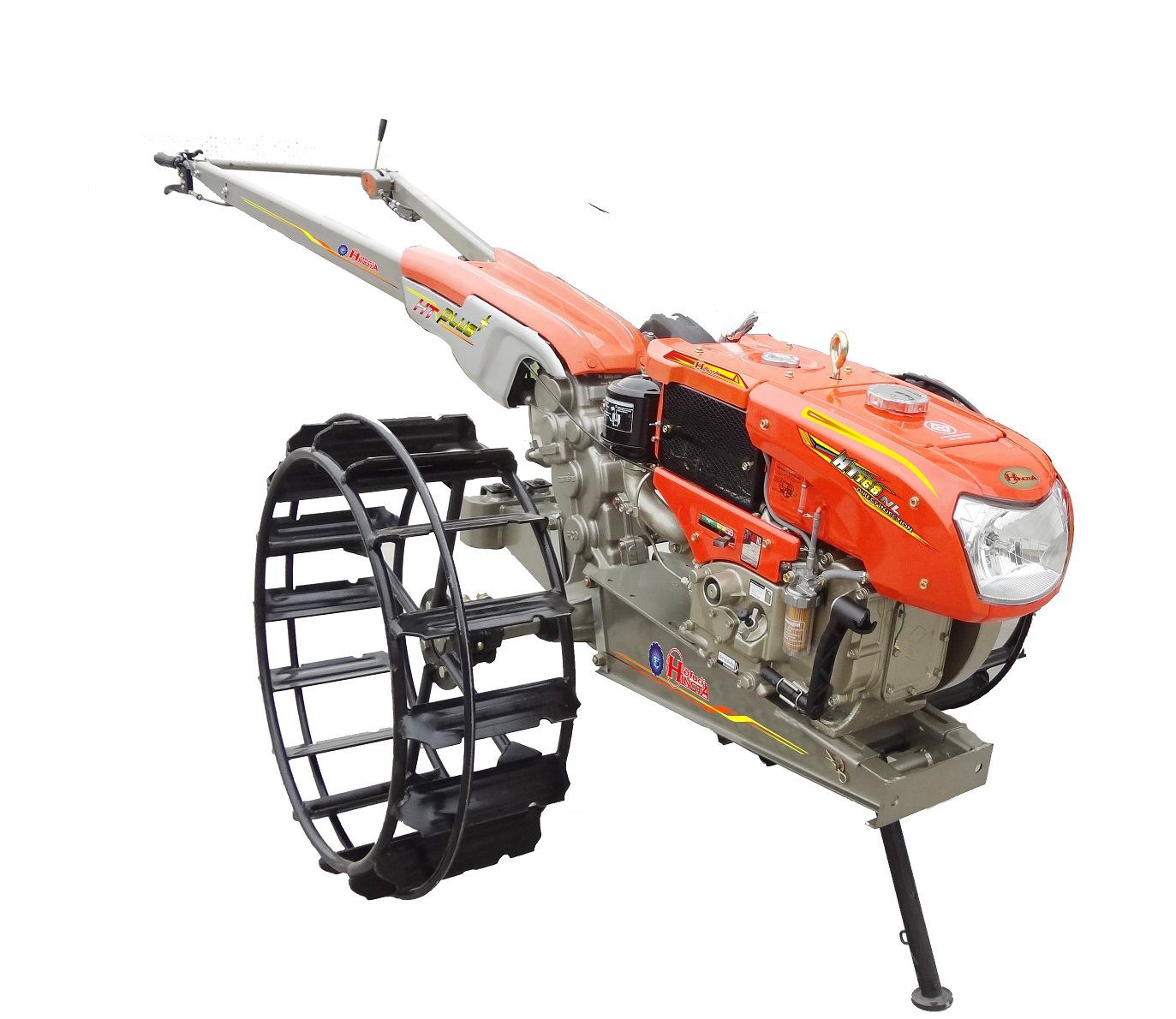

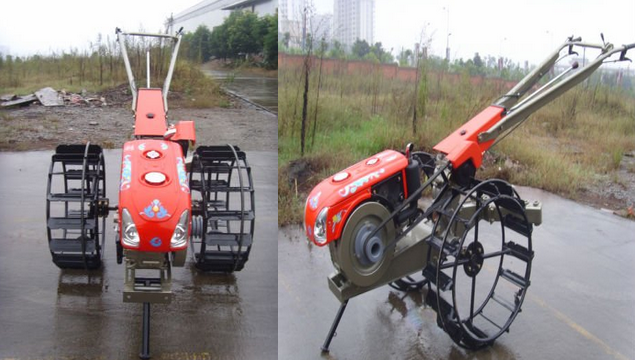

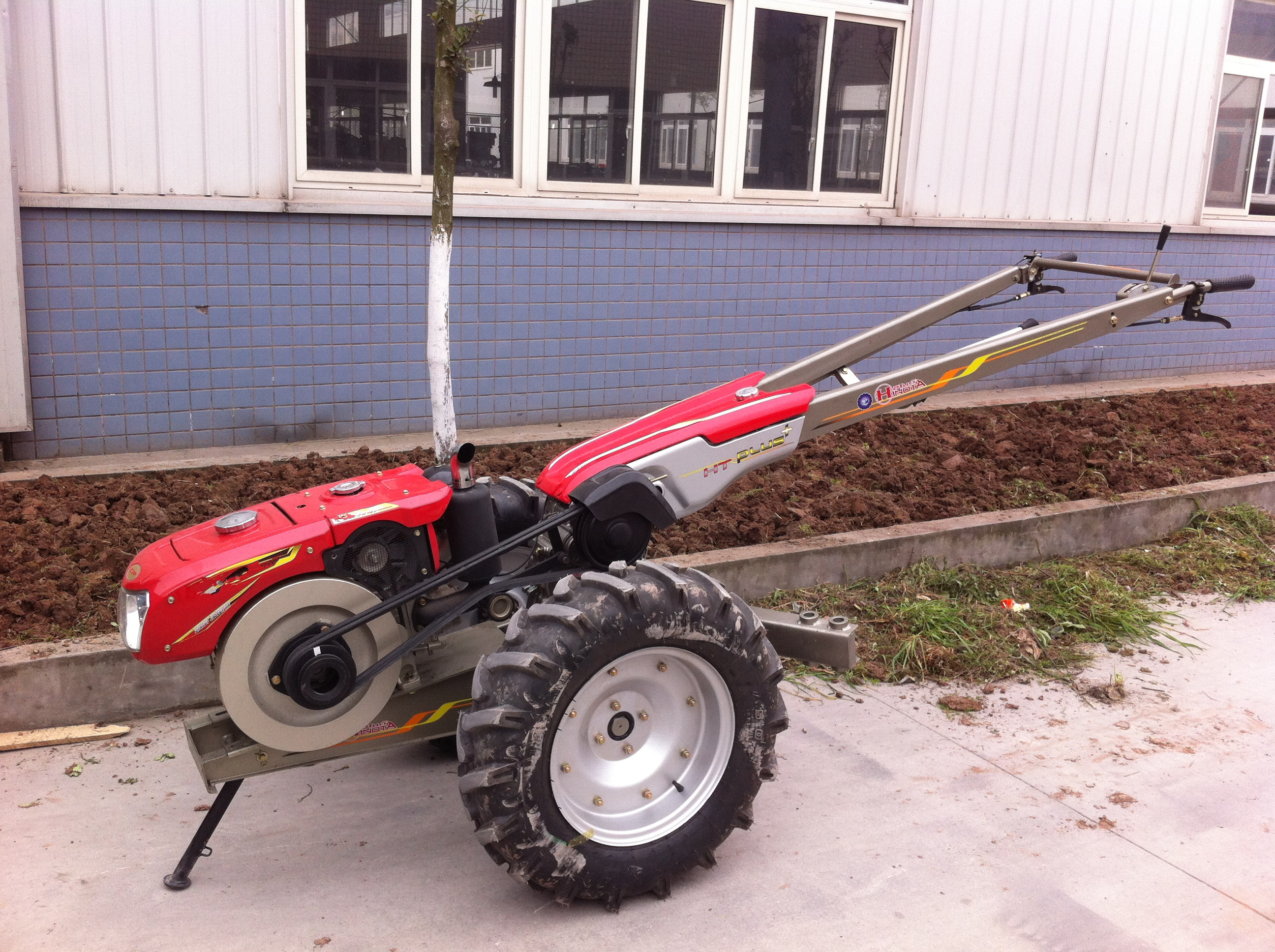

walking tractor power tiller and implements accessories attachments
Advantages:
? High work efficiency.
? Easy for operation,easy to control.
? good quality
? Small volume, light weight,compact structure and perfect cultivate performance
? Powered by water-cooling diesel engine. Low fuel consumption for higher power.

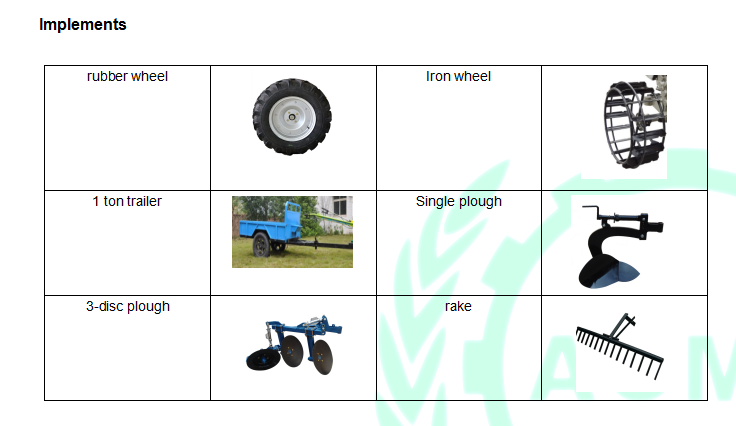

? Multifunctional,it can be matched with kinds of accessories/implements.
Technical Parameter:
Name | Walking tractor/power tiller |
Dimension of Tractor: | Length: 2960mm Width(adjustable): 1050/1200mm Height: 1220mm |
Engine pulley diameter(standard) : | 140mm(5.5'') |
Transmission pulley diameter(standard): | 180mm(7'') |
Rubber wheel size: | 7.50-16 |

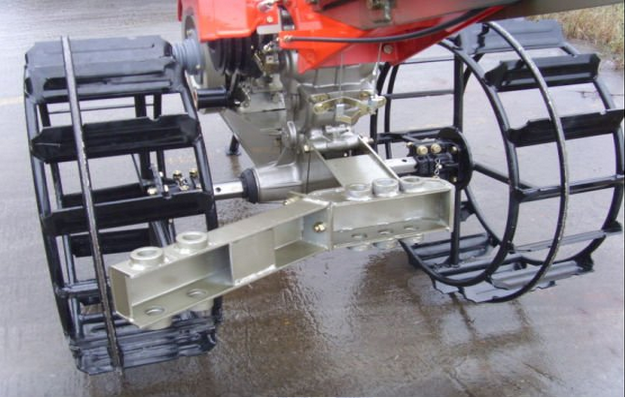

Cage wheel diameter: | 800mm |
Towing pin diameter: | 26mm |
V-belt: | Length: 1880mm(74'') Qty.:2pcs |
Brake system | Small-scale braking |
Clutch type: | Dry multiple disc clutch |
Lubricating Oil: | SAE90 |
Lubricating Oil Capacity: | 5.5-6L |
Tractor max. speed: | 23.5km/h |
Transmission ratio: | Low speed 1st Gear: 44:1 Mid speed 2nd Gear: 23:1 High speed 3rd Gear: 8:1
Reverse Gear: 56:1 |
Tractor Weight(with engine) | 360kgs |
Diesel engine power | 12.5hp, 14hp, 15.5Hp |
