galvanized steel grating stainless steel steel grating
L/CT/TD/PWesstern UnionPaypalMoney GramOthers

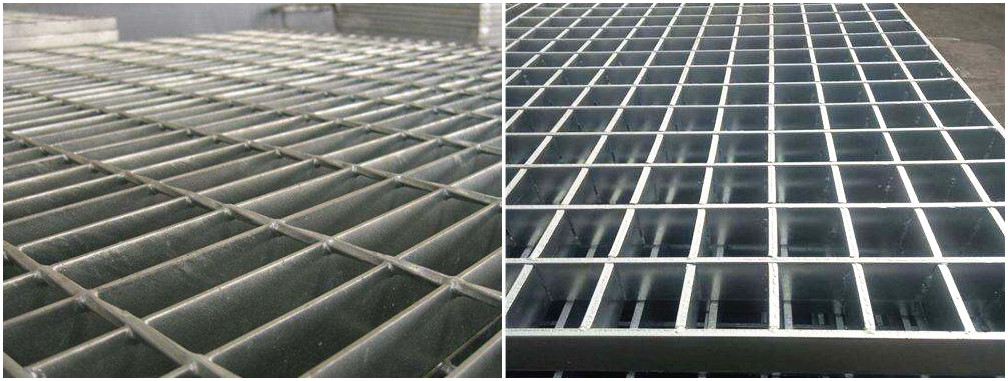

Hot Dipped Galvanized Platform Serrated Steel Grating
1. Material: low carbon steel, stainless steel, aluminum alloy, etc.
2. Cross bar material: Q235A / stainless steel 304 twisted bar, round bar, square bar, etc.
3. According to different processing, steel grating has two types:
Pressure Welding Pressure Locked

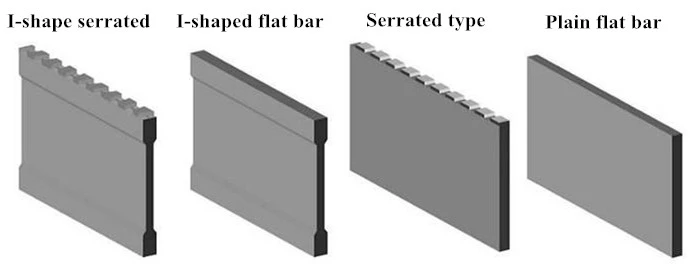

4. Flat bar surface shape: Plain flat bar, serrated, I-shaped flat bar, I-shape serrated.
5. Flat bar specification:
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.
6. Flat bar spacing: 30mm, 40mm, 60mm,etc.
7. Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
8. Cross bar spacing: 50mm, 100mm.
9. Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
10. Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.
|

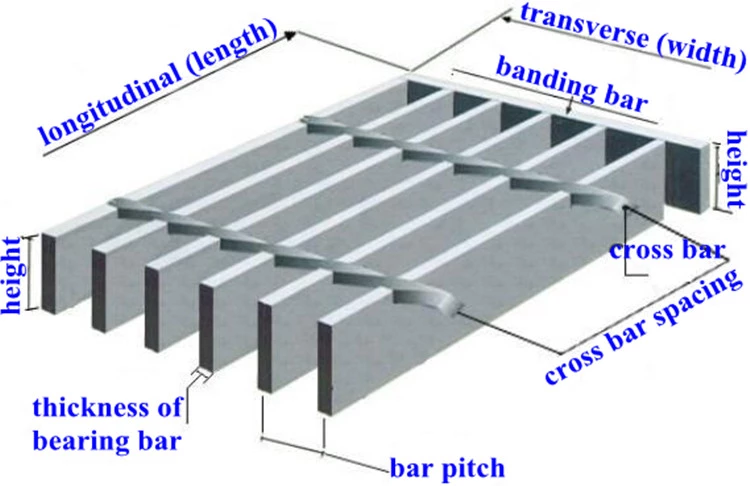

| Specification of bearing bar(width×thickness) | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(width×thickness) | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Steel grating usual package:
1. Strap Packaging.
2. Pallet Packaging.
3. Screw Rod Fixation.
4. Other pacakge is available.
* Inspection : We also have a team who are focus on helping customers to do inspection of wire mesh products and sourcing high quality material with competitive prices.
* We also have a team who are focus on helping customers to do inspection of wire mesh products and sourcing high quality material with competitive prices.
We are sincere and friendly people and work on establishing a mutual benefit and long term run business cooperation with our customers.
