Chemical liquid transfer pump acid and alkali resistant explosion-proof chemical pump.

ID:2006035984

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 500.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Sulfuric acid pumpChemical pumpSingle-stage pumpCentrifugal pumpSteel lining tetrafluorine.Lined with tetrafluorine.Acid discharge pump.

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Valves & Pumps & Compressors

Trademark

TEFLOW

Product Package

Non-fumigation wooden case

Specification

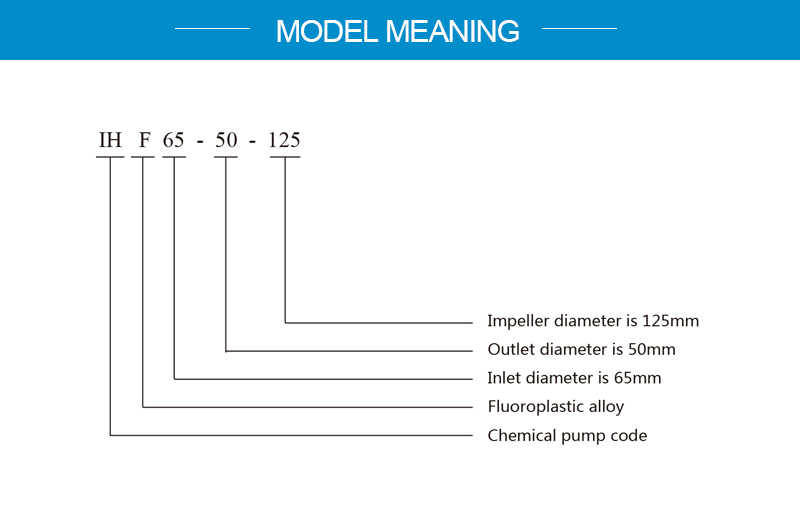

IHF25-20-160

Place of Origin

China/Anhui

Port

Shanghai or any port in China

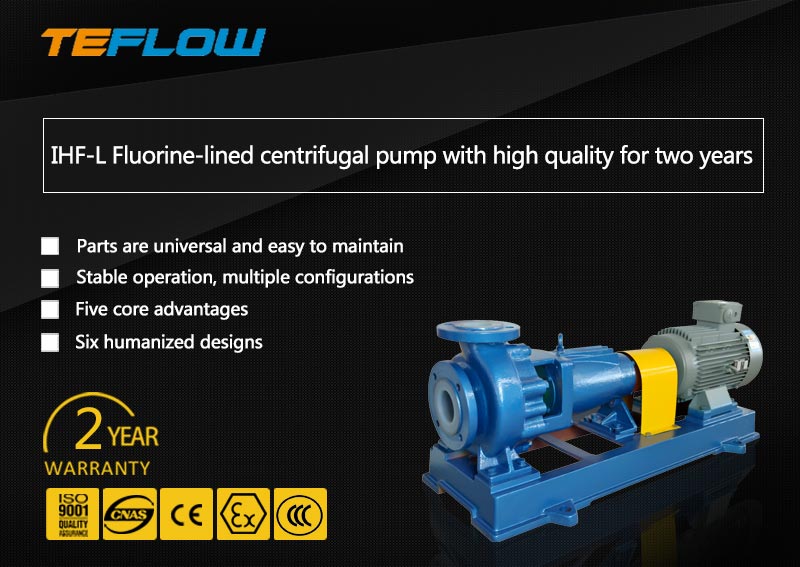

Chemical liquid transfer pump acid and alkali resistant explosion-proof chemical pump.

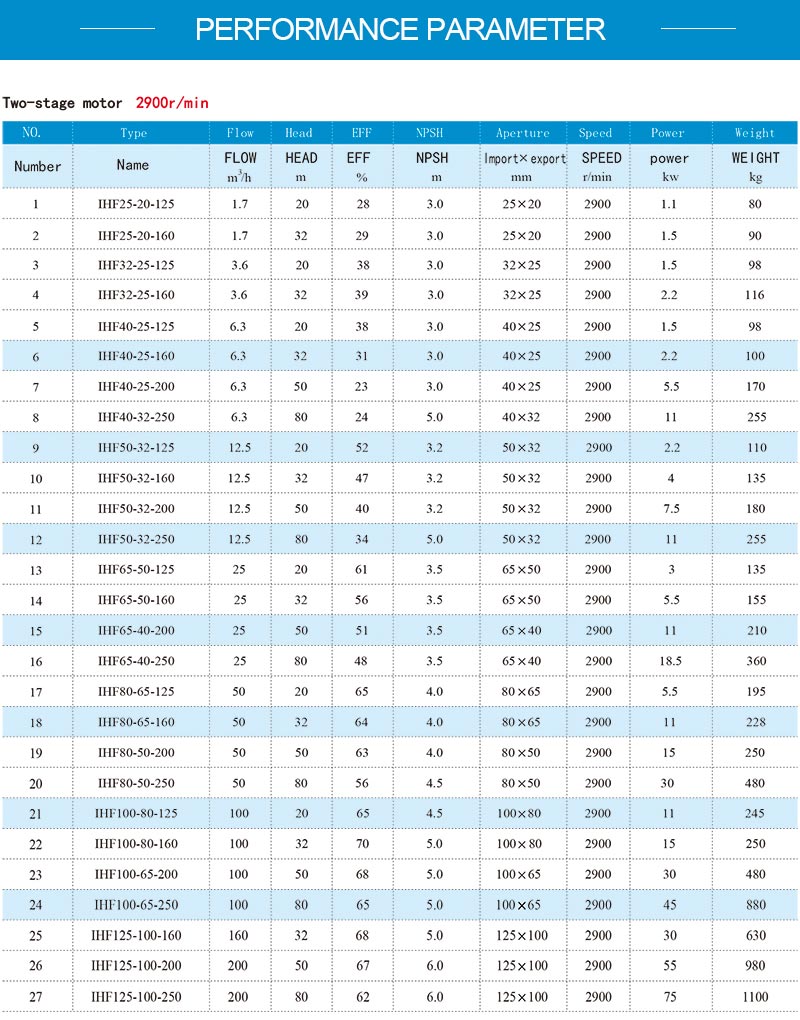

Flow range:1.7m3/H-200m3/H(28L/min-3300L/min)

Head range:20M-80M

Tenperature range:-25℃-150℃

Material:FEP,PFA,PP,PVDF,PTFE,lined

Speed:2900r/min

Voltage:220V-380V-440V

Brand Name:TEFLOW PUMP

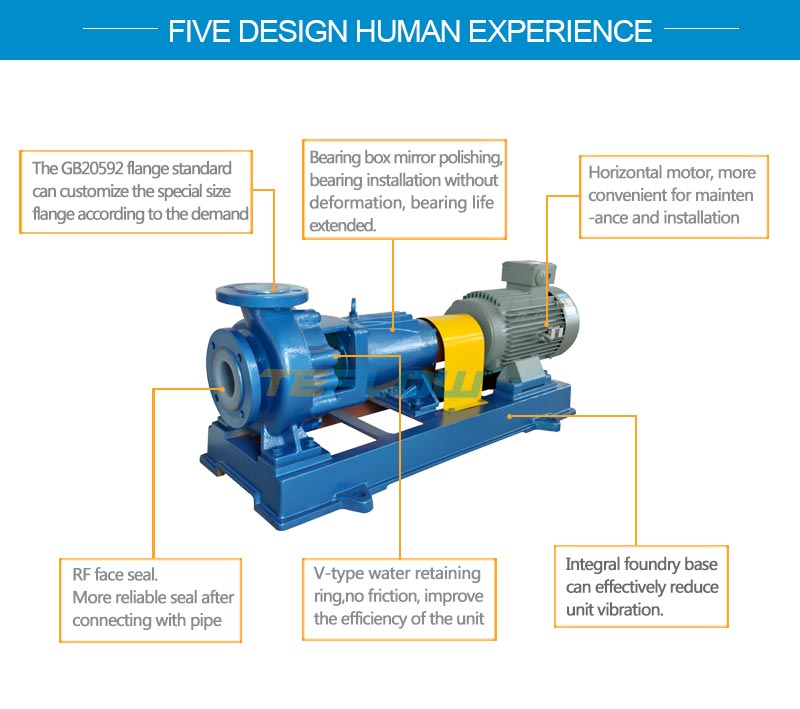

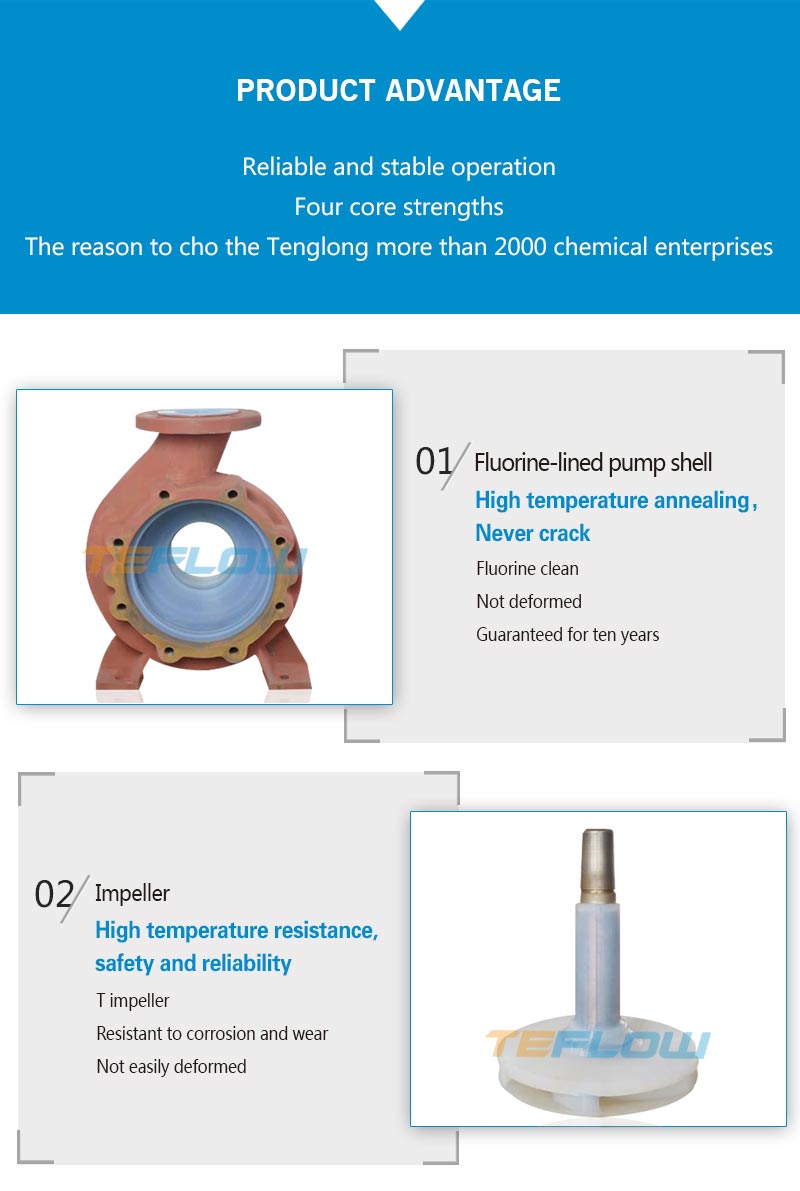

-Introduction: IHF overcurrent parts are made of all tightly lined fluoroplastic materials and equipped with external ripples.The inlet and outlet of the pump are uniformly reinforced with cast steel to enhance the pressure resistance of the pump. The pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, high mechanical strength, stable operation, strict and reliable sealing performance, long service life and so on.

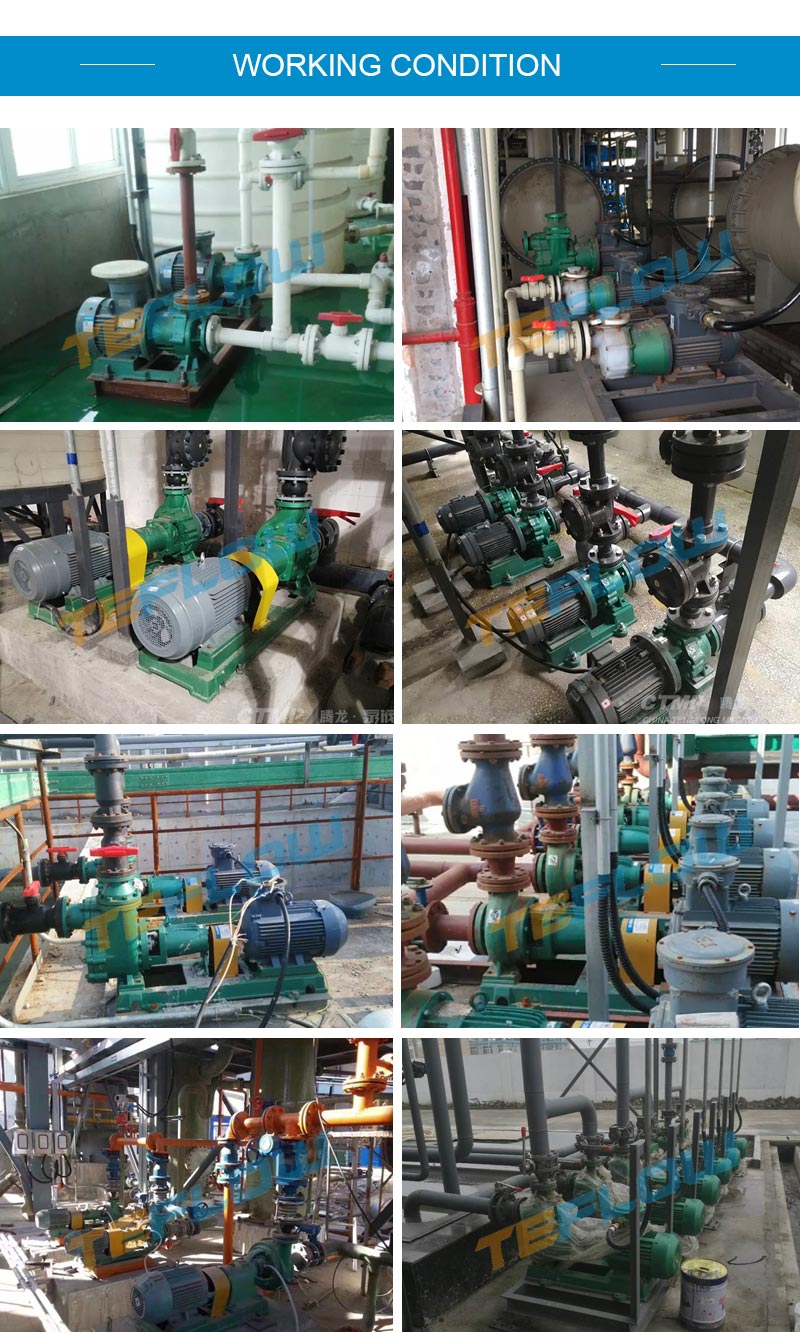

-Product uses: Petroleum, electric power, agricultural irrigation, medicine, electroplating, paper, food and other industries.

-Medium: sulfuric acid pump, hydrochloric acid pump, hydrofluoric acid pump, nitric acid pump, Wang pump, strong alkali, strong oxidant, organic solvent and other strong corrosive media without damage.
