Business Type: Others
Main Products:EPS Continuous PreexpanderEPS Batch PreexpanderEPS Shape Molding MachineEPS Air Cooling Block Molding MachineEPS Vacuum Block Molding MachineEPS Block Cutting LineCNC Cutting MachineCNC RouterEPS MouldEPS Parts
ID:2006199602
Category: Manufacturing & Processing Machinery
MOQ:2.00 Set(s)
EPS cutterEPS foam cutting machineEPS foam cutterEPS panel cutterEPS block cutting machine
L/CT/TWesstern Union

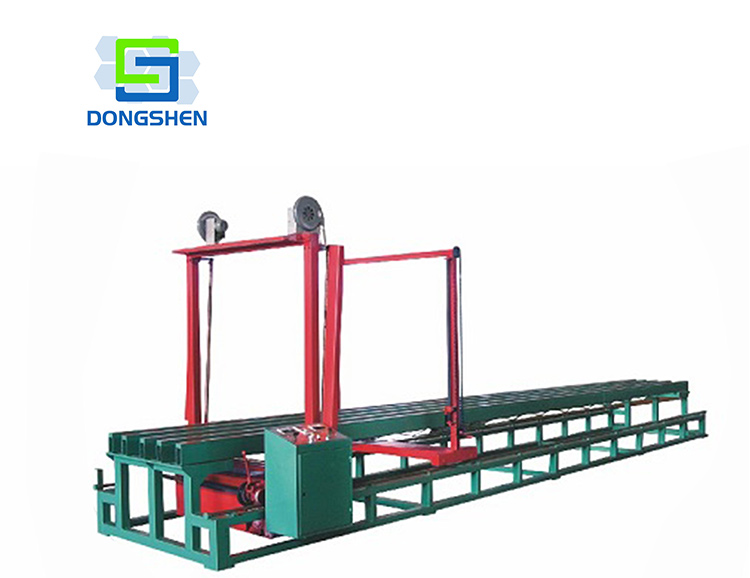

EPS Cutting Machine is used to cut EPS blocks to desired sizes. It’s hot wire cutting.
This kind cutting machine can do horizontal and vertical cutting. Multiple wires can be set at one time for down cutting to increase cutting efficiency. Machine operation is done on control box, and cutting speed is converter controlled.
DSQ3000-6000B Block Cutting Machine | ||||||
Item | Unit | DSQ2000B | DSQ3000B | DSQ4000B | DSQ6000B | |
Max block size | mm | 2000*1250*1300 | 3000*1250*1300 | 4000*1250*1300 | 6000*1250*1300 | |
Heating Wires Amount | Horizontal Cutting | pcs | 80 | 80 | 80 | 80 |
Vertical Cutting | pcs | 30 | 30 | 30 | 30 | |
Working Speed | M/min | 0~1.8 | 0~1.8 | 0~1.8 | 0~1.8 | |
Connect Load/Power | Kw | 21 | 21 | 21 | 21 | |
Overall Dimension (L*W*H) | mm | 4800*1900*2500 | 5800*1900*2500 | 6800*1900*2500 | 8800*1900*2500 | |
Weight | Kg | 1000 | 1600 | 1800 | 2200 | |
