EPS block cutting machineEPS block cutterfoam block cutting machinefoam block cutter
L/CT/TWesstern Union

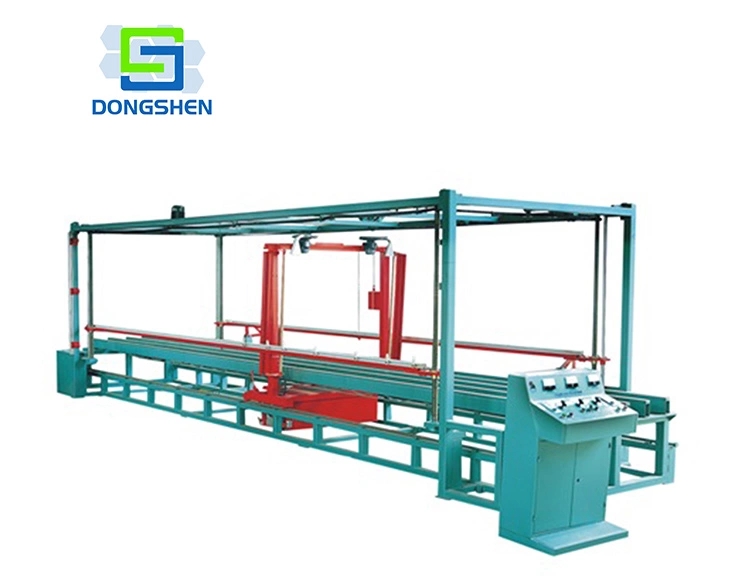

EPS Cutting Machine is used to cut EPS blocks to desired sizes. It’s hot wire cutting.

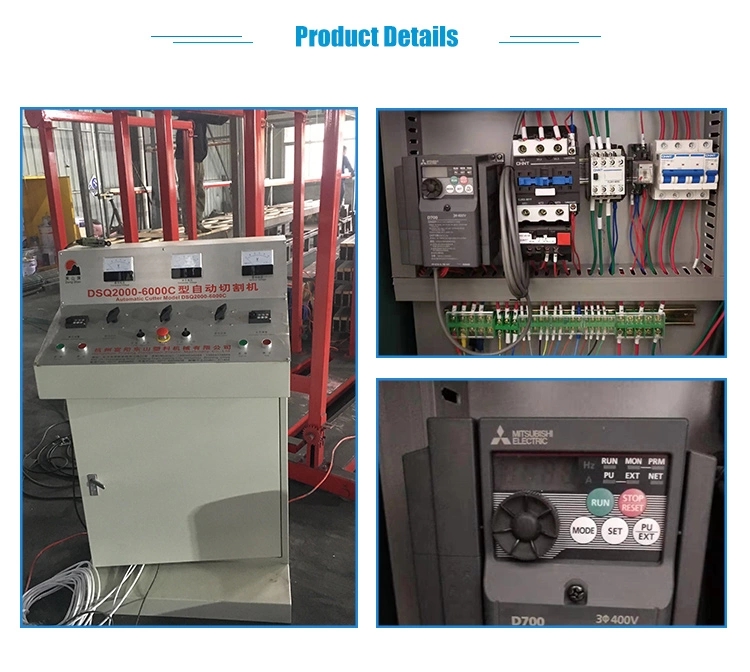

C type Cutting machine can do horizontal, vertical, down cutting. Multiple wires can be set at one time for down cutting to increase cutting efficiency. Machine operation is done on control box, and cutting speed is converter controlled.
DSQ3000-6000C Block Cutting Machine | |||||
Item | Unit | DSQ3000C | DSQ4000C | DSQ6000C | |
Max block size | mm | 3000*1250*1250 | 4000*1250*1250 | 6000*1250*1250 | |
Heating Wires Amount | Horizontal Cutting | pcs | 60 | 60 | 60 |
Vertical Cutting | pcs | 60 | 60 | 60 | |
Cross Cutting | pcs | 20 | 20 | 20 | |
Working Speed | M/min | 0~2 | 0~2 | 0~2 | |
Connect Load/Power | Kw | 35 | 35 | 35 | |
Overall Dimension (L*W*H) | mm | 5800*2300*2600 | 6800*2300*2600 | 8800*2300*2600 | |
Weight | Kg | 2000 | 2500 | 3000 | |
