Steel wire mesh skeleton(PE polyethylene)composite pipe

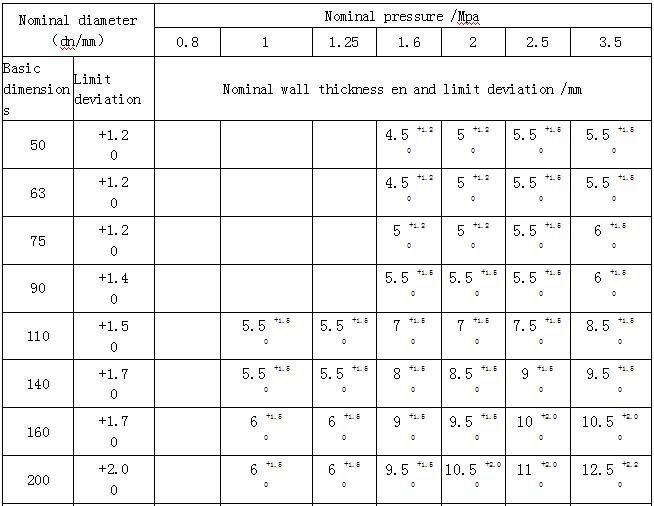

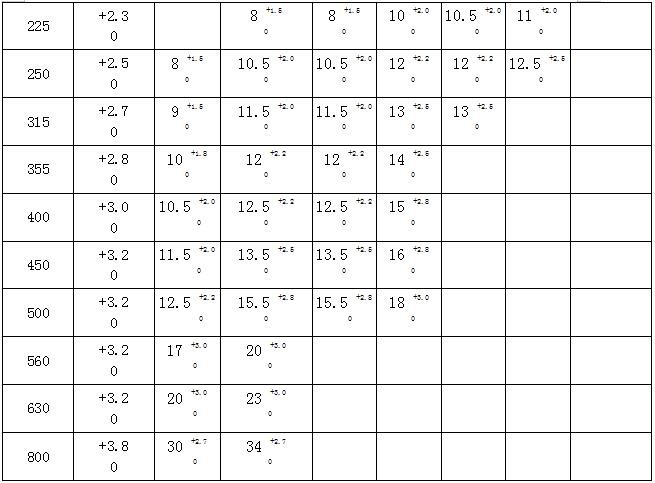

Common specifications 50-630 (mm)

Product characteristics

The steel mesh frame plastic composite pipe is made of high quality material and advanced production technology,so that it has higher pressure resistance.At the same time,the composite pipe has excellent flexibility and is suitable for long distance buried water supply and gas transmission pipeline system.Using the heating element inside the tube,the outer plastic of the pipe is melted with the inner layer plastic of the pipe,and the tube and the fittings are reliably joined together.The rapid stress cracking phenomenon of the plastic pipe is overcome.Because the structure of the two materials of the steel and plastic is composite,the rapid stress which is difficult to overcome by the plastic pipe will not occur.

It has the strength,rigidity and impact resistance over ordinary pure plastic pipes,similar to the low expansion coefficient and creep resistance of steel pipes.

Light weight,easy installation,pipe connection using electrothermal melting joints,strong axial tensile resistance,reliable and reliable connection technology,variety and specification of pipe fittings are fully developed,and can be connected with other kinds of pipes and valves.

Double sided anticorrosion,with the same anti-corrosion property as plastic pipe,and high temperature and corrosion resistance.Low thermal conductivity.

The inner wall is smooth without scaling,and the pipe head loss is 30%lower than that of the steel pipe.The overall pipe life is designed according to the service life of 50 years.

The structure is excellent.By adjusting the diameter of the steel wire and the thickness of the plastic layer,the pipes with different pressure grades can be manufactured.The reinforced skeleton of the pipe and the inner and outer layers of plastics can be mutually contained into a whole.

Scope of application

Municipal Engineering:urban water supply,heating network backwater,gas and natural gas pipeline.
Chemical Engineering:acid,alkali,salt manufacturing,petrochemical,fertilizer,pharmaceutical,chemical,rubber and plastic industries and other industries to transport corrosive gas,liquid,solid powder process pipe and discharge pipe.
Oil field:oily sewage,gas field sewage,oil and gas mixture,two or three oil gathering and transportation technology pipe.
Thermoelectric Engineering:transportation pipeline for process water,backwater transportation,dust removal and waste residue.
Metallurgical Mines:transportation of corrosive medium in non-ferrous metal smelting,and pipes for slurry and tailings.
Highways:buried drainage pipes and cable conduits.
Ocean Engineering:seawater transportation,submarine pipelines and optical(electric)cable conduits.
Shipbuilding:marine sewage pipes,drainage pipes,ballast water pipes and ventilation pipes.

Certificate

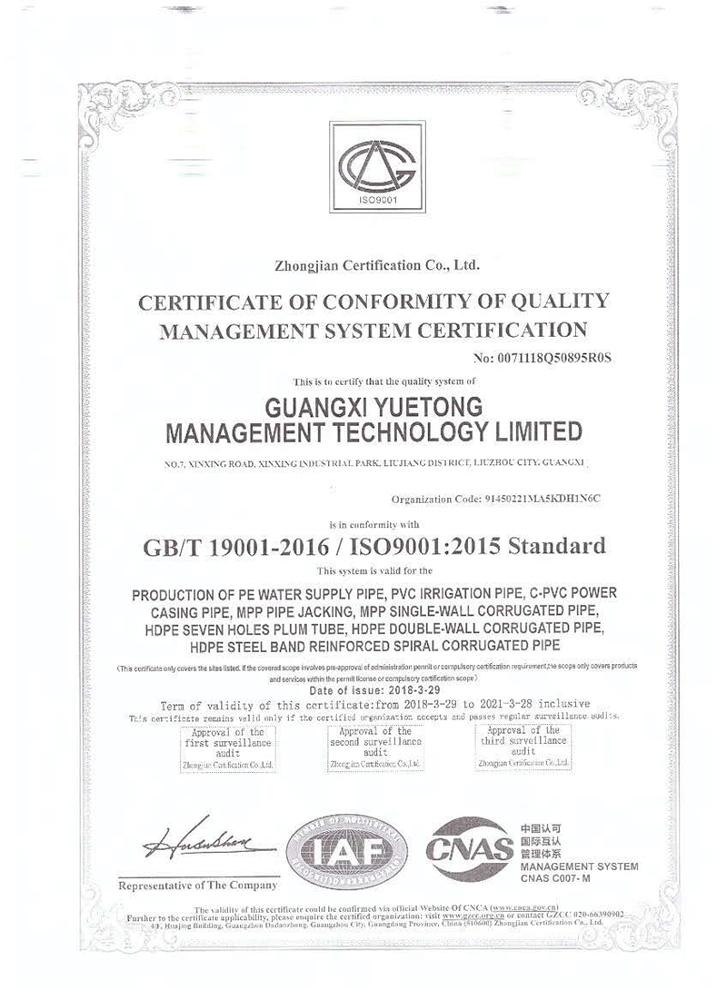

ISO9001 2015

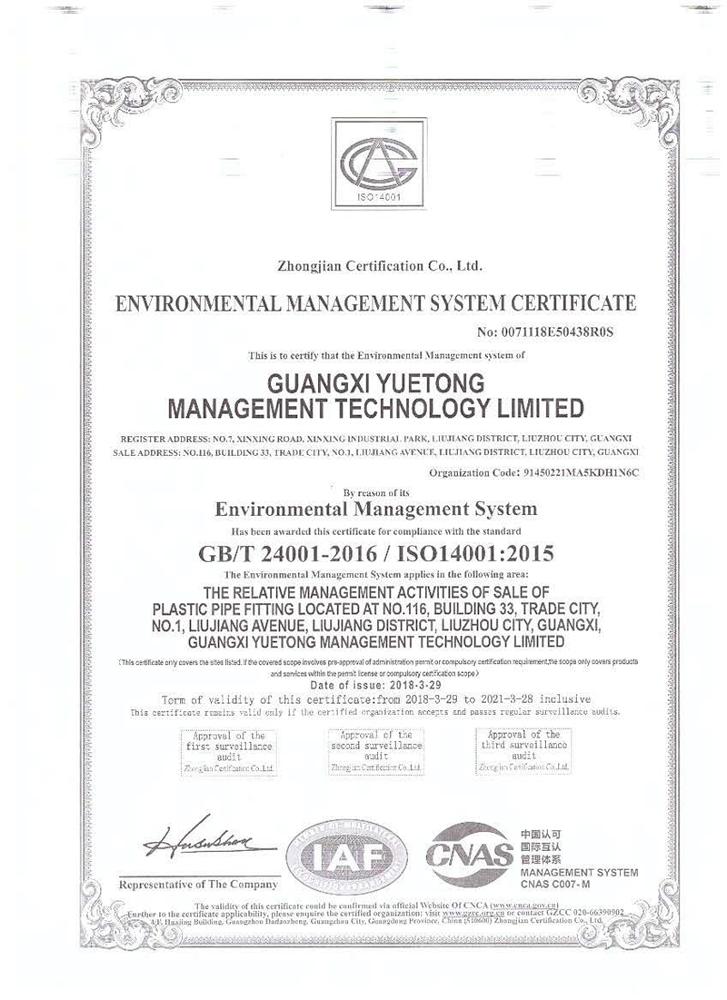

ISO14001

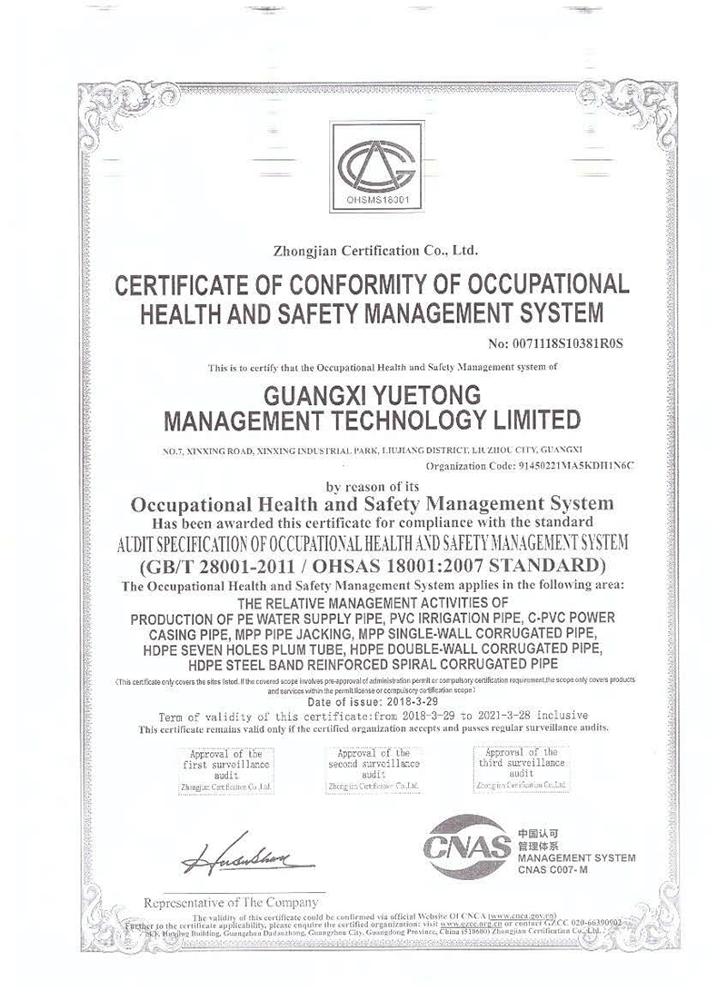

OHSAS18001-2007
