LED Headlampshead headlight5*7inch led headlightautomotive headlightled driving light
T/TOthers
Product Name | 5×7 / 7x6 inch LED Headlight with Lens |
Voltage | DC 12-36V |

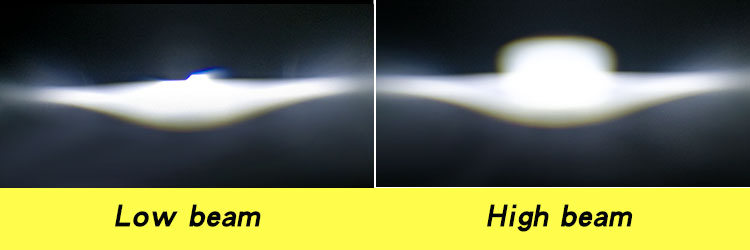

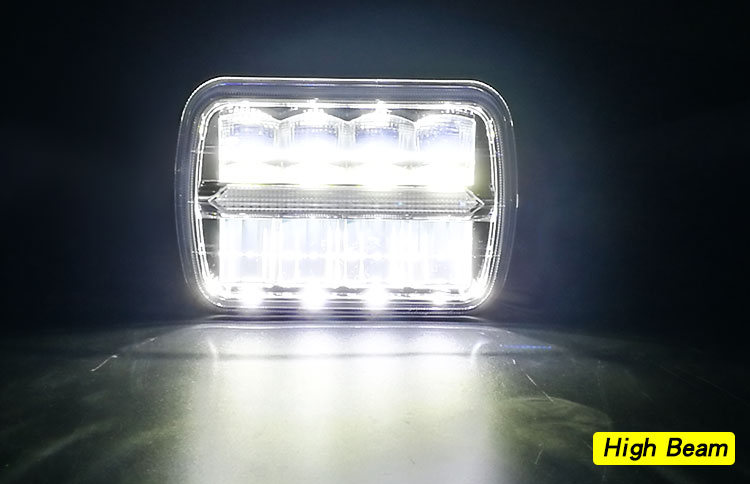

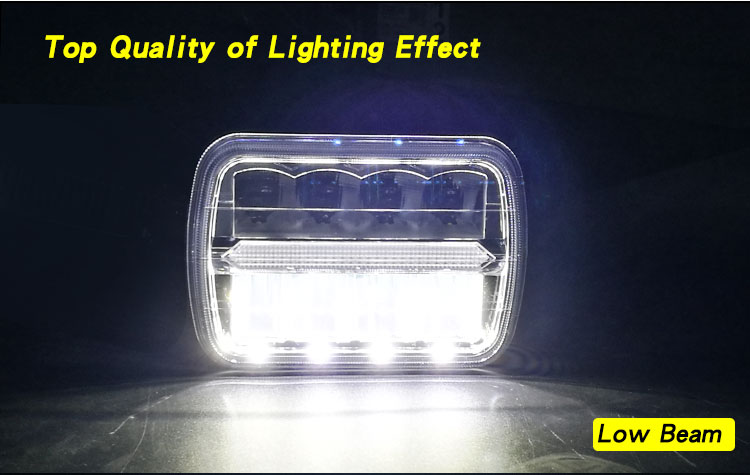

Power | 24W@Low Beam ; 42W@High Beam |
Luminous Flux | 1300 lm@Low Beam ; 2600 lm@High Beam |

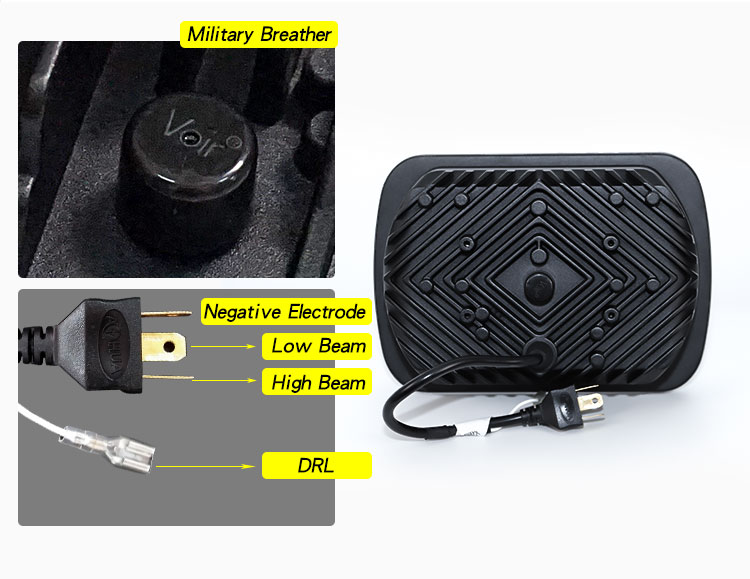

Wiring | H4 Three Core/6.2 Plug Spring |
LED Chip | Latticepower |
Quantity of LED Chip | 8 PCS |
CCT(Correlated Color Temperature) | 6500K White |
Lifespan | 50000+ hours |

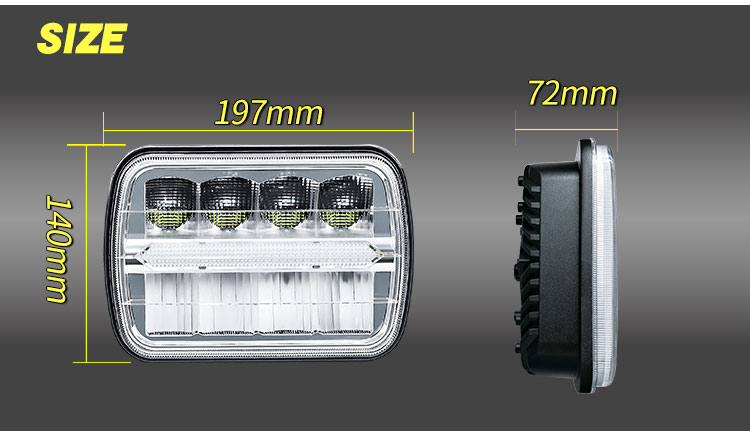

Size | Length 197mm* width 140mm* height 72mm |

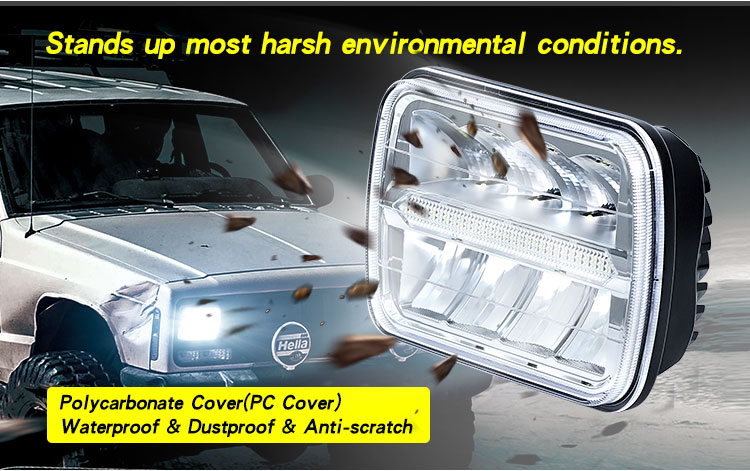

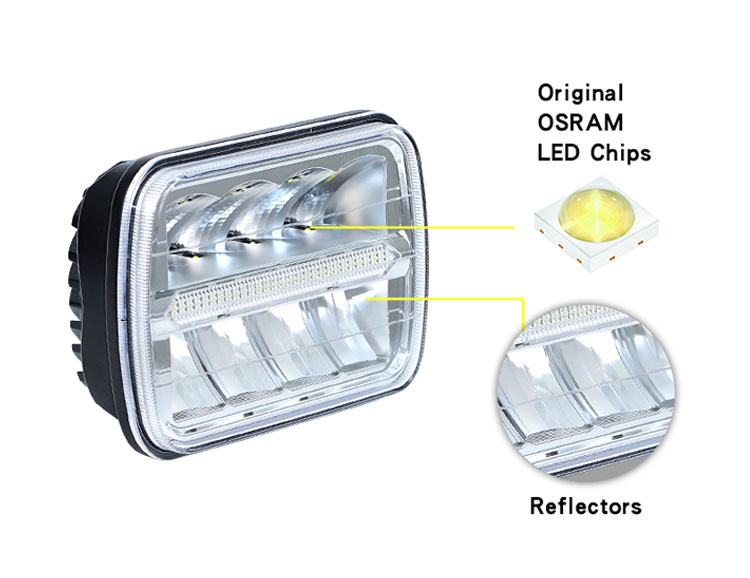

Material | Eco-friendly Aluminum Housing + PC Cover + Reflectors |
Temperature Resistance | -40~80℃ |

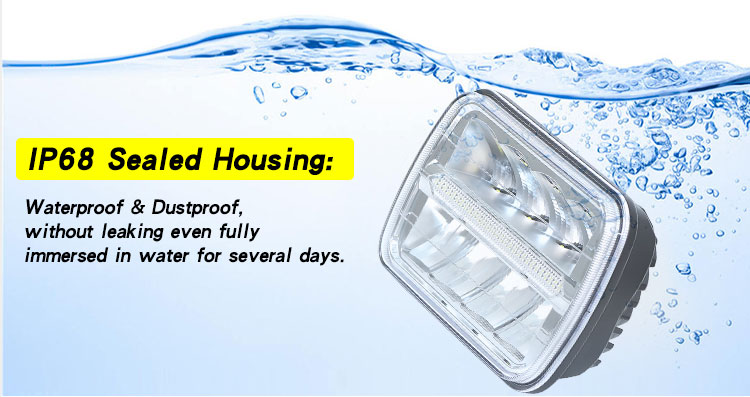

Waterproof Rate | IP68 |
Installation | Embeded |
OEM/ODM Servive | Available |
Protected against:
- Reversal of polarity
- Shockproof, waterproof and UV-protected
- RFI/EMC interference
- Voltage and current surges
Operating conditions:
- 12-36V DC input
- Ambient temperature -40 ~ +80 ° C
Features:
- 50,000+ hours lifetime
- Optical combined point and floodlight system
- Immediately on/off

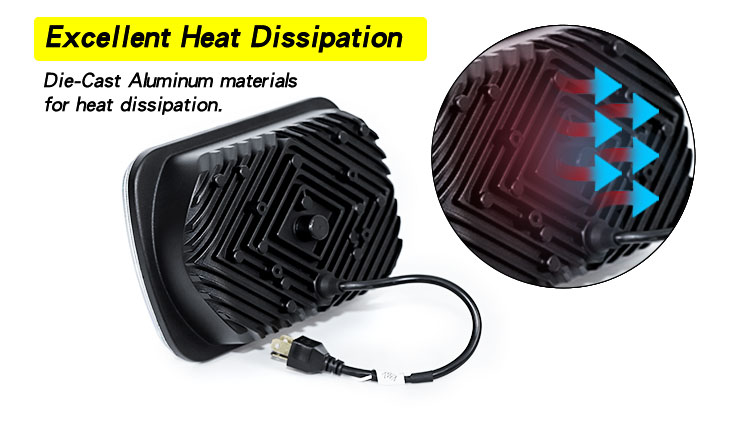

- Low temperature rise: use environmentally-friendly ADC12 aluminum material for the housing, optimizes thermal energy distribution , better heat dissipation effect
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
