LED Headlampshead headlightautomotive headlightled driving light4*6 INCH LED HEADLIGHT
T/TOthers

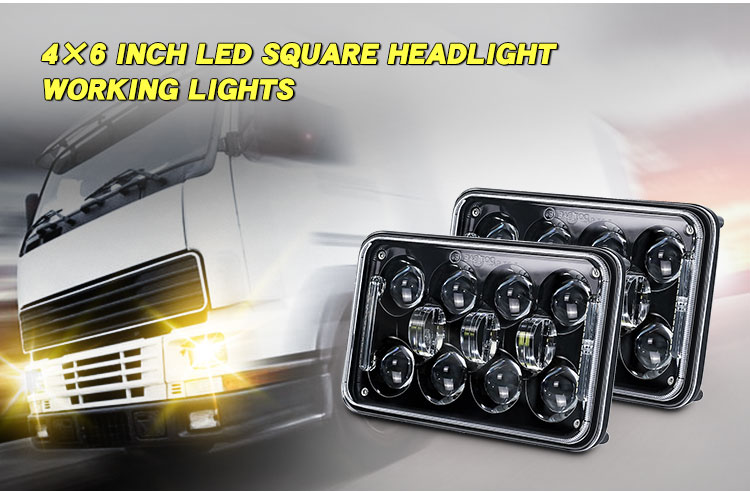

Product Name | 4×6'' LED Headlight with Lens |
Voltage | DC 12-36V |

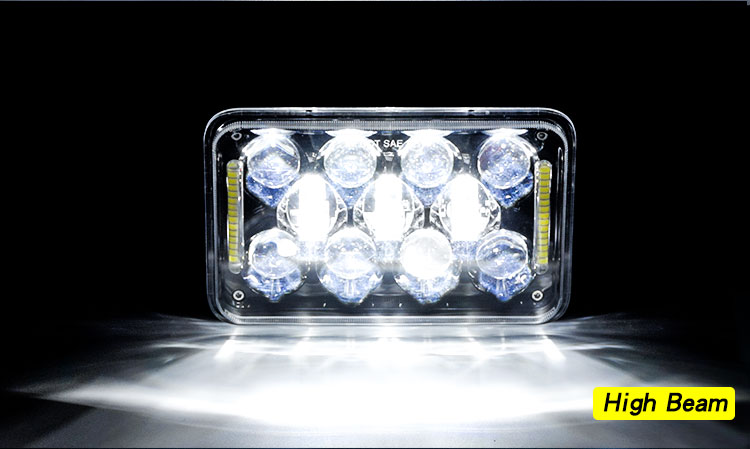

Power | 23W@Low Beam ; 34W@High Beam |
Current | 2000mA@Low Beam ; 2800mA@High Beam |

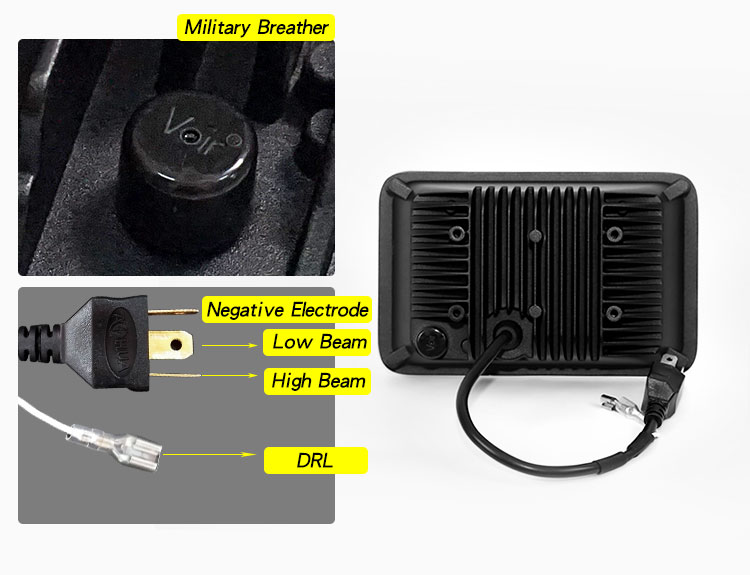

Wiring | H4 Three Core/6.2 Plug Spring |
LED Chip | ETI |
Quantity of LED Chip | 11 PCS |
Lumen | 1000lm@Low Beam ; 1400lm@High Beam |
CCT(Correlated Color Temperature) | 6500K White |
Lifespan | 50000+ hours |

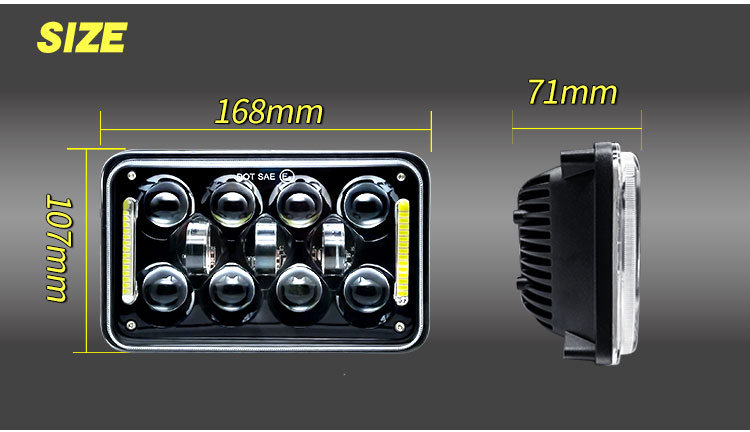

Size | Length 168mm* width 107mm* height 71mm |
Material | 6063 Aluminum + PC |

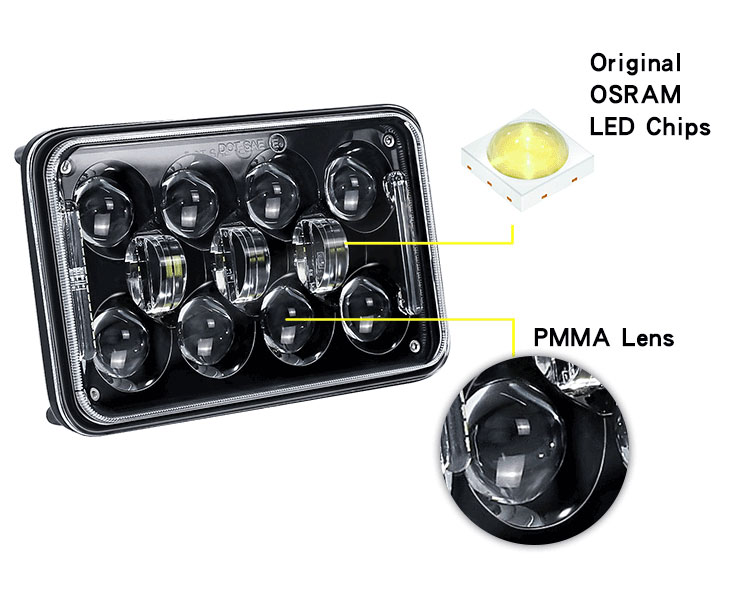

Len Material | PMMA |
Temperature Resistance | -40~80℃ |

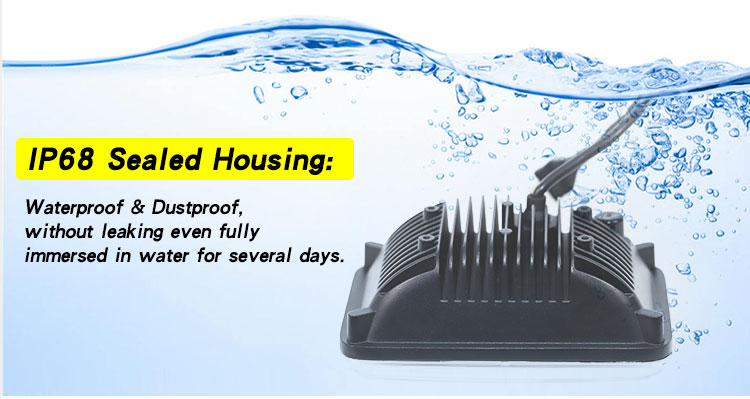

Waterproof Rate | IP67 |
Appearance Color | Black |
Installation | Embeded/Bracket |
OEM/ODM Servive | Available |
Protected against:
- Reversal of polarity

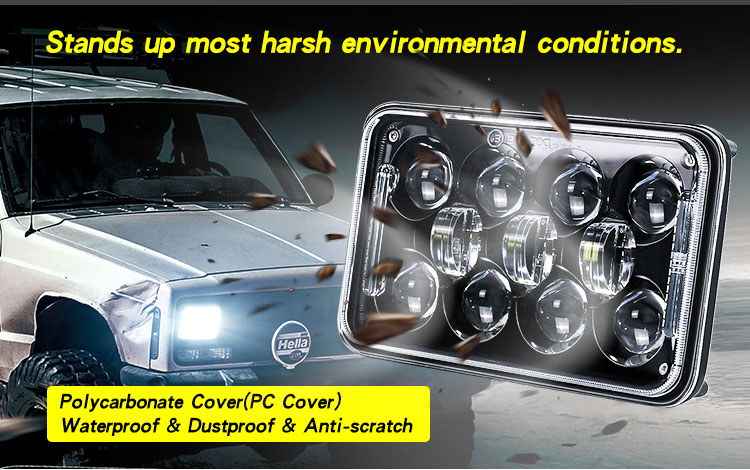

- Shockproof, waterproof and UV-protected
- RFI/EMC interference
- Voltage and current surges
Operating conditions:
- 12-36V DC input
- Ambient temperature -40 ~ +80 ° C
Features:
- 50,000+ hours lifetime
- Optical combined point and floodlight system
- Immediately on/off

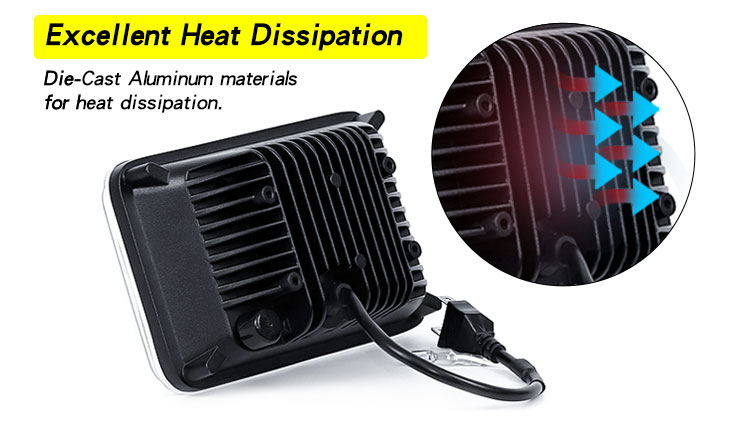

- Low temperature rise: use environmentally-friendly ADC12 aluminum material for the housing, optimizes thermal energy distribution , better heat dissipation effect
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
