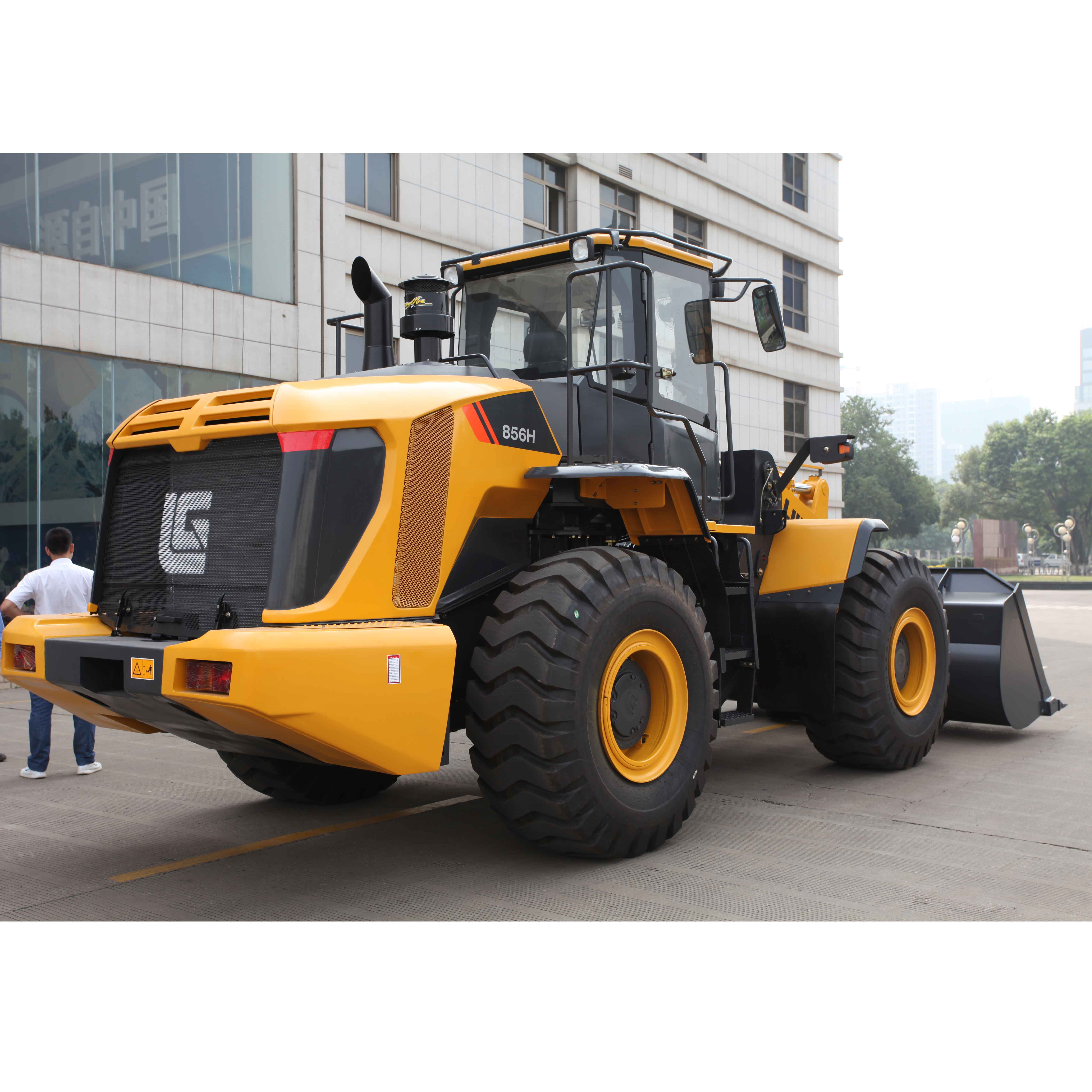

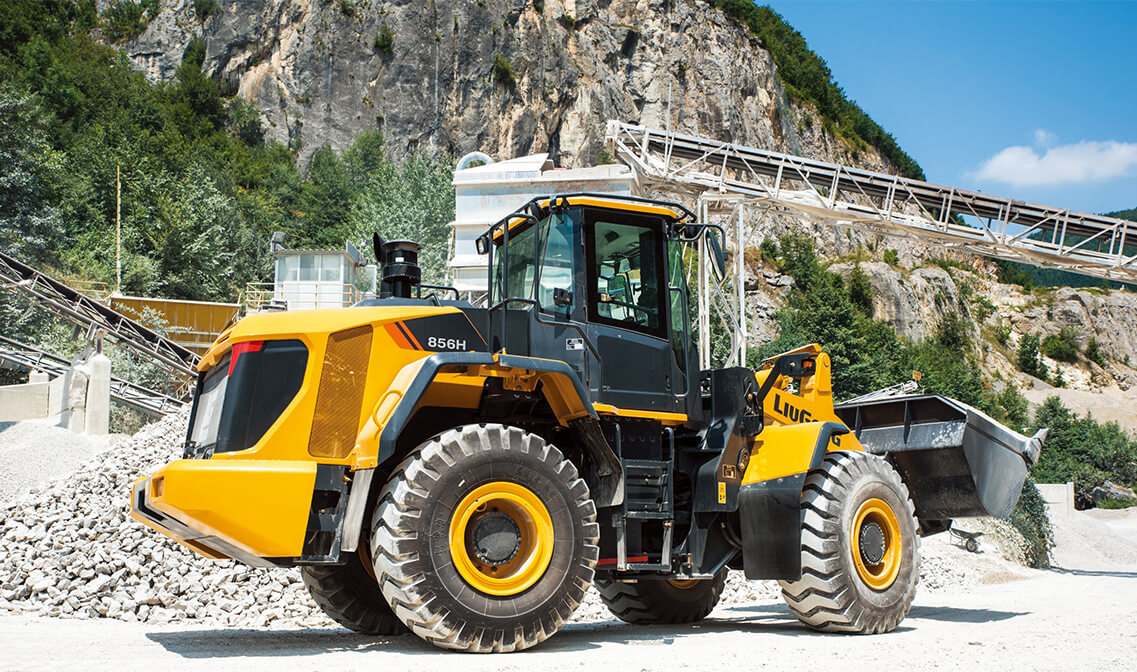

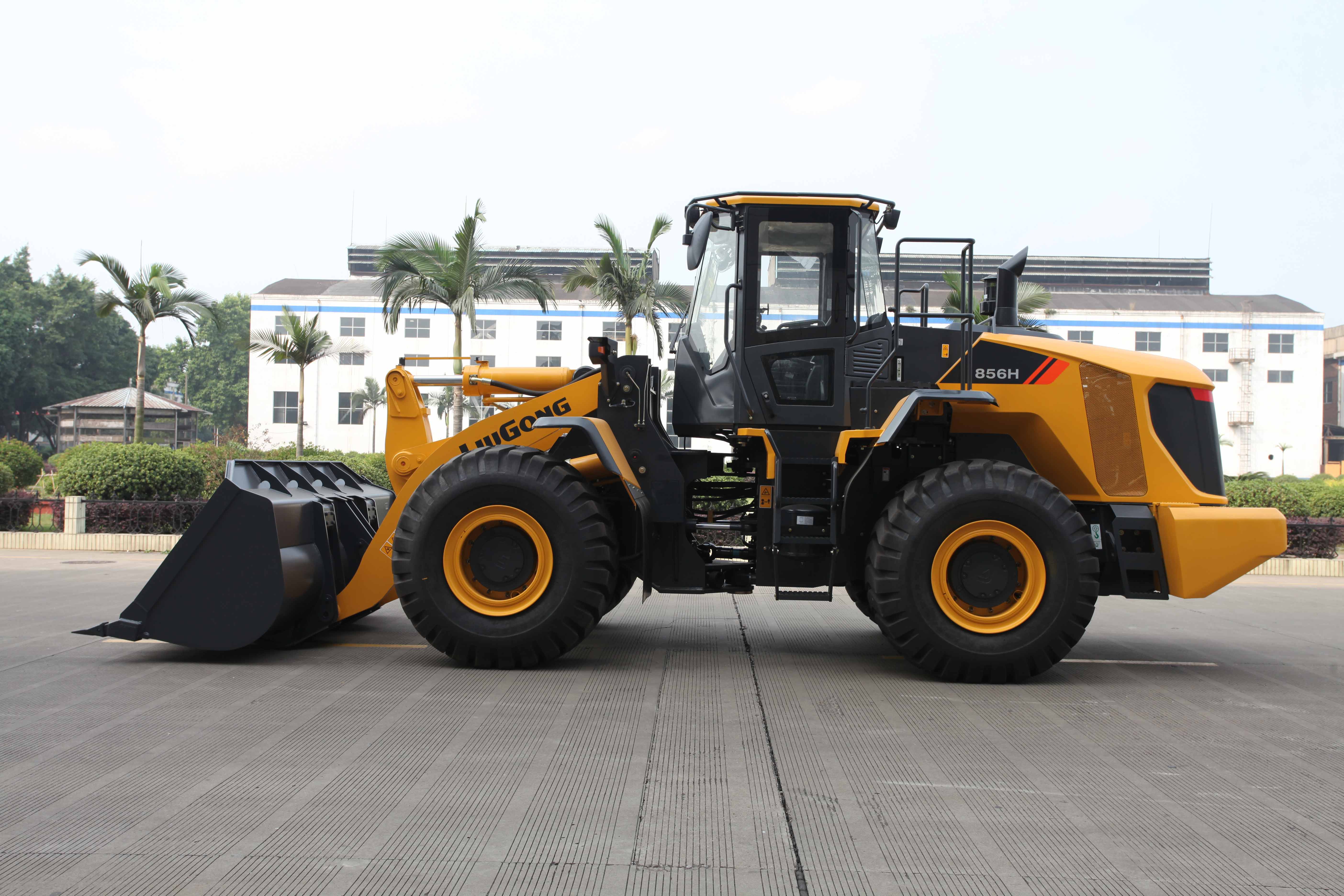

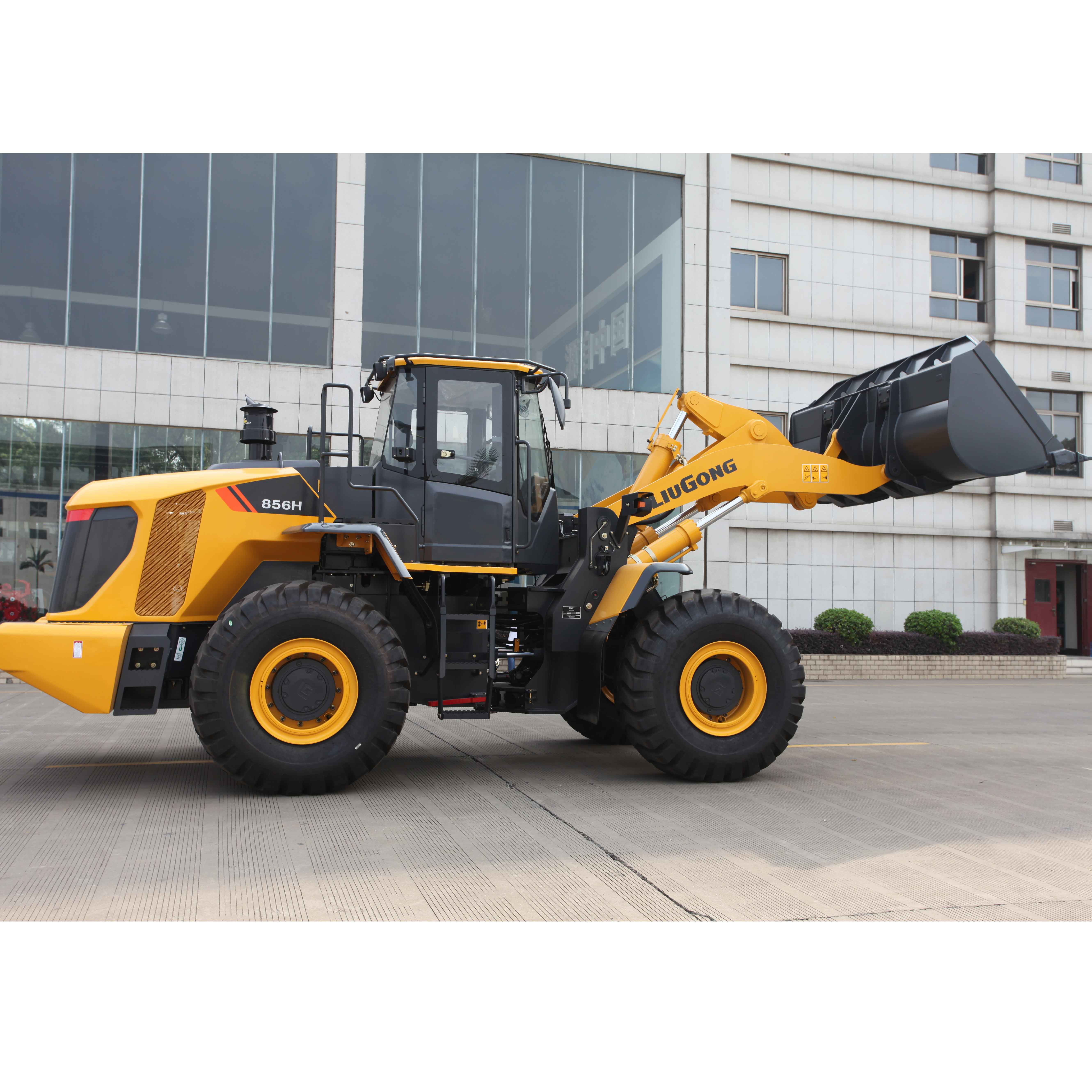

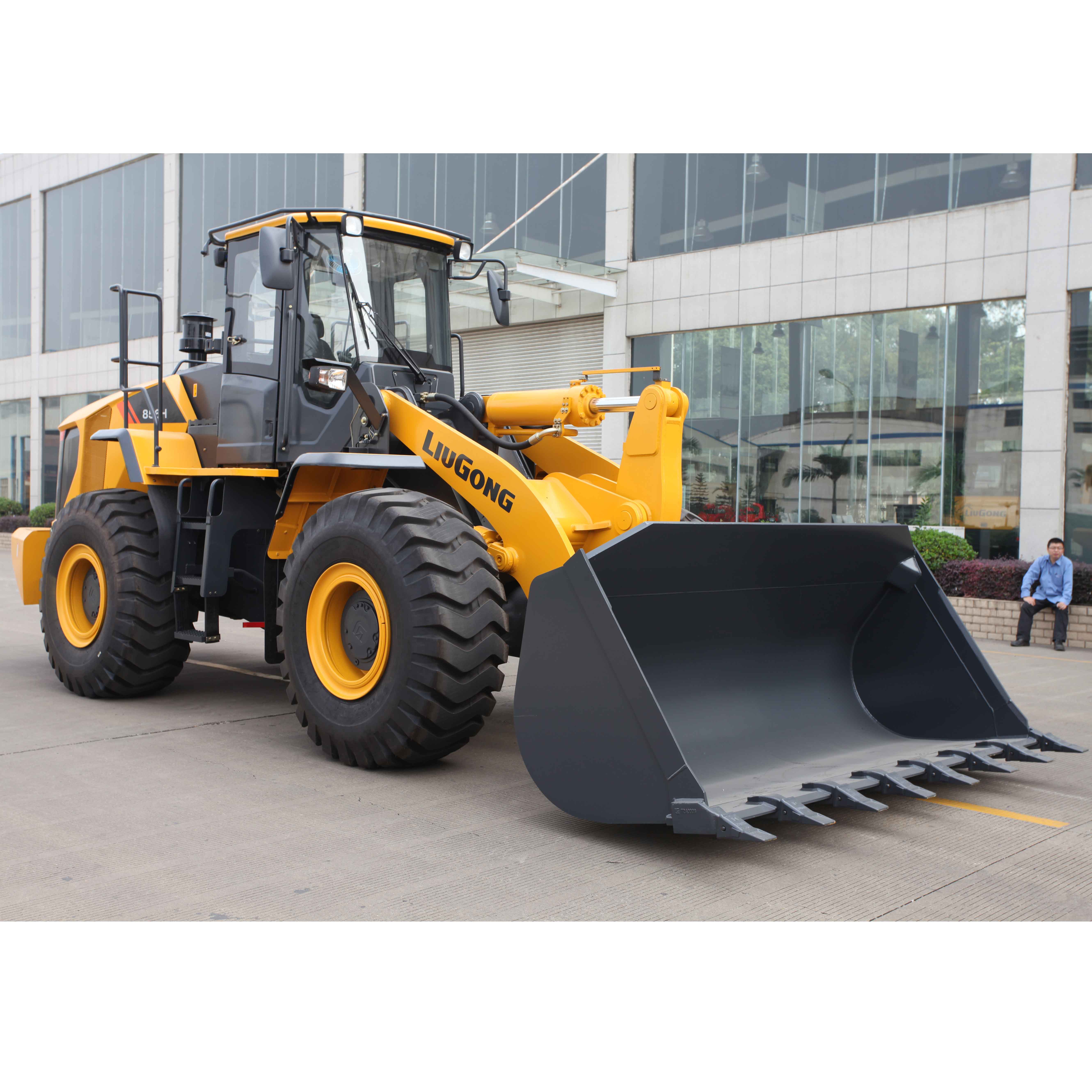

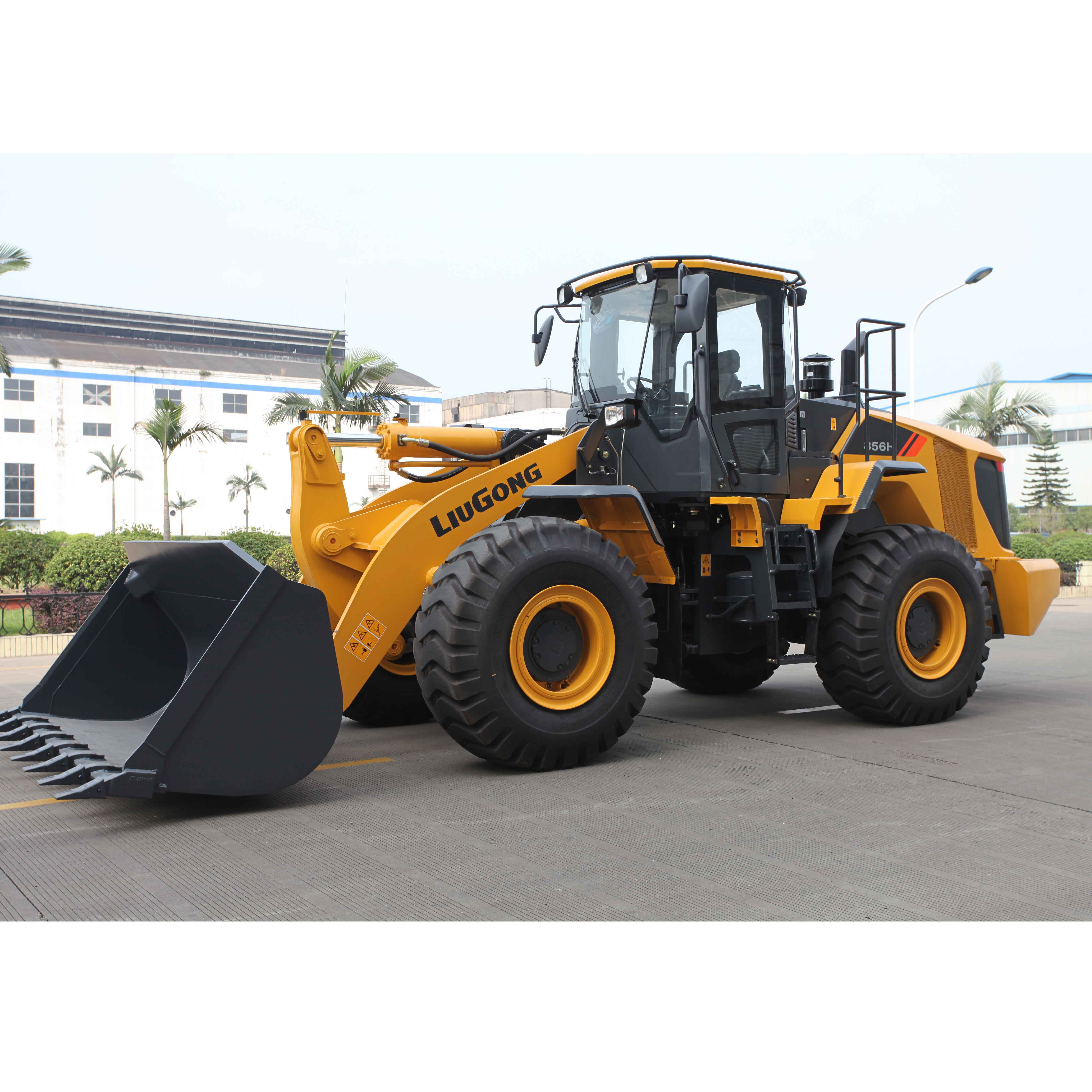

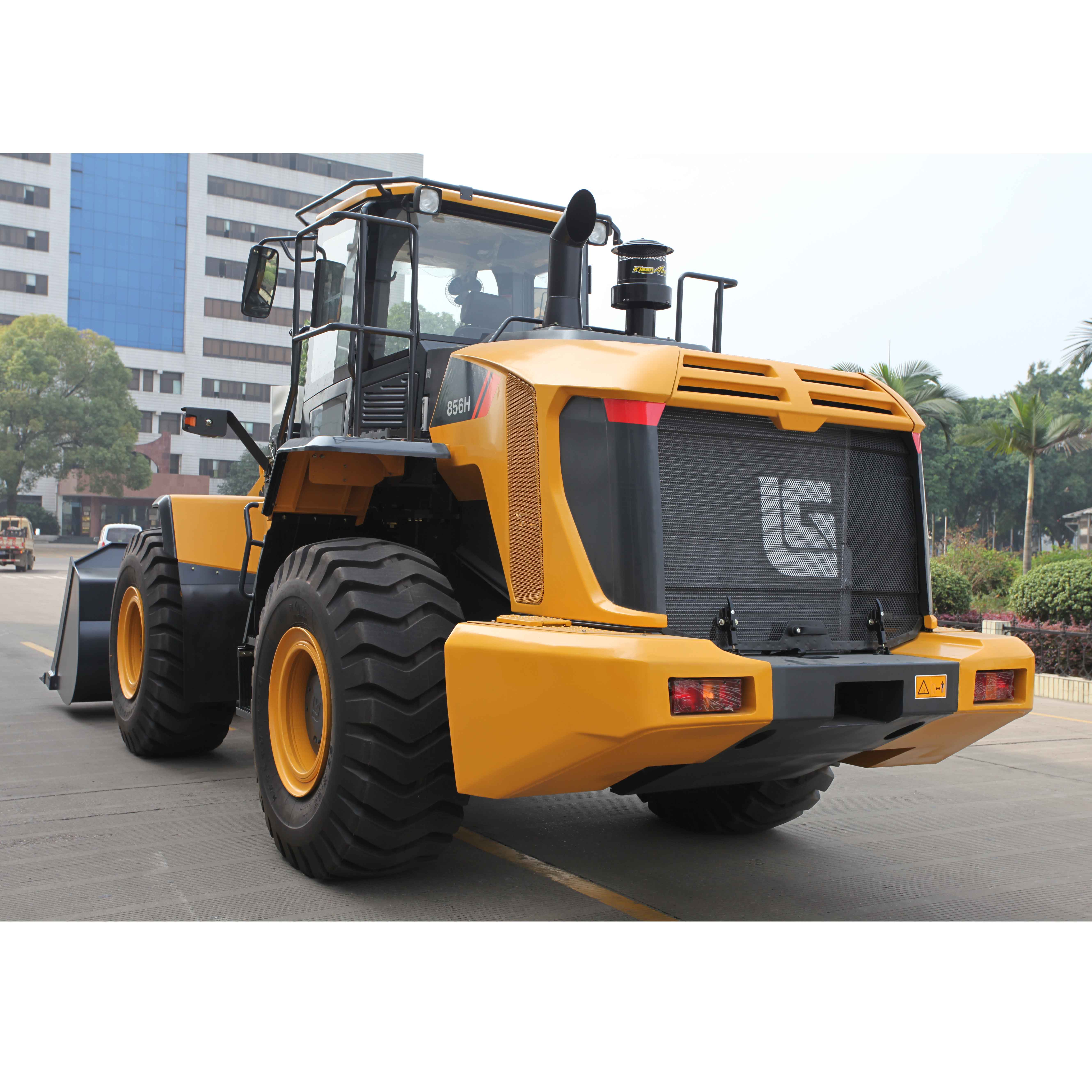

LOADERLIUGONGCLG856HChargeuse
T/T

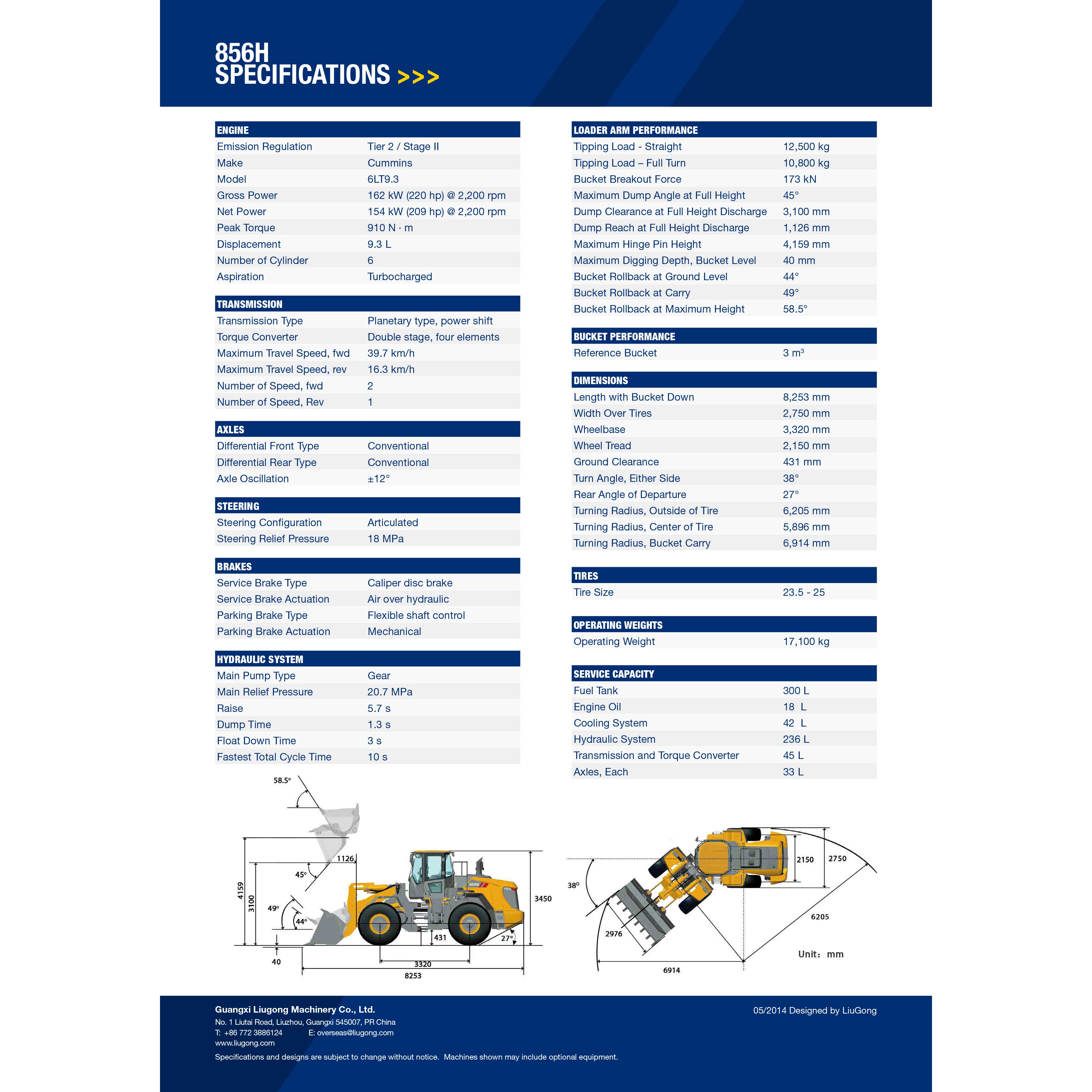

| Detailed product parameters | ||

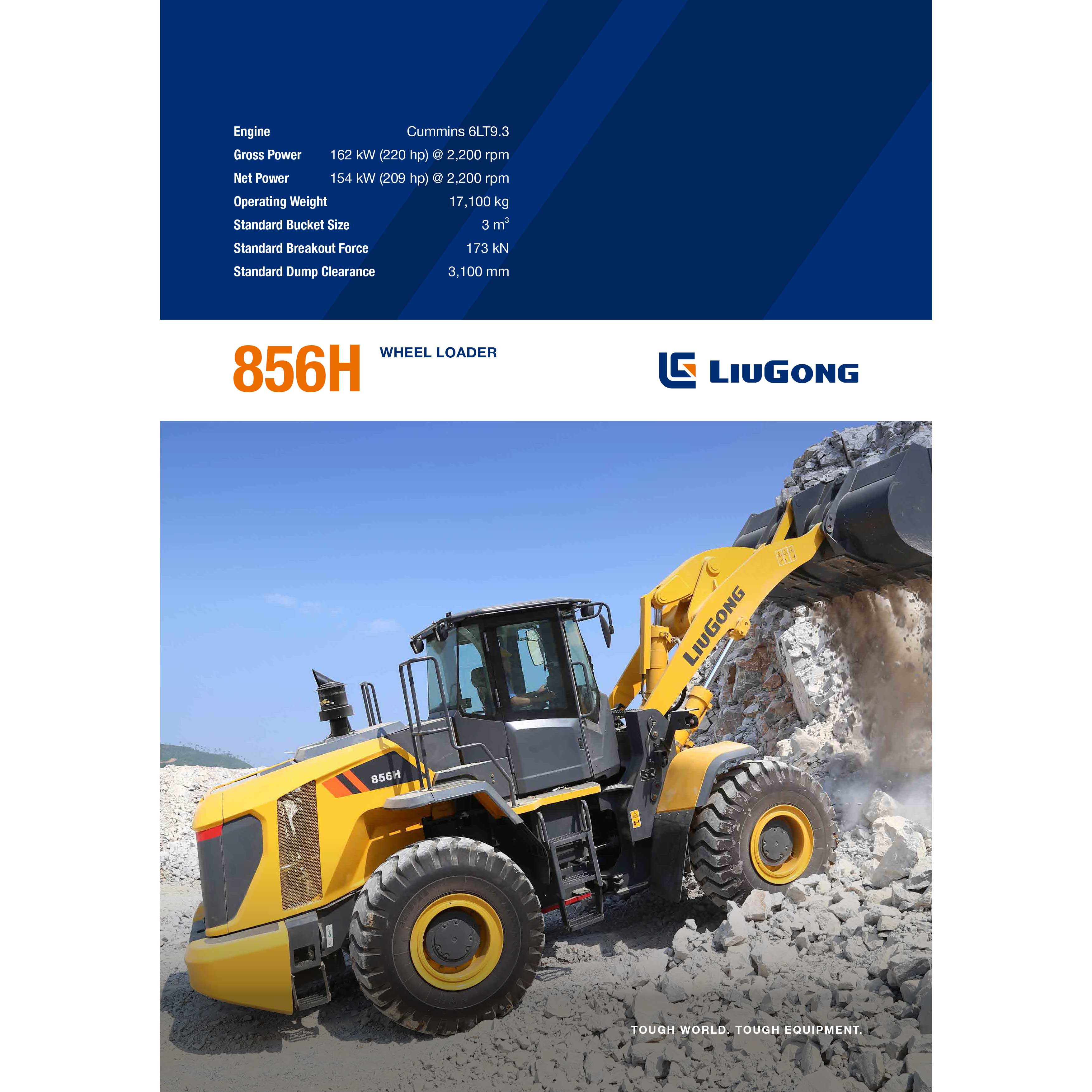

| First Page | ||
| Engine | 6LT9.3 | |
| Gross Power | KW | 162kW(220hp)@2200rpm |
| Net Power | KW | 154kW(209hp)@2200rpm |
| Operating Weight | kg | 17100 |
| Standard Bucket Size | m3 | 3 |
| Standard Breakout Force | KN | 173 |
| Standard Dump Clearance | mm | 3100 |
| Second Page | ||
| Engine | ||
| Emission | 国II Tier 2/Stage II | |
| Maker | 康明斯 Cummins | |
| Gross Power | KW | 162kW(220hp)@2200rpm |
| Net Power | KW | 154kW(209hp)@2200rpm |
| Peak Torque | N.M | 910 |
| Displacement | L | 9.3 |
| Number of Cylinders | 6 | |
| Aspiration | 涡轮增压 turbocharged | |
| Transmission | ||
| Transmission Type | 行星式动力换挡 Planetary type，power shift | |
| Torque Converter | 双级，四元件 Double stage，four elements | |
| Maximum Travel Speed,fwd | km/h | 39.7 |
| Maximum Travel speed,rev | km/h | 16.3 |
| Number of Speeds,fwd | 2 | |
| Number of Speeds,rev | 1 | |
| AXLES | ||
| Differential Front Type | 常规的 Conventional | |
| Differential Rear Type | 常规的 Conventional | |
| Axle Oscillation | ° | ±12 |
| Steering | ||
| Steering Configuration | ° | 铰接式 Articulated |
| Steering Relief Pressure | Mpa | 18 |
| Brakes | ||
| Service Brake Type | 钳盘干式制动 Caliper disc brake | |
| Service Brake Actuation | 气顶油 Air over hydraulic | |
| Parking Brake Type | 机械软轴操纵 Flexible shaft control | |
| Parking Brake Actuation | 机械 Mechanical | |
| Hydraulic System | ||
| Main Pump Type | 齿轮泵 gear pump | |
| Main Relief Pressure | Mpa | 20.7 |
| Raise Time | s | 5.7 |
| Dump Time | s | 1.3 |
| Float Down Time | s | 3 |
| Fastest Total Cycle Time | s | 10 |
| Loader Arm Performance | ||
| Tipping Load - Straight | Kg | 12500 |
| Tipping Load - Full Turn | Kg | 10800 |
| Bucket Breakout Force | KN | 173 |
| Maximum Dump Angle at Full Height | ° | 45° |
| Dump Clearance at Full Height Discharge | mm | 3100 |
| Dump Reach at Full Height Discharge | mm | 1126 |
| Maximum Hinge Pin Height | mm | 4159 |
| Maximum Digging Depth, Bucket Level | mm | 40 |
| Bucket Rollback at Ground Level | ° | 44° |
| Bucket Rollback at Carry | ° | 49° |
| Bucket Rollback at Maximum Height | ° | 58.5° |
| Bucket Performance | ||
| Reference Bucket | m3 | 3.0 |
| Dimensions | ||
| Length with bucket Down | mm | 8253 |
| Width Over Tires | mm | 2750 |
| Wheelbase | mm | 3320 |
| Wheel Tread | mm | 2150 |
| Ground Clearance | mm | 431 |
| Turn Angle,Either Side | ° | 38 |
| Rear Angle of Departure | ° | 27 |
| Turning Radius, outside of Tire | mm | 6205 |
| Turning Radius, Center of Tire | mm | 5896 |
| Turning Radius, Bucket Carry | mm | 6914 |
| Tires | ||
| Tire Size | 23.5-25 | |
| Operating Weights | ||
| Operating Weight | kg | 17100 |
| Service Capacities | ||
| Fuel Tank | L | 300 |
| Engine Oil | L | 18 |
| Cooling System | L | 42 |
| Hydraulic Reservoir | L | 236 |
| Transmission and Torque Converter | L | 45 |
| Axle, Front | L | 33 |
| Axle, Rear | L | 33 |
We provide a full range of loaders for Liugong
Load 1.6 ~ 12 tons
For more products and prices, please contact us
E-mail : 429265412@qq.com
Contact : Mr. Yang
Nous offrons une série complète de chargeurs.
Poids: 1,6 tonne ~ 16 tonnes
Plus de produits et de prix, bienvenue à contacter la consultation
Adresse électronique:429265412 @ qq.com
Interlocuteur: M. Yang
