braided stainless steel hosemetal braided hosess braided hosestainless braided hosebraided steel hose
L/CT/TWesstern Union
The external layer braided with ASTM 304 stainless steel wire and possess the features of high strength and corrosion resistant. With proper braided, the hose is of neat appearance with no wire skipping, folding, or fractures.
◆stainless steel 304 wire ◆brass connectors
◆German KTW certificated food grade silicone gasket, filter mesh
◆Super tensile ◆corrosion resistance ◆ never rust

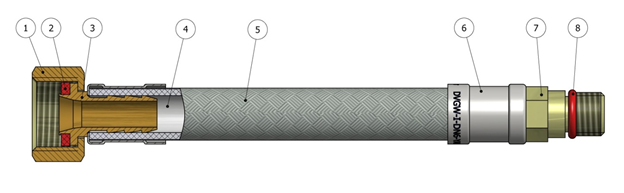

Serial No. | Name | Material |
1 | Nickel plated hexagon connector | brass |
2 | Plate gasket | silicone |
Filter mesh | EPDM+304ss wire | |
3 | Long core | brass |
4 | EPDM inner tube | Working temperature:-40~120℃ |
PEX inner tube | Working temperature:-70～95℃ | |
PVC inner tube | Working temperature:-20~70℃ | |
5 | 7 strands of stainless steel (304) braid | Wire diameter 0.18mm
|
6 | Seamless sleeve | Stainless steel 304 |
7 | Short teeth | brass |
8 | O-ring | silicone |
Technical Specifications：
Hose outside diameter：10mm、12mm、14mm、17mm、20mm、25mm
Working temperature：EPDM -40~120℃、PEX -70～95℃、PVC -20~70℃
Corrosion resistance：≥100kgs
Burst pressure：8MPa
Working pressure：1.6MPa
