SUS304 Grade 13 CE Ball Bearing Butt Hinge for Wooden Door-DDSS001-4X4X3.0mm

SUS304 Grade 13 CE Ball Bearing Butt Hinge for Wooden Door-DDSS001-4X4X3.0mm

SUS304 Door Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality hinge with UL certificate and they apply to different commercial of doors. The Door Hinge with CE is one kind of our SUS304 Durable Door Hinge. The material of CE Marked Fire Rated Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The Grade 13 CE Door Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Wooden Door Hinge become old and bad. The CE Ball Bearing Hinges can also keep long-term lubrication, make you convenient to open and close the door. The BS EN 1935 Door Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.

TEL: +86-750-3856396

PHONE: +86-139-2903-7292

Http://www.dndhardware.com

E-mail:  sales@dndhardware.com

              David@dndhardware.com

ADD: No.4 Bldg,Street 33,West Gaoxin Rd,High-tech Zone,

          Jianghai Dist. Jiangmen City,Guangdong,China

Product Overview

The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

They have been successfully type tested to all the requirements of BS EN 1935, UL 10C, 3 hours Fire Rate.

Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.

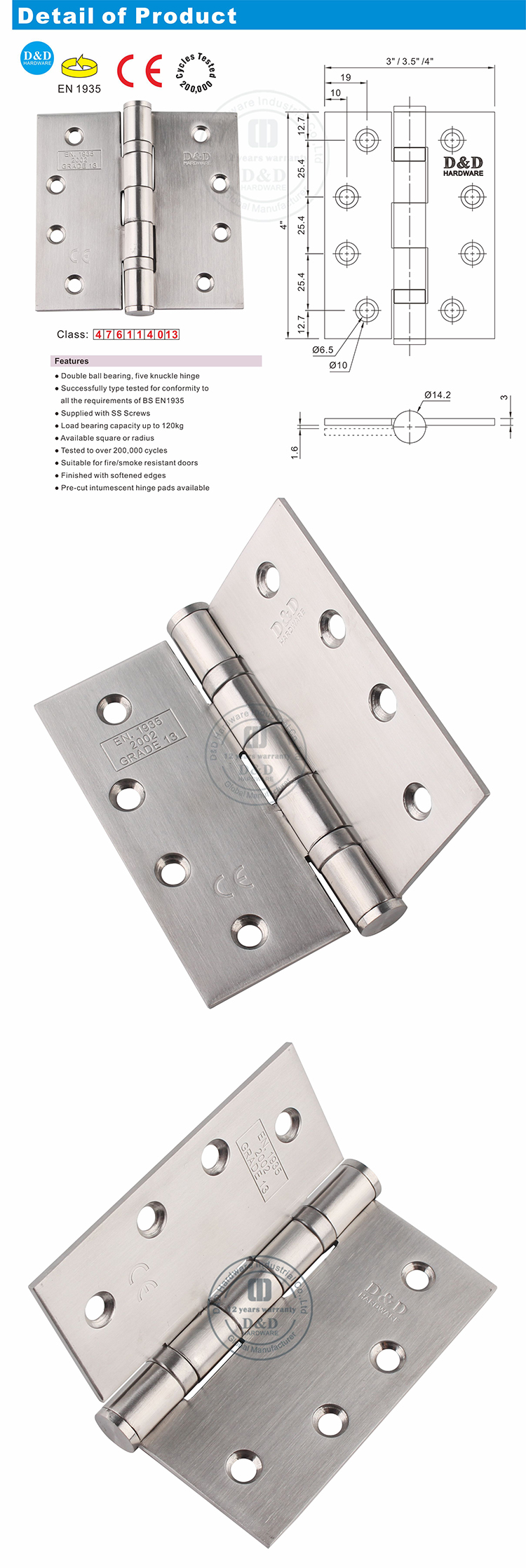

Product name	SUS304 Grade 13 CE Ball Bearing Butt Hinge for Wooden Door-DDSS001-4X4X3.0mm
Product Model	DDSS001-CE-4x4x3.0mm-SUS304
Certificate Size	DDSS001-4x3x3.0mm-SUS201 DDSS001-4x3x3.0mm-SUS304 DDSS001-4x3x3.0mm-SUS316  DDSS001-4x3.5x3.0mm-SUS201 DDSS001-4x3.5x3.0mm-SUS304 DDSS001-4x3.5x3.0mm-SUS316 DDSS001-4x4x3.0mm-SUS201 DDSS001-4x4x3.0mm-SUS304 DDSS001-4x4x3.0mm-SUS316

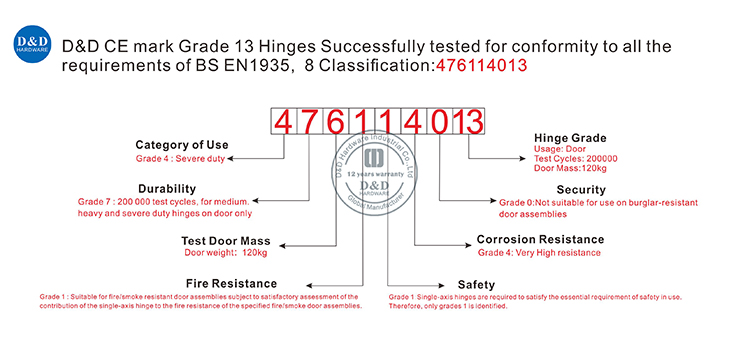

CE classification
Notify Body	Intertek UK - Code 0359
Certificate Standard	EN 1935:2002/AC:2003,EN1634  Passed 200, 000 cycles tested on 120kg door Passed Fire Testing 260 Mins On Steel Door
Certificate Material	Stainless Steel Grade 201  Stainless Steel Grade 304 Stainless Steel Grade 316
Fire Certificate	EN1634  Pass Fire Testing 260 Mins On Steel Door
Fitting	Flat tip, ball bearing, fix pin, screws,
Finish	Satin stainless steel, Polished stainless steel, Polished brass Chrome-plated, Satin chrome-plated, Polished PVD
Suitable for	Wooden door, Metal door, Fire rated door
