Vacuum Circuit BreakerCircuit BreakersVacuum Circuit Breaker Air Insulated SwitchgearSwitchgear Air Insulated
L/CT/TWesstern UnionMoney Gram

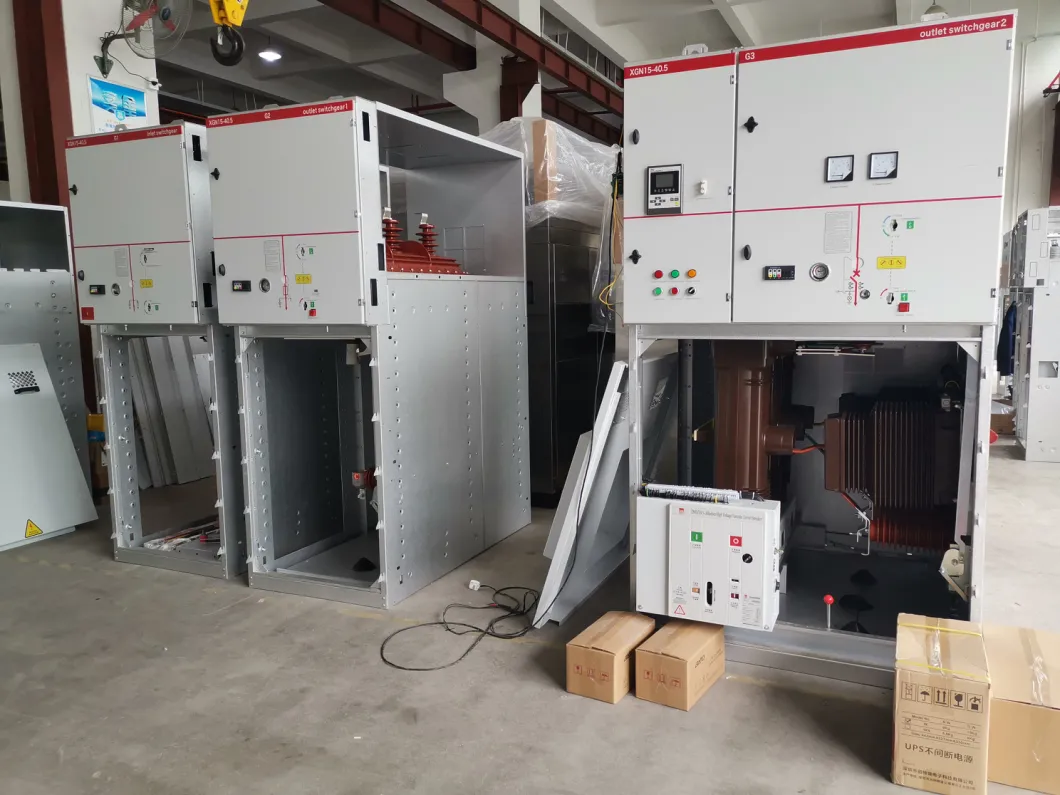

XGN15 series meidum voltage switchgear, with a rated voltage from 10-40.5kv, is a type of air insulated switchgear with withdrawable vacuum circuit breaker. The draw out type of VCB makes switchgear mainteinence much more easy and friendly to users. All the units can be combined by customer requirement to realize preset functions. The switchgears has the advantages of compact size,flexible for maintainence and stable performance. Therefore, it is widely applied to power transmission and distribution system.
Technical Specifications
| No. | Item | Unit | Data |
| 1 | Rated voltage | kV | 36 |
| 2 | Rated Current | A | 630/1250 |
| 3 | Rated Frequency | Hz | 50/60 |
| 4 | Rated short circuit current | kA | 20/31.5 |
| 5 | Rated short time withstand current(3s) | kA | 20/31.5 |
| 6 | Rated peak withstand current | kA | 50/65 |
| 7 | Rated power frequency withstand voltage | kV | 95 |
| 8 | Rated lightning impluse withstand voltage | kV | 185 |
Environmental Conditions
1. Ambient temperature: not higher than +40 oC, not less than -15 oC (at -30 oC to allow storage and transportation).
2. Altitude: not exceed 1000m.
3. Earthquake intensity: not more than 8 degree.
4. Wind pressure:≤700pa
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration
