Product Details
1. Application
The cable is used in electric transmission and distribution system operating at AC rated voltage up to and including 1.8/3 KV
2. Operating Characteristic
1) The rated voltage U0/U of cable is 0.6/1KV.
2) The long time allowable working temperature of conductor is 70 °C for cable with PVC insulation, 90 °C for cable with XLPE insulation.
3) The cable laying temperature is not less than 0°C, and the allowable bending radius of a cable is not less 20 times than cable overall diameter for single core unarmored cable, 15 times of that for single core armored, 12 times of that for 3 cores armored cable.

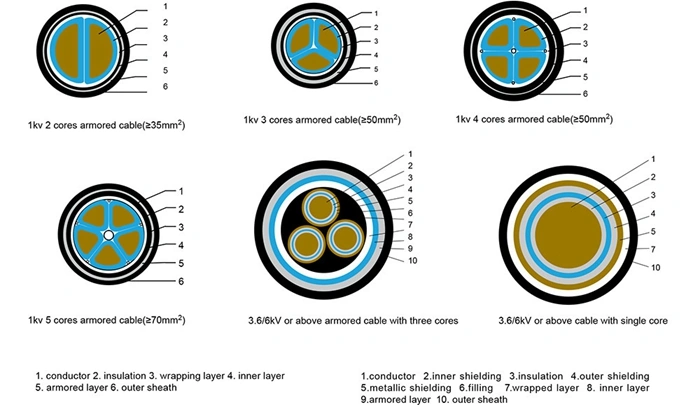

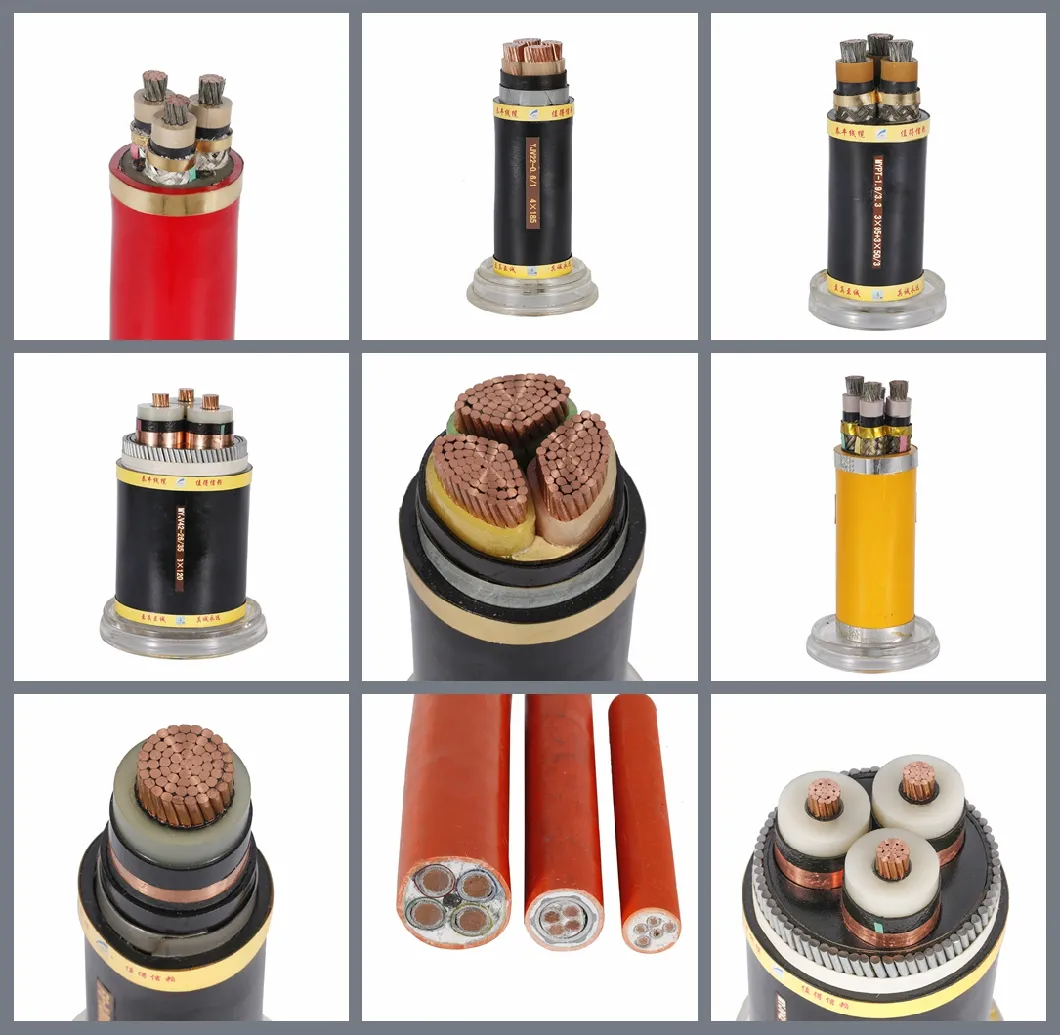

3. Construction
4. Cores and Nominal Cross Section Area:
| Single Core Cable | ||||||||
| Conductor | Thickness of overall insulation | Non steel tape armoured cable | Steel tape armoured cable | |||||
| Nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter of cable | Approximate weight of cable | Approx. overall diameter of cable | Approximate weight of cable | ||
| Cu | Al | Cu | Al | |||||
| mm2 | mm | mm | mm | Kg/km | mm | Kg/km | ||
| 1.5 | 0.8 | 1.5 | 9.09 | 161 | 97 | 12.85 | 333 | 269 |
| 2.5 | 0.8 | 1.5 | ||||||
| 4 | 1 | 1.5 | ||||||
| 6 | 1 | 1.5 | ||||||
| 10 | 1 | 1.5 | ||||||
| 16 | 1 | 1.5 | 10.14 | 225 | 125 | 13.9 | 415 | 314 |
| 25 | 1.2 | 1.5 | 11.86 | 333 | 174 | 15.56 | 546 | 389 |
| 35 | 1.2 | 1.5 | 13 | 434 | 213 | 16.7 | 667 | 447 |
| 50 | 1.4 | 1.5 | 15.69 | 632 | 309 | 18..75 | 876 | 557 |
| 70 | 1.4 | 1.5 | 17.14 | 808 | 376 | 20.2 | 1070 | 642 |
| 95 | 1.6 | 1.5 | 19.44 | 1089 | 490 | 22.5 | 1393 | 797 |
| Two Cores Cable | ||||||||
| Conductor | Thickness of overall insulation | Non steel tape armoured cable | Steel tape armoured cable | |||||
| Nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter of cable | Approximate weight of cable | Approx. overall diameter of cable | Approximate weight of cable | ||
| Cu | Al | Cu | Al | |||||
| mm2 | mm | mm | mm | Kg/km | mm | Kg/km | ||
| 1.5 | 0.8 | 1.5 | 9.9 | 110 | 91 | 13.2 | 266 | 247 |
| 2.5 | 0.8 | 1.5 | 9.8 | 137 | 105 | 14 | 305 | 274 |
| 4 | 1 | 1.5 | 12.9 | 215 | 164 | 15.3 | 387 | 336 |
| 6 | 1 | 1.5 | 13.9 | 267 | 191 | 16.3 | 454 | 377 |
| 10 | 1 | 1.5 | 16.5 | 381 | 252 | 18.9 | 601 | 472 |
| 16 | 1 | 1.5 | 18.6 | 522 | 317 | 21 | 770 | 567 |
| 25 | 1.2 | 1.5 | 21.9 | 749 | 431 | 24.3 | 1045 | 727 |
| 35 | 1.2 | 1.5 | 24.2 | 964 | 522 | 26.6 | 1290 | 847 |
| 50 | 1.4 | 1.8 | 21.1 | 1196 | 565 | 23.4 | 1475 | 945 |
| 70 | 1.4 | 1.9 | 23.3 | 1596 | 713 | 25.6 | 1903 | 1021 |
| 95 | 1.6 | 2 | 27.5 | 2159 | 961 | 29.2 | 2562 | 1364 |
| Three Cores Cable | ||||||||
| Conductor | Thickness of overall insulation | Non steel tape armoured cable | Steel tape armoured cable | |||||
| Nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter of cable | Approximate weight of cable | Approx. overall diameter of cable | Approximate weight of cable | ||
| Cu | Al | Cu | Al | |||||
| mm2 | mm | mm | mm | Kg/km | Kg/km | mm | Kg/km | Kg/km |
| 1.5 | 0.8 | 1.6 | 10.5 | 138 | 110 | 13.7 | 297 | 269 |
| 2.5 | 0.8 | 1.6 | 11.3 | 176 | 129 | 14.5 | 347 | 300 |
| 4 | 1 | 1.8 | 13.5 | 275 | 199 | 15.95 | 458 | 382 |
| 6 | 1 | 1.8 | 14.6 | 349 | 234 | 17.05 | 546 | 432 |
| 10 | 1 | 1.8 | 17.38 | 511 | 317 | 19.8 | 745 | 552 |
| 16 | 1 | 1.8 | 19.64 | 712 | 405 | 22.09 | 970 | 664 |
| 25 | 1.2 | 1.8 | 23.22 | 1040 | 561 | 25.67 | 1349 | 872 |
| 35 | 1.2 | 1.8 | 25.67 | 1353 | 689 | 28.32 | 1694 | 1032 |
| 50 | 1.4 | 1.8 | 25.18 | 1769 | 823 | 27.48 | 2112 | 1166 |
| 70 | 1.4 | 2 | 28.39 | 2356 | 1032 | 32.09 | 3082 | 1758 |
| 3+1 Cores Cable | ||||||||
| Conductor | Thickness of overall insulation | Non steel tape armoured cable | Steel tape armoured cable | |||||
| Nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter of cable | Approximate weight of cable | Approx. overall diameter of cable | Approximate weight of cable | ||
| Cu | Al | Cu | Al | |||||
| mm2 | mm | mm | mm | Kg/km | Kg/km | mm | Kg/km | Kg/km |
| 2.5 | 0.8 | 1.8 | 12.12 | 225 | 168 | 14.57 | 400 | 343 |
| 4 | 1 | 1.8 | 14.13 | 315 | 223 | 16.58 | 508 | 416 |
| 6 | 1 | 1.8 | 15.3 | 410 | 270 | 17.75 | 619 | 479 |
| 10 | 1 | 1.8 | 18.27 | 594 | 362 | 20.77 | 840 | 608 |
| 16 | 1 | 1.8 | 20.68 | 842 | 470 | 23.13 | 1120 | 748 |
| 25 | 1.2 | 1.8 | 24.5 | 1230 | 649 | 26.95 | 1556 | 976 |
| 35 | 1.2 | 2 | 27.12 | 1545 | 778 | 31.17 | 2264 | 1497 |
| 50 | 1.4 | 2 | 29.08 | 2077 | 972 | 32.78 | 2792 | 1687 |
| 70 | 1.4 | 2.1 | 32.27 | 2797 | 1251 | 38.97 | 3560 | 2014 |
| 95 | 1.6 | 2.3 | 38.25 | 3853 | 1734 | 41.2 | 4676 | 2556 |
| 4 Cores Cable | ||||||||
| Conductor | Thickness of overall insulation | Non steel tape armoured cable | Steel tape armoured cable | |||||
| Nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter of cable | Approximate weight of cable | Approx. overall diameter of cable | Approximate weight of cable | ||
| Cu | Al | Cu | Al | |||||
| mm2 | mm | mm | mm | Kg/km | Kg/km | mm | Kg/km | Kg/km |
| 10 | 1 | 1.8 | 20.6 | 706 | 447 | 21.8 | 1078 | 819 |
| 16 | 1 | 1.8 | 23.1 | 871 | 460 | 24.3 | 1294 | 883 |
| 25 | 1.2 | 1.8 | 27.3 | 1449 | 794 | 28.5 | 1756 | 1101 |
| 35 | 1.2 | 1.8 | 30 | 1881 | 979 | 31.2 | 2445 | 1543 |
| 50 | 1.4 | 1.8 | 34.8 | 2365 | 1036 | 36.8 | 2073 | 1744 |
| 70 | 1.4 | 1.9 | 38.8 | 3016 | 1231 | 40.8 | 4316 | 2531 |
| 95 | 1.6 | 2 | 44.5 | 4091 | 1621 | 46.5 | 5590 | 312 |
