Stainless Steel BS EN 1935 CE Fire Rated Ball Bearing Hinge Hinge for Fire Door-DDSS001-4x3.5x3.0mm

ID:20062410932

Construction & Decoration Door,Window & Accessories

FOB Price:US$ 1.500 / Piece(s)

MOQ:500.00 Piece(s)

Product Keywords:

BS EN 1935 CE HingeCE HingeBall Bearing Butt HingeBall Bearing Door HingeStainless Steel Door HingeStainless Steel HingeMetal door hingefire rated door hingeBS EN 1935 Grade 13 CE HingeStainless Steel Grade 13 Hinge

Payment Method:

L/CT/TWesstern UnionMoney Gram

Product Category
Construction & Decoration > Door,Window & Accessories
Trademark
D&D
Product Package
white box
Specification
14.5x5x2.2cm
Place of Origin
Guangdong
Port
Jiangmen

Stainless Steel BS EN 1935 CE Fire Rated Ball Bearing Hinge Hinge for Fire Door-DDSS001-4x3.5x3.0mm


Stainless Steel Door Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality hinge with UL certificate and they apply to different commercial of doors. The Ball Bearing Door Hinge is one kind of our SUS316 Door Hinge. The material of Steel Door Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The CE Ball Bearing Door Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Class 13 Fire Door Hinge become old and bad. The CE Ball Bearing Butt Hinge can also keep long-term lubrication, make you convenient to open and close the door. The BS EN 1935 Fire Rated Hinges is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.


TEL: +86-750-3856396

PHONE: +86-139-2903-7292

Http://www.dndhardware.com

E-mail:  sales@dndhardware.com

              David@dndhardware.com

ADD: No.4 Bldg,Street 33,West Gaoxin Rd,High-tech Zone,

          Jianghai Dist. Jiangmen City,Guangdong,China


Product Overview


The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

They have been successfully type tested to all the requirements of BS EN 1935, UL 10C, 3 hours Fire Rate.

Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.





Product name

Stainless Steel BS EN 1935 CE Fire Rated Ball Bearing Hinge Hinge for Fire Door-DDSS001-4x3.5x3.0mm

Product Model DDSS001-CE-4x3.5x3.0mm-SUS304
Certificate Size

DDSS001-4x3x3.0mm-SUS201

DDSS001-4x3x3.0mm-SUS304

DDSS001-4x3x3.0mm-SUS316

DDSS001-4x3.5x3.0mm-SUS201

DDSS001-4x3.5x3.0mm-SUS304

DDSS001-4x3.5x3.0mm-SUS316

DDSS001-4x4x3.0mm-SUS201

DDSS001-4x4x3.0mm-SUS304

DDSS001-4x4x3.0mm-SUS316

CE classification
476114013
Notify Body
Intertek UK - Code 0359
Certificate Standard

EN 1935:2002/AC:2003, EN1634

Passed 200, 000 cycles tested on 120kg door

Passed Fire Testing 260 Mins On Steel Door

Certificate Material

Stainless Steel Grade 316

Fire Certificate

EN1634

Pass Fire Testing 260 Mins On Steel Door

FittingFlat tip, ball bearing, fix pin, screws,
Finish

Satin stainless steel, Polished stainless steel, Polished brass

Chrome-plated, Satin chrome-plated, Polished PVD

Suitable forWooden door, Metal door, Fire rated door

CE GRADE 13 DOOR HINGE1 -  D&D Hardware

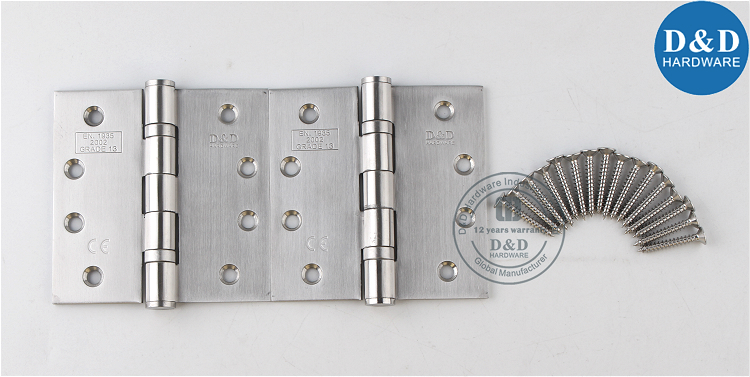

 SUS304 Wooden Door Hinge-D&D Hardware

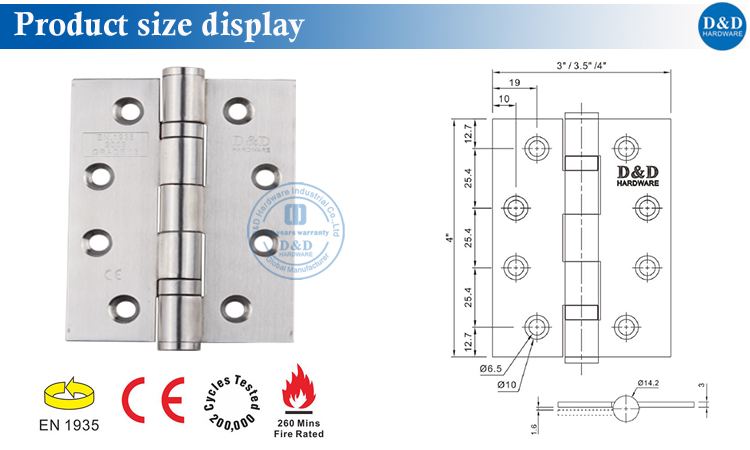

 photobank

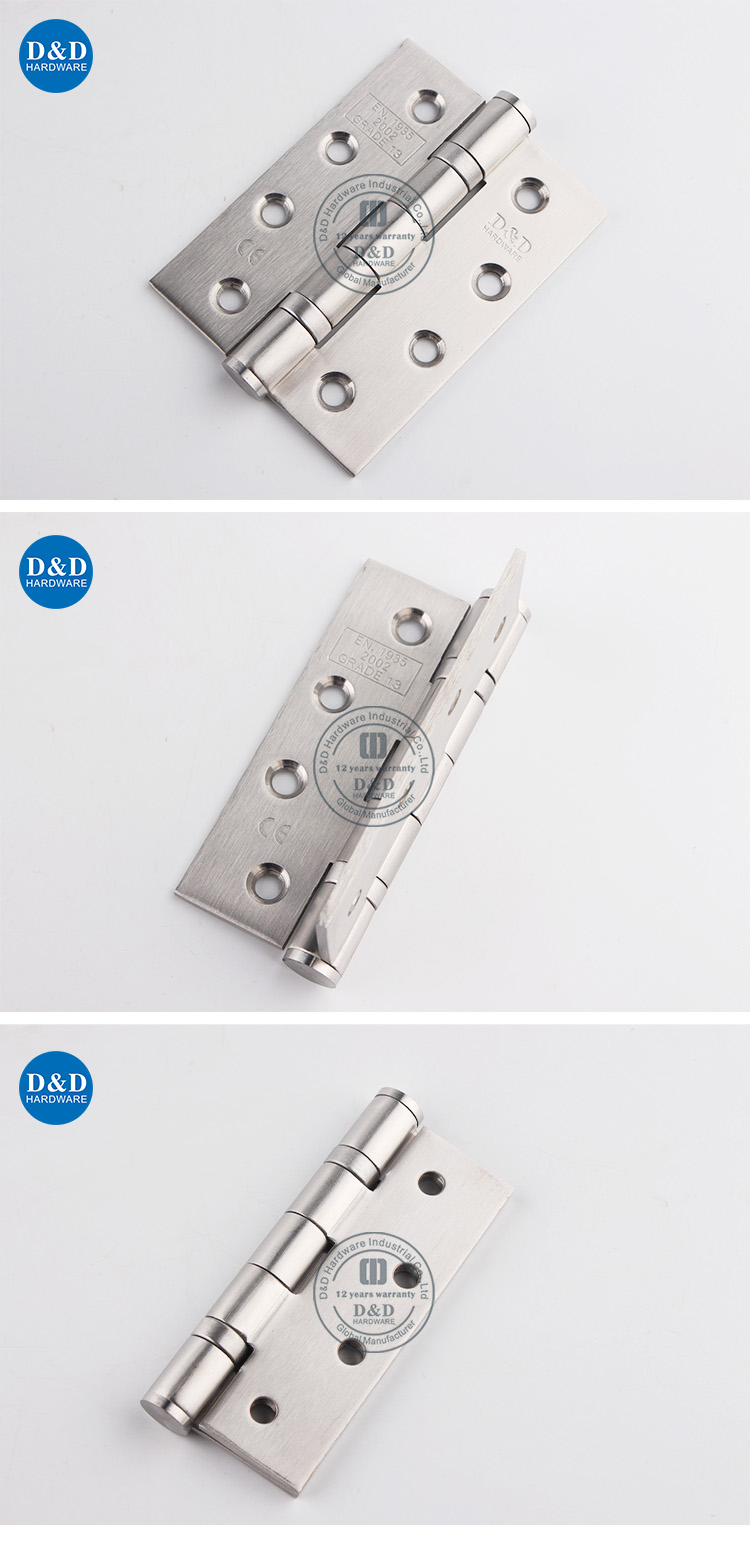

详情图

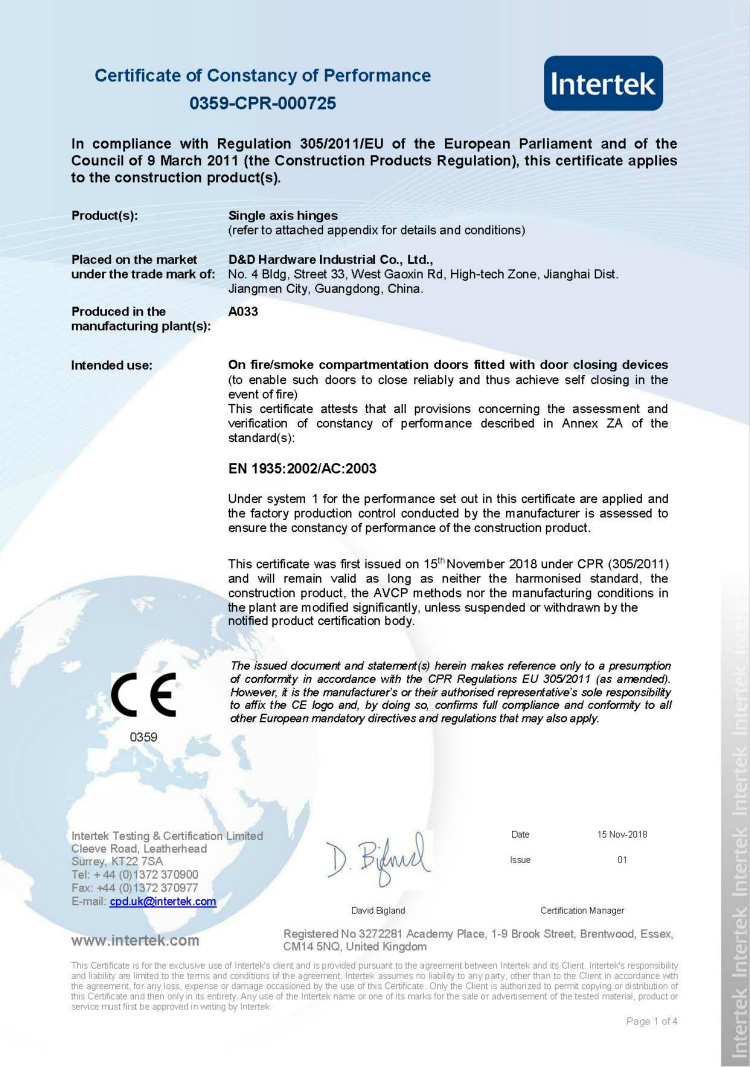

CE DOOR HINGE-D&D HARDWARE

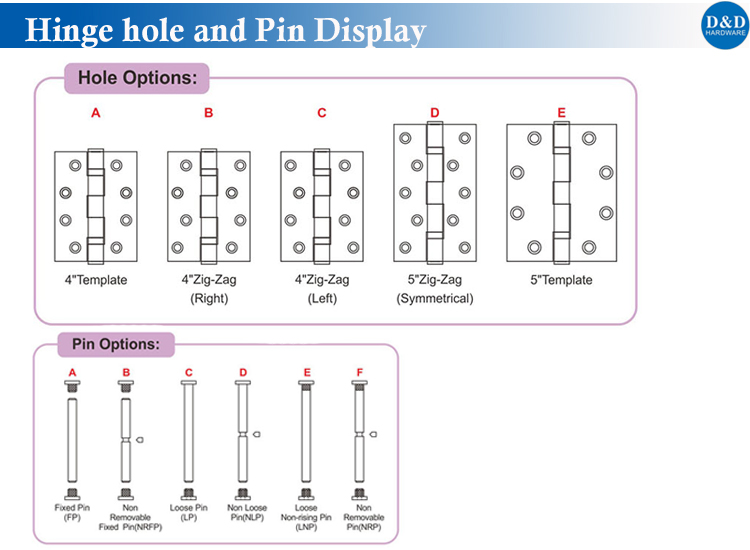

Hinge hole and Pin Display-D&D Hardware

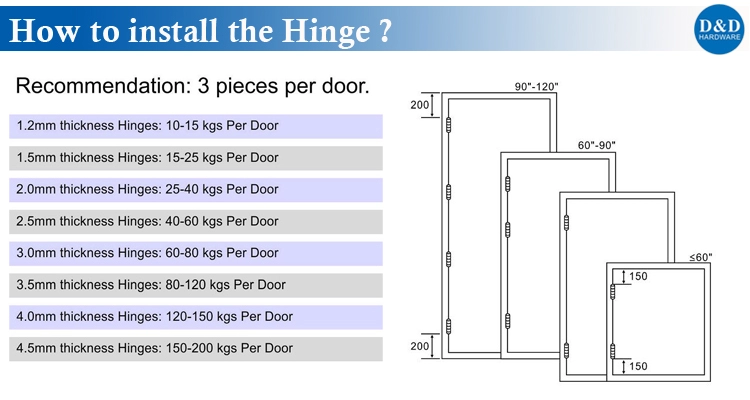

The installation Door Hinge-D&D Hardware


Packaging & Shipping

Stainless Steel BS EN 1935 CE Fire Rated Ball Bearing Hinge Hinge for Fire Door-DDSS001-4x3.5x3.0mm

MOQ 500 Pairs
PackageOne pair/white box or color box or Blister card in Standard export carton
Sample time5-7 working days
Production lead time30-35 days
Shipping Port Jiangmen , China   / Shenzhen , China .



Certification & Test

合页证书

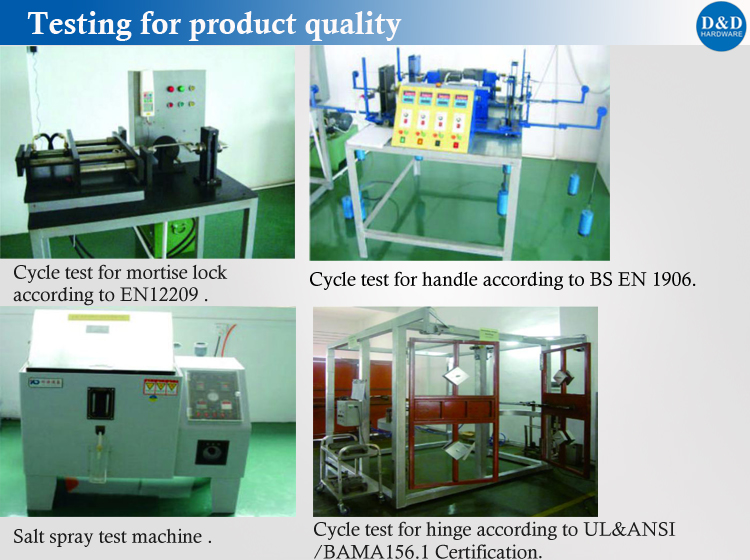

The Test of CE Stainless Steel Mortise Lock from D&D Hardware

Company Information



D&D Hardware Manufacturer





Our Services



D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.

More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Controls – CE BS EN 1154
6. Glass Hardware / Bathroom Hardware
