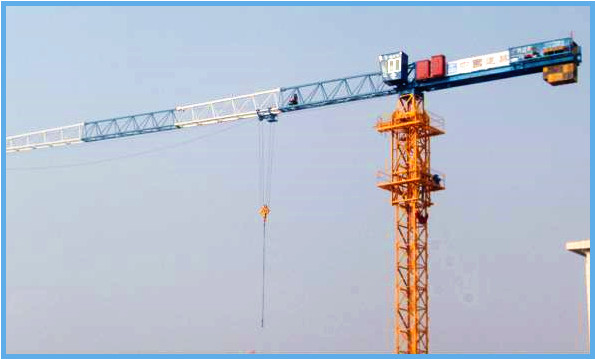

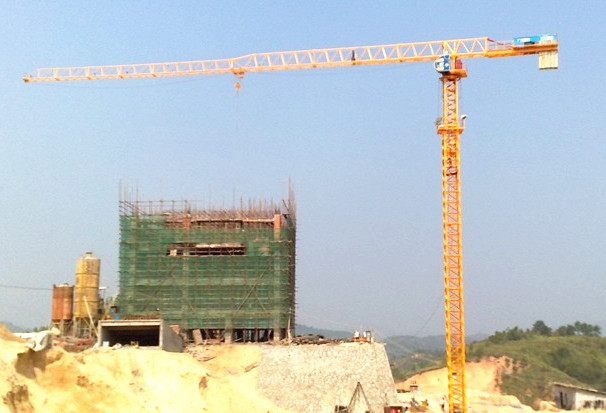

6 Ton,Tip load 1.2 ton, TCT5512 Construction Self Erecting Tower Crane Price For Sale
Bried introduction for NPT tower crane
*Tower crane is mainly used for housing construction in the vertical and horizontal transportation of materials and the installation of building conponents.
*It is widely used in infrastructure construction ,high-speed rail,oil fields,large ports,nuclear power,wind power and other construction fields.

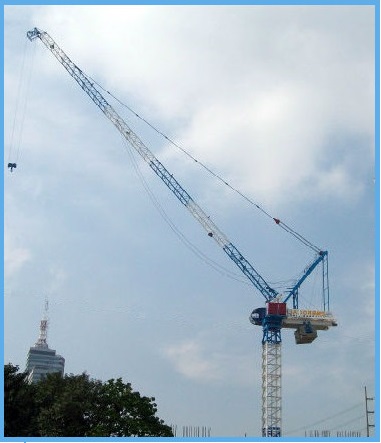

*According to the shape of the tower crane ,it can be divided into topkit type,topless type and luffing boom type.
*According to the working efficiency ,it can be divided into ordinary type and frequency conversion type.
TCT 7015 QTZ 5512 QTD 260
Rated loading:1.5T-12T Rated loading:1.2T-6T Rated loading: 2.9T-16T

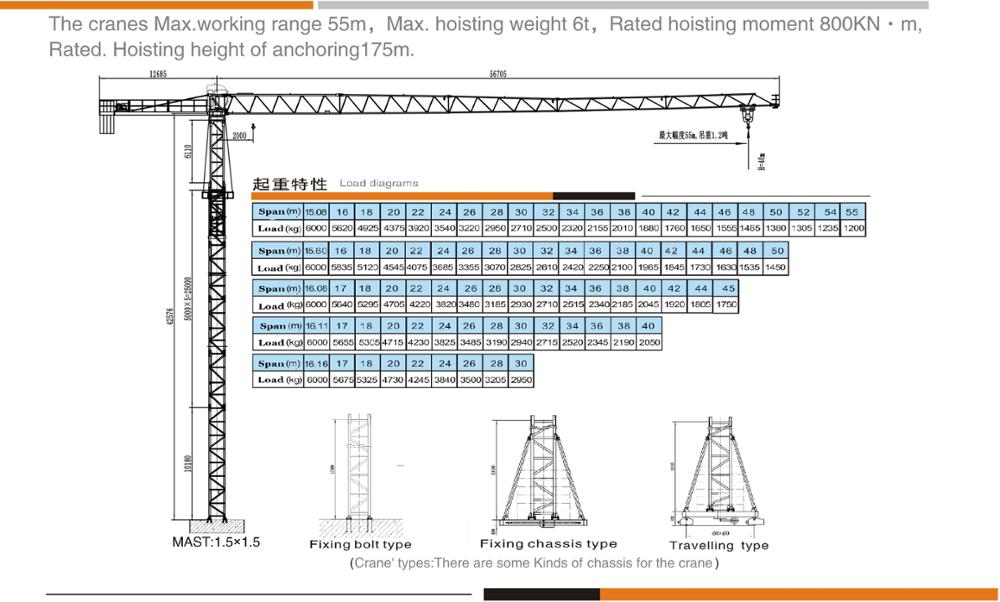

The cranes Max.working range 55m, Max.hoisting weight 6 tons, Rated hoisting moment 800KN.m, Rated.hoisting height of anchoring 175m.
| Model | TCT 5512 | |
| Max Load | 6 tons | |
| Tip Load | 1.2 tons | |
| Jib Length | 55m | |
| Work Range | 2-55 m | |
| Max Lifting Height | 175 m (≥175m,please Conslut us.) | |
| Max size | 1.5m×1.5m×5m main material :∠140×14 weight: 1486KG | |
| Free Standing Height | Stationary | 40 m(Including 5 masts) |
| Standard Mechanism | Hoisting Speed(m/min) | 0~88 |
| Trolleying Speed(m/min) | 0~38 | |
| Slewing Speed(r/min) | 0~0.54 | |
| Climbing Speed(m/min) | 0.52 | |
| Power | Hoisting (KW) | 22 |
| Trolleying (KW) | 4 | |
| Slewing (KW) | 3.7 | |
| Jacking (KW) | 5.5 | |
| Traveling(KW) | 2×5.5 | |

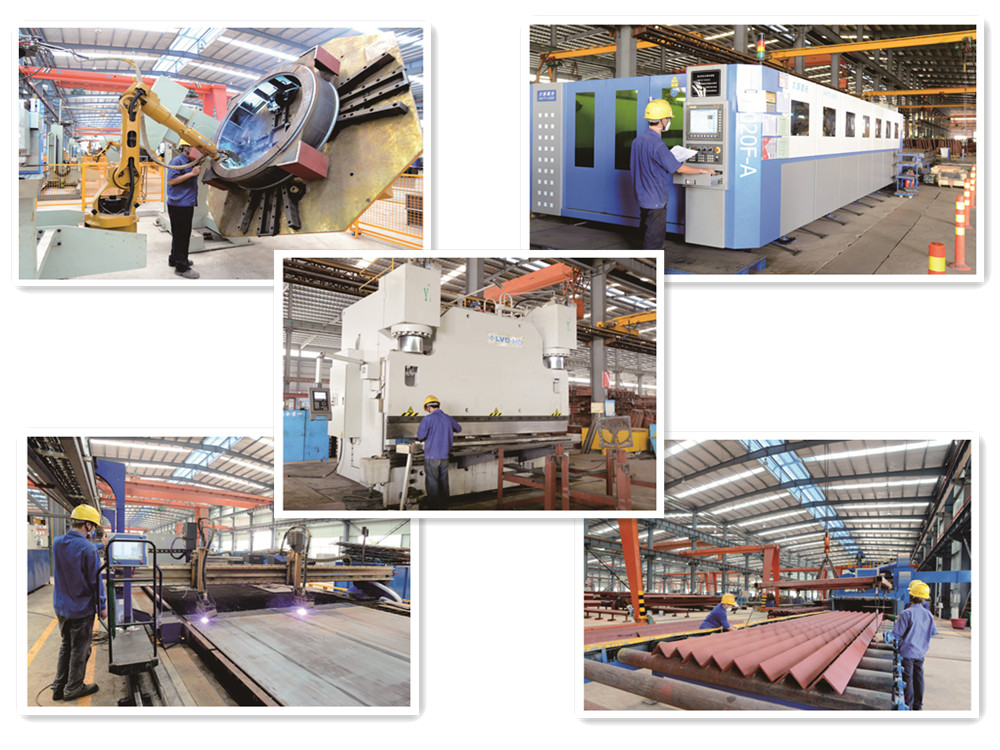

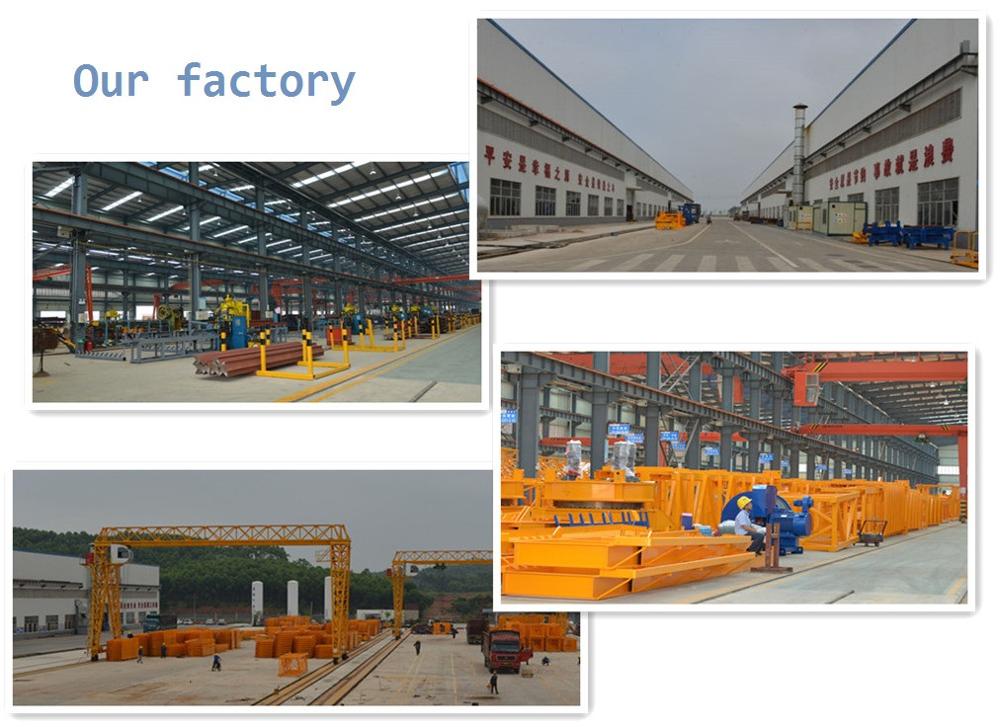

Our factory is one of the biggest manufacturers of construction hoists in China . and we have more than 50 kinds of Tower crane,We are always waiting for you .
6 Ton,Tip load 1.2 ton, TCT5512 Construction Self Erecting Tower Crane Price For Sale

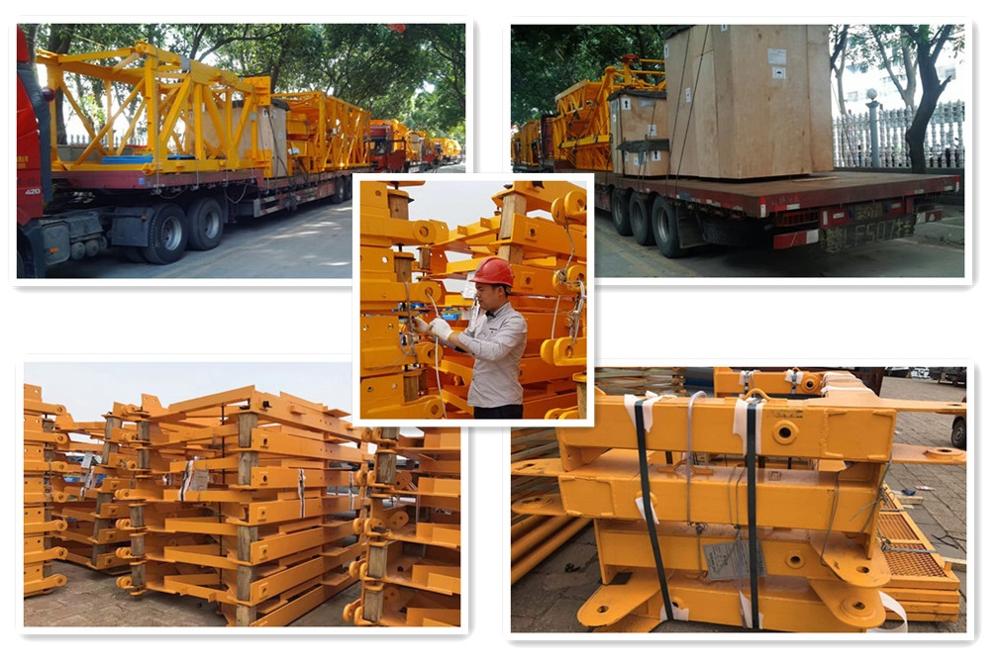

CONTAINERS:
SIZE :12192MM*3438MM*2591MM
WEIGHT :22 TONS
PACKAGING DETAILS: The normal package is containers, (size:12192mm*3438mm*2591mm). The deadweight of the container is 3.9 tons, The total weight of the goods and containers is 22 tons, The volume is 58-60 cubic meters.
(The quantity of containers needed for export of different products is different .)
