stainless steel buttweld concentric reducer concentric pipe reducer pipe fitting reducer
Its role is to stick to the wall or to take the pipeline rather than take up space, and is connected to the two different diameter pipes changing the size of the flow.
Technology: cold extrusion
Size: seamless 1/2"-24"（DN15-DN600)
Welded 1/2”-48”(DN15-DN1200)
Standard: ASME B16.9,HG/T205099,HG/T20621, MSS SP-43
Thickness:SCH5S-SCH160
Materials:317/L,304/L,316/L,310/S,309/S,347/H,321/321H,904/L,S32750/F53/SAF2507,S32205/F60 S31803/F51,S32760/F55

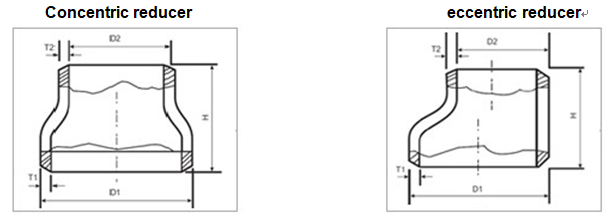

Nominal Diameter | Outside Diameter | End to End | |
DN | NPS | D1*D2 | H |
20×15 | 3/4×1/2 | 26.9×21.3 | 38 |
20×10 | 3/4×3/8 | 26.9×17.3 | 38 |
25×20 | 1×3/4 | 33.7×26.9 | 51 |
25×15 | 1×1/2 | 33.7×21.3 | 51 |
32×25 | 1.1/4×1 | 42.4×33.7 | 51 |
32×20 | 1.1/4×3/4 | 42.4×26.9 | 51 |
32×15 | 1.1/4×1/2 | 42.4×21.3 | 51 |
40×32 | 1.1/2×1.1/4 | 48.3×42.4 | 64 |
40×25 | 1.1/2×1 | 48.3×33.7 | 64 |
40×20 | 1.1/2×3/4 | 48.3×26.9 | 64 |
40×15 | 1.1/2×1/2 | 48.3×21.3 | 64 |
50×40 | 2×1.1/2 | 60.3×48.3 | 76 |
50×32 | 2×1.1/4 | 60.3×42.4 | 76 |
50×25 | 2×1 | 60.3×33.7 | 76 |
65×50 | 2.1/2×2 | 73.0×60.3 | 89 |
65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 89 |
65×32 | 2.1/2×1.1/4 | 73.0×42.4 | 89 |
65×25 | 2.1/2×1 | 73.0×33.7 | 89 |
80×65 | 3×2.1/2 | 88.9×73.0 | 89 |
80×50 | 3×2 | 88.9×60.3 | 89 |
80×40 | 3×1.1/2 | 88.9×48.3 | 89 |
80×32 | 3×1.1/4 | 88.9×42.4 | 89 |
100×80 | 4×3 | 114.3×88.9 | 102 |
100×65 | 4×2.1/2 | 114.3×73.0 | 102 |
100×50 | 4×2 | 114.3×60.3 | 102 |
100×40 | 4×1.1/2 | 114.3×48.3 | 102 |
125×100 | 5×4 | 141.3×114.3 | 127 |
125×90 | 5×3.1/2 | 141.3×101.6 | 127 |
125×80 | 5×3 | 141.3×88.9 | 127 |
125×65 | 5×2.1/2 | 141.3×73.0 | 127 |
125×50 | 5×2 | 141.3×60.3 | 127 |
150×125 | 6×5 | 168.3×141.3 | 140 |
150×100 | 6×5 | 168.3×114.3 | 140 |
150×90 | 6×3.1/2 | 168.3×101.6 | 140 |
150×80 | 6×3 | 168.3×88.9 | 140 |
200×150 | 8×6 | 219.1×168.3 | 152 |
200×125 | 8×5 | 219.1×141.3 | 152 |
200×100 | 8×4 | 219.1×114.3 | 152 |
250×200 | 10×8 | 273.0×219.1 | 178 |
250×150 | 10×6 | 273.0×168.3 | 178 |
250×125 | 10×5 | 273.0×141.3 | 178 |
250×100 | 10×4 | 273.0×114.3 | 178 |
300×250 | 12×10 | 323.9×273.1 | 203 |
300×200 | 12×8 | 323.9×219.1 | 203 |
300×150 | 12×6 | 323.9×168.3 | 203 |
300×125 | 12×5 | 323.9×141.3 | 203 |
350×300 | 14×12 | 355.6×323.9 | 330 |
350×250 | 14×10 | 355.6×273.0 | 330 |
350×200 | 14×8 | 355.6×219.1 | 330 |
Welcome to contact us by e-mail: sales@cx-hoses-fittings.com. Thanks!
