Product Name: stainless steel buttweld lap joint stub end pipe stub end
Technology: Press forming
Size: seamless 1/2"-24"（DN15-DN600)
Welded 1/2”-48”(DN15-DN1200)
Standard: ASME B16.9,HG/T205099,HG/T20621, MSS SP-43
Thickness:SCH5S-SCH160
Materials:317/L,304/L,316/L,310/S,309/S,347/H,321/321H,904/L,S32750/F53/SAF2507,S32205/F60 S31803/F51,S32760/F55

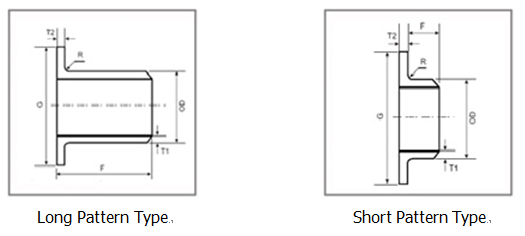

Nominal Diameter | Outside Diameter | Length(F) | Diameter of Lap | (R) | |||
DN | NPS | OD | LP | SP | G | A | B |
15 | 1/2 | 21.3 | 76 | 51 | 35 | 3 | 0.75 |
20 | 3/4 | 26.7 | 76 | 51 | 43 | 3 | 0.75 |
25 | 1 | 33.4 | 102 | 51 | 51 | 3 | 0.75 |
32 | 1.1/4 | 42.4 | 102 | 51 | 64 | 5 | 0.75 |
40 | 1.1/2 | 48.3 | 102 | 51 | 73 | 6 | 0.75 |
50 | 2 | 60.3 | 152 | 64 | 92 | 8 | 0.75 |
65 | 2.1/2 | 73.0 | 152 | 64 | 105 | 8 | 0.75 |
80 | 3 | 88.9 | 152 | 64 | 127 | 10 | 0.75 |
90 | 3.1/2 | 101.6 | 152 | 76 | 140 | 10 | 0.75 |
100 | 4 | 114.3 | 152 | 76 | 157 | 11 | 0.75 |
125 | 5 | 141.3 | 203 | 76 | 186 | 11 | 1.5 |
150 | 6 | 168.3 | 203 | 89 | 216 | 13 | 1.5 |
200 | 8 | 219.1 | 203 | 102 | 270 | 13 | 1.5 |
250 | 10 | 273.1 | 254 | 127 | 324 | 13 | 1.5 |
300 | 12 | 323.9 | 254 | 152 | 381 | 13 | 1.5 |
350 | 14 | 355.6 | 305 | 152 | 413 | 13 | 1.5 |
400 | 16 | 406.4 | 305 | 152 | 470 | 13 | 1.5 |
450 | 18 | 457.2 | 305 | 152 | 533 | 13 | 1.5 |
500 | 20 | 508 | 305 | 152 | 584 | 13 | 1.5 |
550 | 22 | 559 | 305 | 152 | 641 | 13 | 1.5 |
600 | 24 | 610 | 305 | 152 | 692 | 13 | 1.5 |
