PV wire, PV1-F,H1Z2Z2-K,SOLAR CABLE

ID:20062811232

Category: Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 1.000 / Meter(s)

MOQ:1000.00 Meter(s)

Product Keywords:

tuvtuv approvalSolar CablePV wire

Payment Method:

T/T

Product Category

Electrical & Power Energy > Wires,Cables & Accessories

Trademark

shangshang

Product Package

Specification

Place of Origin

Jiangsu,CHINA

Port

SHANGHAI/NINGBO/GUANGZHOU

1. Product Name: Tinned copper core halogen free flame retardant insulated halogen free flame retardant sheathed solar PV cable

2.Model: PV1-F, H1Z2Z2-K

3.Certification: TUV, UL,EN-50618-2014

4.Voltage:

4.1 PV1-F:AC U0/U, 0.6/1.0 kV ;

DC 1.8 kV(Between conductors without earthing system and circuit loading)

4.2 H1Z2Z2-K: AC U0/U，1.0/1.0kV ；DC 1.5kV

5. Available Size:

Single core	1x1.5mm2, 1x2.5mm2, 1x4mm2, 1x6mm2, 1x10mm2, 1x16mm2, 1x25mm2, 1x35mm2, 1x50mm2, 1x70mm2
Double core	2x1.5mm2, 2x2.5mm2, 2x4mm2, 2x6mm2, 2x10mm2, 2x16mm2, 2x25mm2, 2x35mm2

6.Standard

6.1.PV1-F: 2Pfg1169/08.2007 Requirements of cable for photovoltaic system

6.2.H1Z2Z2-K: EN 50618-2014 cable for PV cable

7.Cable structure and technical requirements

7.1 Conductor

PV1-F: Construction and performance of conductor shall conform to the requirements specified in 2Pfg1169/08.2007.

H1Z2Z2-K: Class 5 tinned copper conductor is applied, the structure and property shall conform to EN 50618-2014.

7.2 Insulation

PV1-F: Irradiation insulating material of halogen free flame retardant photovoltaic cable shall be applied. Thickness of insulation shall conform to the requirement specified in 2Pfg1169/08.2007. Color of insulation shall be black.

H1Z2Z2-K: LSOH flame retardant PV cable irradiation insulation material is applied, the thickness of insulation shall conform to EN50618-2014. The color of insulation can be white, black or red.

7.3 Sheath

PV1-F:Irradiation sheathing material of halogen free flame retardant photovoltaic cable shall be applied. Thickness of sheath shall conform to the requirement specified in 2Pfg1169/08.2007. Color of sheath shall be black or red.

H1Z2Z2-K: LSOH flame retardant PV cable irradiation sheath material is applied, the thickness of insulation shall conform to EN50618-2014. The color of insulation can be black or red.

8. PV cable is not allowed to be directly buried, installed in water or in similar way.

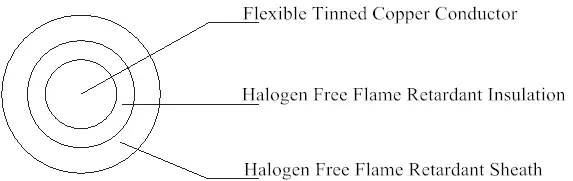

9.Structural Diagram

10.Process Flow Diagram

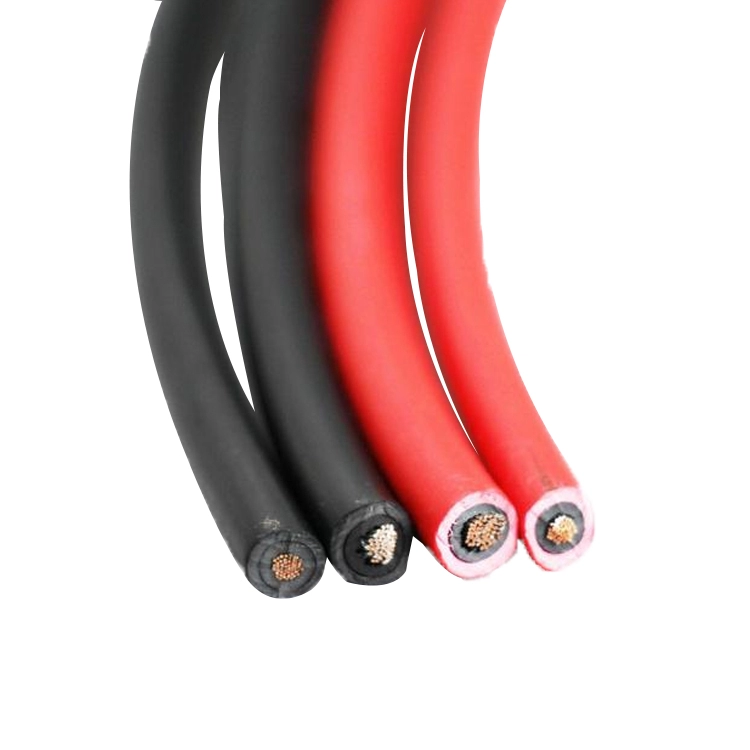

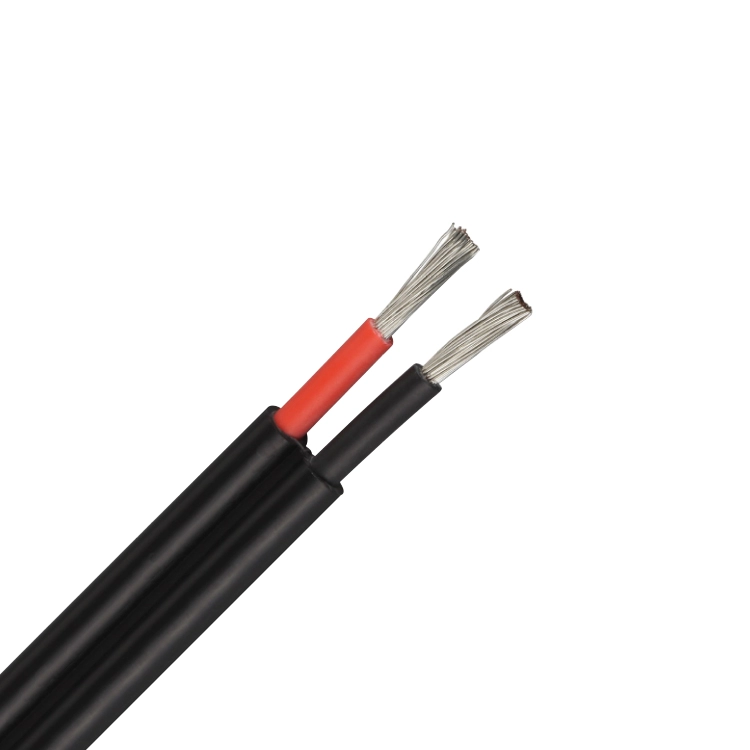

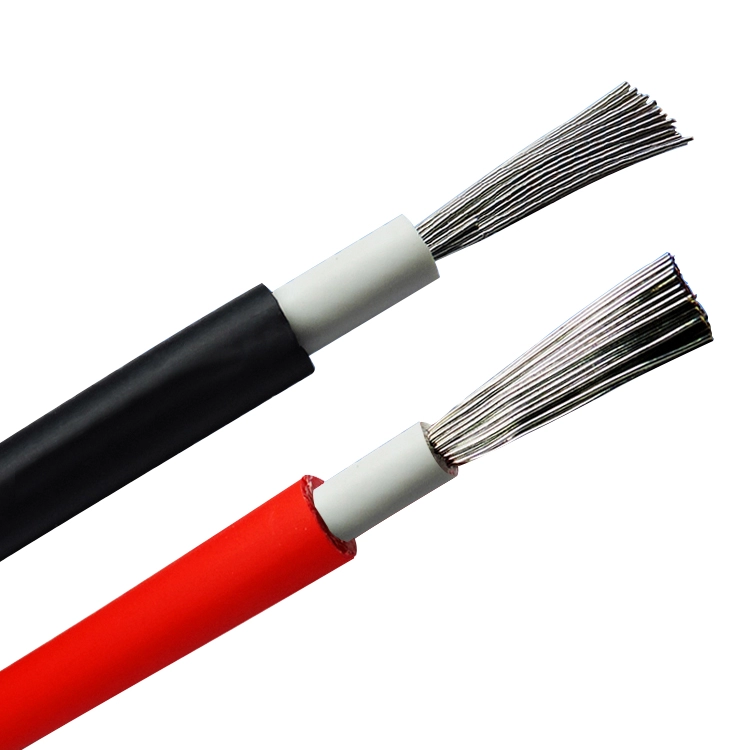

Details Images

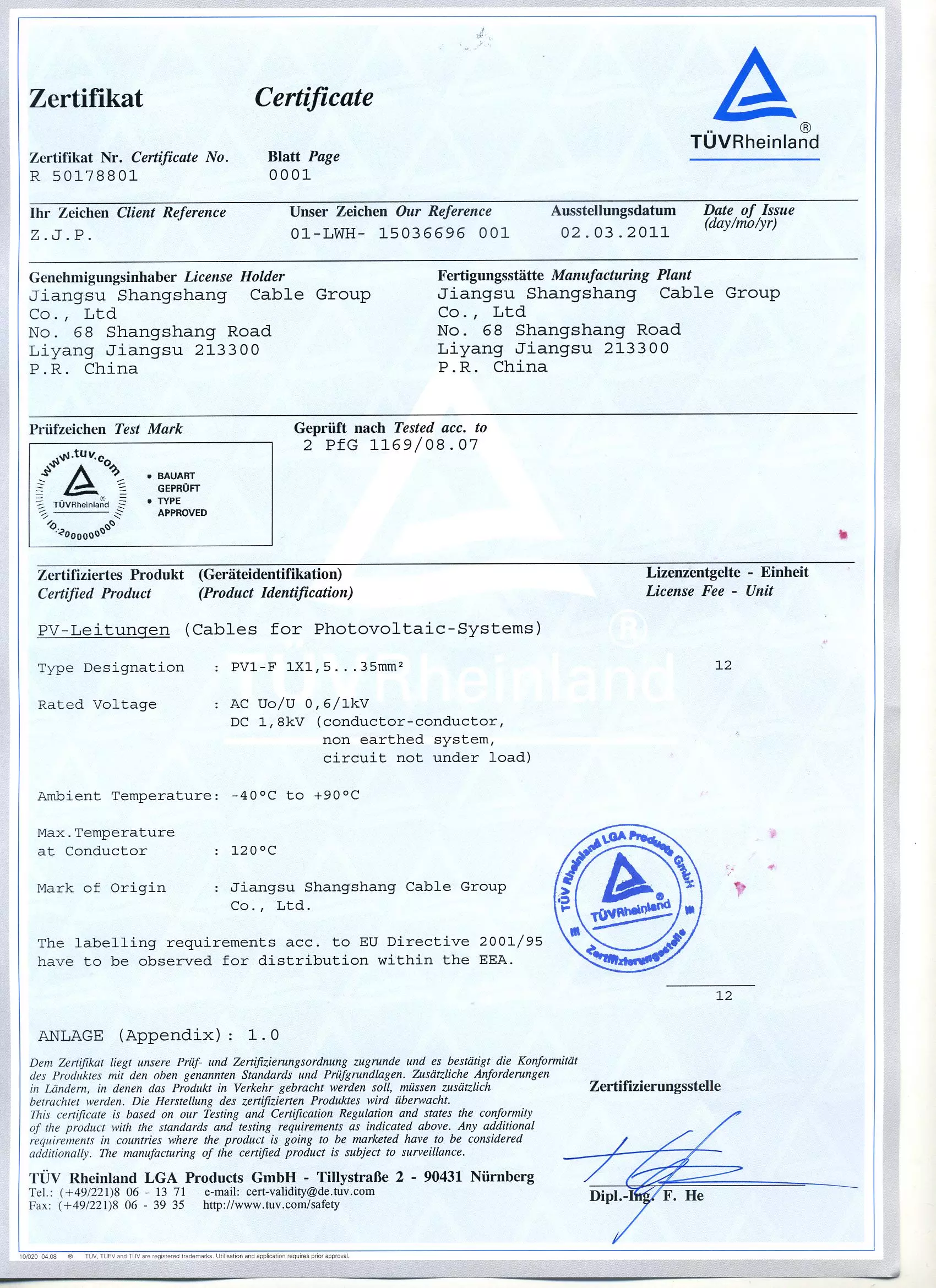

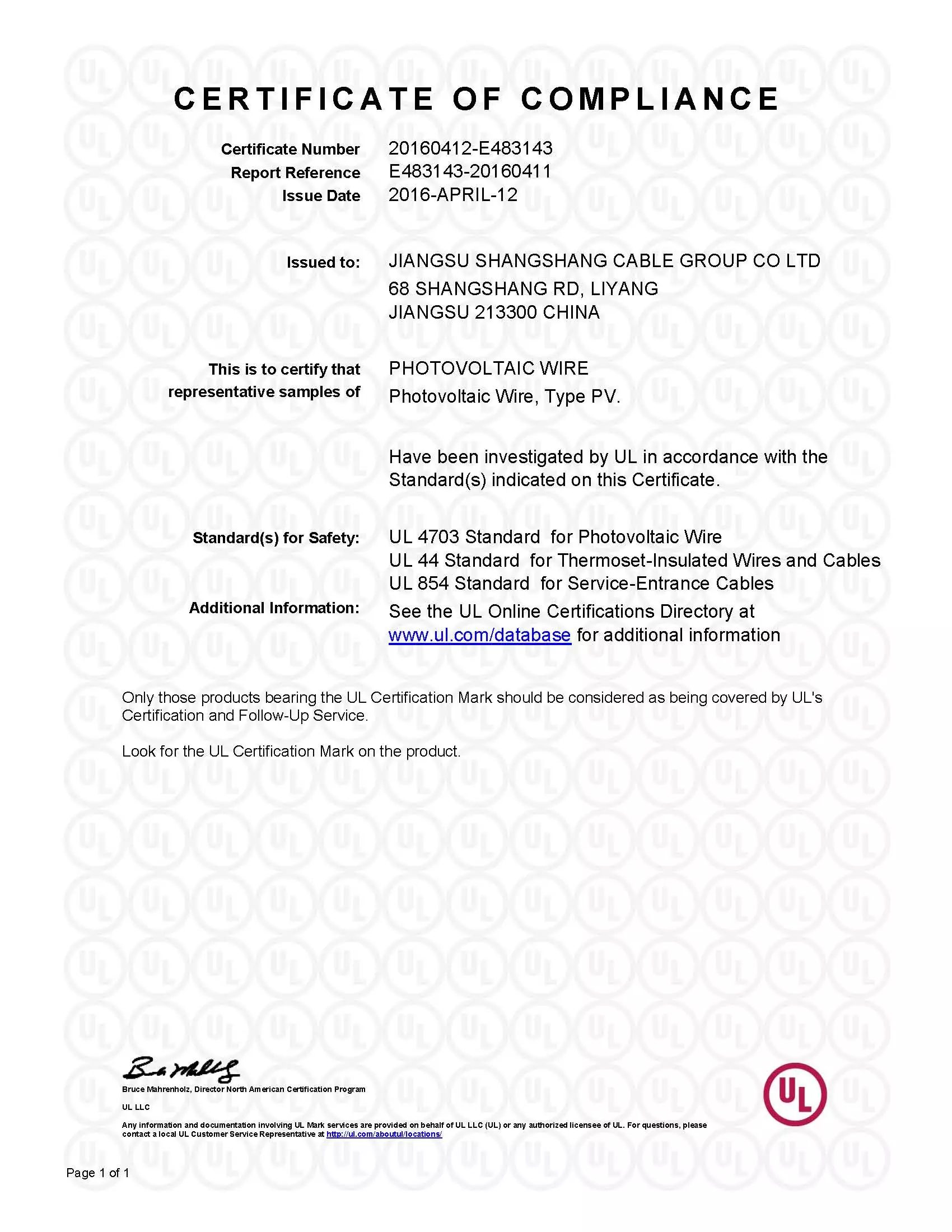

Certifications

Company Profile

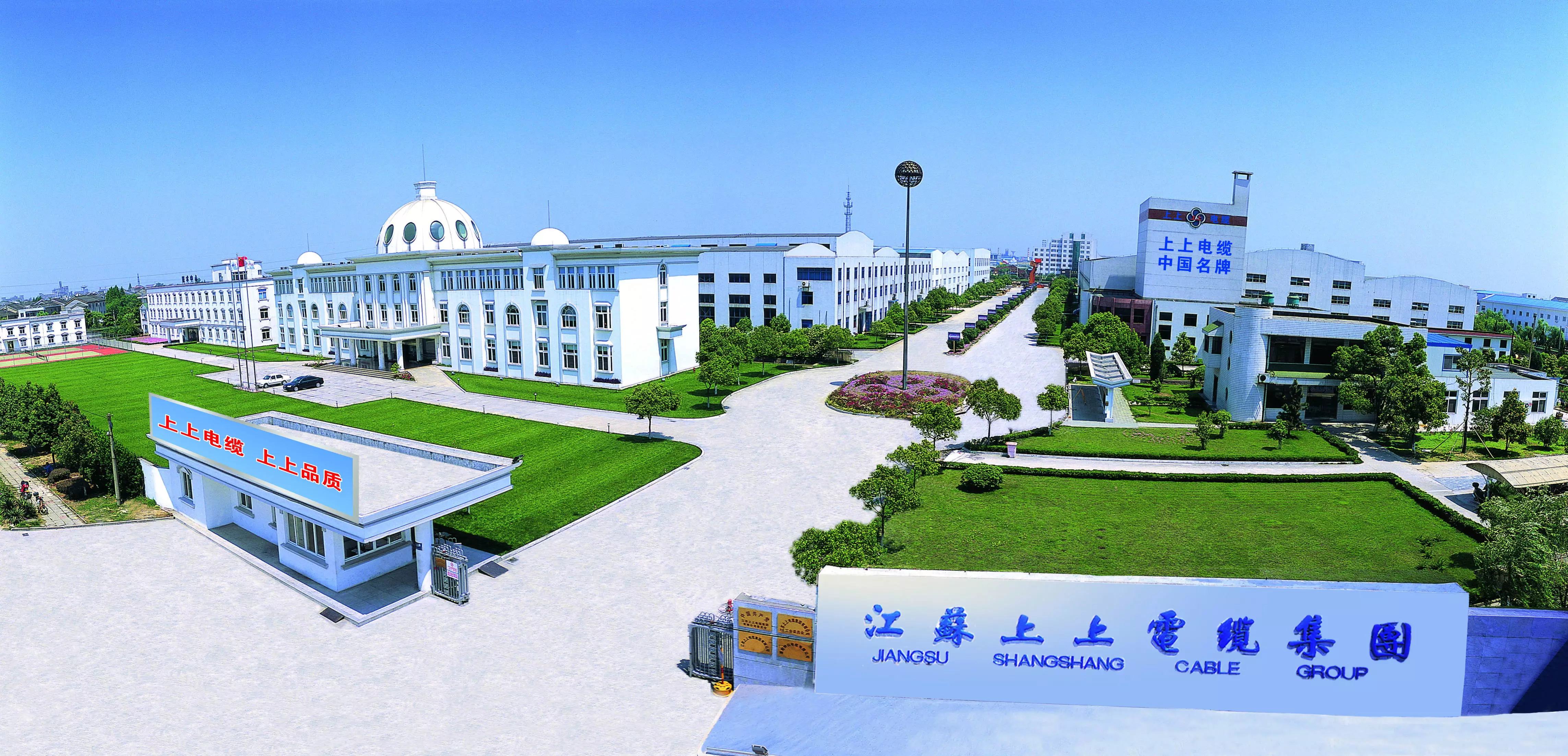

Jiangsu Shangshang Cable Group was founded in 1967, is a National Key High-Tech Enterprise with a National Level Enterprise Technology Center, a Post-Doctoral Research Station and a Provincial level Engineering &Technology Research Center of Special Wires & Cables. Shangshang ranked the No. 1 in the first Top 10 competiveness enterprise in the wire and cable industry in China, and is also the first China cable enterprise ranked the Top 10 in the global cable enterprise scale.

For 50 years, Shangshang are focusing on product development, manufacturing and services of electric wire and cable. The products have been widely used in the fields of renewable energy, Power transmission & distribution networks, shipbuilding & offshore& port infrastructures, buildings & engineering constructions, mining, industrial manufacturing, transportation and military & defense, etc. The products have been also used in state-class key projects, such as Tiananmen Rostrum Renovation Project, Beijing Olympic Project, Shanghai World-Expo Project, Nanjing Youth Olympic Project, Beijing-Shanghai High-speed Railway Project, Nuclear Power Plant Projects, etc. Moreover, the products have been exported to over 80 countries and regions such as Italy, Singapore, Australia, Egypt, USA, Cuba and China Hongkong. etc.

Shangshang's products cover a variety of wires and cables from the household 220V electric wires to the 500KV power cables and various types of special cables. In particular, the nuclear cable of AP1000 filled the market gaps in the world cable industry. Meanwhile, a large batch of high technology and high added value products such as reeling cables for port machineries purpose, corrugated metallic sheath fireproof cable, wind turbine torsion-resistant cable, ship to shore connection cable, solar cables , special cables for rail transit purpose , cables for electric vehicles purpose, etc. which have been put into the market and become a new growth point of the company.
