construction tower crane pricetower crane priceconstruction tower craneTip loadNTP brandGUANGXITower Cranescranes tower
L/CT/TD/P

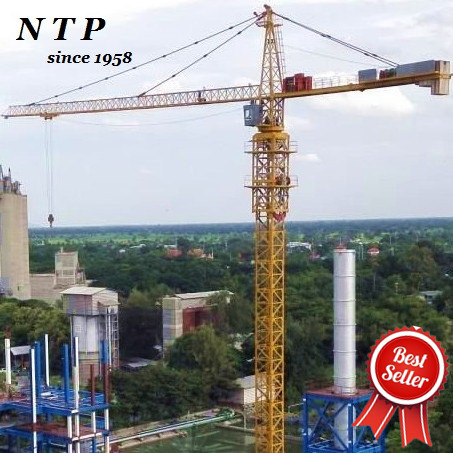

The construction tower cranes Max.working range 70m, Max.hoisting weight 16t, Max.hoisting moment 2800KN.m, Rated.hoisting height of anchoring 225m.

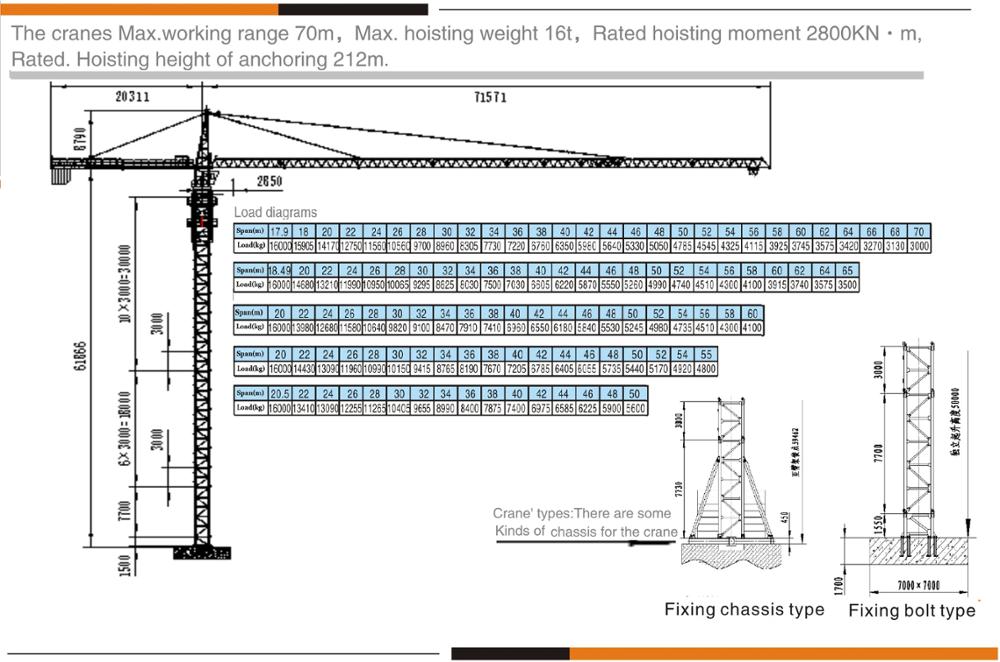

Performace Characteristics and Load Diagrams:
Technical Parameter:
| Model | GUANGXI NTP brand 16 Ton,QTZ7030,Tip load 3ton construction tower crane priceQTZ6015 | |
| Max Load | 16 tons at 2-17.9m | |
| Tip Load | 3.0 tons | |
| Jib Length | 70m | |
| Counter Jib Length | 20.31 m | |
| Work Range | 2-70 m | |
| Max Lifting Height | 212 m (≥212m,please Conslut us.) | |
| Free Standing Height | Stationary | 59 m(Including 16 masts) |

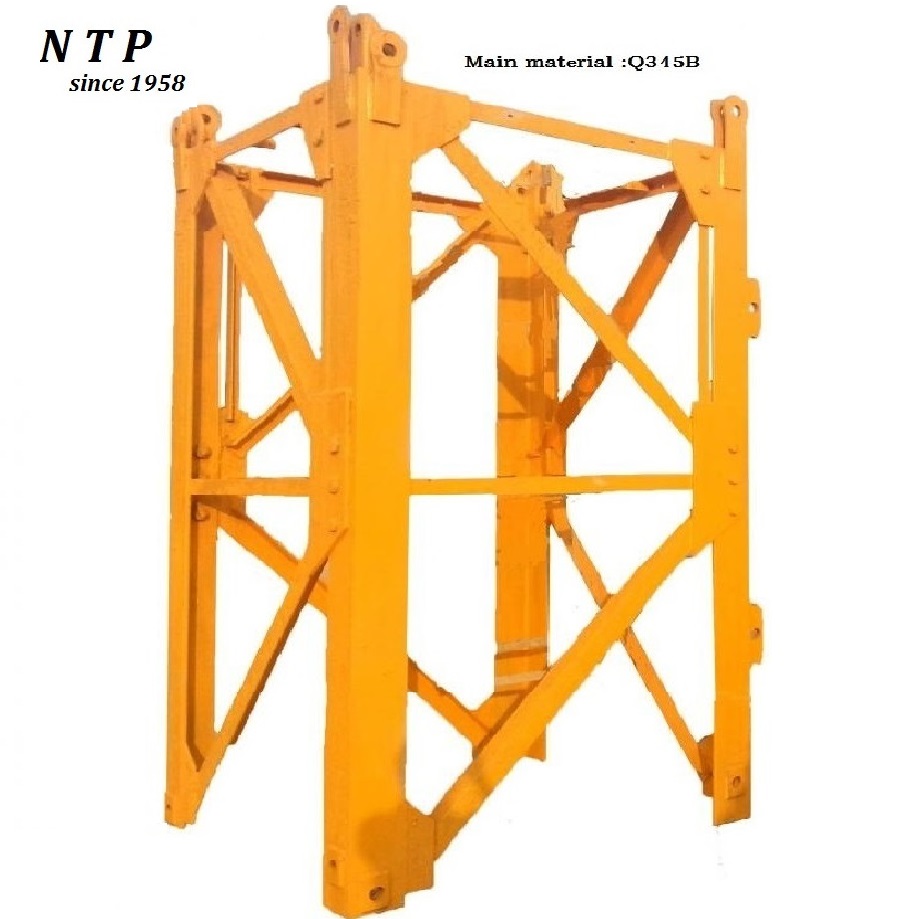

| Mast Size | 2.0×2.0×3.0 m Main material:∠200×20 Weight:2041kg | |
| The base frame | 2.0×2.0×7.7 m Main material:∠200×20 Weight:5125kg | |
| Standard Mechanism | Hoisting Speed(m/min) | 0~97 |
| Trolleying Speed(m/min) | 0~50 | |
| Slewing Speed(r/min) | 0~49.5 | |
| Climbing Speed(m/min) | 0.55 | |
| Electric Motor Power | Hoisting (KW) | 75 |
| Trolleying (KW) | 11 | |
| Slewing (KW) | 3×3.7 | |
| Jacking (KW) | 15 | |
For QTZ7030 construction tower crane, There are two different forms of the base:Fixing bolt type and Fixing chassis type. If any question ,pls contact us. | ||

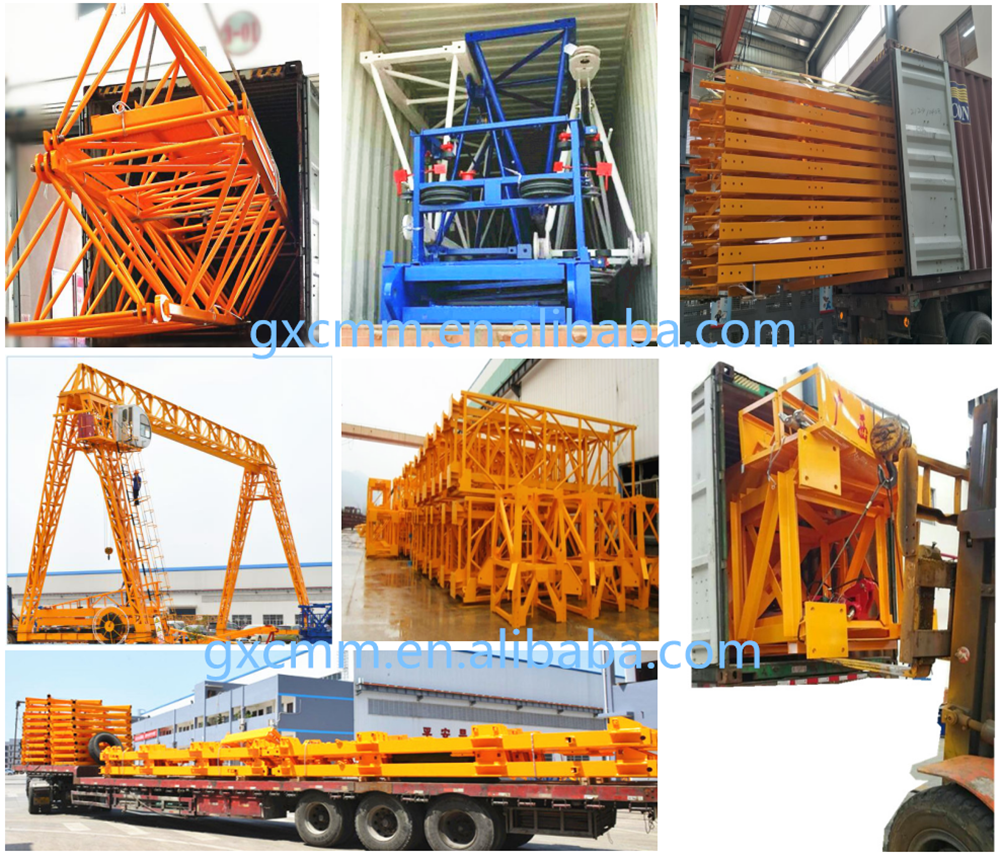

NTP Construction Tower crane Manufaturer Standard export packing, iron/cartons/wooden cases/nude in containers
As engineering machinery manufacturer in China, we provide not only quality construction equipment but also first-class services.
Guangxi Construction Engineering Group Construction Machinery Manufacturing Co., Ltd.
Verified Gold supplier by Alibaba;
Near 60 years experiences(Initially established in 1958);
Over 1300 workers to ensure our quality products;
The annual produce can be up to 12 billion;
The company mainly produces various types of tower cranes (4 to 63 tons capacity, 30 meters to 80 meters arm length), single and double cage construction lifts (1-2 tons capacity) and mechanical parking equipment.
GUANGXI NTP brand 16 Ton,QTZ7030,Tip load 3ton construction tower crane price

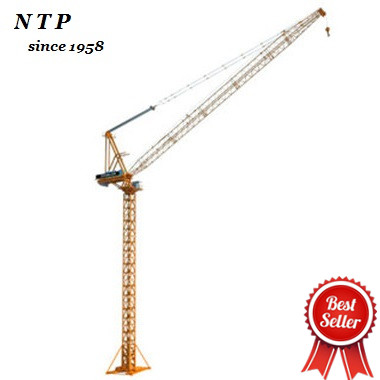

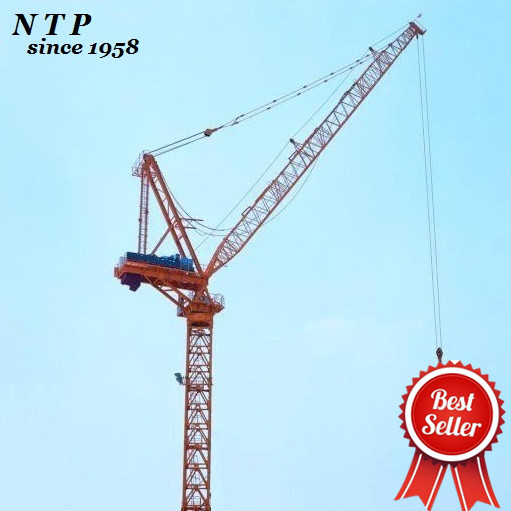

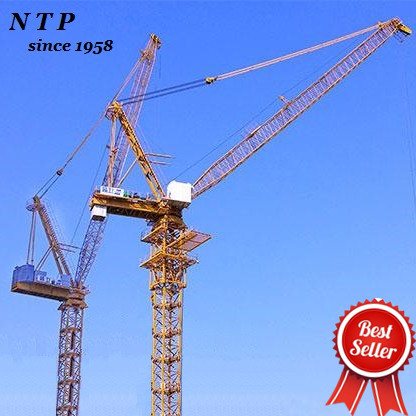

luffing tower crane luffing tower crane luffing tower crane
QTD 125 QTD 150 QTD 400

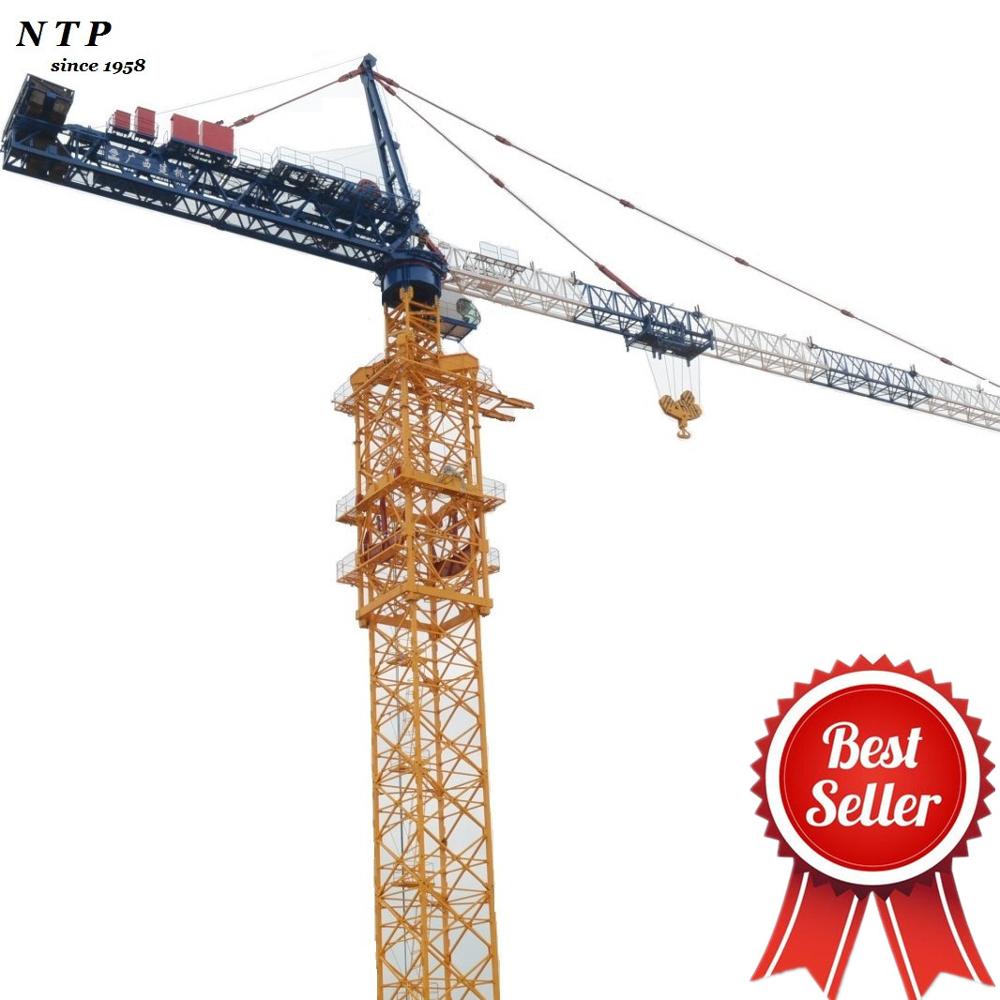

Topless tower crane Top kit tower crane Top kit tower crane
TCT 5512 QTZ 6012 QTZ 7055
Rated loading :1.2T-6T Rated loading :1.2T-8T Rated loading: 5.5T-32T
