BV ,Building wire,Housing wire,Electric wire

ID:20062811248

Category: Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 1.000 / Roll(s)

MOQ:100.00 Roll(s)

Product Keywords:

BVBuilding wireHousing wireshangshangpvc insulatedElectric wire

Payment Method:

L/CT/T

Product Category

Electrical & Power Energy > Wires,Cables & Accessories

Trademark

SHANGSHANG

Product Package

Specification

Place of Origin

JIANGUS/CHINA

Port

SHANGHAI/NINGBO/GUANGZHOU

Products Description

BV electric wire copper electrical 1mm2 15mm 25mm wire copper electrical 1mm2

Standard

1.The executive standard of PVC insulated cables is GB/T 5023 (equal to IEC 60227) or JB/T 8734;

2.The executive standard of flame retardant/fire resistant PVC insulated cable is Q/320481SS511;low smoke halogenfree polyolefin insulated cable is Q/320481SS026.

Product operating characteristics

1.Product is applicable to internal wiring and power lighting system in instruments and electrical devices of rated voltage up to and including 450/750V.

2.The maximum permissible long-term operating temperature is 70 ° C. The maximum permissible operating temperature for XLPO insulated wires is 90 ° C.

3.Ambient temperature in installation: the ambient temperature is not below 0℃ during normal installation; when it is below 0℃, the product shall be preheated.

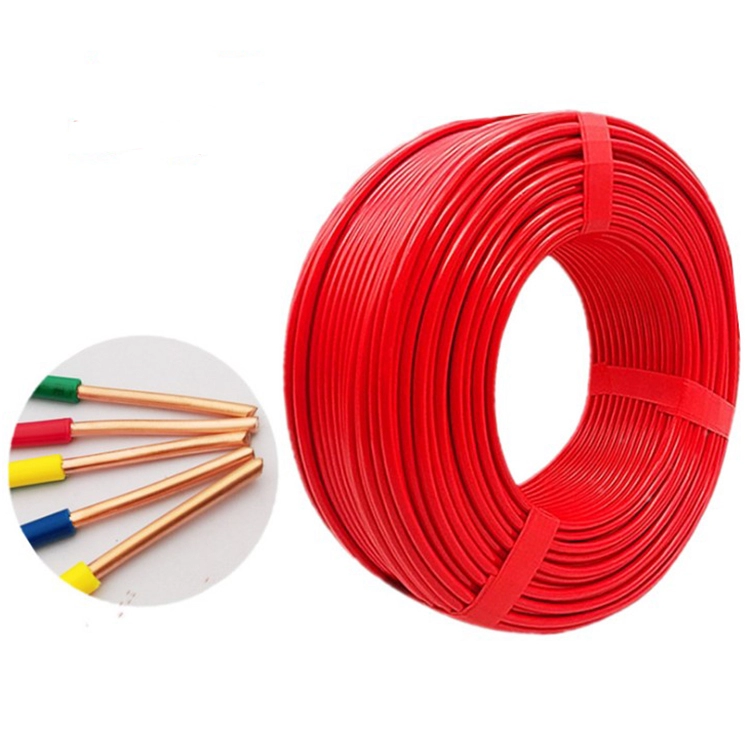

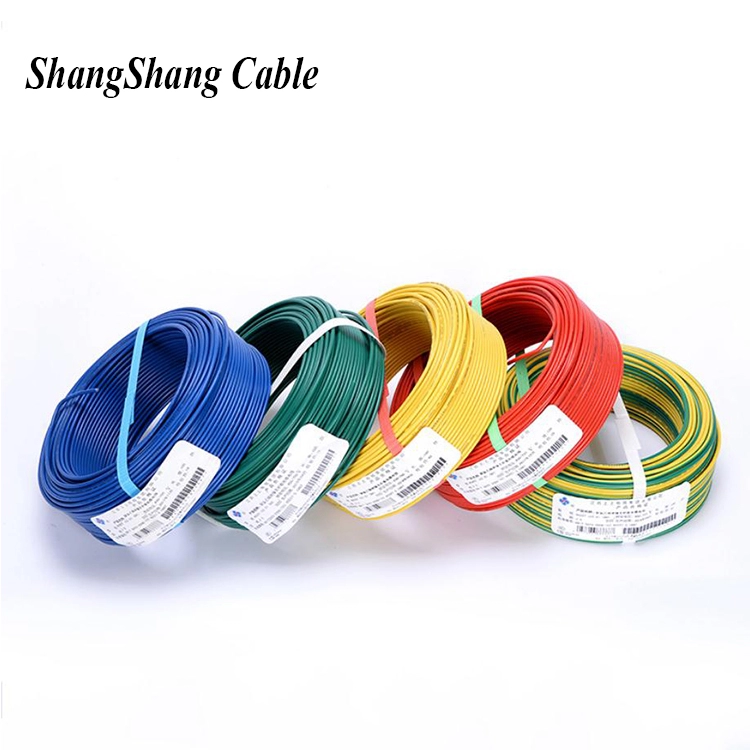

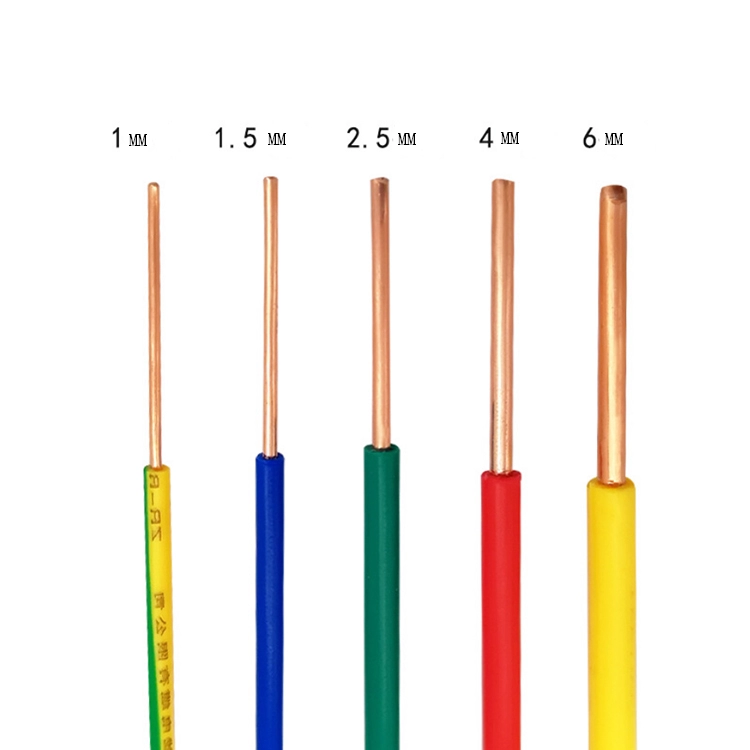

Single core solid copper conductor PVC insulated rigid electrical wire
Model	Rated voltage	Available size
60227 IEC 01 (BV)	450/750V	1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2
60227 IEC 05 (BV)	300/500V	0.5mm2,0.75mm2,1mm2
Z-BV /(Z)N-BV	300/500V;450/750V	0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2
Double insulation type
BVV Z-BVV (Z)N-BVV	300/500V	0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2
Single core solid copper conductor PO/XLPO insulated rigid electrical wire
WDZ(N)-BY WDZ(N)-BYJ	300/500V,450/750V	0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2

Single core solid Aluminum conductor PVC insulated rigid electrical wire
BLV	450/750V	2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2
Z*-BLV

Model	Rated voltage	Available size

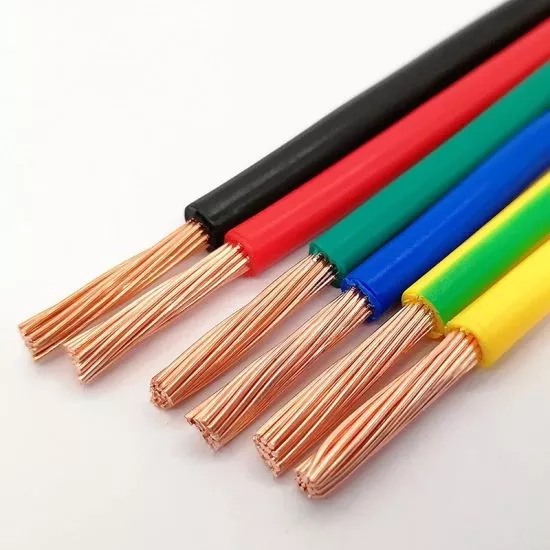

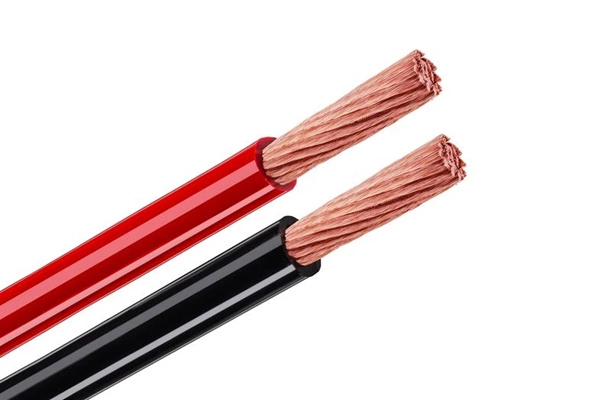

Single core copper conductor multi-strand PVC insulated flexible electrical wire
60227 IEC 02(RV)	450/750V	1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2
60227 IEC 06(RV)	300/500V	0.5mm2,0.75mm2,1mm2
Z-RV (Z)N-RV	300/500;450/750	0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2
BVR Z-BVR (Z)N-BVR	450/750V	0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2
Single core copper conductor multi-strand PO/XLPO insulated flexible electrical wire
WDZ(N)-BYR WDZ(N)-BYJR	300/500V;450/750V	0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2
Remarks	Each conductor of the RV wire is thinner than the BVR, so it is more flexible than the BVR. It is mostly used as an electrical or mechanical internal connection wire. It is often used in security equipment and instrumentation.

About the model:

1) "Z*"，“ZR” means flame retardant properties, and the flame retardant properties of the wire are classified into Class A, Class B and Class C. "*" can be replaced with "A" or "B" or "C". Generally, the flame retardant Class A is marked as "ZA", Class A is marked as "ZB" , "ZR" default means flame retardant Class C, or marked as "ZC". Flame retardant performance ZA>ZB>ZC(ZR).

2) "WDZ*" means low smoke free halogen fire properties, code "WDZA", "WDZB", "WDZC".

3) "N" means fire resistant. For example, ZAN-BVR means Class A flame retardant and fire resistant BVR electrical wire.When the wire has only fire resistance, the model prefix is only marked "NH", such as "NH-BV".

4) “V” means PVC insulation; "Y" means PO insulation;"YJ " means XLPO insulation.

Company Introduction

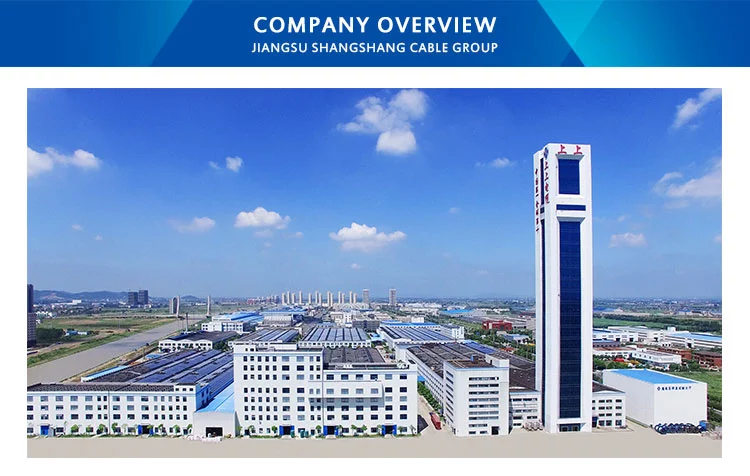

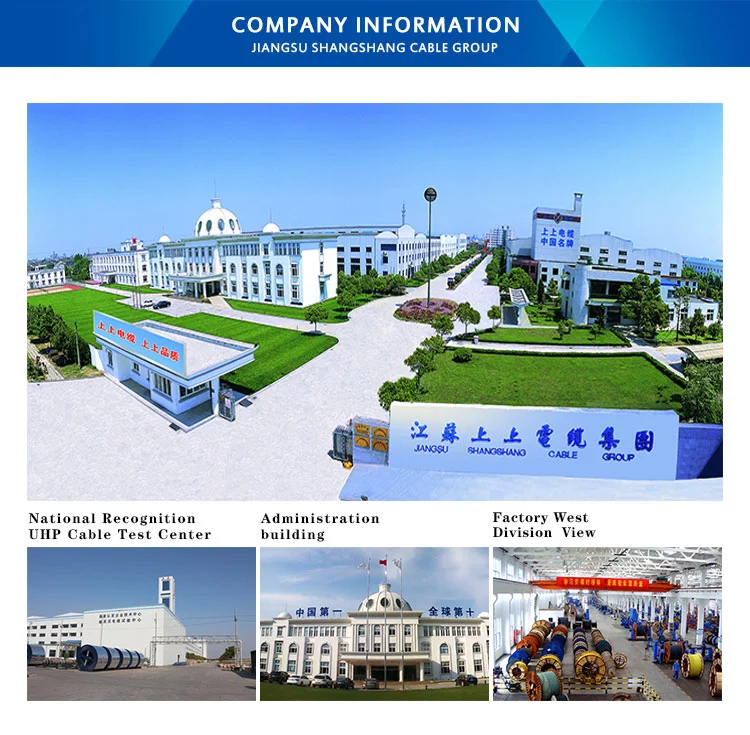

Jiangsu Shangshang Cable Group was founded in 1967, is a National Key High-Tech Enterprise with a National Level EnterpriseTechnology Center, a Post-Doctoral Research Station and a Provincial level Engineering &Technology Research Center of Special Wires & Cables. Shangshang ranked the No. 1 in the first Top 10 competiveness enterprise in the wire and cable industry in China, and is also the first China cable enterprise ranked the Top 10 in the global cable enterprise scale. Shangshang won “China QualityAward Nomination”, and Ding Shanhua, Chairman of board won "Top 10 Economic Personages of China” in 2015.

For 50 years, Shangshang are focusing on product development, manufacturing and services of electric wire and cable. The products have been widely used in the fields of renewable energy, Power transmission & distribution networks, shipbuilding & offshore& port infrastructures, buildings & engineering constructions, mining, industrial manufacturing, transportation and military & defense, etc. The products have been also used in state-class key projects, such as Tiananmen Rostrum Renovation Project, Beijing Olympic Project, Shanghai World-Expo Project, Nanjing Youth Olympic Project, Beijing-Shanghai High-speed Railway Project, Nuclear Power Plant Projects, etc. Moreover, the products have been exported to over 80 countries and regions such as Italy, Singapore, Australia, Egypt, USA, Cuba and China Hongkong. etc.

Shangshang's products cover a variety of wires and cables from the household 220V electric wires to the 500KV power cables and various types of special cables. In particular, the nuclear cable of AP1000 filled the market gaps in the world cable industry. Meanwhile, a large batch of high technology and high added value products such as reeling cables for port machineries purpose, corrugated metallic sheath fireproof cable, wind turbine torsion-resistant cable, ship to shore connection cable, solar cables , special cables for rail transit purpose , cables for electric vehicles purpose, etc. which have been put into the market and become a new growth point of the company.
