Bried introduction for NPT tower crane
*According to the shape of the tower crane ,Tower crane can be divided into topkit type,topless type and luffing boom type.This QTD400 tower crane is belong to luffing tower crane.
*According to the working efficiency ,Tower crane can be divided into ordinary type and frequency conversion type.This QTD400 luffing tower crane is belong tofrequency conversion type of tower crane.

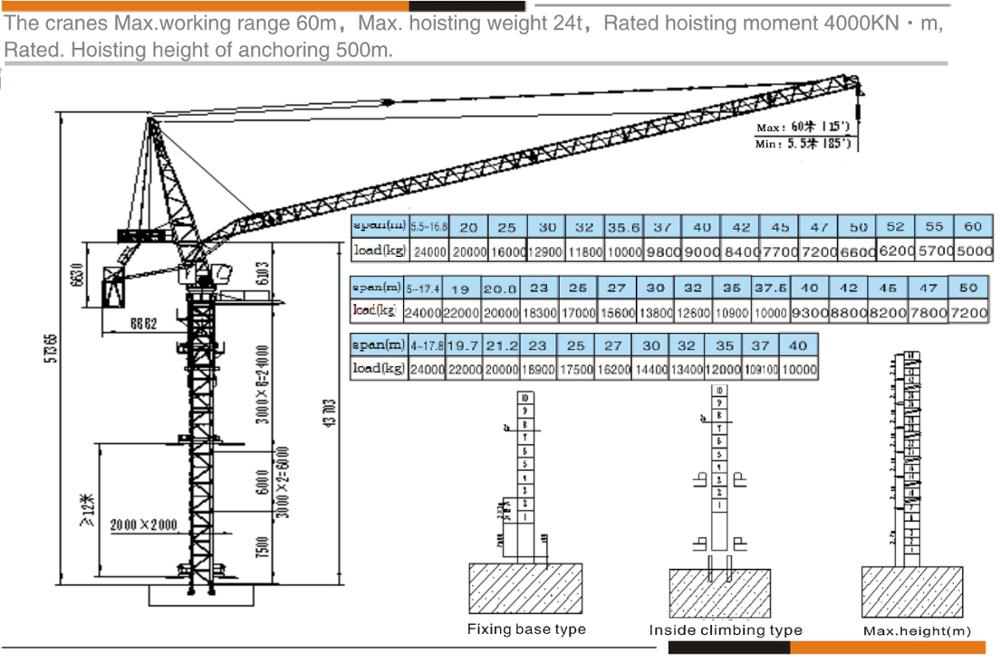

The crane Max.working range 60m,Max.hoisting weight 24t, Rated hoisting moment 4000KN.m,Rated.Hoistong height of anchoring 500m.
QTD400 luffing jib tower crane base has three installation modes:
Fixing base type, Inside climbing type, Max.height type
you can according to your project needs to choose a suitable mode.

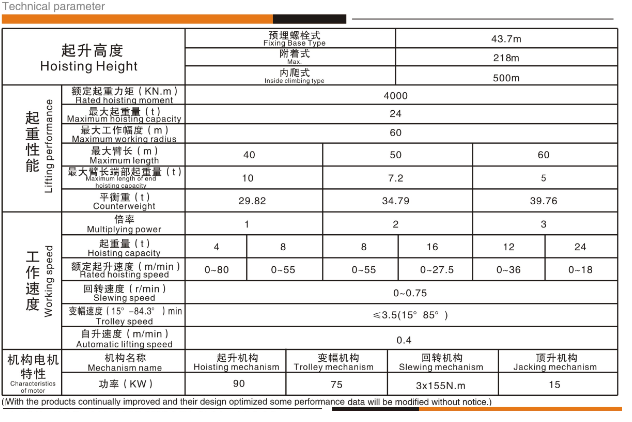

| Model | GUANGXI NTP 24 Tons QTD400 luffing tower crane price with 60m jibNTP-QTD 400 | |
| Hoisting Height | Fixing Base Type | 43.7m(Including 10 masts) |
| Max. Type | 218m | |
| Inside Climbing Type | 500m | |
| Work Range | 60 m | |
| Mast Size | 2.0m×2.0m×3.0m ; Main material:∠200×26 ; Weight:2830kg | |
| The base frame | 2.0m×2.0m×7.5m ; Main material:double∠200×26 ; Weight:6554kg | |
| Standard Mechanism | Hoisting Speed(m/min) | 0~80 |
| Trolleying Speed(m/min) | 0~49.5 | |
| Slewing Speed(r/min) | ≤3.5(15° 85°) | |
| Climbing Speed(m/min) | 0.4 | |
| Power | Hoisting (KW) | 90 |
| Trolleying (KW) | 75 | |
| Slewing (KW) | 3×155N.m | |
| Jacking (KW) | 15 | |
GUANGXI NTP 24 Tons QTD400 luffing tower crane price with 60m jib | ||
GUANGXI NTP 24 Tons QTD400 luffing tower crane price with 60m jib

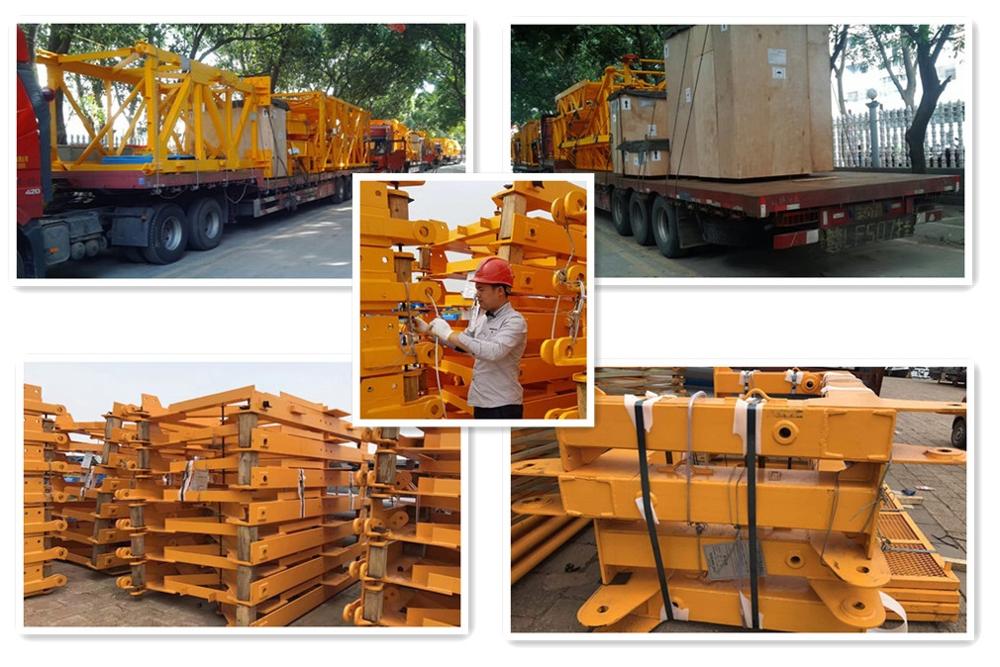

QTD 400 luffing jib tower crane was packaging in our factory .(picture 1 and 2)
QTD 400 luffing jib tower crane was waiting at SHANGHAI port for loading .(picture 3.4.5 )

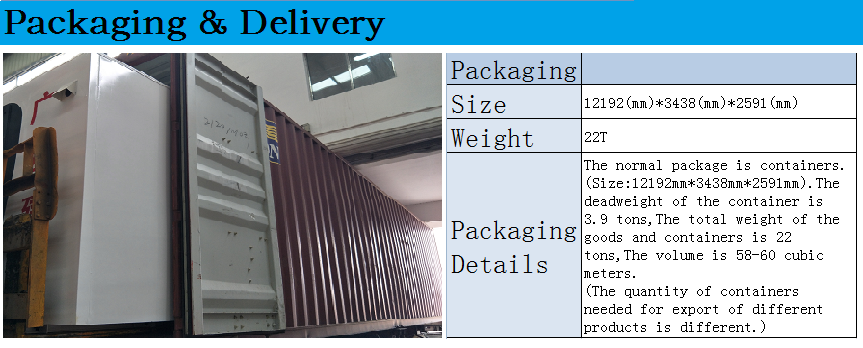

CONTAINERS:
SIZE :12192MM*3438MM*2591MM
WEIGHT :22 TONS
PACKAGING DETAILS: The normal package is containers, (size:12192mm*3438mm*2591mm). The deadweight of the container is 3.9 tons, The total weight of the goods and containers is 22 tons, The volume is 58-60 cubic meters.
(The quantity of containers needed for export of different products is different .)

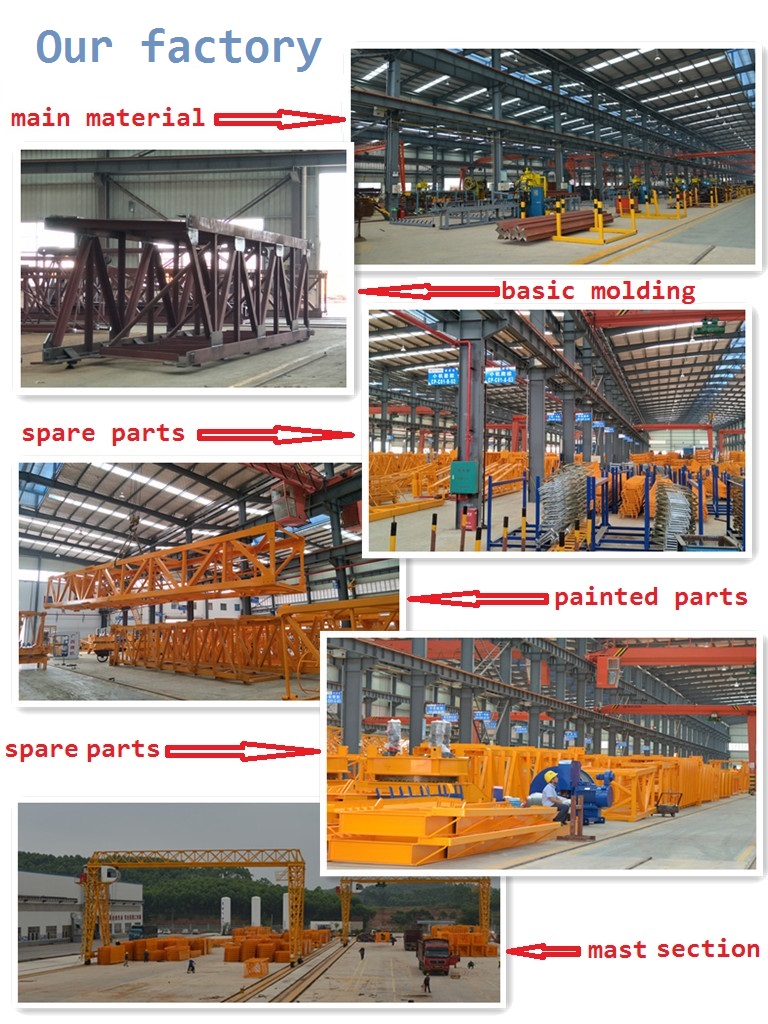

Our factory is one of the biggest manufactures of construction tower cranes is China, and we have more than 60 kinds of tower crane, We are always waiting for you .
why choose us:
1.High quality materials--Q345B(16Mn),It can be used in cold areas below 40 degrees below zero.
2.Rational design--Combination mast, Reduce transportation and storage costs.
3.Factory price--Manufacturers direct sales, non agents, no inter price difference.
4.Quick after-service--Global 28 branches, 24 hours waiting for you to serve.
5.Efficient team--Communicate and handle affairs in a timely and effective manner.
