358 fence welding machineanti climb fence achinefence mesh welding machine
L/CT/TD/PWesstern UnionPaypalMoney GramOthers
Function features and advantages
1.Our fence mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
2.Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.
3.Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
4.The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
5.Equipped with fence bending machine can produce 3D fence panel,this fence quality is best fence products in the markets.
1.1 Most Popular WZ-3000A 358 Fence Mesh Welding Machine :
No. | Item | Specification |
1 | Welding Wire Diameter | Φ3.0-6.0(mm) |
2 | Cross Wire Space | 12.7-200mm |
3 | Line Wire Space | 76-200mm |
4 | Mesh Width | 3000mm or Customized |
5 | Max mesh length | 4000mm or Customized |
6 | Number of Electrodes | 40 |
7 | Welding Speed | 0-60times/min |
8 | Rated Voltage | Three phase,380V,50HZ or Customized |
9 | Rated Power | 160KWA*10 (Water cooling system) |
11 | Main Motor | 4.0KW (Electromagnetic Brake Motor) |
12 | Welding Time | 10ms-100ms |
13 | Pulling Mesh Way | Servo Motor(2.0kw) |
14 | Welding Way | By Control Silicon Control Electric Resistance Weld |
15 | Pressure Mode | Adjustable Spring Pressure |
16 | Weight | About 4.2 T |
17 | Overall Dimension | 6500*4100*1800m |
1.2 The production poduction line includes:
No. | Name of each part | Quantity/Set |
1 | Main Mesh Welding Machine | 1 |
2 | Cross Wire Automatic Falling Hopper | 1 |
3 | Pulling Mesh Device | 1 |
4 | Operation Control Cabinet | 1 |
5 | Wire Straightening and Cutting Machine | 3 |
6 | Level Spare Parts Box | 1 |
7 | Water Circle Pump | 1 |
8 | Repairing Mesh Machine | 1 |
9 | Cooling Water System | 1 |
10 | Installing Tool | 1 |
11 | Equipment Operation and Maintenance Manual | 1 |

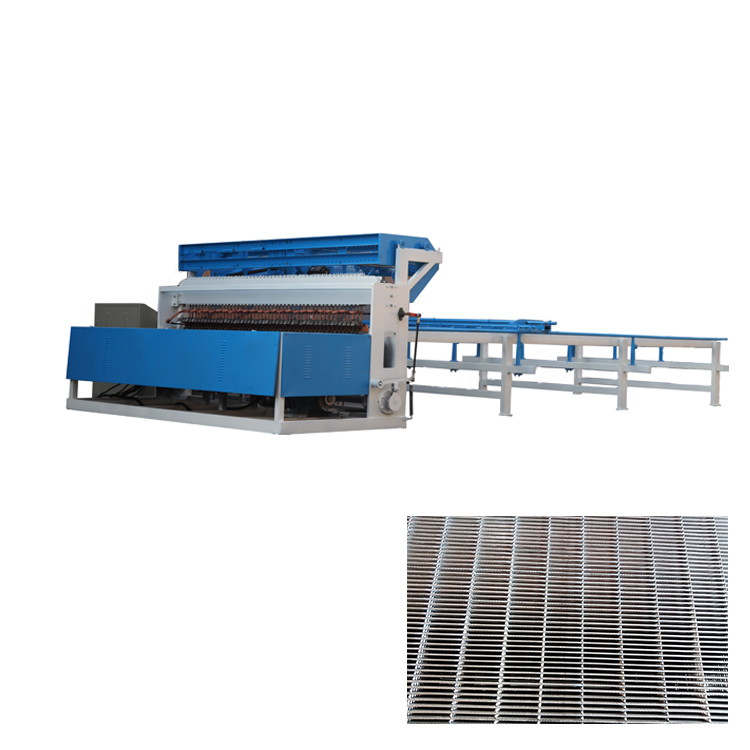

Main Fence Mesh Welding Machine

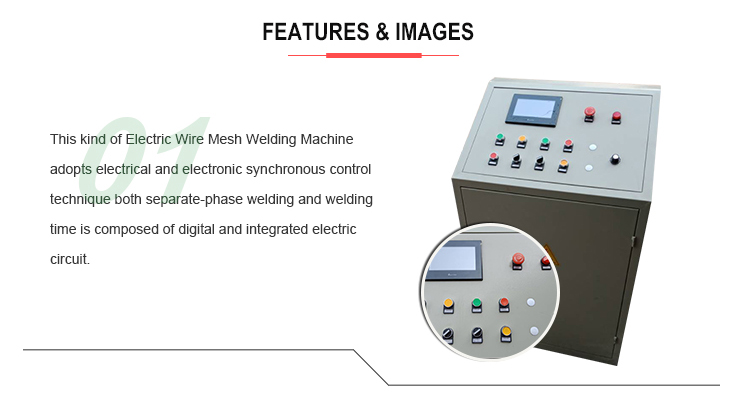

Control Cabinet:PLC+Touch Screen

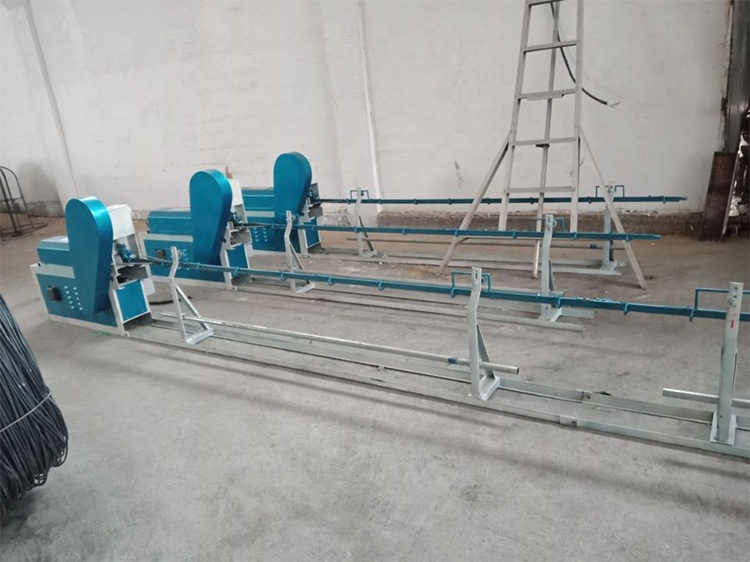

Wire Straightening and Cutting Machine
(mainly used to straighten and cut line and cross wires)

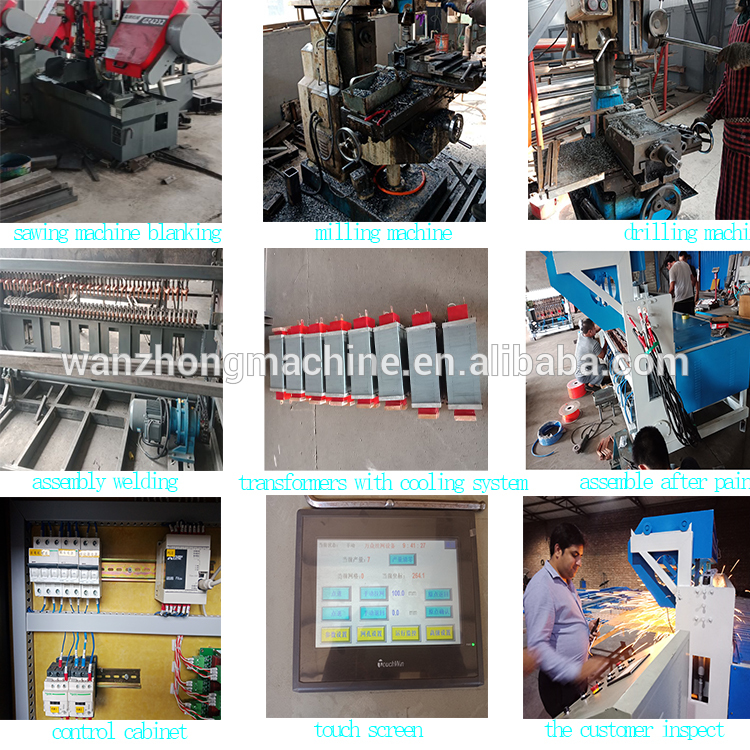

The whole production procession:
Application:
