Product Description

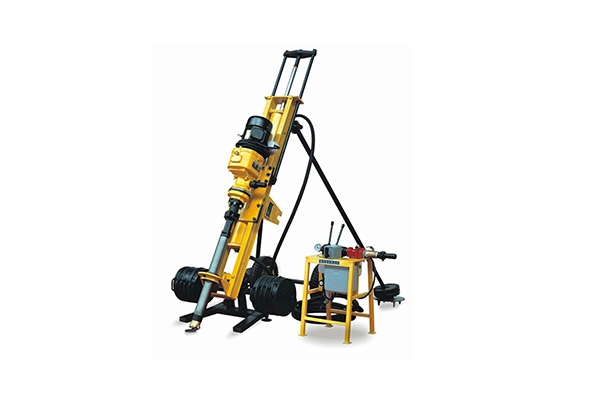

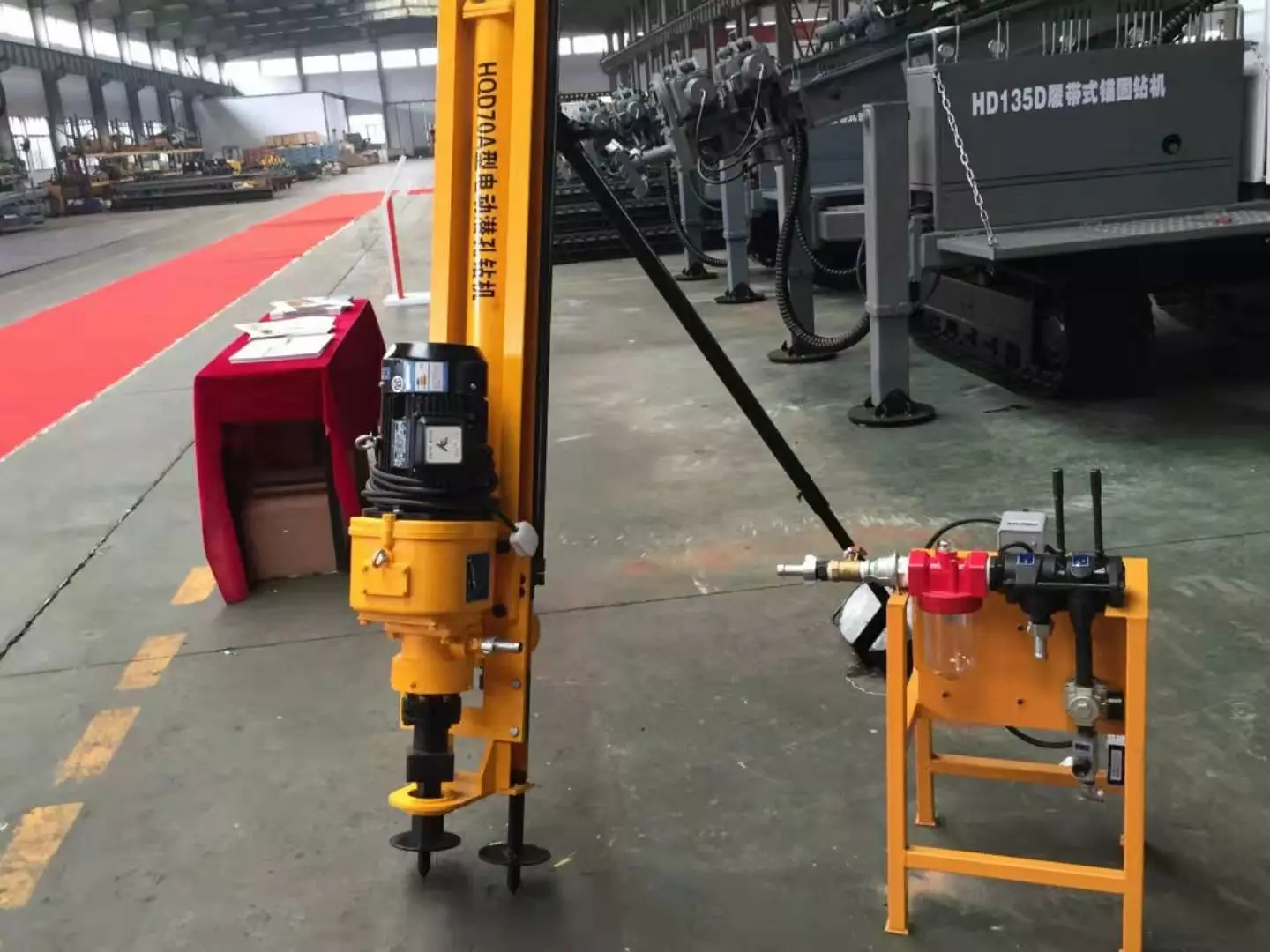

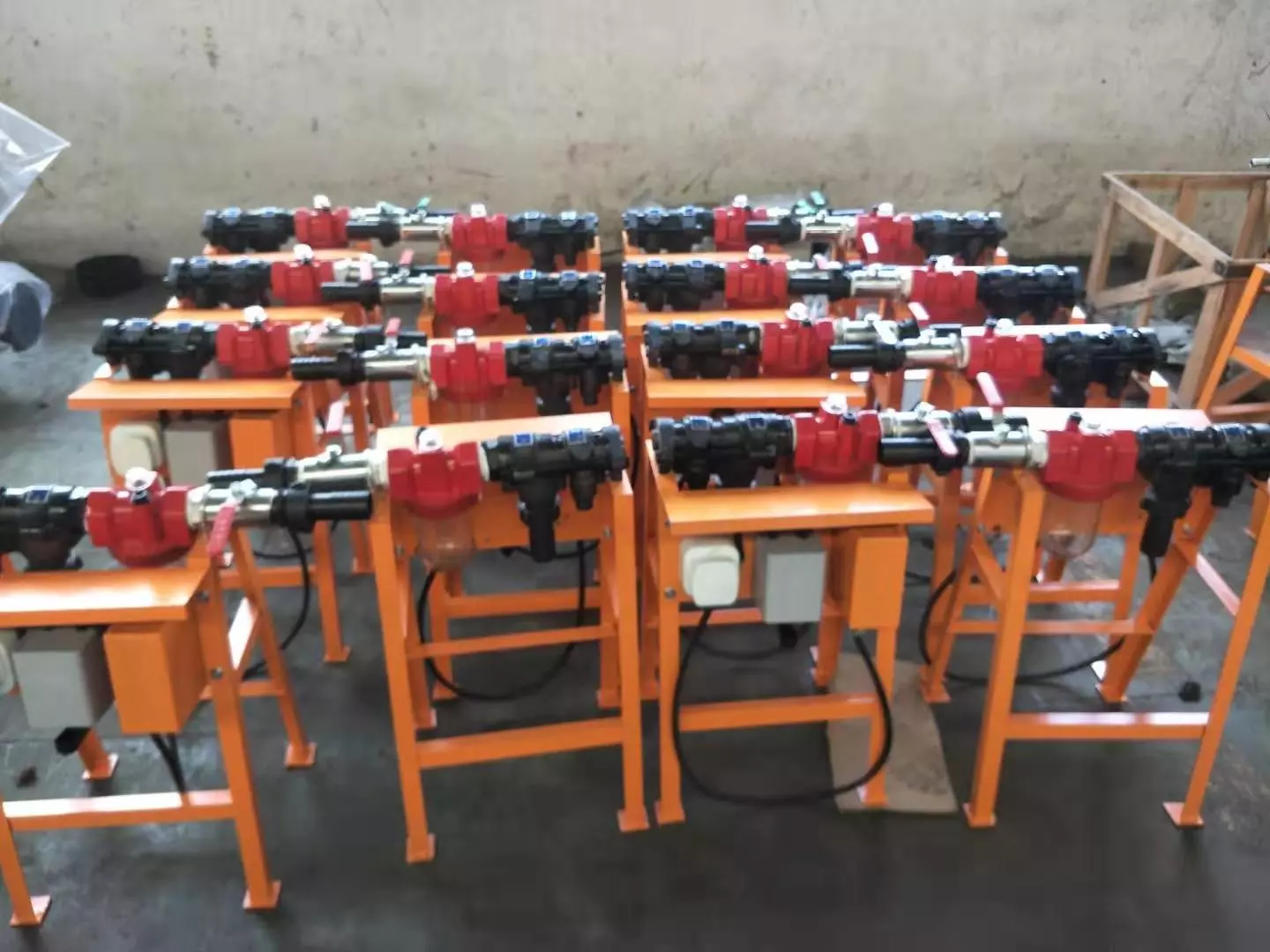

Hongwuhuan HQD70 electric mining rotary drilling rig machine
Features:
1.Configuration of the power, meet the needs of all kinds of construction situation.
2.Using hydraulic technology, energy saving efficiency.
3.Original bracket tooth plate positioning,structure design, stable and reliable.
4. With national patent technology mercury split type hydraulic station, make drill shift more convenient, effectively reduce the labor intensity.
5. Good detachability, suitable for all kinds of original landform operation.
6. Advanced design, reasonable structure of the hydraulic oil cooling system, reduce the weight of the mercury hydraulic station, mobile is extremely convenient.
7. Lower initial investment and good economic benefit.
Technical specifications:
Model | HQD70 | HQD100A | HQF100 | HQJ100A (electric) | HQJ100A (diesel) |
Rock hardness | F=6~20 | F=6~20 | F=6~20 | F=6~20 | F=6~20 |
Borehole Dia.(mm) | 50-80 | 68-130 | 68-130 | 68-130 | 68-130 |
Borehole Depth(m) | ≥15 | ≥20 | ≥20 | ≥20 | ≥20 |
One-time advanced length(mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
Swing speed(r/min) | 90 | 90 | 110-160 | 0-70 | 0-70 |
Air consumption(m3/min) | ≥3.5 | ≥7 | ≥12 | ≥7 | ≥7 |
Working pressure(Mpa) | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
Cylinder dia.(mm) | 90 | 140 | 140 | 50 | 50 |
Power(kw) | 3 | 4 | 4 | 7.5 | 12.1 |
Max. lifting force(N) | 4200 | 7000 | 7000 | 15000 | 15000 |
Max.push force(N) | 3500 | 5000 | 5000 | 4500 | 4500 |
Weight | 175 | 260 | 260 | 260 | 260 |
Packing | take into the container directly or according to your requirements |
Logistics method | Shipping (by sea) |
Port | Shanghai, Ningbo, Guangzhou |
Delivery time | 1-20 units: 15-20 days;20-50 units: 30-35 days; More than 100 units: 40-45 days |
Provide considerate services to minimize client's worries.
a.Professional engineers available to service machinery at home or overseas.
b.Warranty for 6 months if the products have quality problems.
c.Provide perfect spare parts and accessories service and support.
