I. Technical Specification
1. Working voltage：230VAC
2. Flicker Frequency：1HZ±0.2HZ
3. Loading capacity：15W
4. Working temperature：-20o～+60℃
5. Size：φ90* 125MM
6. IP54
II. Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. Please be sure the power is off before connecting, the product is produced without fuse;
3. This system must not endanger life or property during the running failure or its security risks have been eliminated
III. Installation Instruction

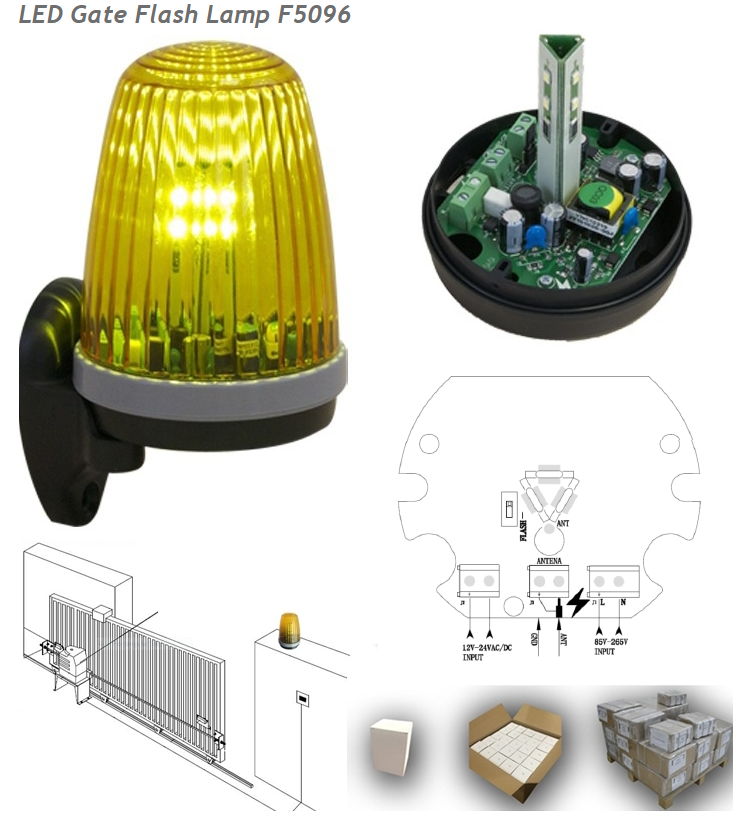

1. Connect the AC 230 power supply with Terminal CN1, then the lamp will flicker, the flash working flicker frequency is 1HZ.
2. J2: It controls lamp in flickering or lighting. J2 at off , lamp flickers in 1HZ when power on; J2 at on, lamp keeps lighting when power on
Attention: it is forbidden to keep the lamp lighting for a long time when J2 at on
