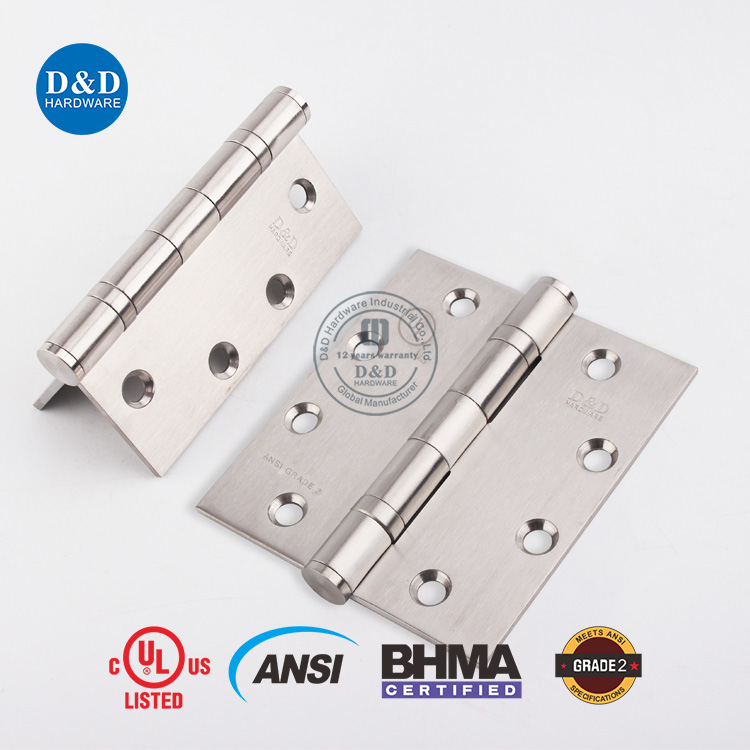

ANSI / BHMA GRADE 2 SS316 UL 2BB Hinge for Metal Door-DDSS001
2 Ball Bearing Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Ball Bearing Hinge and they apply to different commercial of doors. The Classical Ball Bearing Hinge is one kind of our Fire Rated Hinge. The material of UL Fire Rated Door Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The UL Door Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Interior Door Hinge become old and bad. The Ball Bearing Hinge can also keep long-term lubrication, make you convenient to open and close the door. The SUS316 Door Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.
TEL: +86-750-3856396
PHONE: +86-139-2903-7292
Http://www.dndhardware.com
E-mail: sales@dndhardware.com
David@dndhardware.com
ADD: No.4 Bldg,Street 33,West Gaoxin Rd,High-tech Zone,
Jianghai Dist. Jiangmen City,Guangdong,China
Product Overview
The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

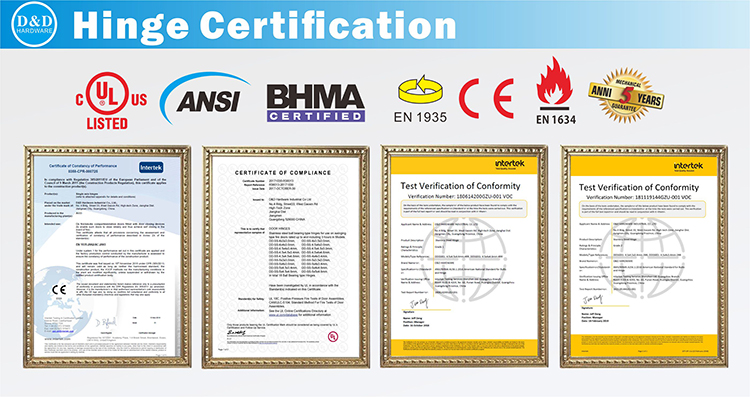

They have been successfully type tested to all the requirements of BS EN 1935, UL 10C, 3 hours Fire Rate.

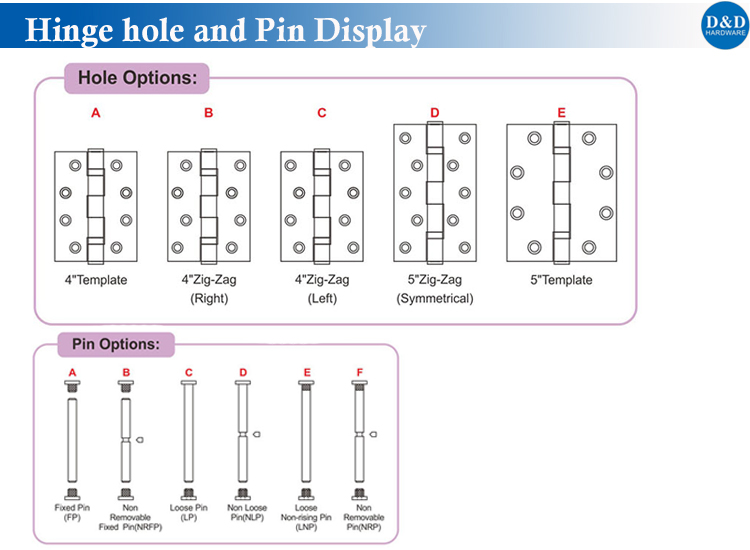

Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.

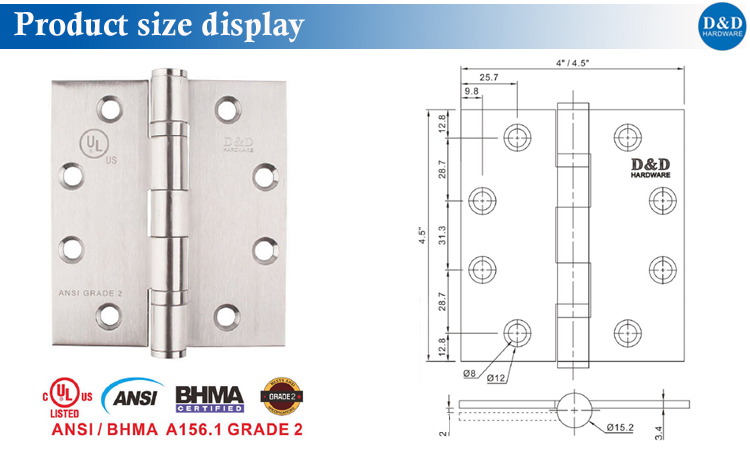

| Product name | ANSI / BHMA GRADE 2 SS316 UL 2BB Hinge for Metal Door-DDSS001 |
| Product Model | DDSS001-ANSI-4.5"X4.0"X3.4MM-2BB |
| Product Size | 4.5x4x3.4mm |

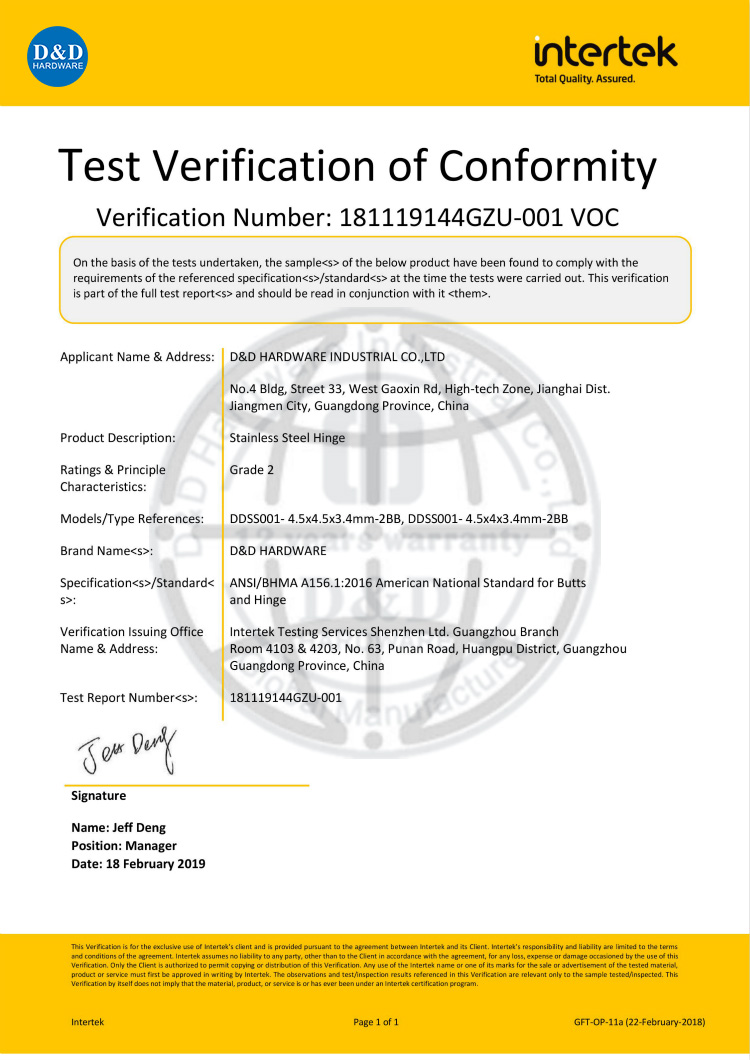

| Certification | ANSI/BHMA GRADE 2,UL listed |

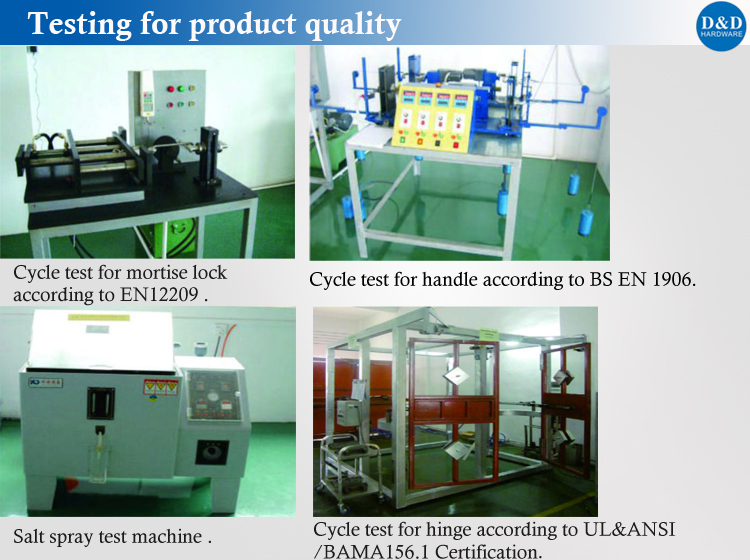

| Cycle-test | Grade2: 1500,000 (one million and five hundred thousand cycle test) |

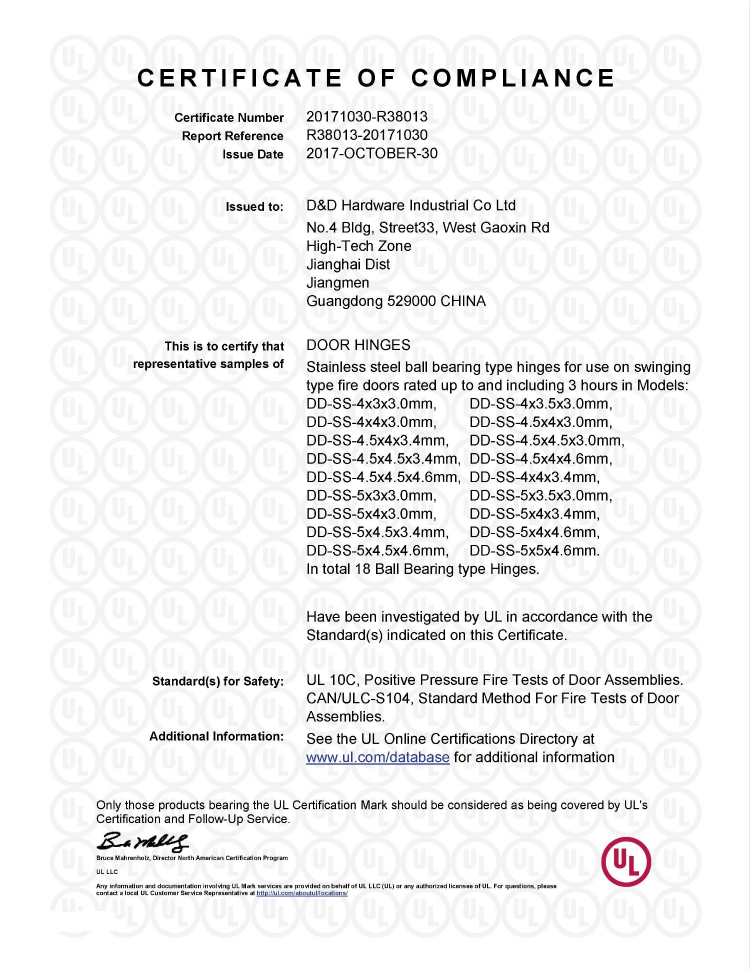

| UL File Number | R38013 |
| Notify Body | UL From U.S.A |
| UL certificate item | 4.0"x3.0"x3.0mm 4.0"x3.5"x3.0mm 4.0"x4.0"x3.0mm 4.5"x4.0"x3.0mm 4.5"x4.5"x3.0mm 4.5"x4.0"x4.6mm 4.5"x4.0"x3.4mm 4.5"x4.5"x3.4mm 4.5"x4.5"x4.6mm |
| Material | Stainless Steel 201, 304 or 316 |
| Fitting | Flat tip, ball bearing, fix pin, screws, |
| Finish | Satin stainless steel, Polished stainless steel, Polished brass Chrome-plated, Satin chrome-plated, Polished PVD |
| Standard | Strictly according to ANSI/BHMA, Meets ANSI-A156.1 Grade 2 1,500, 000 cycles tested |
| Suitable for | Wooden door, Metal door, Steel door , Fire rated door |
| MOQ | 500 Pairs |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
