Business Type: Manufacturer
Main Products:Aluminum Composite Panelsaluminum composite panel machineA2 ACPMCPmetal composite panelMetal Building MaterialsMetal Coating Machinerymask machine
ID:20070212239
Category: Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds
MOQ:1.00 Set(s)
acp machineacp lineacp plantAluminum Composite Panelsfireproof acp machineacp making machineacp production line
L/CT/T
Aluminium Composite Panel Production LineBASIC PARAMETER | |||
Model | Single Extruder | ||
Type | 1600 (M-ACP3) | ||
Raw Materials | Core material | New PE,LDPE,HDPE,recycle core material,FRB1 material | |
Aluminium coil thickness | 0.21mm-0.5mm | ||
Aluminium coil width | 800mm-1600mm | ||
Weight of aluminium coil | Max. 5 tons | ||
Macromolecule film width | 800mm-1630mm | ||
Macromolecule film thickness | 0.03mm-0.08mm | ||
Protective film width | 800mm-1630mm | ||
Protective film thickness | 0.06mm-0.08mm | ||
Finished Panel | Thickness | 2mm-6mm | |
Width | 800mm-1600mm | ||
Line Speed | For FRB1 ACP (4mm/0.5mm ACP) | Speed is 3-4.2m/min, Steady speed is 3.8m/min Line speed depends on core material's quality and thickness of core | |
For PE ACP (4mm/0.5mm ACP ) | Speed is 3-4.4m/min Line speed depends on core material's quality and thickness of core | ||
This machine use double screw extruder which is our new design, there are two parallel screw inside the extruder,the capacity can reach 1000kg/H and it improve the production speed. This machine is very good for making B1 panel, it can guarantee the production speed and panel quality.The power of main motor is only 132kw and can save much power for the customer,it can save production cost and improve the production capacity, it's the best choice for making B1 fire resistant panel.

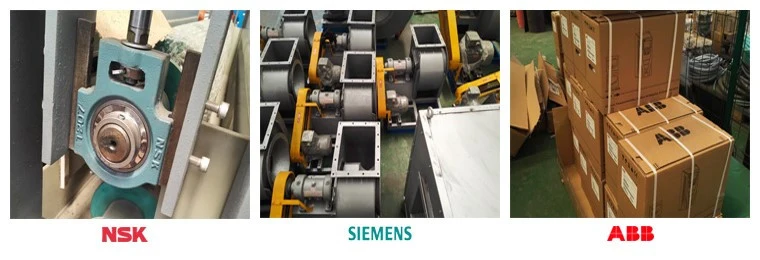

Configuration
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | |
About 6 *40''HC container for one ACP production line. | |
Packaging Delivery | Packing: The normal package is wooden box.And the wooden box will be fumigated. Delivery: Within 4 months after receiving advance |

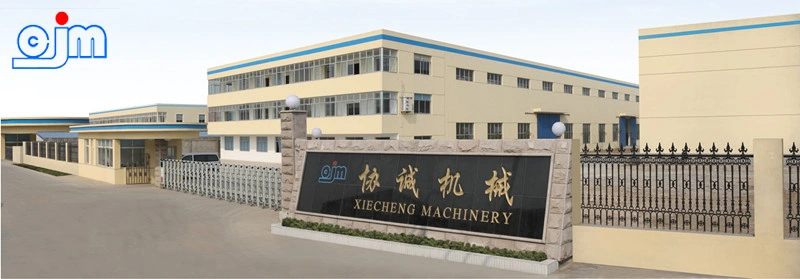

Zhangjiagang Xiecheng Mechnical Equipment Co.,Ltd was established in 2004,specialized in research, production and sales of complete set of aluminium composite panel production line and coating production line.
We are insist on developing , researching, innovation,quality is first and customer first to make the machine and promote machine upgrade step by step. Now we have serveral serials of ACP production line and Aluminium Coating line, our machine already exported to USA,Russia,Australia,Poland,Turkey,UAE, Iran,Thailand,Saudi Arabia,Brazil,Spain and so on.
