Angle valveBall valves Filter angle valvesAngle valves with filter
L/CT/T
It is the filter angle valves like our item YD201B and YD204B,prevent impurities into the pipe ,when have blockage,will be easy to be disassembly,to clear the filter.ABS handle,brass body,brass stem,brass ball,for the fixing part we have tow part one is brass material the other is economical type for S.S. part.
Technical Reference:
1. Forged brass body
2. Polished,chrome plated
3. Male thread according to ISO288/1
4. Operating Pressure:Max.10Bar
5. Test Pressure:16 Bar(1Mpa=10Bar=145PSI)
6. Hot water temperature:Max.80℃
7. 100% leak tested

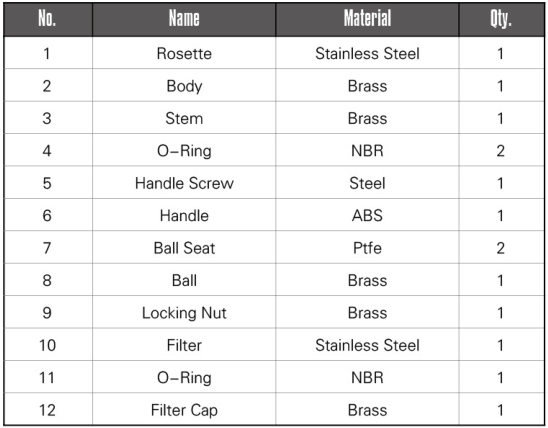

YD201B detail:

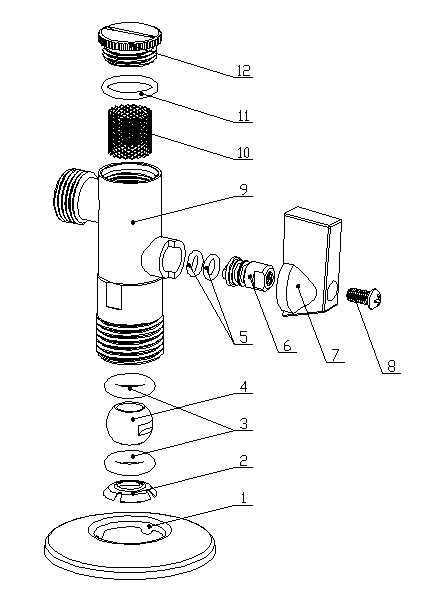

YD204B DETAIL:
No. | Name | Material | Qty. |
1 | Rosette | Stainless Steel | 1 |
2 | FIXING PART | S.S.304 | 1 |
3 | SEALING | PTFE | 2 |
4 | BALL | BRASS | 1 |
5 | O-RING | NBR | 2 |
6 | STEM | BRASS | 1 |
7 | Handle | ABS | 1 |
8 | SCREW | IRON | 1 |
9 | BODY | Brass | 1 |
10 | Filter | Stainless Steel | 1 |
11 | O-Ring | NBR | 1 |
12 | Filter Cap | Brass | 1 |
