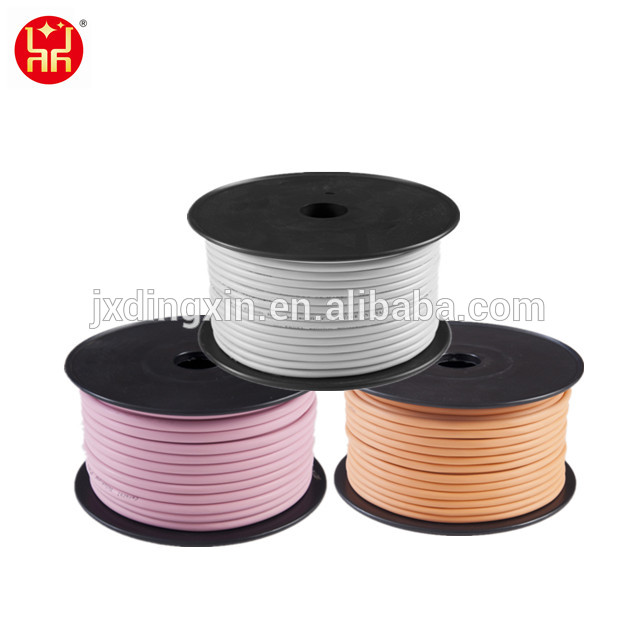

12 gauge speaker wirespeaker wire in wall 4 conductor speaker wire hiding speaker wire in wall

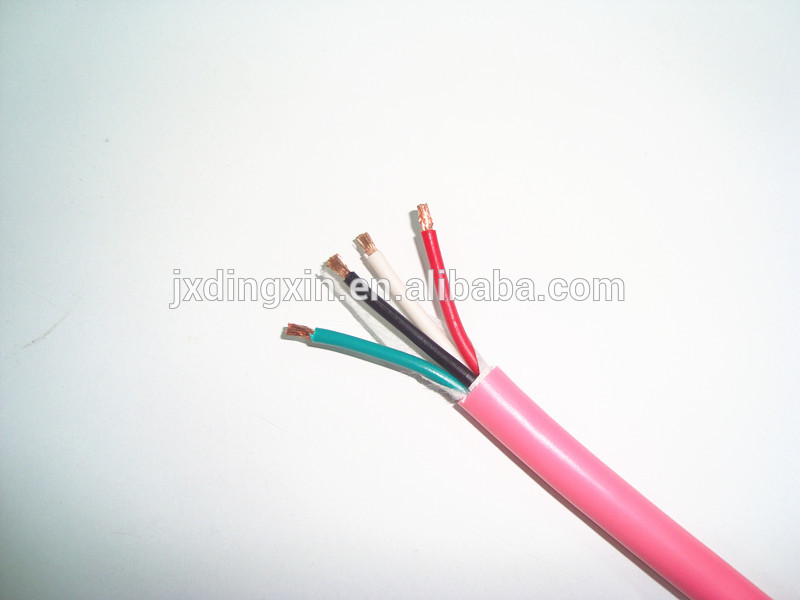

12 AWG Speaker Cable
4CX41/0.25mm CU
ID:2.5mm
O.D:8.2 PVC
Application
All the cables are used for speaker ranges, home theater or audio system
Used for connecting power amplifier and broadcasting systems,
For transmitting the audio signals amplified by the amplifier
Features

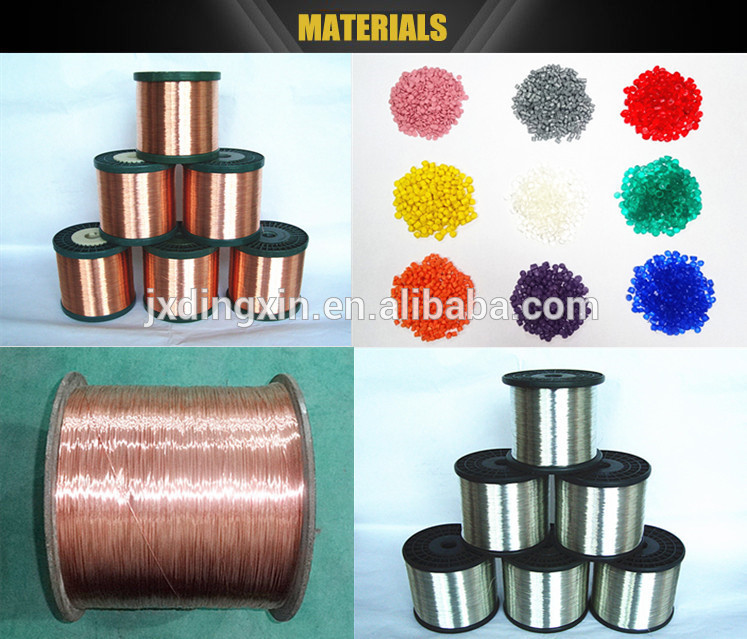

1.Multi-stranded/Flexible OFC, Copper, Tinned-copper wire conductor
2.Reliable Connection
3.RoHS Standard PVC
4.CE,SGS,ISO9001 Standard
5.Full 100M
6.Rated Voltage: 300/300V
7.Keep working under 70°C for long period operation
8.MOQ:10 kilometer

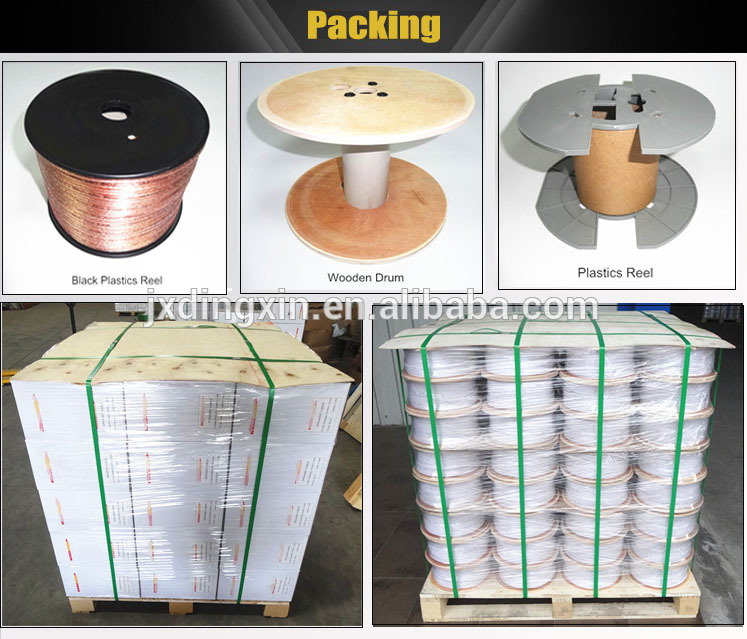

Packing
Packing length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 2/4/ 6 roll / carton box ;
Other packing according to customers’ request !
Specification
S/No. | Specification | Conductor | Outside Diameter
|
DX-SP-1001 | 0.35Square | 2CX20/0.15mm | O.D:2.0X4.0 PVC |
DX-SP-1002 | 0.5Square | 2CX28/0.15mm | O.D:2.2X.4.4 PVC |
DX-SP-1003 | 0.75Square | 2CX42/0.15mm | O.D:2.4X4.8 PVC |
DX-SP-1004 | 1.0Square | 2CX57/0.15mm | O.D:3.0X6.0 PVC |
DX-SP-1005 | 1.5Square | 2CX85/0.15mm | O.D:3.6X7.2 PVC |
DX-SP-1006 | 2.5Square | 2CX7X20/0.15mm | O.D:4.2X8.4 PVC |
DX-SP-1007 | 4.0Square | 2CX7X32/0.15mm | O.D:5.0X10.0 PVC |
DX-SP-1008 | 6.0Square | 2CX7X48/0.15mm | O.D:5.5X11.0 PVC |
DX-SP-1009 | 24AWG | 2CX18/0.12mm | O.D:1.8X3.6 PVC |
DX-SP-1010 | 22AWG | 2CX18/0.15mm | O.D:2.0X4.0 PVC |
DX-SP-1011 | 20AWG | 2CX29/0.15mm | O.D:2.2X4.4 PVC |
DX-SP-1012 | 18AWG | 2CX46/0.15mm | O.D:2.5X5.0 PVC |
DX-SP-1013 | 16AWG | 2CX74/0.15mm | O.D:3.0X6.0 PVC |
DX-SP-1014 | 14AWG | 2CX118/0.15mm | O.D:3.5X7.0 PVC |
DX-SP-1015 | 12AWG | 2CX187/0.15mm | O.D:4.5X9.0 PVC |
DX-SP-1016 | 10AWG | 2CX297/0.15mm | O.D:5.5X11.0 PVC |
DX-SP-1017 | 16AWG | 2CX65/0.16mm I.D:2.0mm | O.D:5.8 PVC |
DX-SP-1018 | 16AWG | 4CX65/0.16mm I.D:2.0mm | O.D:6.5 PVC |
DX-SP-1019 | 14AWG | 2CX41/0.25mm I.D:2.5mm | O.D:6.5 PVC |
DX-SP-1020 | 14AWG | 4CX41/0.25mm I.D:2.5mm | O.D:8.2 PVC |
DX-SP-1021 | 12AWG | 2CX65/0.25mm I.D:3.2mm | O.D:8.2 PVC |
DX-SP-1022 | 12AWG | 4CX65/0.25mm I.D:3.2mm | O.D:9.0 PVC |
