fire alarm cablefire resistant cable fire alarm wire0.5mm Fire resistant cable
T/T

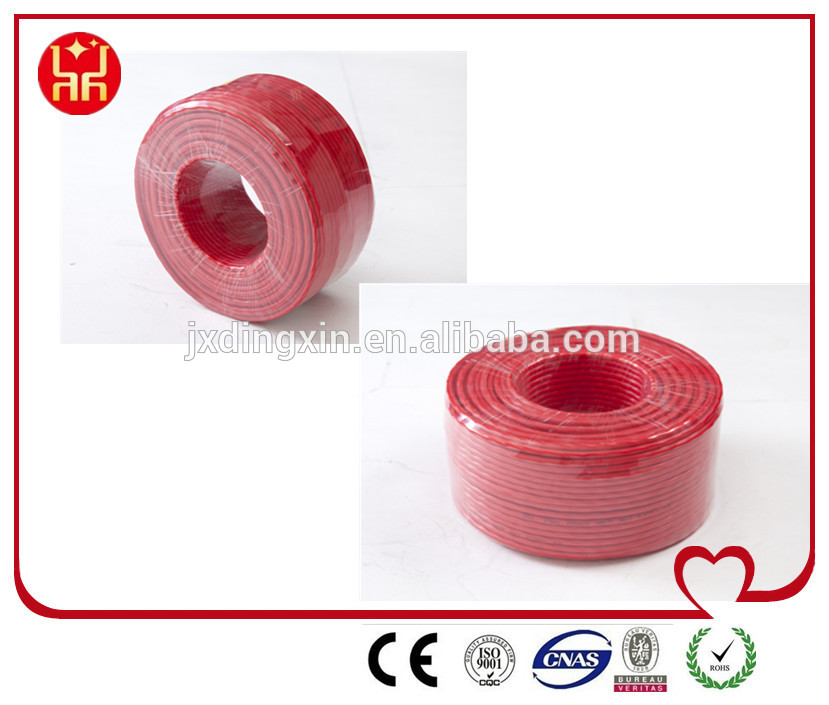

Red Fire Alarm Cable
1.1x2x1/0.80mmOFC
2.ID:1.5mmPVC
3. Twisted+PE film+1/0.40mmTC+Foil
4. OD:4.5mm
Common Features
Conductoer:CU/TC/CCA/TCCA
Insulation:silicon/PVC
Jacket:HFFR PVC
packaging details:coil/plastice reel/wooden drum
miniumum order quantity :10 kilometers
1.Structure
Product | Fire Alarm Cable | |
Conductor | Diameter | Solid 22/4, 18/2,16/2,14/2,12/2 etc. |
Material | Bare Copper(100%) | |
Insulation | Nom. Thickness | 0.254 mm |
Material | Silicone rubber | |
Nom. Lay Length | 114mm | |
Color | Black,Red,White,Green | |
Jacket | Nom. Thickness | 0.508mm |
Material | PVC(Fire retardant) | |
Ripcord | Yes | |
Color | Red | |
Shielded | Unshielded | Unshielded |
Shielded | Al Foil with drain wire | |
2.Specification
S/No. | Specification |
Structure |
Outside Diameter |
SP-AL-1019 | 1*2*0.2Square | 1*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire+ Aluminum foil twist | O.D:4.9mm fire resistance PVC |
SP-AL-1020 | 1*2*0.5Square | 1*2*1/0.8mmBC+2.0mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:5.6mm fire resistance PVC |
SP-AL-1021 | 1*2*0.75Square | 1*2*1/0.97mmBC+2.2mm antiflaming PVC + 0.4TCU drain wire + Aluminum foil twist | O.D:6.5mm fire resistance PVC |
SP-AL-1022 | 1*2*1.0Square | 1*2*1/1.15mmBC+2.4mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:6.8mm fire resistance PVC |
SP-AL-1023 | 1*2*1.5Square | 1*2*1/1.38mmBC+2.8mm silicon+0.4TCU drain wire + Aluminum foil twist | O.D:7.0mm fire resistance PVC |
SP-AL-1024 | 2*2*0.2Square | 2*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:4.8*8mm fire resistance PVC (Flat Sheath) |
SP-AL-1025 | 2*2*0.5Square | 2*2*1/0.8mmBC+2.0mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:5.6*9.6mm fire resistance PVC (Flat Sheath) |
SP-AL-1026 | 2*2*0.75Square | 2*2*1/0.97mmBC+2.2mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:6*10.4mm fire resistance PVC (Flat Sheath) |
SP-AL-1027 | 2*2*1.0Square | 2*2*1/1.15mmBC+2.4mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:6.4*11.2mm fire resistance PVC (Flat Sheath) |
SP-AL-1028 | 2*2*1.5Square | 2*2*1/1.38mmBC+2.8mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:7.4*13mm fire resistance PVC (Flat Sheath) |
SP-AL-1029 | 2*2*0.2Square | 2*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist | O.D:5.6mm fire resistance PVC |
SP-AL-1030 | 2*2*0.5Square | 2*2*1/0.8mmBC+2.0mm antiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:6.6 mm fire resistance PVC |
SP-AL-1031 | 2*2*0.75Square | 2*2*1/0.97mmBC+2.2mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:7.1mm fire resistance PVC |
SP-AL-1032 | 2*2*1.0Square | 2*2*1/1.15mmBC+2.4mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:7.6mm fire resistance PVC |
SP-AL-1033 | 2*2*1.5Square | 2*2*1/1.38mmBC+2.8mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist | O.D:8.5mm fire resistance PVC |

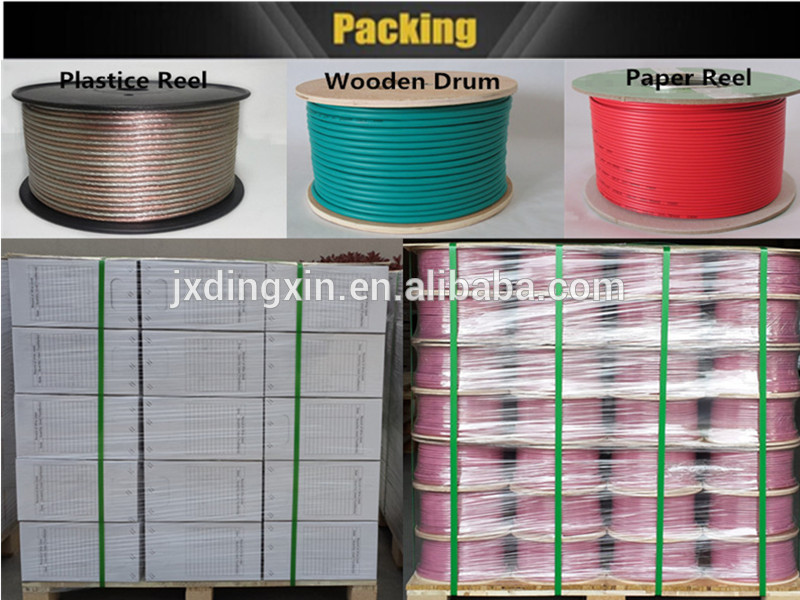

3.Product Packing
Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll.
Inner packing: Wooden reel, plastic reel, and paper reel.
Outer packing: Carton box, pull out box, pallet available.
Other packing available according to client's request

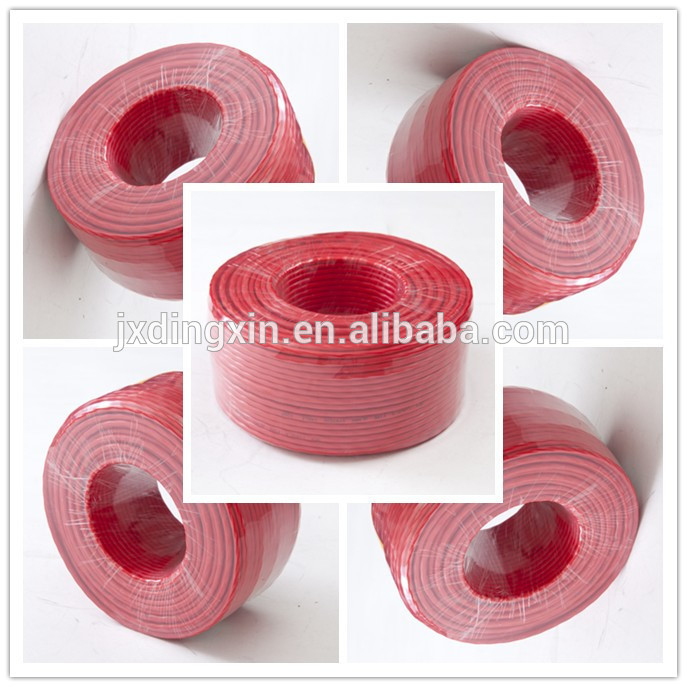

4.Product Show
