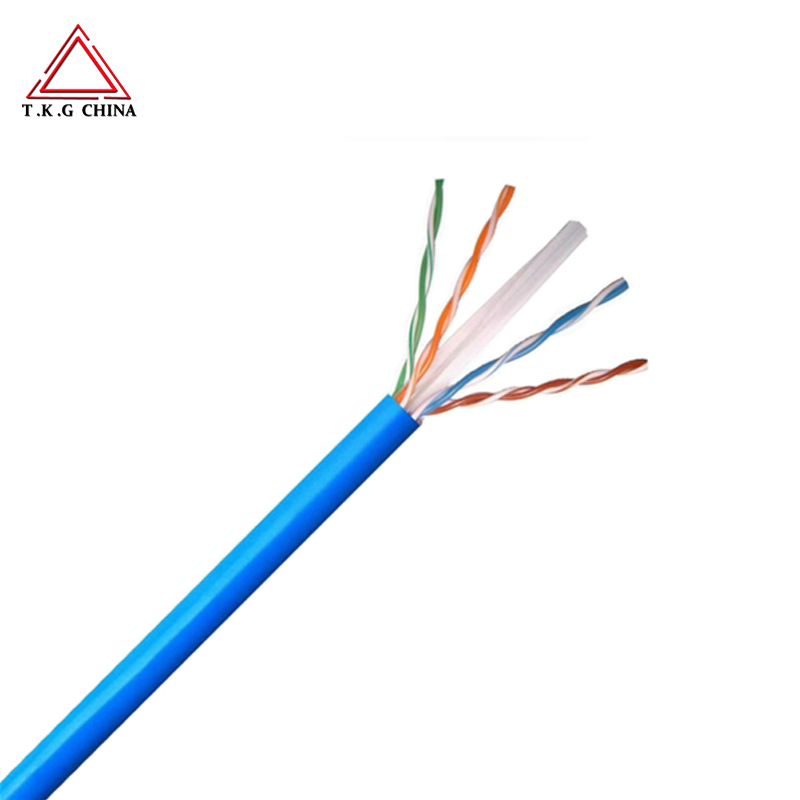

LAN CableCustomization High Quality
L/CT/TD/PWesstern UnionPaypalMoney GramOthers
Application:
The twisted pair cable used for digital
communications,applied in buildings cablingsystem between patch panels and the outputof communication.Also used in Residentialcabling system between the patch panel andoutput of communication.
Performance:
Tesdt Standard:ISO/IEC11801 TIA-568-C.2
Before Aging Tensile Strength (Mpa)2 13.5
Elongation(%) 2 150
Aging Period("C x hrs) 100*C x24hx 7d
After Aging Tensile Strength (Mpa) 2 12.5
Elongation(%) 2 12.5
Coldbend(-20t2"C x 4h) No visible cracks
Impedance(Q) 100t15
Delay Shew(ns/100m) S45
NVP 69%
Capacitance(nf/100m)max 5.6
DC resistance(Q/100m)max 9.5
DC resistance Unbalance(%)max 5.0
