Angle ValvesBrass angle valvestop valves
L/CT/T
This is our item YD407 ,1/4 turn stop valves, ABS handle,brass body,brass ball ,polish,chrome plated.
Technical Reference:
1. Forged brass body
2. Polished,chrome plated
3. Male thread according to ISO288/1
4. Operating Pressure:Max.10Bar
5. Test Pressure:16 Bar(1Mpa=10Bar=145PSI)
6. Hot water temperature:Max.80℃
7. 100% leak tested

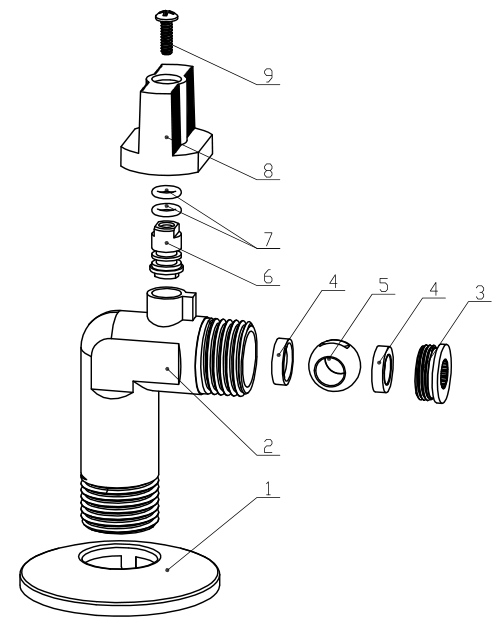

No. | Name | Material | Qty. |
1 | Rosette | S.S. | 1 |
2 | Body | Brass | 1 |
3 | Fixing nut | Brass | 1 |
4 | Sealing | PTFE | 2 |
5 | Ball | Brass | 1 |
6 | Stem | Brass | 1 |
7 | O-Ring | NBR | 1 |
8 | Handle | ABS | 1 |
9 | Screw | Iron | 1 |
