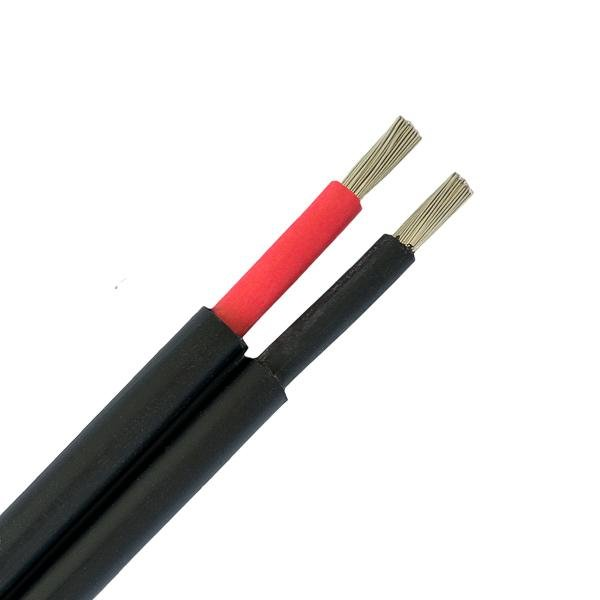

Tinned Copper Solar PV Cable Tuv Solar Cable For Solar System Double XLPE Insulation

From a normal order to an OEM order , ZHENHUA CABLE all can help .

Construction :building wiring ,power cable ,twin&earth cable , controal cable ,flexible cable and welding cable .

Communication and voice :red and black speaker cable ,transparent speaker cable ,audio cable ,video cable ,telephone cable and lan cable .

All cables supplied comply with all relevant national&international standards and follow customer’s requirement .

Techincal Data

Cross Section (mm2)	Conductor Construction (n/mm)	Conductor Stranded OD.(mm)	Insulation Min.Wall Thickness(mm)	Sheath Min.Wall Thickness(mm)	Cable OD.(mm)	Conductor Max.Resistance AT20°C (Ω/km)	Current Araaing Capacity AT 60°C(A)
1.5mm2	TXR30/0.25	1.58	0.67	0.73	4.90	13.3	30
2.5mm2	TXR50/0.25	2.02	0.67	0.73	5.45	7.98	41
4mm2	TXR56/0.30	2.60	0.67	0.73	6.10	4.95	55
6mm2	TXR84/0.30	3.42	0.8	0.80	7.20	3.30	70
10mm2	TXR142/0.30	4.56	0.9	0.90	9.00	1.91	98
16mm2	TXR228/0.30	5.60	1.00	0.90	10.20	1.21	132
25mm2	TXR361/0.30	6.95	1.19	0.92	12.00	0.780	176
35mm2	TXR276/0.40	8.74	1.20	1.00	13.80	0.554	218

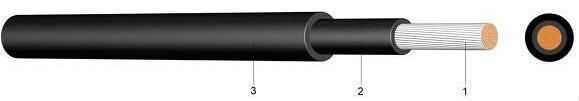

Drawing

(1)Conductor: Tinned annealed copper

(2)Insulation:120°C XLPE , black

(3)Jacket:120°C XLPE , black or red

3.Marking:TüV 2 PfG 1169 PV1-F 1×**mm2

4. Application: Specifically designed for connecting photovoltaic system components inside and

outside of building and equipment with high mechanical requirements and extreme weather

conditions .For permanent installations.

5. General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,

UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,

flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely

mechanically robust, very long lifetime.

FAQ:

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(5).What is your terms of delivery?

We usually accept FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.

We will try our best to supply all your needs.
