Quick Details
Place of Origin:Zhejiang, China (Mainland)
Brand Name:ZHENHUA
Model Number:RG6
Number of Conductors:1

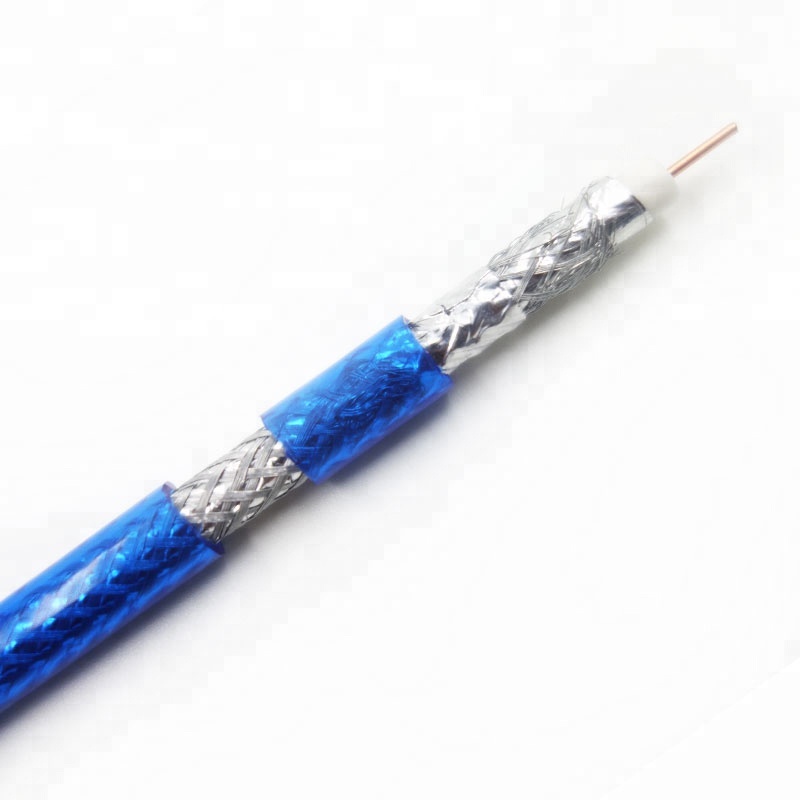

Product name:coaxial cable
Certification:CE/ROHS/ISO9001
Application:CCTV/CATV/DBS
Conductor:BC/CCS
Insulation:Foam PE
Shield:Al Foil+braiding
Jacket:PVC/PE/LZSH
Color:Whit/Black
Length:100m 305m 1000ft 500m
Supply Ability:600000000 Kilometer/Kilometers per Month Coaxial type rg 6 coaxial cable for CCTV CATV system
Packaging Details:Coaxial type rg59 rg11 rg58 rg213 rg174 rg 6 coaxial cable for CCTV CATV system
100Meter/Roll, 200Meter/Spool, 305Meter/Wooden, 305Meter/Plastic Reel
Port:Shanghai/Ningbo
Lead Time :
| Quantity(Meters) | 1 - 30000 | >30000 |
| Est. Time(days) | 15 | To be negotiated |
| Procuct Construction | STANDARD SHIELD | TRI-SHIELD | QUAD-SHIELD | |
CONDUCTOR | MATERIAL | BC/CCS | BC/CCS | BC/CCS |
| Nom.Dia. | 18AWG | 18AWG | 18AWG | |
DIELECTRIC | MATERIAL | Foam PE | Foam PE | Foam PE |
| Nom.Dia. | 4.57mm | 4.57mm | 4.57mm | |
SHIELD | MATERIAL | Al Foil+Al Braiding | Al Foil+Al Braiding+Al Foil | (Al Foil+Al Braiding)*2 |
| COVERAGE | 40%-95% | 40%-95% | 40%-60% | |
JACKET | MATERIAL | PVC/PE | PVC/PE | PVC/PE |
| Nom.Thick. | 0.80mm | 0.80mm | 0.86mm | |
| Nom.Dia. | 6.91mm | 7.06mm | 7.62mm | |
MESSENGER | MATERIAL | Galvanized steel wire | ||
| Nom.Dia. | 1.30mm | 1.30mm | 1.30mm | |
| Nominal Impedance(ohm) | 75±3 | ||
| Nominal Velocity of propagation(%) | 85 | ||
| Nominal Capacitance(pf/m) | 50 | ||
| Spark Test(VAC) | 3000 | ||
| SRL(dB) | 20 | 20 | |
Attenuation [68°F(20℃)] | Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) |
| 5 | 0.58 | 1.9 | |
| 55 | 1.6 | 5.25 | |
| 187 | 2.85 | 9.35 | |
| 300 | 3.55 | 11.64 | |
| 450 | 4.4 | 14.43 | |
| 600 | 5.1 | 16.73 | |
| 750 | 5.65 | 18.54 | |
| 865 | 6.1 | 20.01 | |
| 1000 | 6.55 | 21.49 | |
FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5).What is your terms of delivery?
We usually accept FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.
We will try our best to supply all your needs.
