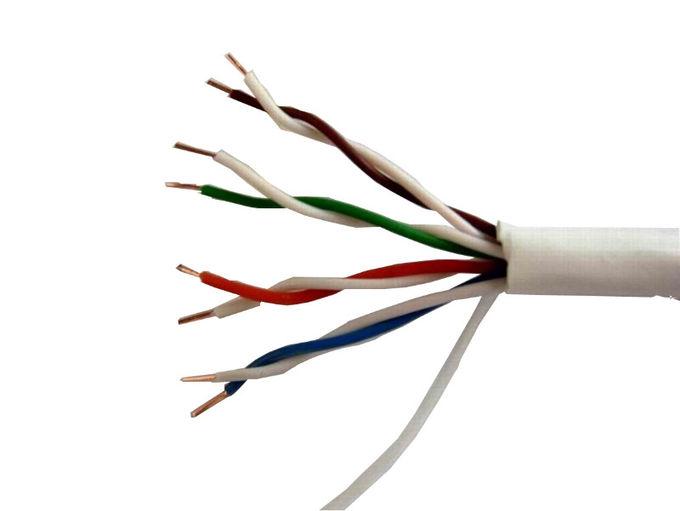

Cca Pvc Pe Cat6 Ethernet Cable Cat5e Cctv Cable 8 Conductors Customized Length
Specification
* Pairs: 4Pairs
* Working Temperature: -20°C ~ + 75°C
* Shielding: UTP/FTP/SFTP
* Conductor: 23AWG Bare copper or copper clad aluminum (24awg Optional)
* Insulation: HDPE
* Rip rope: optional
* Jacket: PVC or LSZH
* Application: Indoor or Outdoor
* Reference Standard: ANSI/TIA/EIA-568B,ISO/IEC11801
* Package: 300 or 305M/roll as per customer request
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
| Model | CAT6 Cable |
| Conductor Material | CCA/CCU/CCS |
| Conductor Gauge | 23awg |
| Conductor Diameter | 0.57+/-0.02mm |
| No.of Pair: | 4 Pairs |
| Insulation Material | PE,HDPE,LSZH PE |
| Insulation Thickness | 0.55mm |
| Shield | UTP |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Outer Jacket Thickness | 0.6-0.8mm |
| Jacket Diameter | 6.2mm |
| Jacket Color | Black, Blue, Grey or On request |
| Indoor/Outdoor | Single / Double Jacket |
| Drain wire / Rip Cord | optional |
| Filler | Cross + Rip cord |
| Flammability Grade | CMP,CMX,CM,CMG,MPG,CMR,MPR |
| Rated Temperature | 60°C or 75°C |
| Reference Standard | ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444 |
| Installation Temperature | 0°C to +60°C |
| Operating temperature | -20°C to +75°C |
| DC Resistance Unbalance | 5% |
| Pair-to-Ground Capacitance Unbalance | 330 PF/100 m |
| Capacitance | 14pF/ft nominal |
| Velocity of Propagation | PE=65% |
| Nominal Overall Diameter | 5.8-6.0mm |
| Impedance | 100±15%Ω at 1~100MHz |
| DC Resistance(Max.) | 9.5Ω/100m |
| Working Capacitance(Max.) | 5.4nF/100m |
| Stretching Resistance(max) | 250N |
| Insulation Resistance | 10000 MΩ.km |
| Marking On Jacket | OEM / Our Brand |
| Rip rope | Nylon/cotton yarn /optional |
| Length | 100m, 305m/1000ft or Customized |
| Application: | Telecommunication,Networking |
| Packing | According to customers’requirement |
| Certification | CE/ISO/ETL |
| Construction Draw |
Applications:
1. Computer Network Cabling Project
2. Broadband Network Communication.
3. Digital ISDN Network and ATM 250Mbps Network
4. Ethernet Network
5. Audio and Data Transmission
Cable Assembly Specification:
| Conductor | Insulation | Core Number | Jacket | ||||
| AWG | Specification mm | Material | Thickness (NOM.mm) | Material | Thickness (NOM.mm) | OD (NOM.mm) | |
| 24 | 1/0.51 | HD-PE | 0.20 | 4P | PVC or LSNH | 0.55 | 5.1 |
| 23 | 1/0.535-0.575 | HD-PE | 0.22 | 4P | PVC or LSNH | 0.55 | 6.2 |
Electrical Characteristics:
| Frequency MHz | Attenuation dB/100m | NEXT dB | PS-NEXT dB | RL dB | ELFEXT dB | PS-ELFEXT dB |
| 1 | 2.0 | 65.3 | 62.3 | 20.0 | 64.0 | 61.0 |
| 4 | 4.1 | 56.3 | 53.3 | 23.0 | 52.0 | 49.0 |
| 8 | 5.8 | 51.8 | 48.8 | 24.5 | 45.9 | 42.9 |
| 10 | 6.5 | 50.3 | 47.3 | 25.0 | 44.0 | 41.0 |
| 16 | 8.2 | 47.2 | 44.4 | 25.0 | 39.9 | 36.9 |
| 20 | 9.3 | 45.8 | 42.8 | 25.0 | 38.0 | 35.0 |
| 25 | 10.4 | 44.3 | 41.3 | 24.3 | 35.8 | 33.0 |
| 31.25 | 11.7 | 42.9 | 39.9 | 23.6 | 34.1 | 31.1 |
| 62.50 | 17.0 | 38.4 | 35.4 | 21.5 | 28.1 | 25.1 |
| 100 | 22.0 | 35.3 | 32.3 | 20.1 | 24.0 | 21.0 |
