Business Type: Manufacturer
Main Products:speaker cable alarm cable fire alarm cable microphone cable telephone cable Audio & Video Cablesbattery cable monitor cable electrical cable
ID:20071514556
Category: Consumer Electronics Home Audio,Video & Accessories
MOQ:10000.00 Meter(s)
Low Noise microphone cableCE microphone cable Reach microphone cable
T/T

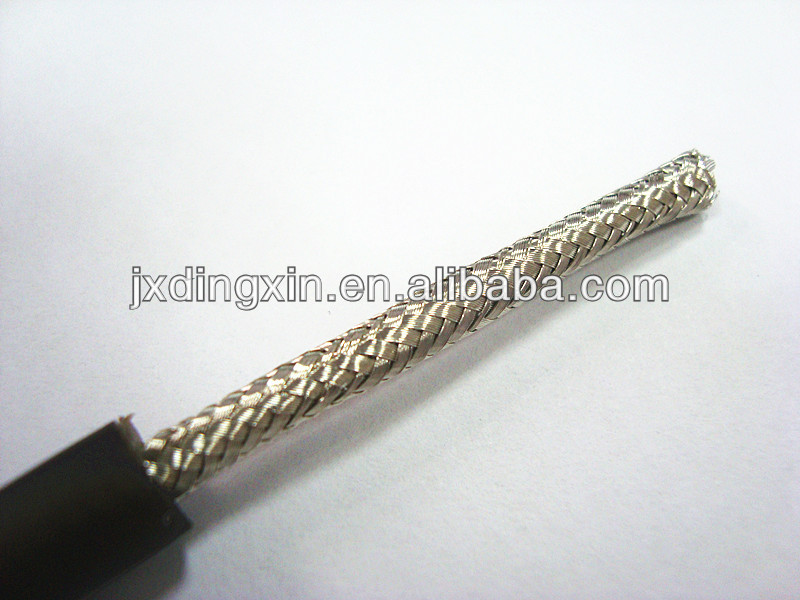

Microphone Cable
1.2C*21/0.12mm BC
2.1.6mmpvc+cotton yarn+AL+7*16/0.12 TCCA Braiding
3. O.D:6.5mmPVC
4:color :according to the customer's request
5. Jacket material : flexible PVC
6.conductor material :copper
7.packaging details : plastic reel
Application
Flexible and reliable for signal transmission at frequences cables. For microphones and musical instruments.

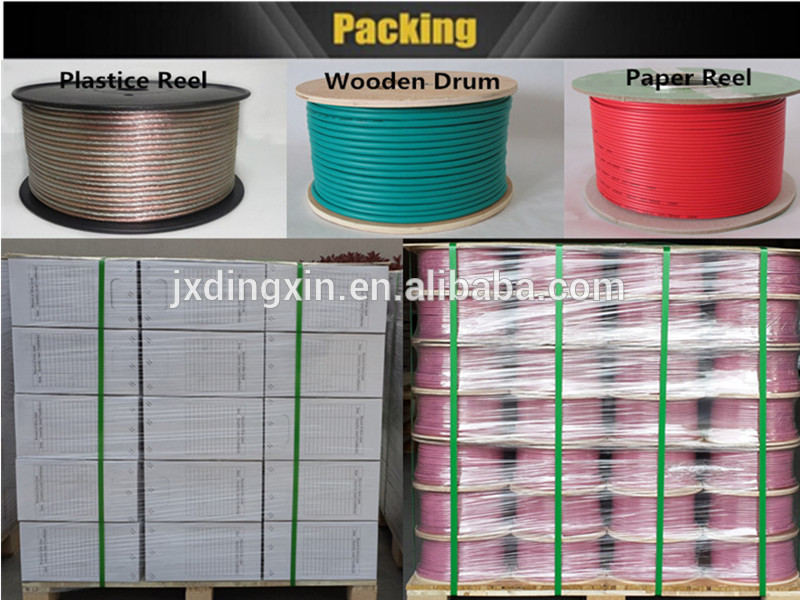

Packing & Shipping
Packing length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 2/4/ 6 roll / carton box ;
Other packing according to customers’ request !
Specification
CONDUCTOR | INSULATION O.D(mm) | COTTON YARN | AL FOIL | BRAID/WRAP SHIELD | MON O.D (mm) |
1CX18/0.12 | 1.3 | filled | / | 32/48/64/80/0.12mm | 5.0 |
1CX30/0.12 | 1.8 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 5.8 |
1CX28/0.15 | 2.1 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
1CX28/0.12 | 2.1 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
2CX10/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 5.0 |
2CX23/0.12 | 1.5 | filled | 10*0.04 | 32/48/64/80/96/112/0.12mm | 6.0 |
2CX32/0.10 | 1.5 | filled | 10*0.04 | 32/48/64/80/96/112/0.12mm | 6.5 |
2CX21/0.12 | 1.6 | filled | 10*0.04 | 32/48/64/80/96/112/0.12mm | 6.5 |
2CX18/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
2CX20/0.12 | 1.6 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 5.3 |
2CX10/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
3CX18/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
No. of core | Conductor construction | Braid | Max. diameter of cable | |
AWG | construction No./mm | mm | ||
1 | 26 | 10/0.12 | 32/0.12 48/0.12 64/0.12 or to client's require | 5.8 |
24 | 19/0.12 | 5.8 | ||
22 | 26/0.12 | 5.8 | ||
20 | 42/0.12 | 5.8 | ||
2 | 26 | 10/0.12 | 6.0 | |
24 | 19/0.12 | 6.0 | ||
22 | 26/0.12 | 6.0 | ||
20 | 42/0.12 | 6.0 | ||
3 | 26 | 10/0.12 | 6.0 | |
24 | 19/0.12 | 6.0 | ||
22 | 26/0.12 | 6.0 | ||
20 | 42/0.12 | 6.0 | ||

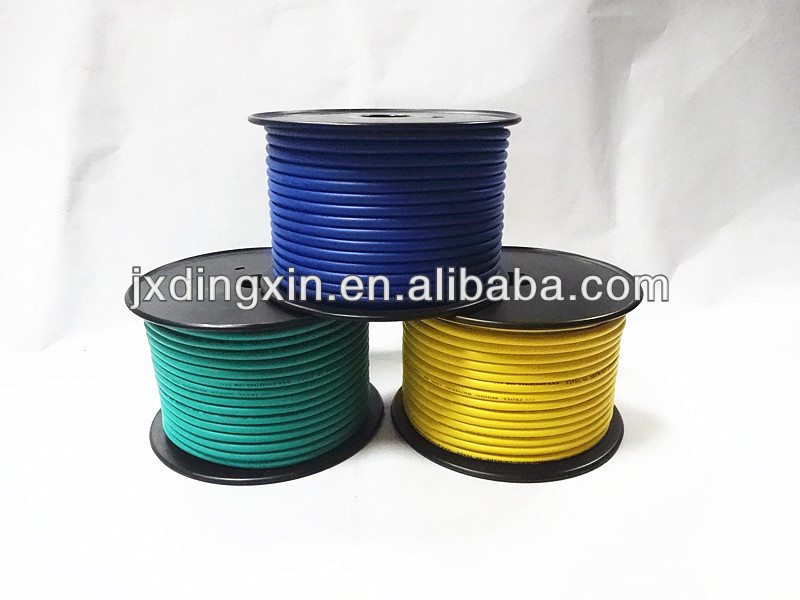

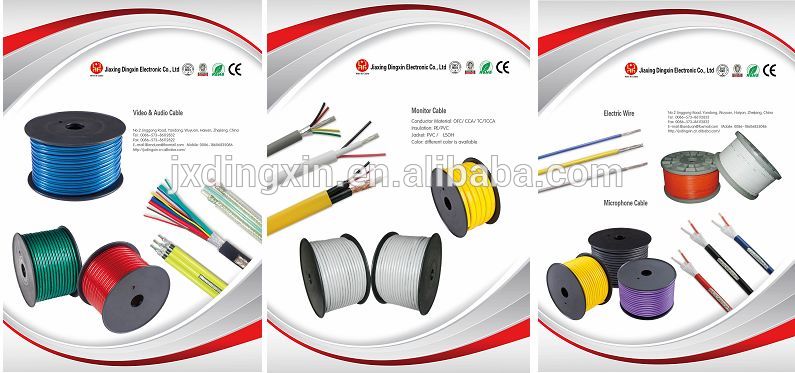

Product Pictures
 |
