Flat 4C Telephone Cable- Product Details

ID:20071514610

Electrical & Power Energy Wires,Cables & Accessories

MOQ:10000.00 Meter(s)

Telephone Cable4C Telephone CableFlat Telephone Cable

Product Category

Electrical & Power Energy > Wires,Cables & Accessories

Trademark

Product Package

Specification

Place of Origin

Port

shanghai or ningbo

_MG_9771 _

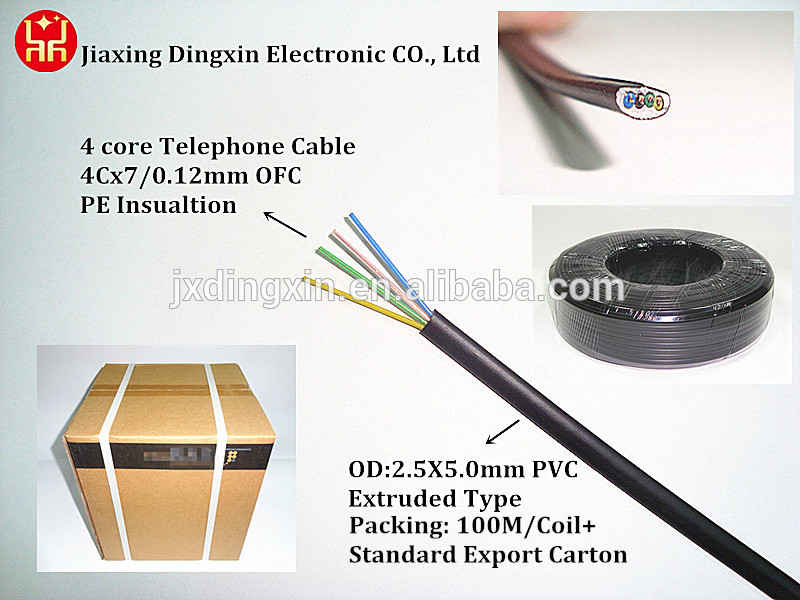

4 Core Telephone cable

4C*7/0.12mm CU
Insulation:PE

OD:2.5mm*5mmPVC

Common Features

1) Application: Used in communication.

2) Standard: AWG or according to customer’

3 ) Conductor: OFC/TCU/CCA/TCCA/CCS

4) Rated Voltage: Low

5) Jacket: A variety of colors & Colored PVC

6) Color: Red and Black, Clear, Yellow, Blue, etc or according to customer’s request

7) Minimum order quantity: 10 kilometers

8) Price: FOB shanghai or Ningbo /C&F destination port

9) Payment: 30% advanced payment paid by T/T with 7 days after come to

terms 70% payment will paid by T/T before shipment

10) Lead Time: According to the detail quantity

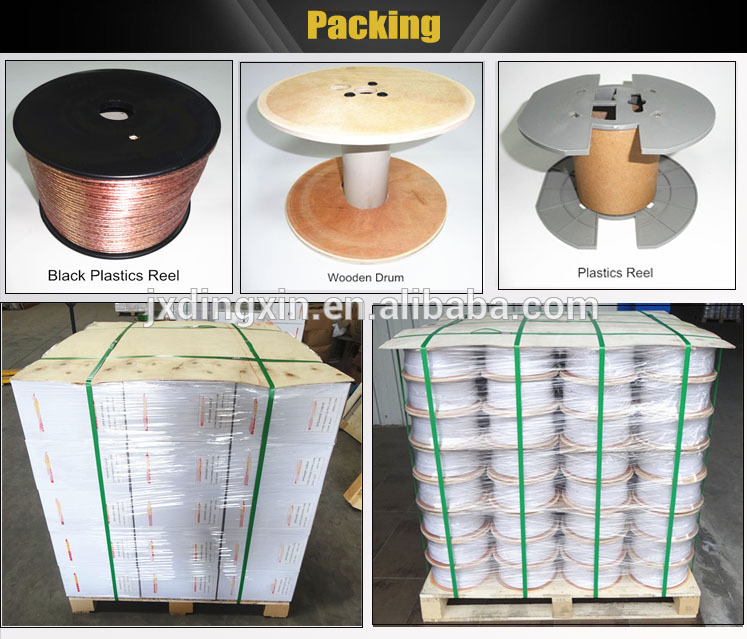

11) Packing: plastic reel, Coils, wooden drum, carton

12) Sample: Free sample is available for you

13) Individual Service: can print your logo or brand name on cable

Product Structure

	multi pair telephone cable
Conductor Dimension	0.37mm/0.40mm/0.50mm, 24AWG
Conductor Material	OFC/CCC/CCA/CCS
Insulation	1. Water blocking swellable tape (optional)
	2. HD-PE (High density polyethylene)
	3. 1.0mmHD-PE(Highdensity polyethylene)
Number Of Cores	2core/4core/6core/8core/10core
Shielding	UTP/Polyester Tape/Al Foil
Ripcord yes/no	Yes with Nylon
Jacket	PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE
Separator	Mylar Spirally Wrapped
Color	Different color is available
Operating temperature	-20 ° C - +75 ° C
Service Life	20~25 years

Specification
