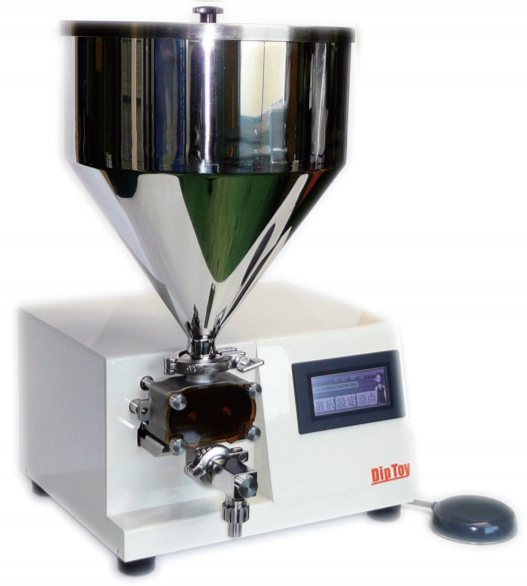

Rotary-type portable food filing machine

The machine, a portable and high-performance food filling machine, is used for a variety of liquid foods and paste-like foods.

Features:

• Large size monitor of the operation controlling touch panel.

• Up to ten (10) programming data, of each function of filling volume, filling speed, tact time, can be set in.

• A specific type of infusion nozzle will be fabricated and supplied if any specified requirements is given.

• The machine is operated, by use of either foot-switch or touch panel's switches or an external switch.

• The filling head container is detectable from the machine's body and can be stored in the refrigerator.

• The machine can be easily cleaned, without a necessity to use any tool.

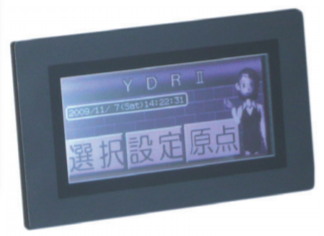

Control monitor

The machine's operation is available by easy use of the liquid crystal touch panle which is able to control the operations through touching keys on the clear-view monitor and have ten (10) different ways of filling programs data installed in.

Menu selection

The machine's three convenient functions;

• Independent operation --- Single filling

• Intermittent operation ---- Intermittent filling

• Continuous operation ----- Continuous filling

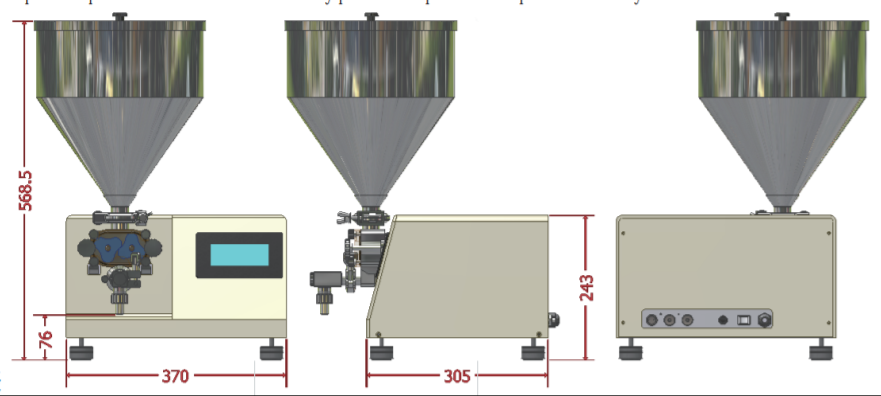

Dimension
