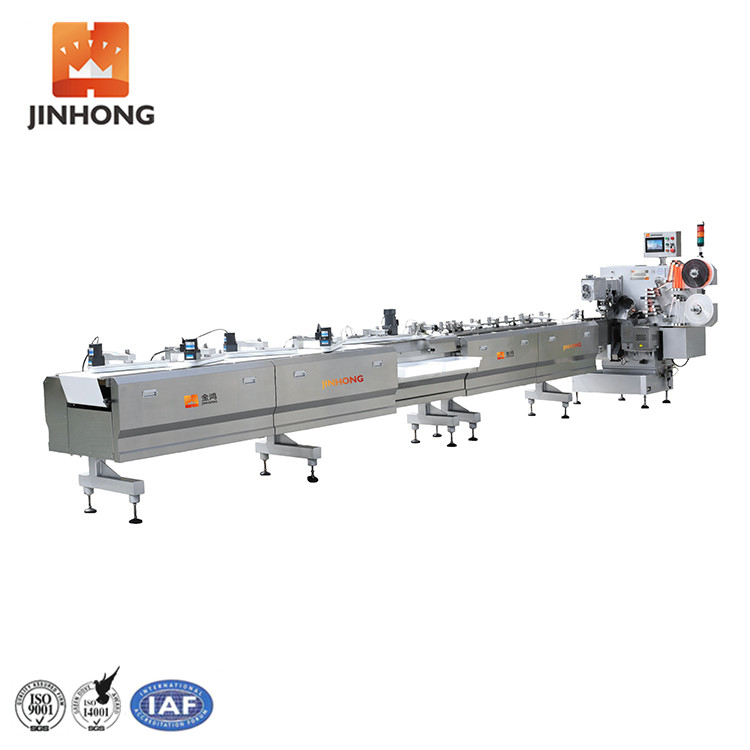

Jinhong JH-S800X02 Candy Chocolate Double Twist packaging Machine
1.Application: This machine is used for packing the product that are not suitable the brush to feed, like chocolate,nougat ,crunchy candy etc. It can work together with the production line by customized feeding conveyor to ensure auto production ,feeding and packing
2.Feature
2.1 This machine is equipped fully-automated Fully automatic computer control PLC touch screen, servo motor device system (instead of traditional mechanical differential and variable transmission) photoelectric sensor detection, so can compensate the material in the transport process with different speeds, bidirectional tracking to achieve automatic filling empty bag, thus effectively eliminating material tracking error, can reached 100% non empty packaging, reduce the waste of packing film and raw materials. Meanwhile, the transmission speed can be adjusted dynamically without changing the transmission gear. Automatically warning alarm system, all warning will display on PLC, easy to operation and maintenance
2.2 Servo motors attached with frequency converter realize infinitely variable controlling. Which is accurate, energy efficient, durable and adjustable during operation
2.3 It has full servo motors controller system, can catch and keep material distance and protect the material surface very well
2.4 Equipped with debris hopper and suction device (optional).Making the precision of conveying and 100% packing rate.
2.5 Food contact parts are made of stainless steel and special surface treatment, with good smoothness and easy cleaning, which meets the QS food hygiene standard.
2.6 Humanized and simple operating Interface with six languages can meet the customer’s demand from different country.
2.7 Water cooling cycle system can better protect product characteristics and appearance, suitable for high quality packaging requirements
3. Main Technical Parameters:
| Specifications of candy (mm) | Length | Width | Height |
| 15-42 | 15-30 | 6-25 | |
| Packing Speed | 100-400pcs/min | ||
| Packing Film | Glass paper,PVC,CPP,PET, Wax Paper,and other compsite material. | ||
| Voltage | 380V 3 Phase (can changed according customer's requirements) | ||
| Total Power | 7.5kw | ||
| Size Of Outward | 6900*1647*1729mm | ||
| Net Weight | 2100KG | ||

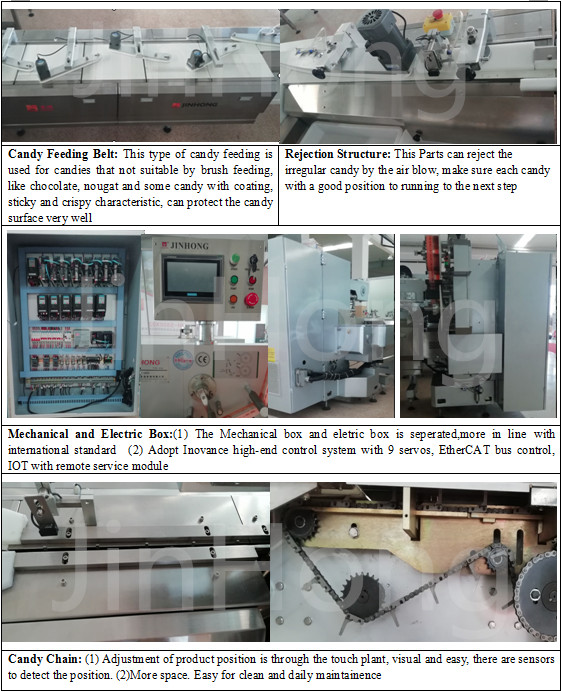

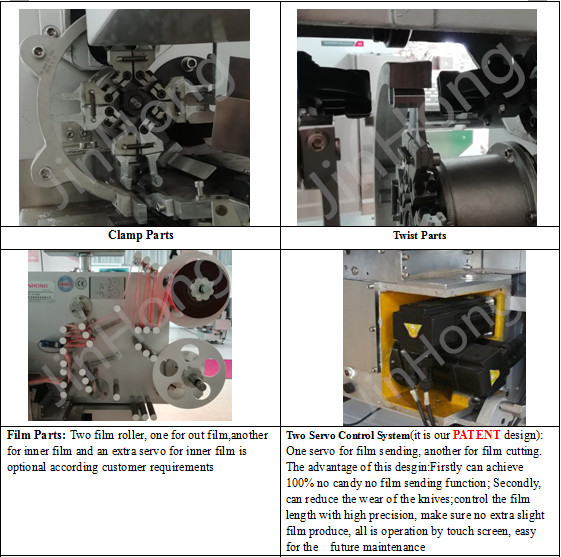

4. Machine Details:
1. Company Profile:
Zhejiang Jinhong Food Machinery Co., LTD is a modern enterprise specializing in candy-producing and packing machines. And also one of the largest manufacturer of candy packing machines in China. All our machines have passed quality test and obtained the CE, ISO certification.
Our main products include pillow packing, double/single twist packing, folding packing, full wrapping packing machine. Our machine can meet various packing requirements material, such like different shape candies, chocolate, nougat, toffee, lollipop, bread, biscuit and some coating, crispy or sticky sweets and so on. We believe that quality is the most important. We provide the high quality food machines and can properly adapt our machines according to your specific demand.
Our company will give our customers the greatest benefit with first-class products and service.
