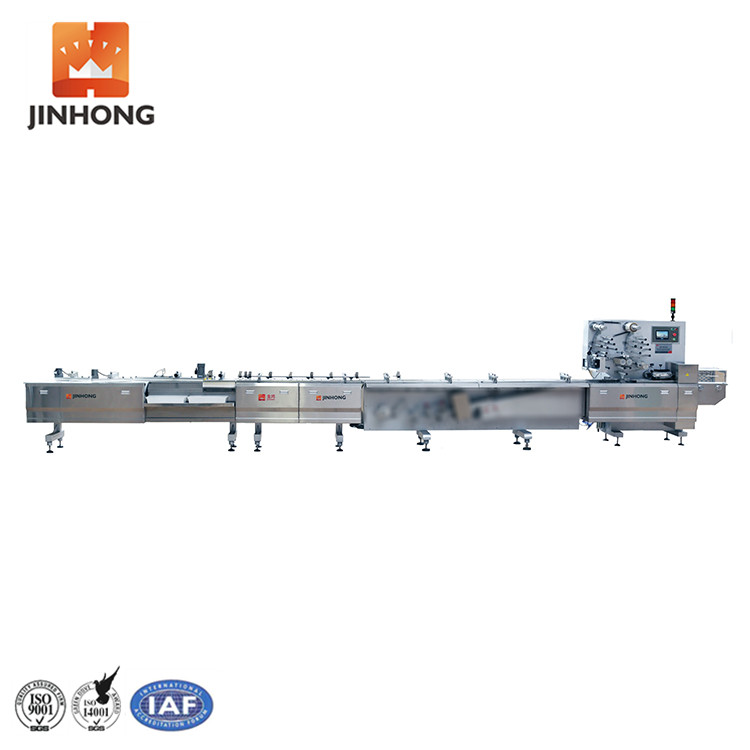

Fully Automatic 11 Servo Wafer Biscuits Bread Cake Food Packing Machine Flow Horizontal Pillow Packing Machine with Paper Tray
1.Application: This machine is used for automatic packing chocolate, energy bar, brownies, cookies, muffins and coated products, such as plastic pallet. Better packaging for quality and transportation,no manual contact during the packaging process,to maintain product integrity and hygiene.It can work together with the production line by customized feeding conveyor to ensure quto production,feeding and packing
2.Feature
2.1 This machine is equipped fully-automated touch-screen compute controller can be operated easily and the mechanical function is easy to check. Automatically warning alarm system, all warning will display on PLC, easy to operation and maintenance
2.2 It can realize the function of qutomatic paper cutting and paper folding, make the packing more perfect and more quality-preserving
2.3 Multi-area temperature control stations can ensure the quality of the excellent packaging, the sealing looks more strong and beautiful.
2.4 With servo-technology system, 11 servo-motor and high accuracy photoelectric sensor, can quickly and easily to adjust the packaging of different size and also adjust conveying speed accurately.
2.5 Equip with Auto film splicer device, overload protection and electric leakage protection. The functions of packing film auto-connection can save film and time.
2.6 It has reasonable structure with esthetic style, running smoothly with less noise., can work together with the production line by customized feeding conveyor to achieve the whole line with auto production, greatly reducing labor costs to improve production efficiency
2.7 Automatic product compensation device ensures its 100% no-empty package
2.8 Easy to clean the belt and change the hot/cold sealing by yourself
2.9 Multilingual operation interface can meet customer’s demand from different country

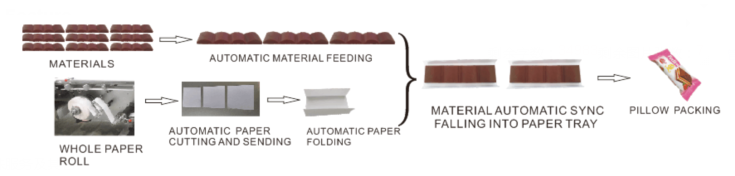

11 Servo EtherCAT bus Control with IOT Remote Module can supply after-sale service on net directly;With automaticly paper film cutting and sending, can feed the paper tray synchronously when candy falling onto the tray;With belt release structure, easy for daily cleanance and future maintanence
3. Main Technical Parameters:
| Specifications of candy (mm) | Length | Width | Height |
| 35-200 | 15-80 | 5-45 | |
| Fold Bag Length | 70-240mm | ||
| Packing Speed | 100-350pcs/min | ||
| Packing Film | PET/CPP, OPP/PET/CPP, VMPET, Transparent film and double layer or multi layer hot-seal film,cold-seal film | ||
| Voltage | 380V 3 Phase (can changed according customer's requirements) | ||
| Total Power | 13.6kw | ||
| Size Of Outward | 8878*1520*1991mm | ||
| Net Weight | 2880KG | ||

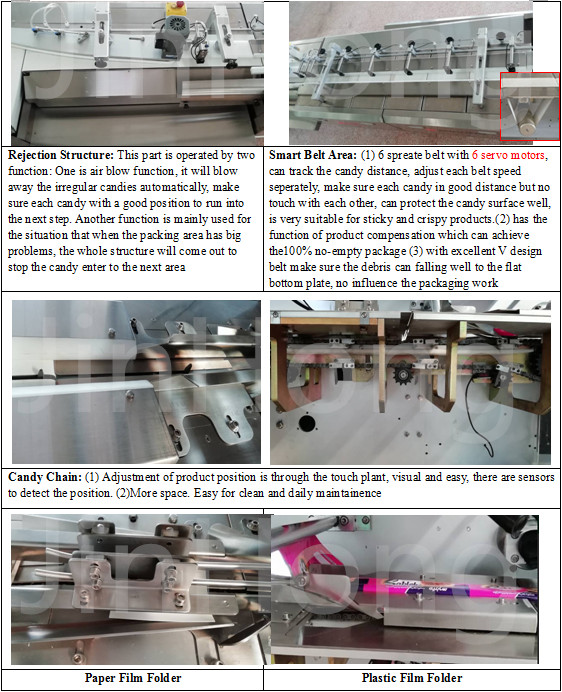

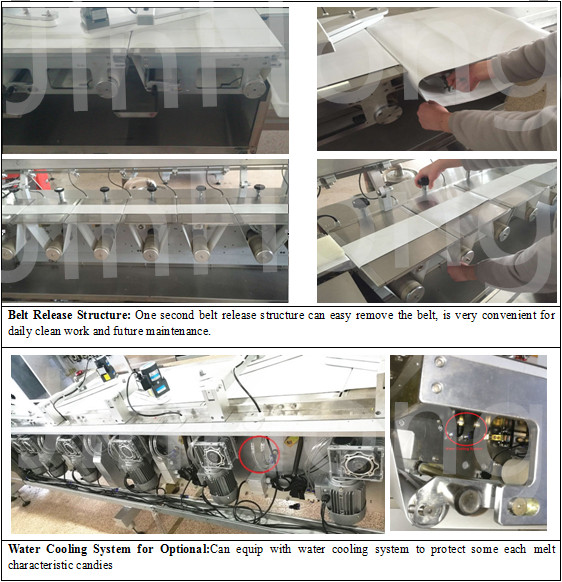

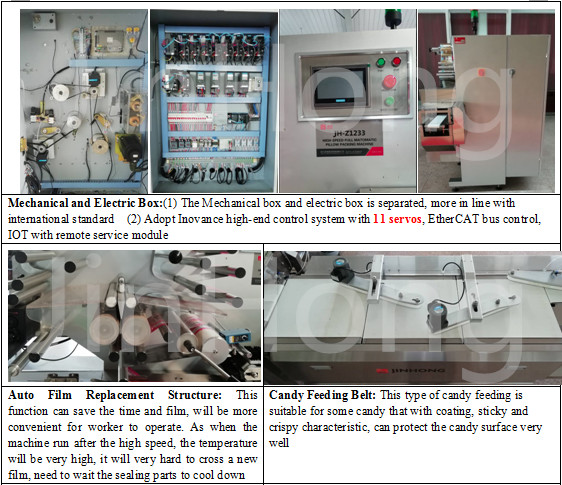

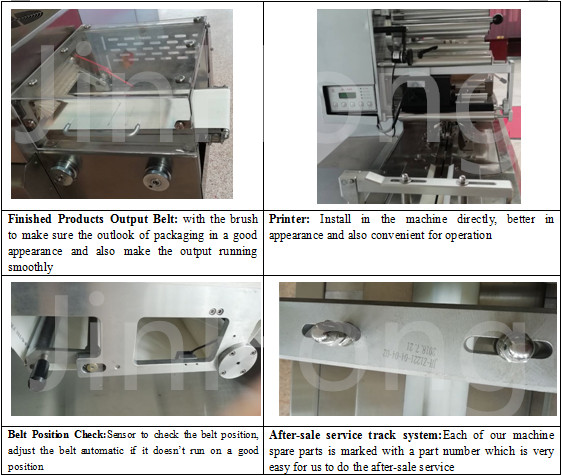

4. Machine Details:
1. Company Profile:

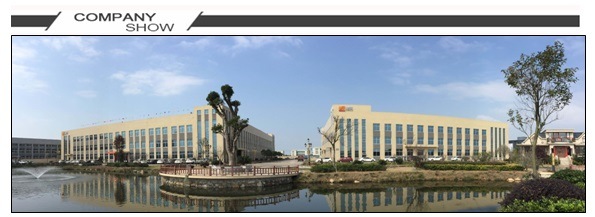

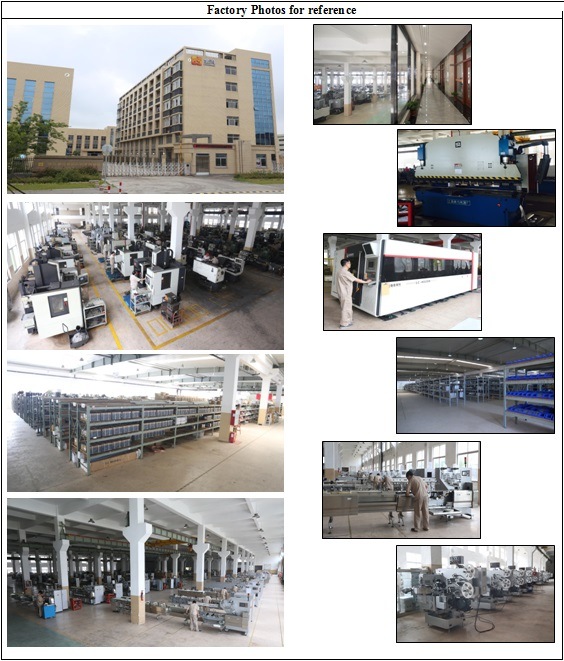

Zhejiang Jinhong Food Machinery Co., LTD is a modern enterprise specializing in candy-producing and packing machines. And also one of the largest manufacturer of candy packing machines in China. All our machines have passed quality test and obtained the CE, ISO certification.
Our main products include pillow packing, double/single twist packing, folding packing, full wrapping packing machine. Our machine can meet various packing requirements material, such like different shape candies, chocolate, nougat, toffee, lollipop, bread, biscuit and some coating, crispy or sticky sweets and so on. We believe that quality is the most important. We provide the high quality food machines and can properly adapt our machines according to your specific demand.
Our company will give our customers the greatest benefit with first-class products and service.
