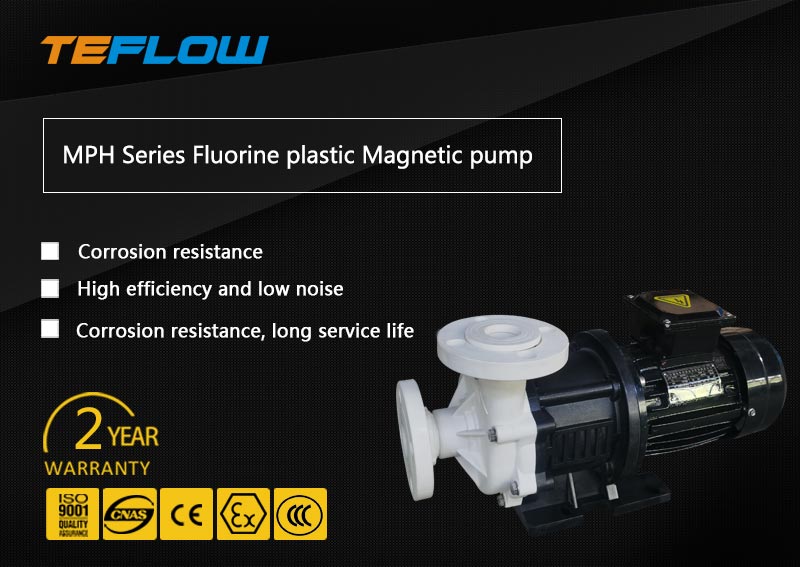

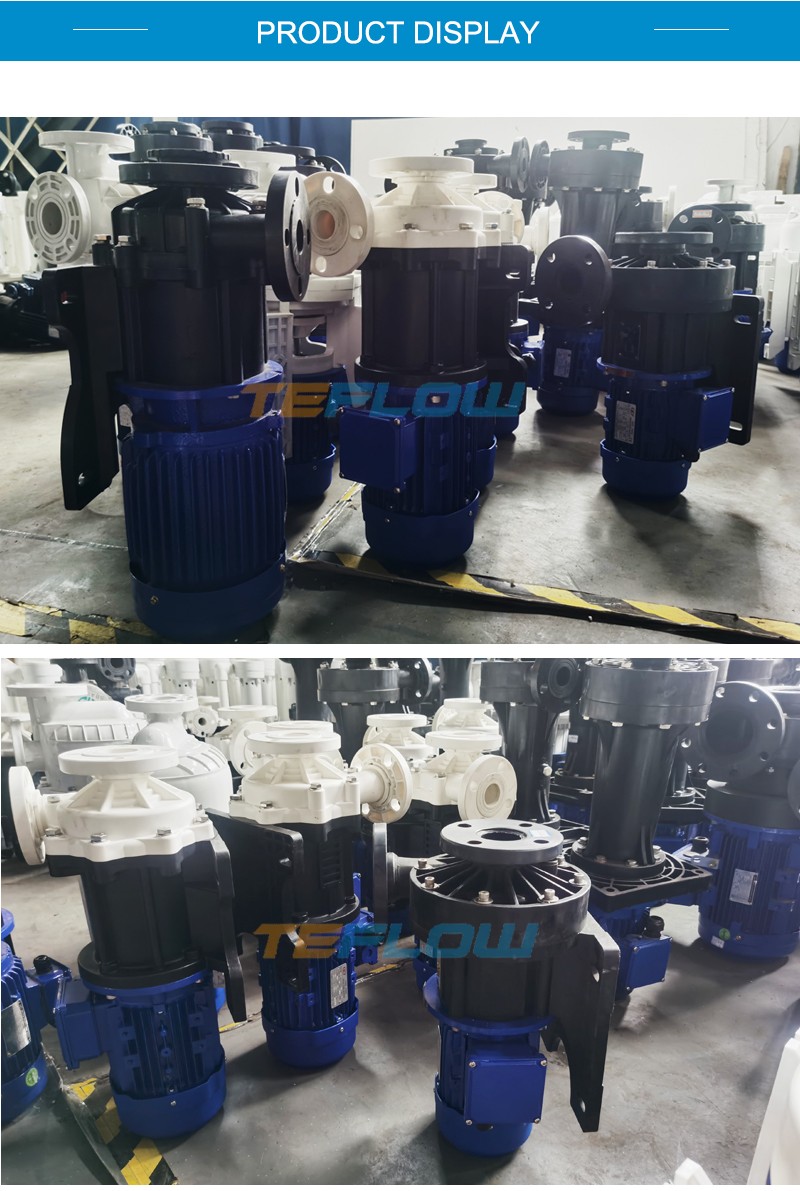

MPH Low pressure magnetic drive chemical liquid transfer circulating pump
Product presentation

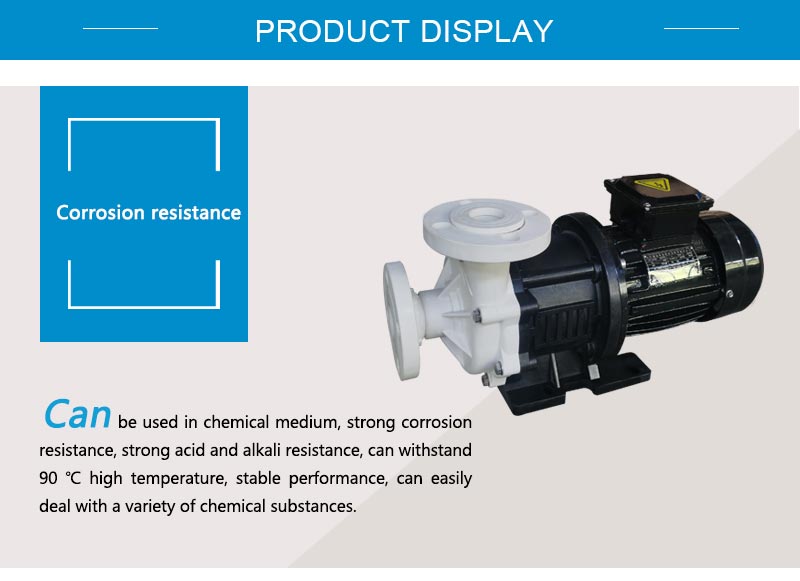

MPH pumps are suitable for all kinds of chemical acid and alkali liquid transportation, corrosion resistance, magnetic drive and no shaft seal design, no leakage, so it will not cause chemical liquid leakage and environmental pollution.

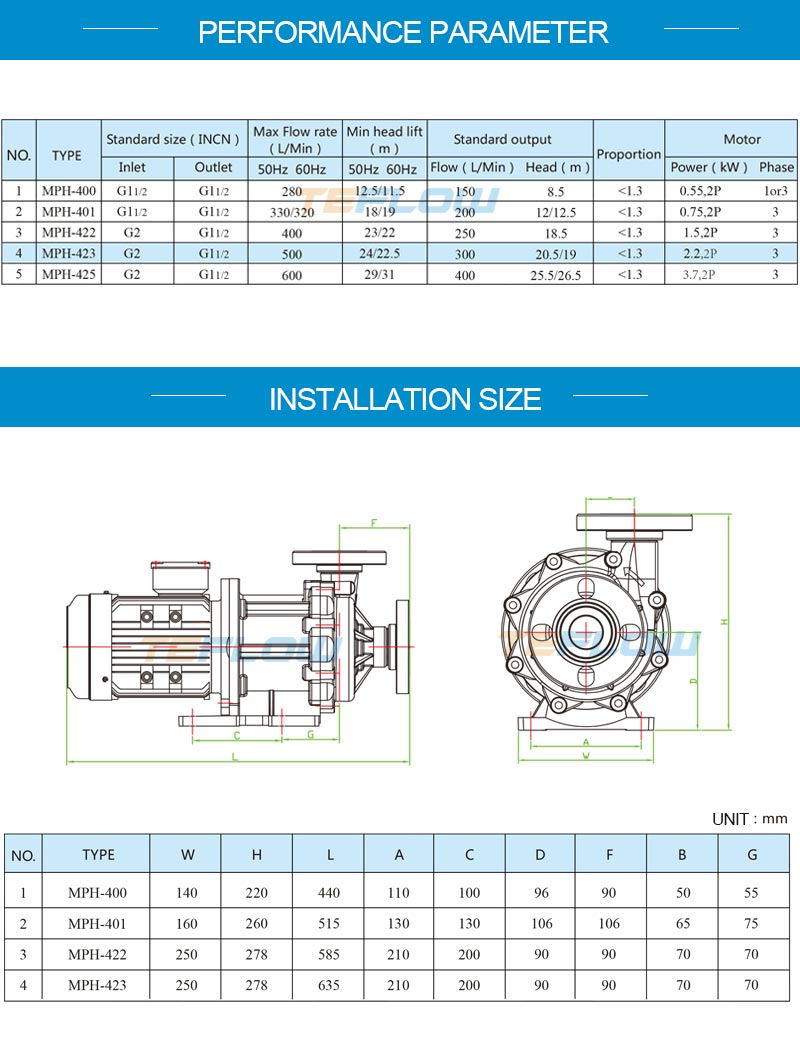

Main performance parameters
| Flow | 150L/min-400L/min |
| Head | 8.5 m - 26.5 m |
| Power | 0.55KW-3.7KW |
| Applicable medium | any concentration of acid, alkali, salt, organic solvents, etc. |
| Operating temperature | 0 oC to 90 oC medium density: Less then 1.3 |
| Pump housing material | F-FRPP/P-PVDF |
| Interface method | M-Thread joint |
| Pump shaft material | Ceramic, silicon carbide-SIC |
| Rubber material | V-Viton/E-EPDM/N-NBR |
| Frequency | 5-50HZ/6-60HZ |
