Chemical anticorrosive centrifugal acid pump

Chemical anticorrosive centrifugal acid pump

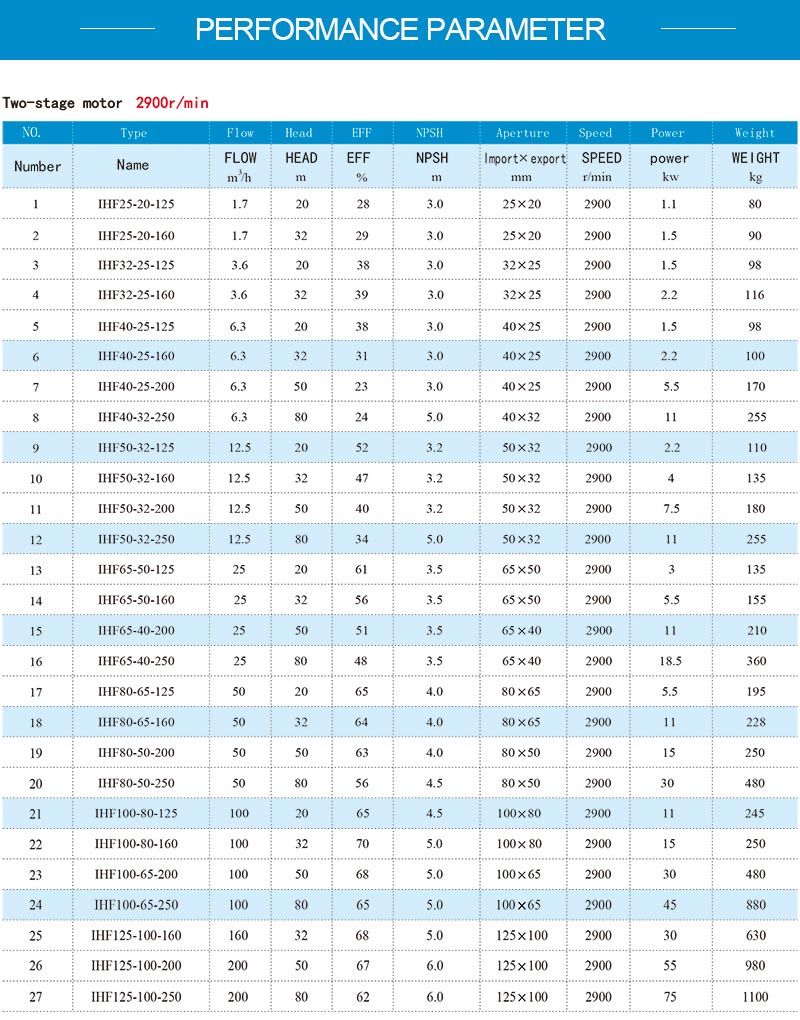

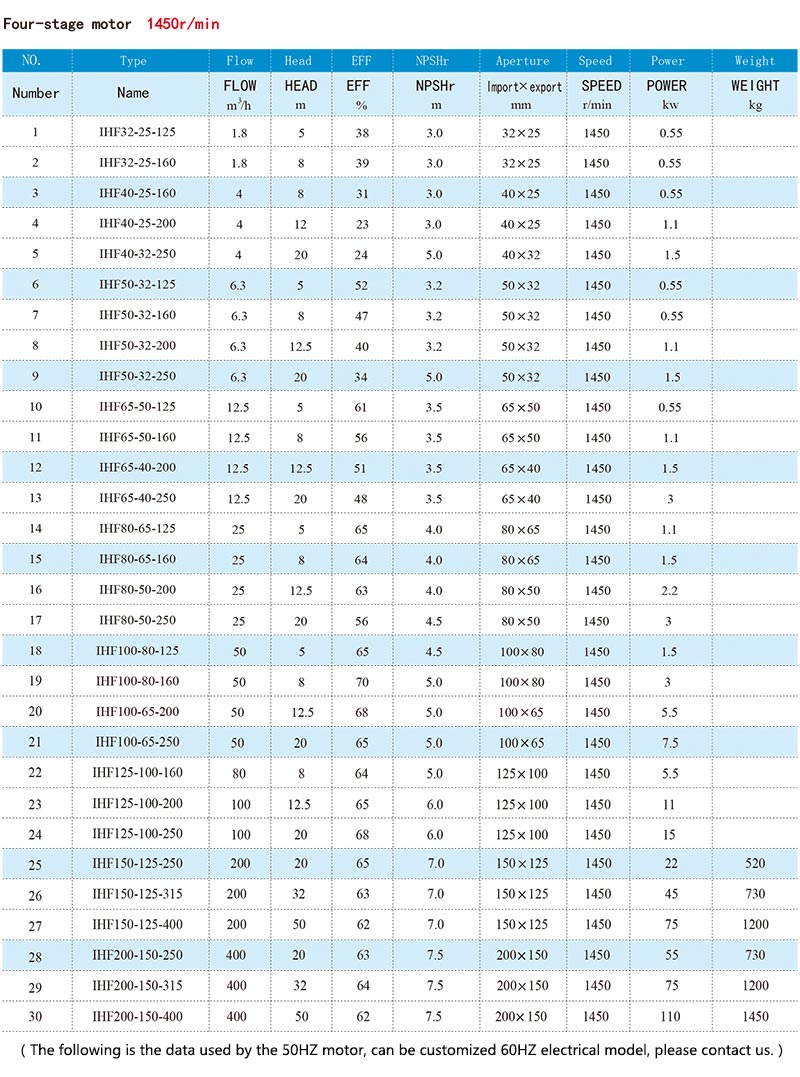

Flow:1.7m3/h-200m3/h(28-3333L/min) or 1.8-700m3/h (30L/min-11666L/min)

Head:20m-80m or 5m-50m;Power:1.5-75kw(2-102hp) or 0.55-110kw0.75-150hp);

EFF:23-70% or 23-76%;Aperture:25x20mm-125x100mm or 32x25mm-250x200m);

Tenperature range:-25℃-150℃

Brand Name:TEFLOW PUMP

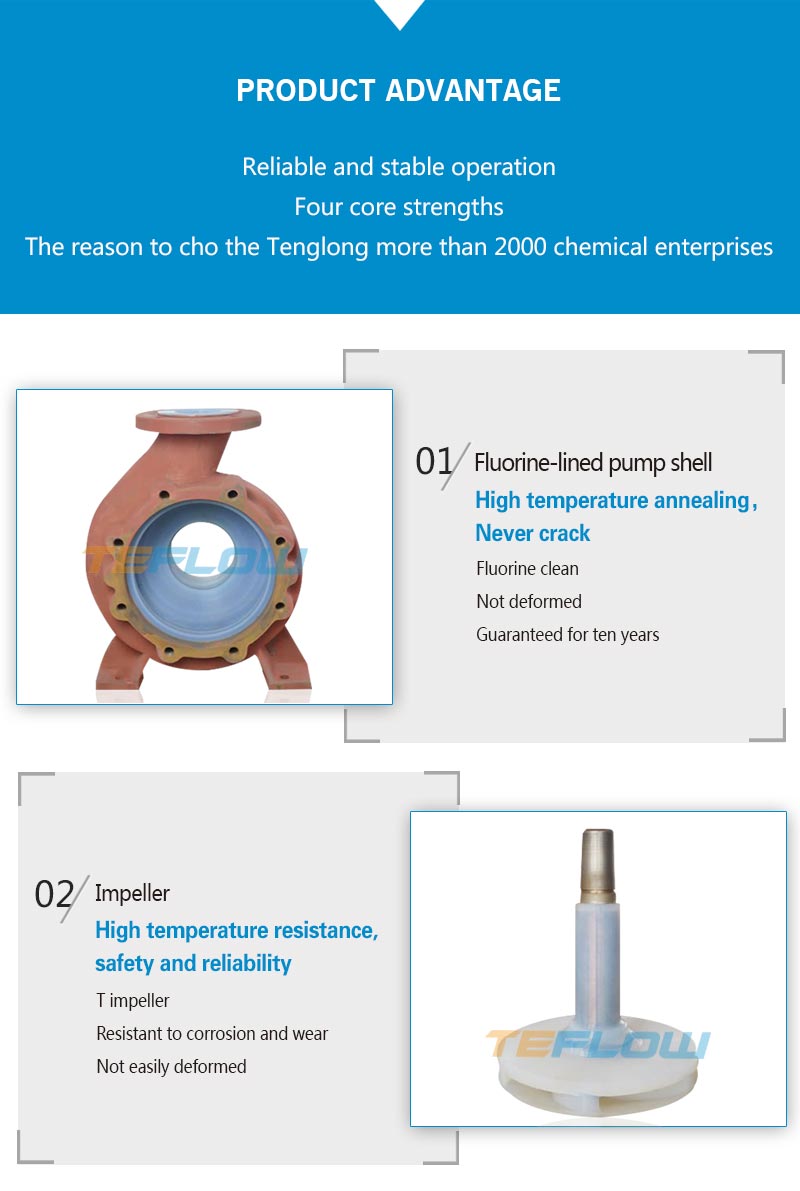

-Introduction: IHF overcurrent parts are made of all tightly lined fluoroplastic materials and equipped with external ripples.The inlet and outlet of the pump are uniformly reinforced with cast steel to enhance the pressure resistance of the pump. The pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, high mechanical strength, stable operation, strict and reliable sealing performance, long service life and so on.

-Product uses: Petroleum, electric power, agricultural irrigation, medicine, electroplating, paper, food and other industries.

-Medium: sulfuric acid pump, hydrochloric acid pump, hydrofluoric acid pump, nitric acid pump, Wang pump, strong alkali, strong oxidant, organic solvent and other strong corrosive media without damage.
