Acid proof magnetic pumps for nitric acid liquid

ID:20080416001

Category: Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 500.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Chemical pumpnitric acid pumpmagnetic coupling pumpsAcid and alkali resistantsouium hydroxide pump

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Valves & Pumps & Compressors

Trademark

TEFLOW

Product Package

Non-fumigation wooden case.

Specification

TMF

Place of Origin

Anhui,China

Port

Shanghai

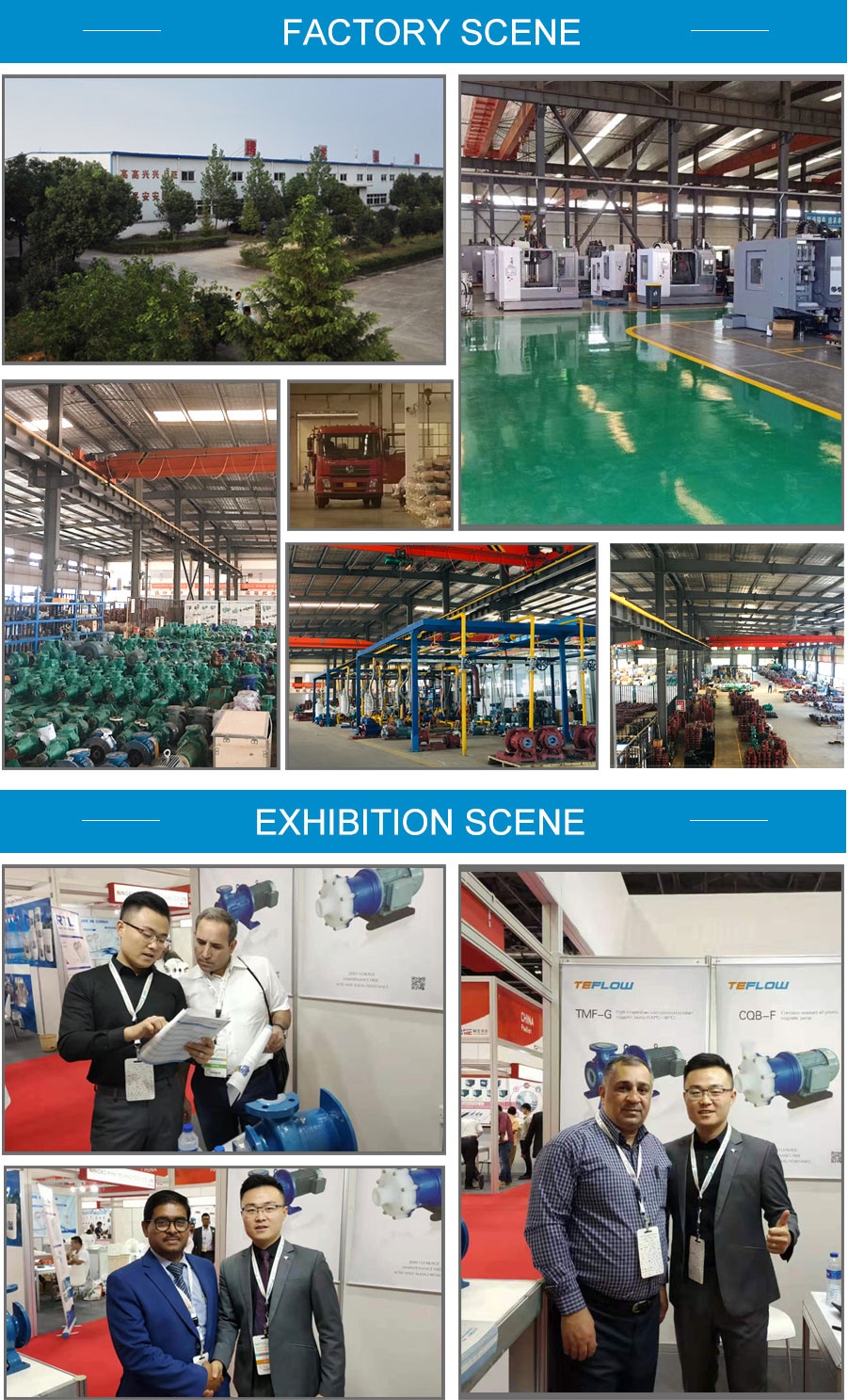

Company Details.jpg

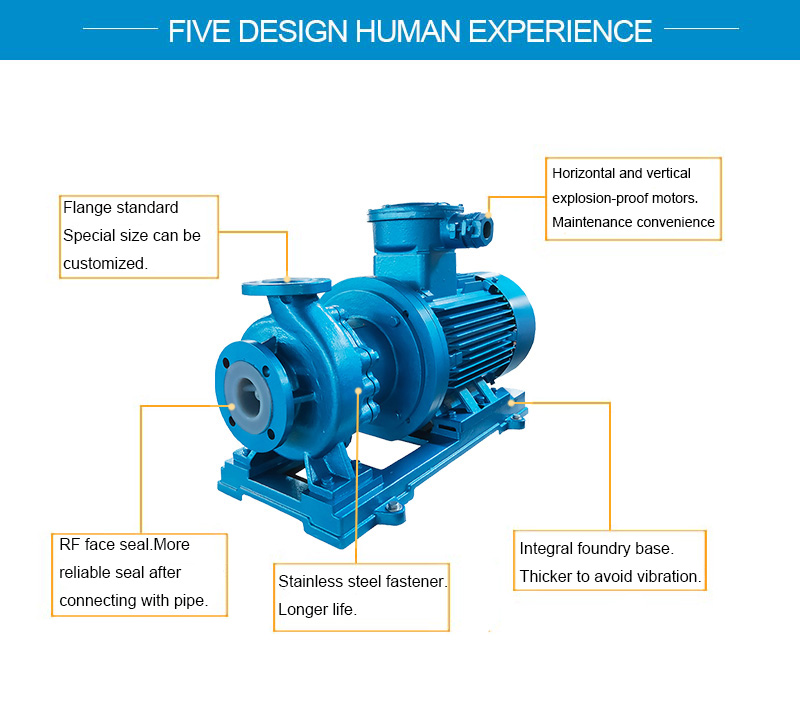

TMF Acid proof magnetic pumps for nitric acid liquid

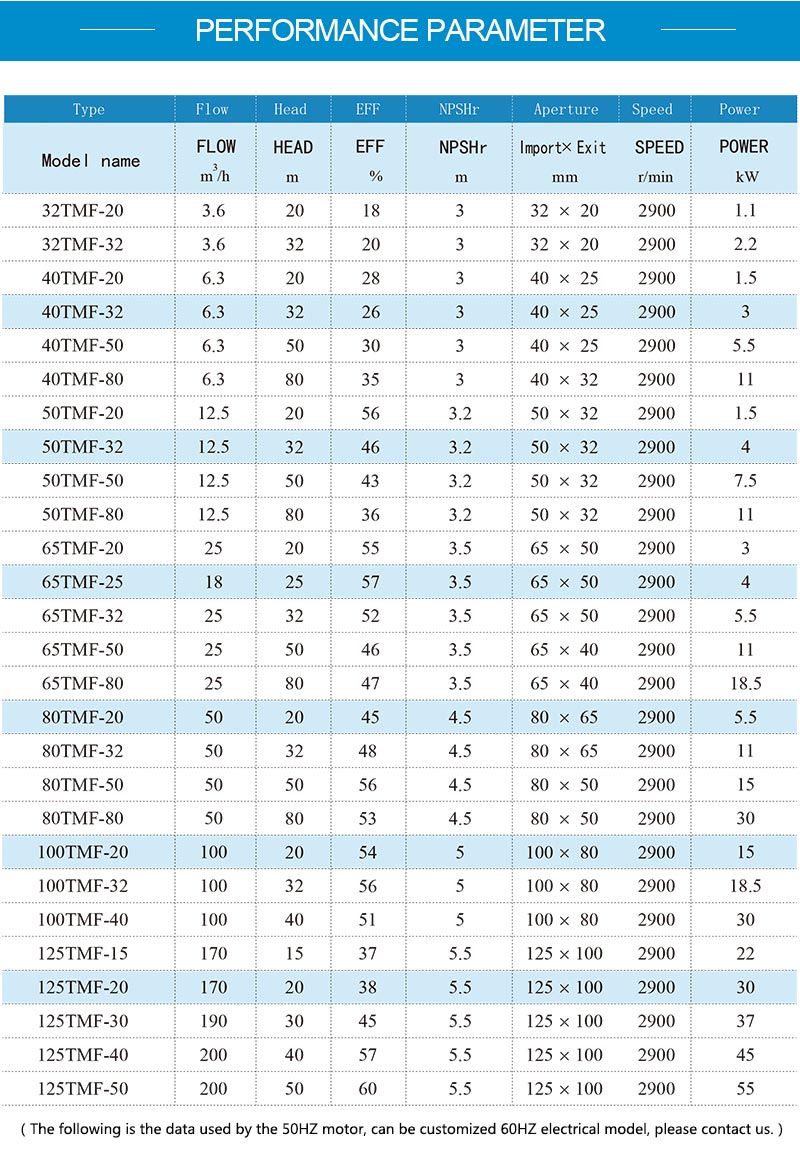

Flow:3.6-200m3/h(60-3333L/min);

Head:20-80m (2Bar-8Bar)

Power:1.1-55kw(1.5-75hp);

EFF:18-60%

Aperture:32x20mm-125x100mm;

Temperature range:-30℃ to 100℃

Brand Name:TEFLOW PUMP

-Introduction:TMF series of pumps uses a variety of new materials, can be different according to the transport medium to replace a variety of suitable materials. Can be customized high temperature type, lye type, granular and so on.

-Product uses:Chlorine, fluorine, benzene, alcohol, into foil, pickling, pesticides, medicine and other industries strong acid medium.

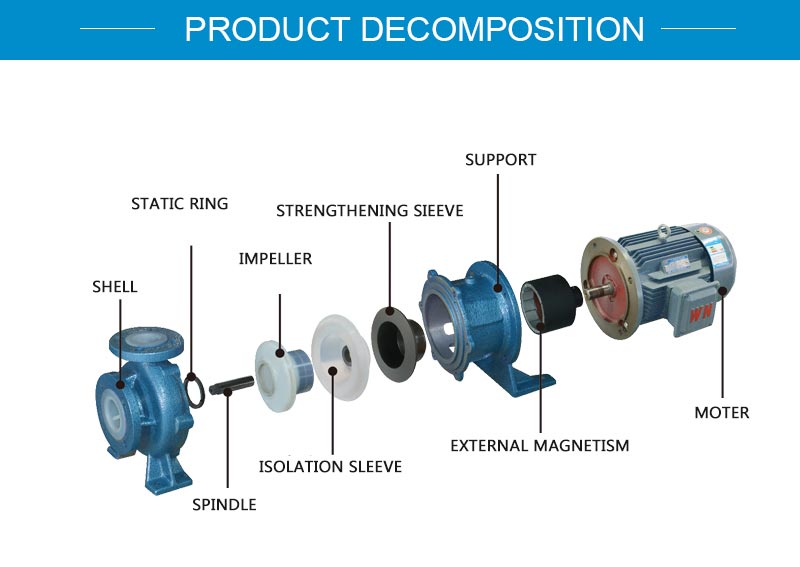

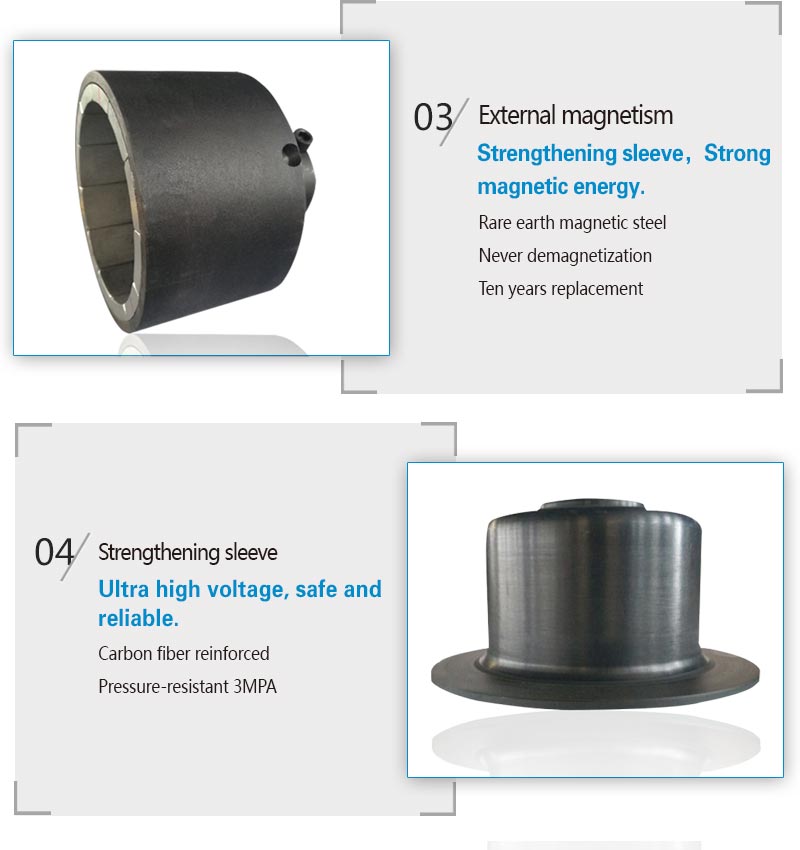

-Material:TMF series of pumps are made of all silicon carbide grinding materials ; The pump shell is made of HT200/F46; The impeller is made of F46/HdFeB, and the ring,spindle and shaft sleeve is made of SIC; The external magnetism is made of HT200/NdFeB.

-Medium: sulfuric acid pump, hydrochloric acid pump, hydrofluoric acid pump, nitric acid pump, strong alkali, strong oxidant, organic solvent and other strong corrosive media without damage.

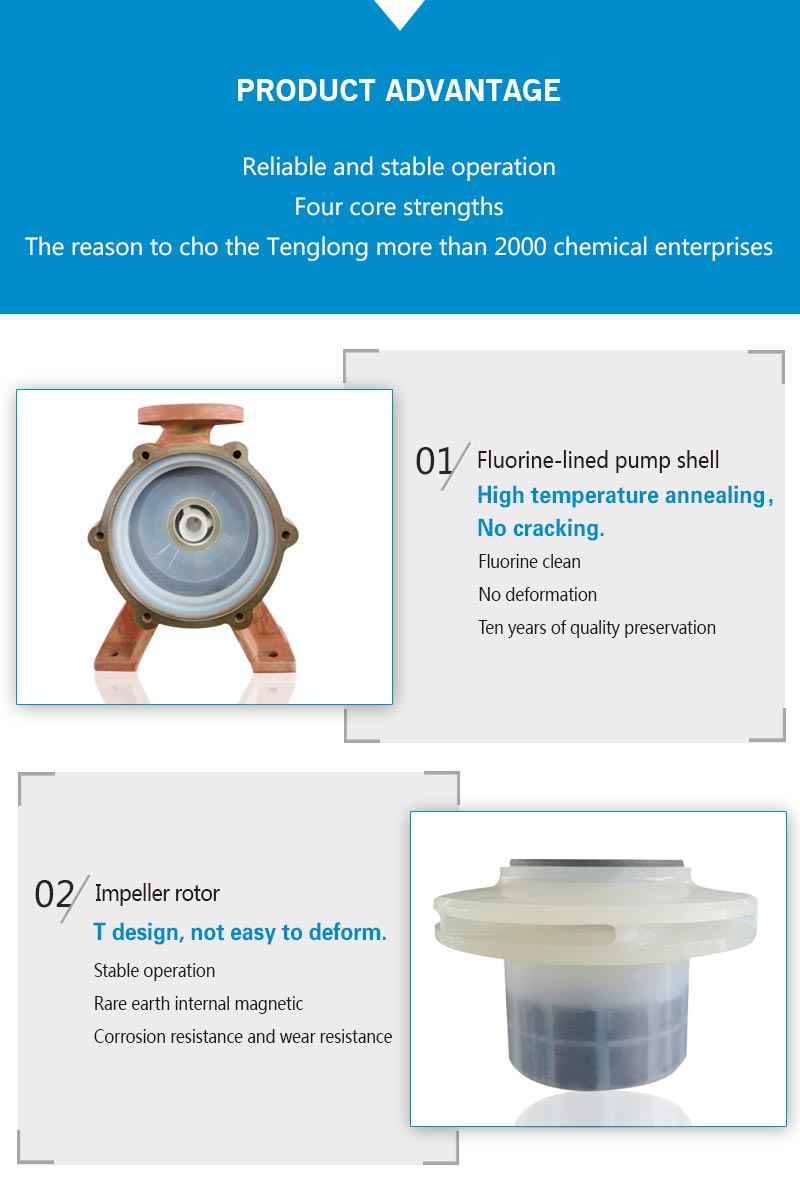

TMF1 (5).jpg
