RCCB RCDEARTH LEAKAGEvc8036IEC610082P4P16-63Adin rail1P+N63A
T/T
ADL1-63 - EARTH LEAKAGE PROTECTION
DESCRIPTION / APPLICATION
ADL1-63 series RCCB (without overcurrent protection) applies to AC 50Hz, rated voltage 240V for 2 poles, 415V for 4poles, rated current up to 63A. When electric shock occurs to human or leakage current in grid exceeds stipulated values, RCCB cuts off the fault power in a very short time to protect the safety of human and electrical equipments. It can also function as non frequently switching of circuits. It is in conformity with IEC61008-1 standard.
MAIN TECHNICAL DATA
Electrical | Standard | VC8035 IEC61008-1 | |
Rated current | A | 16A,20A,25A,32A,40A,50A,63A | |
Poles | 1P+N, 3P+N | ||
AC Volts | V | 240V, 415V | |
Rated frequency | Hz | 50/60 | |
Rated residual operated current Inc | A | 0.03A,0.1A,0.3A | |
Rated limited short circuit current l△c | A | 6000A | |
Rated limited residual short circuit current l△c | A | 6000A | |
Rated making and breaking capacity Im | 500A(ln<50A), 630A(ln = 63A) | ||
Rated residual making and breaking capacity l△m | 500A(ln<50A), 630A(ln = 63A) | ||
Rated residual non-operated current I△n | 0.5 I△n | ||
Mechanical | Electrical life expectancy | h | 1000 |
Mechanical life expectancy | h | 2000 | |
Protection degree | IP20 | ||
Best Ambient temperature | ℃ | 30 | |
Ambient temperature (with daily average≤35℃） | ℃ | -30℃ to +60℃ | |
Installation
| Terminal connection type | Cable/Pin-type busbar | |
Connection | Top and bottom | ||
Tighten torque (max) | Nm | 3.0Nm | |
Mounting | DIN Rail 35mm by means of fast clip device |

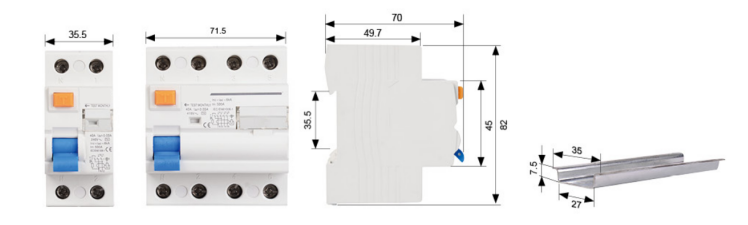

DIMENSIONS AND MOUNTING
